Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: November 24, 2020

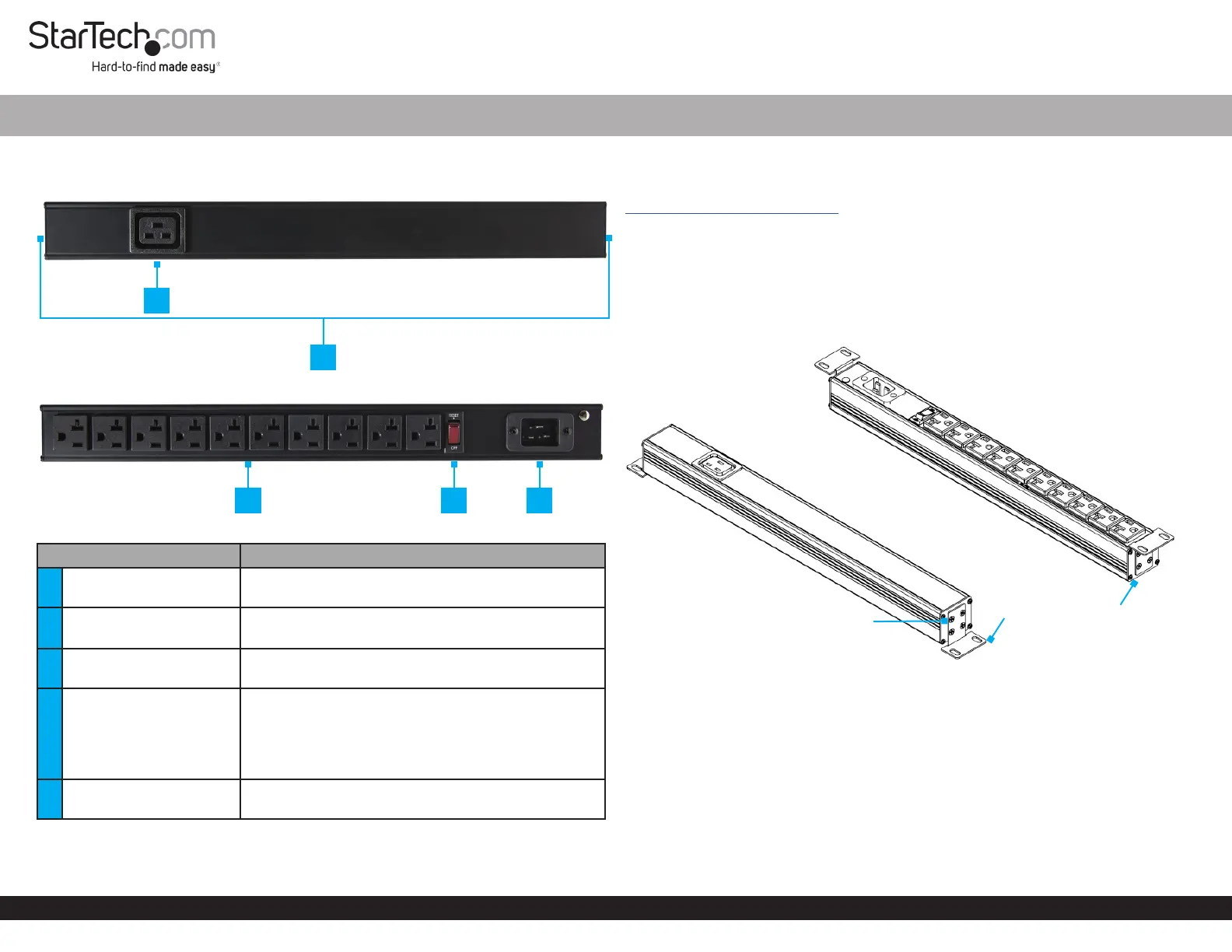

Product Diagram (RKPW101920)

Front/Rear View

Front/Rear View

PortFunction

1C19 Receptacle

• Connect a Power Distribution Unit (PDU) or

Uninterruptible Power Supply (UPS)

2Mounting Holes

• Connect the Reversible Mounting Brackets before

mounting the Power Strip into a Server Rack

3NEMA 5-20 (x10)

• Connect up to 10 Rack-Mounted Powered

Devices from the Server Rack

4Power Switch

• Rocker style Power Switch

• Flip the Power Switch to the RESET position to

Reset / turn the power On

• Flip the Power Switch to the OFF position to turn

the power O

5C20 Inlet

• Connect the Power Cable to provide power to the

Power Strip

10-Outlet Rack Mount Power Strip - 5-20R - 20A

Requirements

For the latest requirements and to view the full manual, please visit:

www.startech.com/RKPW101920.

• Power Source

• 1U of Server Rack Space

• Phillips Head Screwdriver

Installation

Mounting the Power Strip in a Server Rack

1. Determine the mounting location and mounting direction for the Power Strip.

Note: The Power Strip will use 1U of Server Rack space.

2. Align the 4 holes in one Reversible Mounting Bracket with the 4 Mounting Holes

on one side of the Power Strip. Ensure the two Server Rack Mounting Holes in the

Reversible Mounting Bracket are ush with the intended front side of the Power

Strip.

3. Insert 4 Mounting Screws through the Reversible Mounting Bracket and into the

Power Strip.

345

1

2

Reversible Mounting Brackets

Mounting Screws
