Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: July 16, 2021 4:40 PM

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

11

Product IDs

SHELF-1U-12-FIXED-S

SHELF-1U-12-FIXED-V

SHELF-1U-20-FIXED-S

SHELF-1U-20-FIXED-V

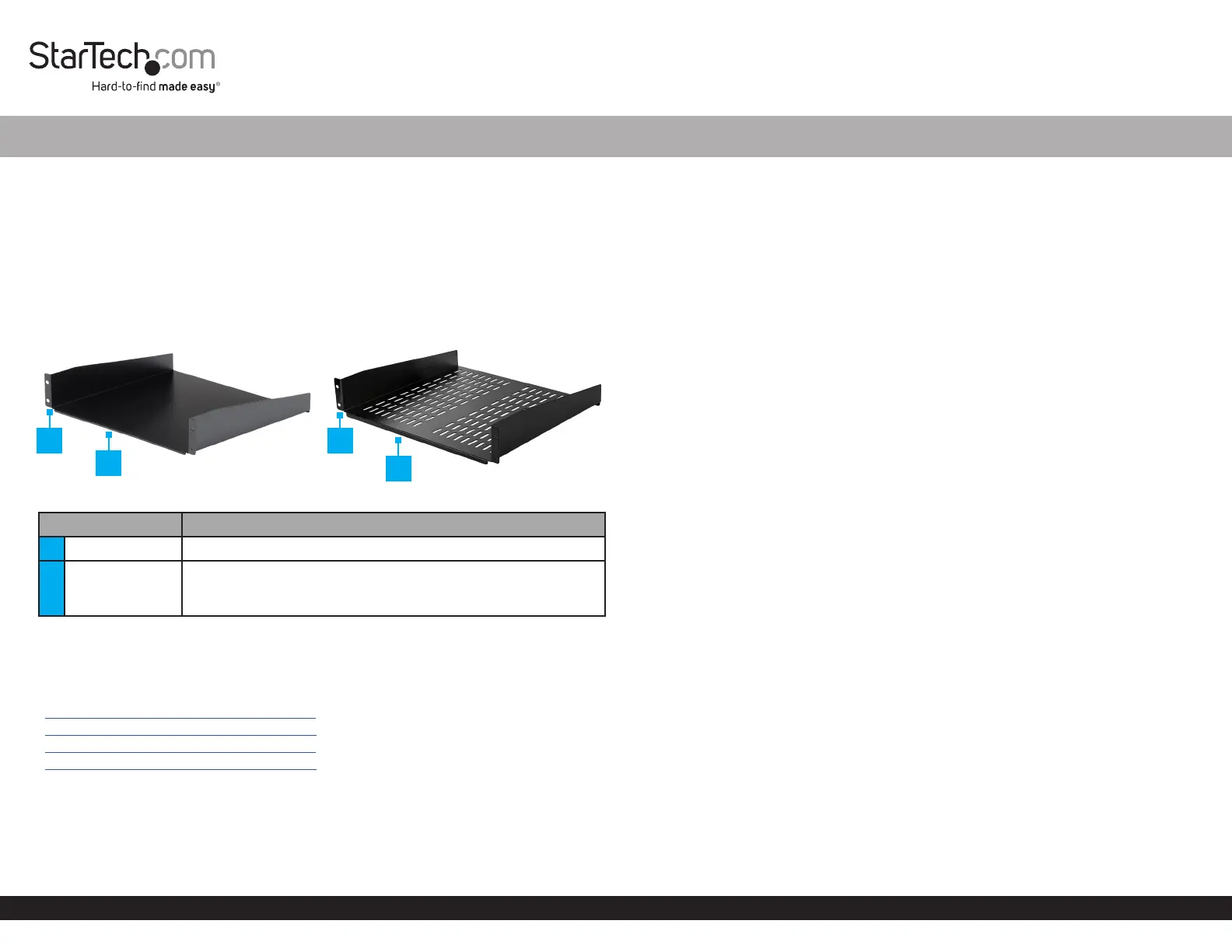

Product Diagrams

Front - Angled View

Solid Vented

ComponentFunction

1Mounting Holes• Mount the 1U Solid/Vented Shelf into a Rack or Cabinet.

2Shelf Lip

• Mount the 1U Solid/Vented Shelf with the Shelf Lip

oriented downwards to prevent Equipment from catching

during storage and/or retrieval

Product Information

For the latest manuals, product information, technical specications, and declarations

of conformance, please visit:

www.StarTech.com/SHELF-1U-12-FIXED-S

www.StarTech.com/SHELF-1U-12-FIXED-V

www.StarTech.com/SHELF-1U-20-FIXED-S

www.StarTech.com/SHELF-1U-20-FIXED-V

Requirements

• 1U Available Rack Space

1U Solid/Vented Cantilever Shelf - 12/20 in. Depth

Warnings

• Read the entire manual and ensure the instructions are fully understood before

assembling and/or using this product.

• Before adding equipment to this product, ensure this product has been properly

mounted.

• Ensure the weight of the equipment does not exceed the weight capacity of this

product. If the weight capacity is exceeded, personal injury or damage to the

equipment are possibilities. This product can support the following weight: up

to 55 lb. (25 kg). This product can only support the maximum weight capacity if 4

M6 Screws / Cage Nuts / Plastic Washers are used to ax this product to a rack or

cabinet.

Package Contents

• 1U Solid/Vented Shelf x 1

• M6 Cage Nuts x 4

• M6 Screws x 4

• M6 Plastic Washers x 4

• Quick-Start Guide x 1

Installation

Mount the 1U Solid/Vented Shelf into a Rack or Cabinet

Use the included M6 Cage Nuts, M6 Screws, and M6 Plastic Washers to install the 1U

Solid/Vented Shelf.

Notes: This product can support the following weight: 55 lb. (25 kg).

The following installation instructions are for square mounting holes.

1. Locate a suitable location in a Rack or Cabinet to mount the 1U Solid/Vented

Shelf.

Note: The 1U Solid/Vented Shelfitself requires 1U of space within a Rack or

Cabinet.

2. Insert the Wing (side) of an M6 Cage Nut into the back of the a Cage Nut Hole.

3. Insert the second Wing of the M6 Cage Nut into the selected Cage Nut Hole, using

pressure by hand, or with a Cage Nut Tool.

4. Repeat steps 2 and 3 to insert a total of 4 Cage Nuts.

*Product may vary from images
