Key Features

•Compact unit supports one on-air location

•Microphone preamplifier with selectable gain and P48 power

•One main and four talkback output channels

•User-controlled headphone mixing

•Superior audio quality and extensive feature configuration

•SMPTE ST 2110 audio-over-Ethernet technology support

•SMPTE ST 2022-7 Redundant Stream capability

•Independent management Ethernet interface

•Dual PoE and 12 Vdc powering

•Supports REMI/At-Home applications

Introduction

The Model 5534 Announcer’s Console provides a combination

of high-performance analog and digital audio capability with an

extensive set of user features and configurable resources. The

unit supports the SMPTE

®

ST 2110 suite of standards to imple-

ment audio-over-Ethernet networking connectivity. For enhanced

network reliability, redundant stream performance, following

the ST 2022-7 standard, is also supported. The Model 5534 is

intended for use in demanding broadcast sports, eSports, live

event, entertainment, and streaming broadcast applications.

Requiring only minimal connections for deployment, the Model

5534 can provide one on-air talent with all the resources they

need to support a wide range of applications. The compact,

rugged enclosure is intended for tabletop use, small enough for

use “court-side” or in a crowded booth, yet flexible enough for

numerous remote production scenarios.

The Model 5534 integrates directly into ST 2110 environments.

With just a PoE Ethernet (Power-over-Ethernet) Gigabit network

connection, a microphone, and a pair of headphones, a complete

broadcast on-air position can be created. With the addition of

a second Ethernet connection, enhanced ST 2110 performance

can be achieve using the ST 2022-7 Redundant Streams stan-

dard. An independent Gigabit network interface provides access

to the Model 5534’s management webpages. This allows full

separation of audio transport and management functions.

Eight ST 2110 receiver (input) channels and an integrated

sidetone function allow users to easily create their desired head-

phone audio mix. They’ll enjoy clear and “click-free” monaural or

stereo audio that should help their on-air performance. A ninth

ST 2110 receiver (input) channel allows an alternate microphone

audio source to be supported.

The Model 5534 provides eight ST 2110 sender (output) audio

channels. One channel is used for the main output, one serves

as a configurable auxiliary output channel, and two provide a

digital audio version of the headphone output. The remaining

four sender (output) channels allow users to communicate (“talk-

back”) with a variety of support personnel. The range of Model

5534 operating capabilities includes the ability to create talent

cue (IFB) channels. This resource was specifically included for

REMI/At-Home applications.

The Model 5534 was designed to meet three main goals:

support ST 2110 standards, provide great audio quality, and

offer simple use and an extensive set of configurable features.

The Model 5534 uses the ZMAN module from Merging Tech-

nologies to provide its ST 2110 capabilities. By partnering with

Merging Technologies, Studio Technologies is able to offer solid

ST 2110 performance that’s been field-proven over many years.

On-going development efforts have led to a continuous stream

of ST 2110 improvements.

Model 5534 Announcer’s Console

Featuring ST 2110 Technology

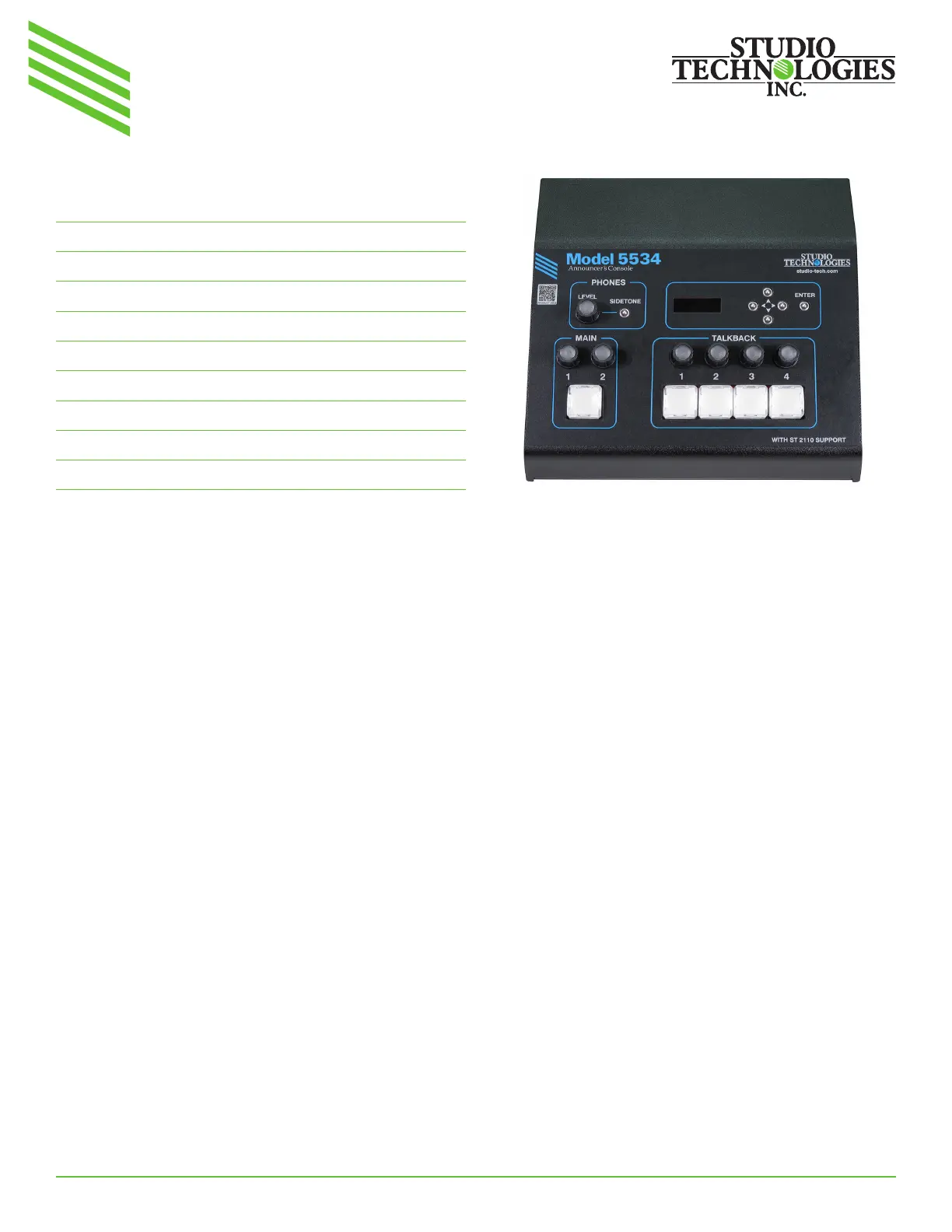

Model 5534 Announcer’s Console Top View
