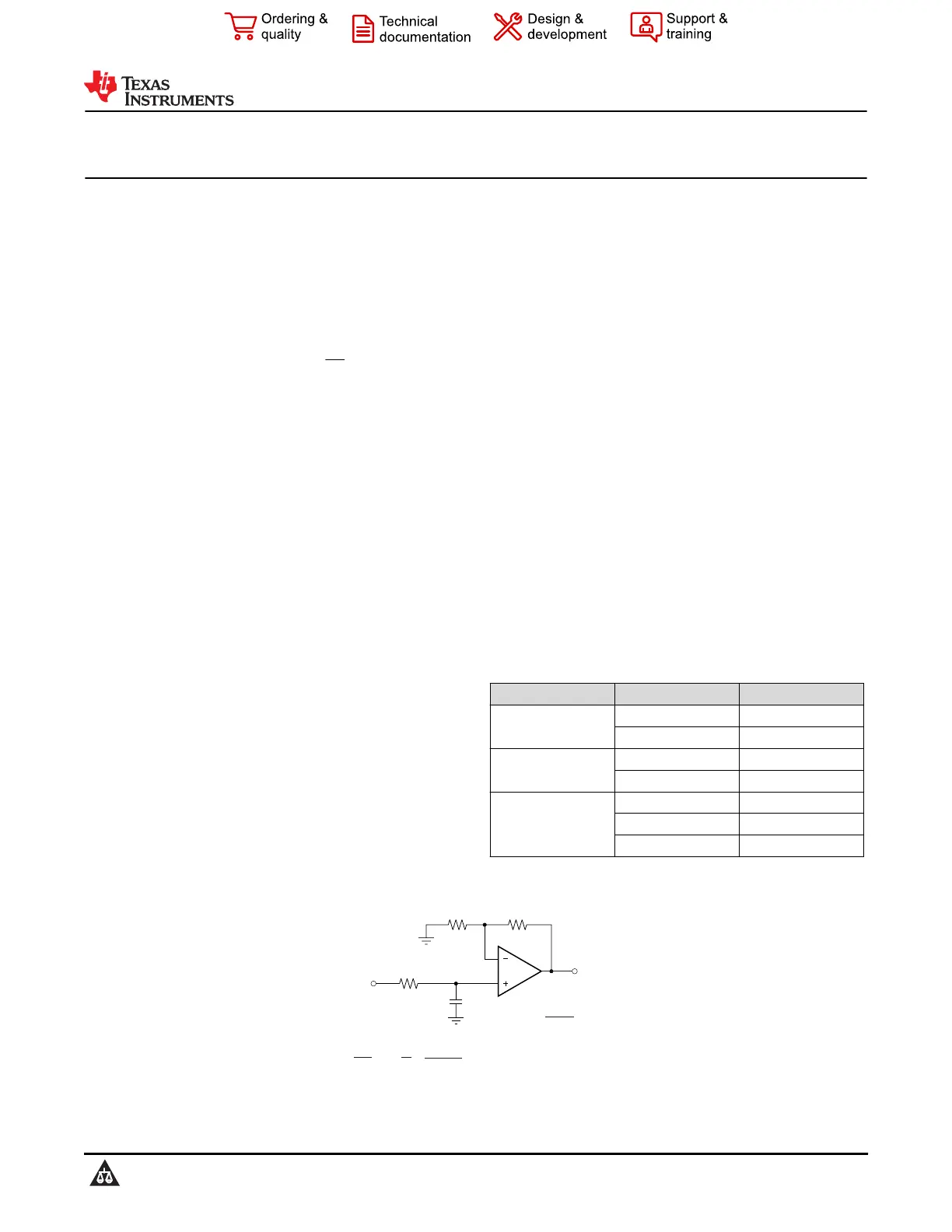

LMV321A-Q1, LMV358A-Q1, LMV324A-Q1 Automotive Low-Voltage Rail-to-Rail Output

Operational Amplifiers

1 Features

•AEC-Q100 qualified for automotive applications

–Temperature grade 1: –40°C to +125°C, TA

–Device HBM ESD classification level 2

–Device CDM ESD classification level C6

•Low input offset voltage: ±1 mV

•Rail-to-rail output

•Unity-gain bandwidth: 1 MHz

•Low broadband noise: 30 nV/√ Hz

•Low input bias current: 10 pA

•Low quiescent current: 70 µA/Ch

•Unity-gain stable

•Internal RFI and EMI filter

•Operational at supply voltages as low as 2.5 V

•Easier to stabilize with higher capacitive load due

to resistive open-loop output impedance

•Extended temperature range: –40°C to 125°C

2 Applications

•Optimized for AEC-Q100 grade 1 applications

•Infotainment and cluster

•Passive safety

•Body electronics and lighting

•HEV/EV inverter and motor control

•On-board (OBC) and wireless charger

•Powertrain current sensor

•Advanced driver assistance systems (ADAS)

•Single-supply, low-side, unidirectional current-

sensing circuit

3 Description

The LMV3xxA-Q1 family includes single (LMV321A-

Q1), dual (LMV358A-Q1), and quad-channel

(LMV324A-Q1) low-voltage (2.5 V to 5.5 V)

automotive operational amplifiers (op amps) with

rail-to-rail output swing capabilities. These op amps

provide a cost-effective method for space-constrained

applications such as infotainment and lighting where

low-voltage operation and high capacitive-load drive

are required. The capacitive-load drive of the

LMV3xxA-Q1 family is 500 pF, and the resistive open-

loop output impedance makes stabilization easier with

much higher capacitive loads. These op amps are

designed specifically for low-voltage operation (2.5 V

to 5.5 V) with performance specifications similar to the

LMV3xx-Q1 devices.

The robust design of the LMV3xxA-Q1 family

simplifies circuit design. The op amps feature unity-

gain stability, an integrated RFI and EMI rejection

filter, and no-phase reversal in overdrive conditions.

The LMV3xxA-Q1 family is available in industry-

standard packages such as SOIC, MSOP, SOT-23,

and TSSOP packages.

Package Information

(1)

PART NUMBERPACKAGEBODY SIZE (NOM)

LMV321A-Q1

DBV (SOT-23, 5)1.60 mm × 2.90 mm

DCK (SC70, 5)1.25 mm × 2.00 mm

LMV358A-Q1

D (SOIC, 8)3.91 mm × 4.90 mm

DGK (VSSOP, 8)3.00 mm × 3.00 mm

LMV324A-Q1

D (SOIC, 14)8.65 mm × 3.91 mm

PW (TSSOP, 14)4.40 mm × 5.00 mm

DYY (SOT-23, 14)4.20 mm × 1.90 mm

(1)For all available packages, see the orderable addendum at

the end of the data sheet.

R

G

R

F

R

1

C

1

V

IN

V

OUT

= 1 +

V

V

OUT

IN

R

R

F

G

1

1 + sRC

11

((

((

1

2pRC

11

f=

-3dB

Single-Pole, Low-Pass Filter

LMV321A-Q1, LMV324A-Q1, LMV358A-Q1

SLOSE67D – JUNE 2020 – REVISED APRIL 2023

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,

intellectual property matters and other important disclaimers. PRODUCTION DATA.
