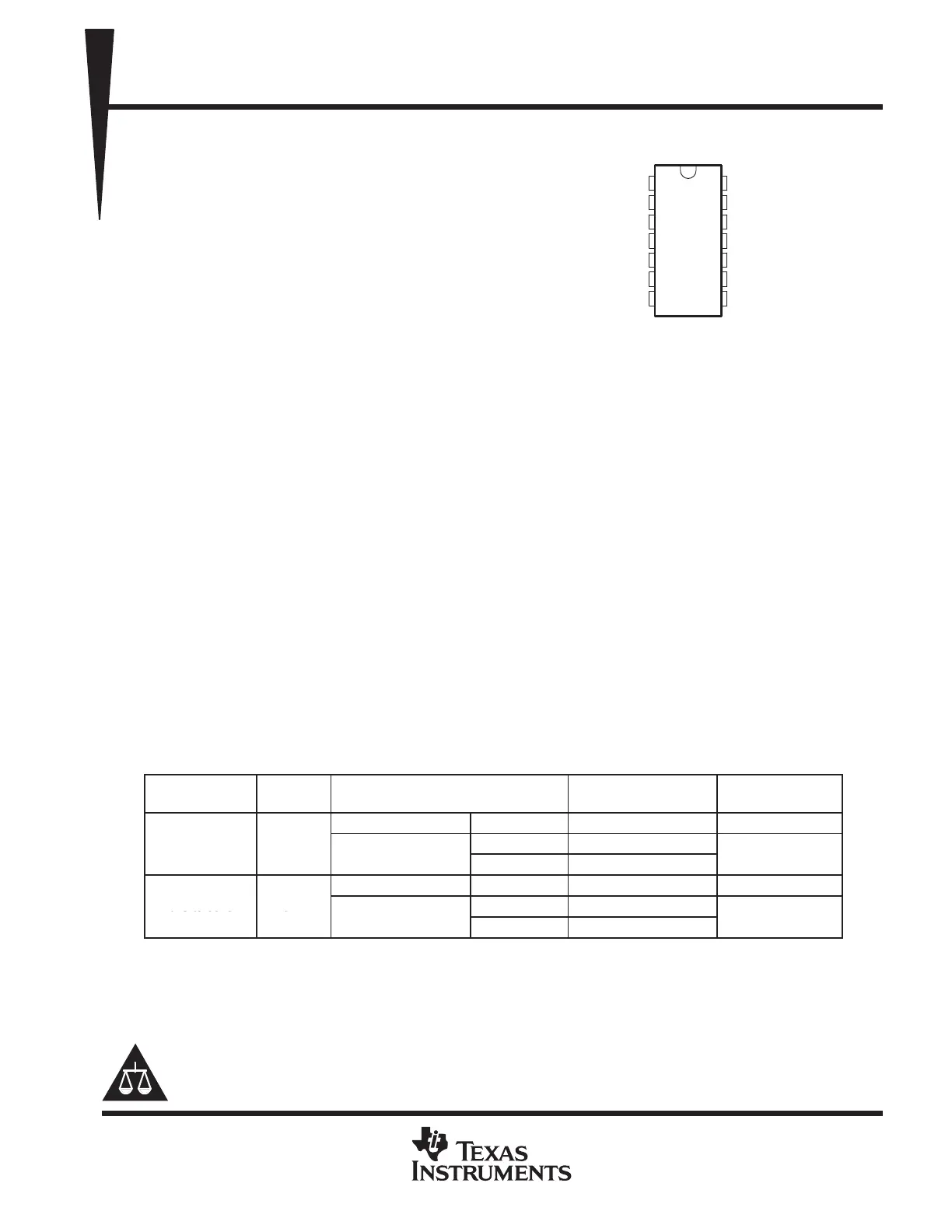

The LP239 is obsolete

a

nd is no longer supplied.

  

   

SLCS004B − OCTOBER 1987 − REVISED SEPTEMBER 2004

1

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

DWide Supply-Voltage Range...3 V to 30 V

DUltralow Power Supply Current

Drain...60 µA Typ

DLow Input Biasing Current...3nA

DLow Input Offset Current...±0.5 nA

DLow Input Offset Voltage...±2 mV

DCommon-Mode Input Voltage Includes

Ground

DOutput Voltage Compatible With MOS and

CMOS Logic

DHigh Output Sink-Current Capability

(30 mA at V

O

= 2V)

DPower Supply Input Reverse-Voltage

Protected

DSingle-Power-Supply Operation

DPin-for-Pin Compatible With LM239, LM339,

LM2901

description/ordering information

The LP239, LP339, LP2901 are low-power quadruple differential comparators. Each device consists of four

independent voltage comparators designed specifically to operate from a single power supply and typically to

draw 60-µA drain current over a wide range of voltages. Operation from split power supplies also is possible

and the ultra-low power-supply drain current is independent of the power-supply voltage.

Applications include limit comparators, simple analog-to-digital converters, pulse generators, squarewave

generators, time-delay generators, voltage-controlled oscillators, multivibrators, and high-voltage logic gates.

The LP239, LP339, LP2901 were designed specifically to interface with the CMOS logic family. The ultra-low

power-supply current makes these products desirable in battery-powered applications.

The LP239 is characterized for operation from −25°C to 85°C. The LP339 is characterized for operation from

0°C to 70°C. The LP2901 is characterized for operation from −40°C to 85°C.

ORDERING INFORMATION

T

A

V

IO

MAX

AT 25°C

PACKAGE

†

ORDERABLE

PART NUMBER

TOP-SIDE

MARKING

PDIP (N)Tube of 25LP339NLP339N

0°C to 70°C±5 mV

SOIC (D)

Tube of 50LP339D

LP339

0C to 70C

±5 mV

SOIC (D)

Reel of 2500LP339DR

LP339

PDIP (N)Tube of 25LP2901NLP2901N

−40°C to 85°C±5 mV

SOIC (D)

Tube of 50LP2901D

LP2901

−40C to 85C

5 mV

SOIC (D)

Reel of 2500LP2901DR

LP2901

†

Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at

www.ti.com/sc/package.

Copyright  2004, Texas Instruments Incorporated

  ! " #$%! "  &$'(#! )!%*

)$#!" # ! "&%##!" &% !+% !%"  %," "!$%!"

"!)) -!.* )$#! &#%""/ )%" ! %#%""(. #($)%

!%"!/  (( &%!%"*

1

2

3

4

5

6

7

14

13

12

11

10

9

8

1OUT

2OUT

V

CC

2IN−

2IN+

1IN−

1IN+

3OUT

4OUT

GND

4IN+

4IN−

3IN+

3IN−

D OR N PACKAGE

(TOP VIEW)

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications o

f

TexasInstruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
