MAX3232E-Q1 Automotive 3V TO 5.5V Multichannel RS-232 Line Driver and Receiver

WITH ±15kV IEC ESD Protection

1 Features

•Qualified for automotive applications

•Meets or exceeds the requirements of TIA/

EIA-232-F and ITU v.28 standards

•Operates with 3V to 5.5V V

CC

supply

•Operates up to 250kbit/s

•Two drivers and two receivers

•Low standby current: 300μA Typical

•External capacitors: 4 × 0.1μF

•Accepts 5V logic input with 3.3V supply

•Pin compatible to alternative high-speed pin-

compatible device (1Mbit/s): SNx5C3232

2 Applications

•Industrial PCs

•Wired networking

•Data center and enterprise computing

•Battery-powered systems

•Notebooks

•Palmtop PCs

•Hand-held equipment

3 Description

The MAX3232E device consists of two line drivers,

two line receivers, and a dual charge-pump

circuit with ±15kV IEC ESD protection pin to pin

(serial-port connection pins, including GND). The

device meets the requirements of TIA/EIA-232-F

and provides the electrical interface between an

asynchronous communication controller and the

serial-port connector. The charge pump and four small

external capacitors allow operation from a single 3V

to 5.5V supply. The device operates at data signaling

rates up to 250kbit/s and a maximum of 30V/μs driver

output slew rate.

Package Information

PART NUMBERPACKAGE

(1)

PACKAGE SIZE

(2)

MAX3232EPW (TSSOP, 16)5mm x 6.4mm

(1)For more information, see Section 9.

(2)The package size (length × width) is a nominal value and

includes pins, where applicable.

DIN1

DOUT1

RIN1ROUT1

DIN2

DOUT2

RIN2ROUT2

11

10

12

9

14

7

13

8

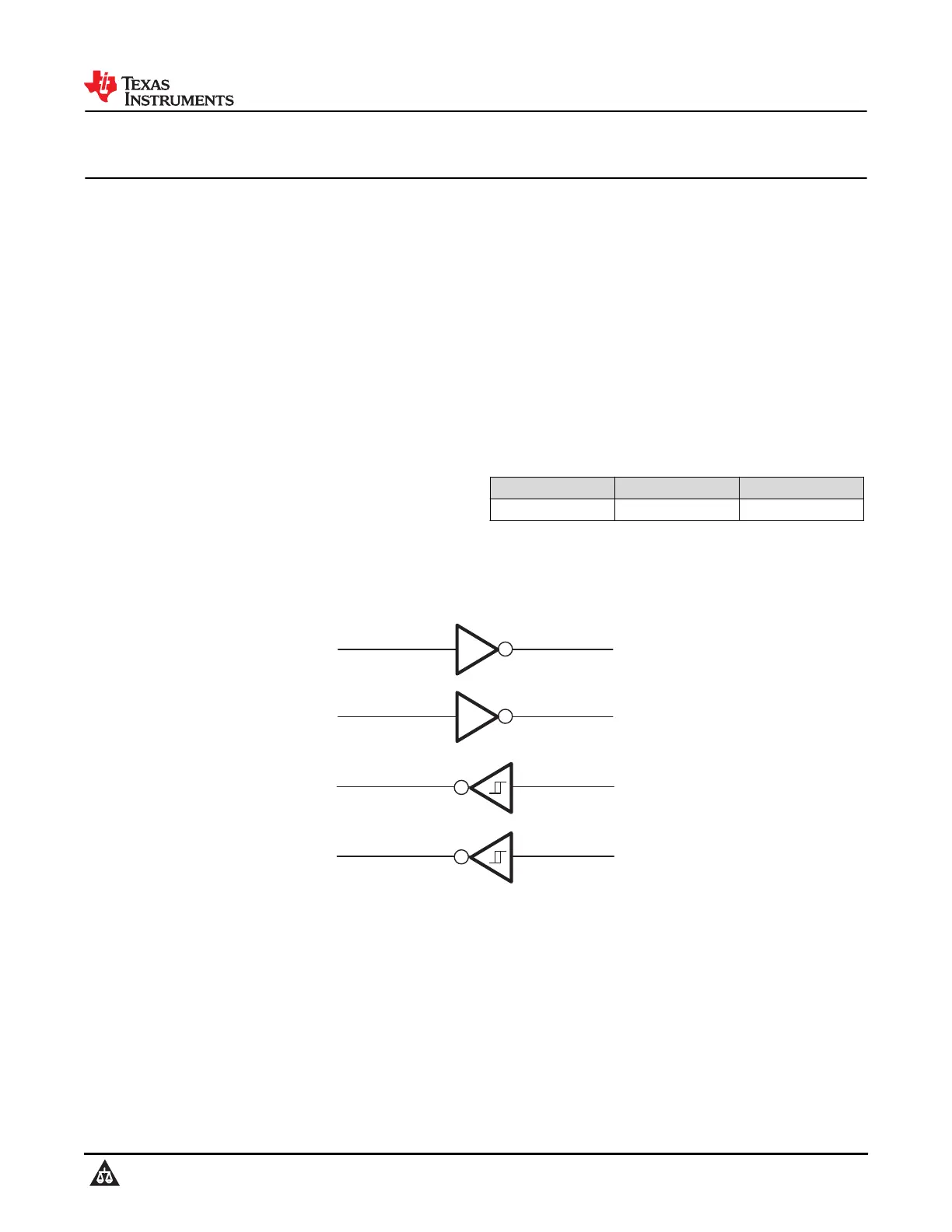

Logic Diagram (Positive Logic)

MAX3232E-Q1

SLLS676B – DECEMBER 2005 – REVISED DECEMBER 2024

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,

intellectual property matters and other important disclaimers. PRODUCTION DATA.
