Please follow the instructions in this manual to obtain the optimum results from this unit.

We also recommend that you keep this manual handy for future reference.

Note: For operation of the units, refer to the VS-900 operating instructions.

RS-190

RS-191

SUBSTATION

OPTION HANDSET

INSTALLATION MANUAL

1. GENERAL DESCRIPTION

The RS-190 Full-Duplex Substation is designed exclusively for use with TOA's VS-900 Voice Security System.

The RS-191 Option Handset is designed exclusively for indoor-use in combination with the RS-190.

It also features handset conversation with the RS-190.

2. SPECIFICATIONS

[RS-190]

[RS-191]

Rated Input 1 W

Rated Impedance 500 Ω

Internal Speaker 4 cm cone-type

Control Output Open collector output: 24 V DC, 30 mA

(The open collector output is kept turned on till the conversation is finished

after the call button was pressed.)

Operating Temperature –10 to +50°C

(Temperature range not to freeze the speaker and switch)

Finish Panel: Stainless steel (SUS304), hairline

Call switch button: Resin

Dimensions 120 (w) x 120 (h) x 58.5 (d) mm

Weight 465 g

Note: The design and specifications are subject to change without notice for improvement.

Handset Receiver Dynamic type

Handset Transmitter Electret condenser type

Operating Temperature 0 to +40°C

(Temperature range not to freeze the speaker and switch)

Finish ABS resin, pale white

Dimensions 116 (w) x 220 (h) x 70 (d) mm

Weight 330 g

Note: The design and specifications are subject to change without notice for improvement.

• Accessories

Oval head combination screw M4 x 25 ................ 4 Oval head slotted screw UNC No.6 x 18 .............. 4

• Accessories

Oval head combination screw M4 x 25 ................ 4 Oval head slotted screw UNC No.6 x 18 .............. 4

Printed in Japan

133-06-249-2C

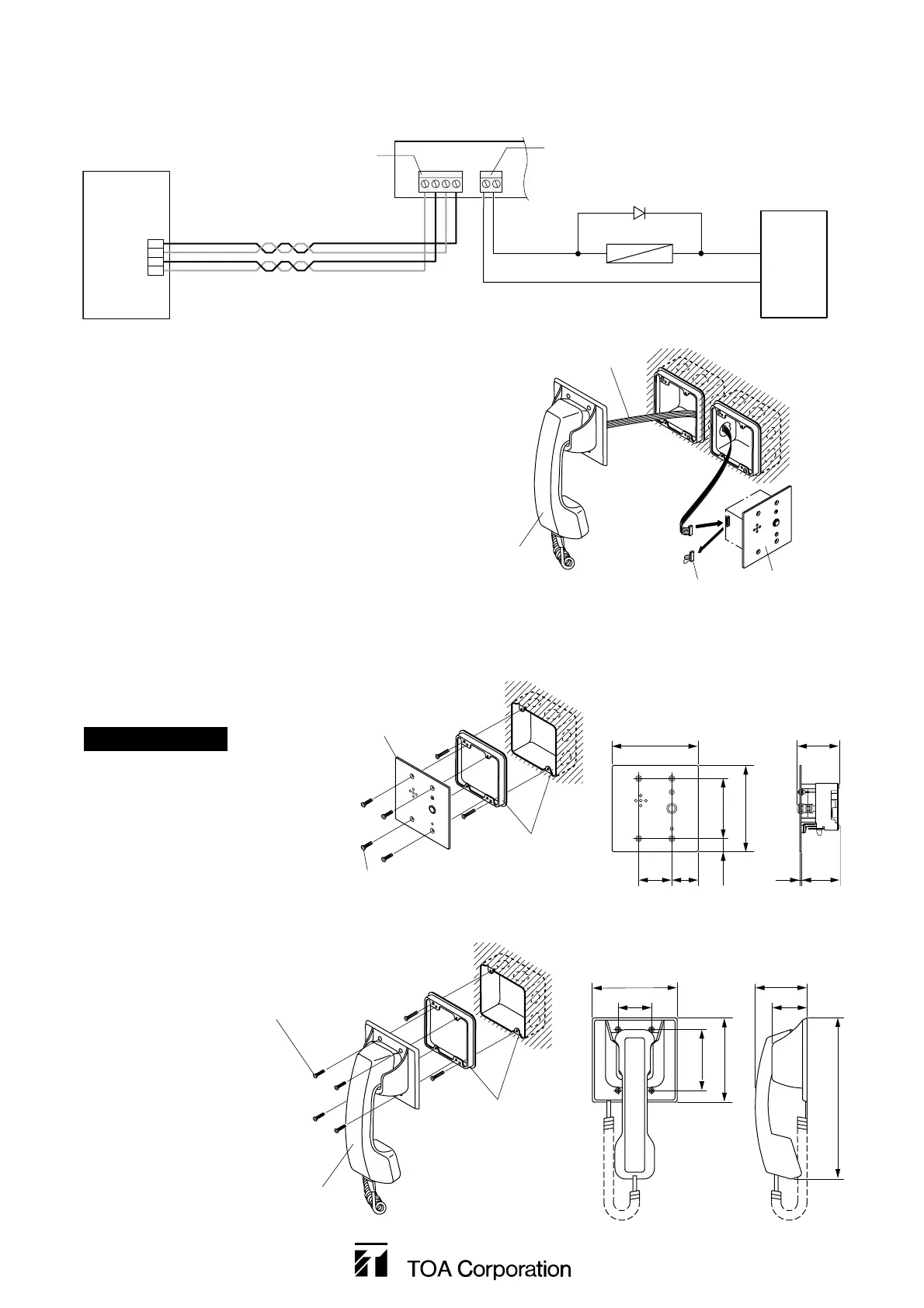

3. CONNECTION

3.1. External relay device, RS-190, and VS-910RS connection

BDC

(VS-910RS)

2 twisted pair cables

CN1

CN8

Open collector output: 24 V DC, 30 mA

External

power supply

Relay

Diode

+24 V DC

GND

RS-190's side panel

3.2. RS-190 and RS-191 connection

Plug out the jumper from the connector on the

RS-190's side panel, then plug the RS-191's

connection cable instead.

RS-190

Jumper

Connection cable

RS-191

3. WALL MOUNTING

Mount the RS-190 and the RS-191 to electrical boxes mounted in the wall.

Note: The wall should be over 12 mm thick, and the opening in the wall for an electrical box should be under

120 mm by 120 mm.

[RS-190]

[RS-191]

RS-191

116

83.5

115

220

Oval head combination screw

M4 x 25 (supplied with the RS-191)

[Dimensional diagram]

Unit: mm

2-gang electrical box

YC-302 (optional)

RS-190

[Dimensional diagram]

Unit: mm

120 58.5

18.2 83.5

120

2 53

2-gang electrical box

YC-302 (optional)

Oval head combination screw

M4 x 25 (supplied with the RS-190)

Accessory screws

The RS-190 and RS-191 come with

2 types of screws: oval head

combination screw M4 x 25 and oval

head slotted screw UNC No.6 x 18.

For the electrical box provided with

unified threads, use the oval head

slotted screws UNC No.6 x 18.
