4P removable terminal plug

(supplied with the N-8400RS)

N-8400RS Substation interface unit

To line 2 (Red)

Two pairs of

twisted pair cable

To handset

(

refer to the following figure)

Frame

ground

Switch input for

the call button 3

(momentary)

Switch input for

the call button 2

(momentary)

Switch input for

the call button 1

(momentary)

To line 1 (Brown)

To line 4 (Yellow)

(Green)

(Blue)

(Black)

RS-442

To line 3 (Orange)

8 Ω speaker output

(Red)

(Black)

(Gray)

(White)

(Brown)

(White)

(Blue)

(White)

*Open collector output: 24 V DC, Max. 30 mA

Control output

External

power supply

Relay

Diode

24 V DC

GND

Microphone

INSTALLATION MANUAL

SWITCH BOARD RS-442

Thank you for purchasing TOA’s Switch Board.

Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

1. GENERAL DESCRIPTION

The RS-442 is a Switch board to be connected to the N-8400RS 4-wire system Substation Interface Unit.

It is equipped with 1 microphone input (with a microphone unit), 3 switch inputs for call buttons, and 1 speaker

output, enabling you to make a switch panel suitable for applications.

By assigning a different master station as a calling destination to each Call button, you can call one of them

and make a conversation.

2. CONNECTION

RS-442

Handset joint

cables

Handset cables

Wall surface

RS-481

RS-442 (Bottom)

Note

When using the RS-481 Option handset, cut the

jumper wire next to the handset joint cables on

the circuit board as illustrated below.

If not cut, sound comes out from the RS-442's

speaker and returns back to the handset’s

microphone, resulting in acoustic feedback.

Jumper wire

Handset joint cables

[RS-442 and RS-481 connections]

Note

Cut out unused wires to avoid short-circuiting.

3. INSTALLATION

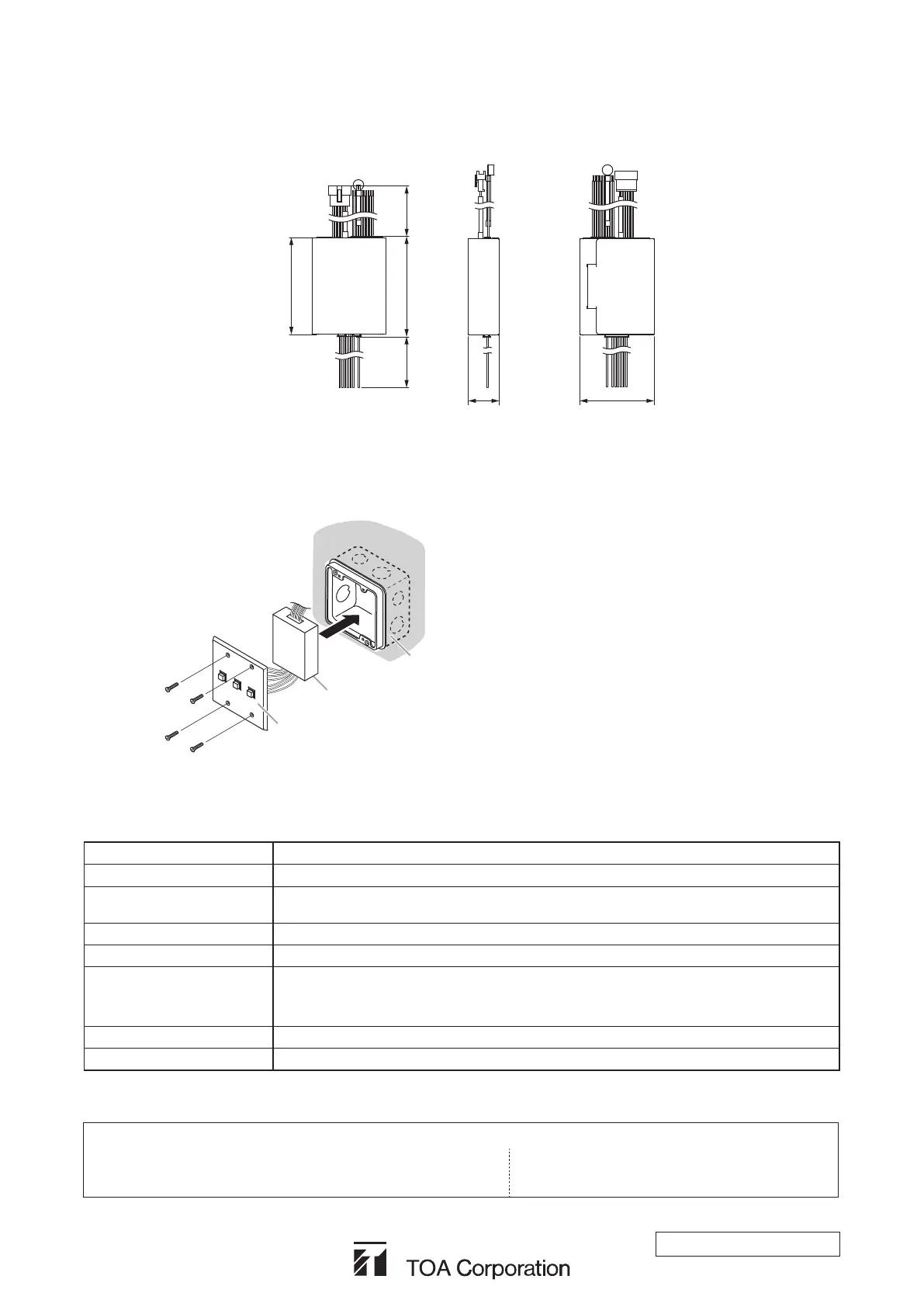

3.1. Installation Completion Drawing

Unit: mm

[Front] [Side] [Rear]

88.1

91.2

130 – 150 130 – 150

28.1 67.5

3.2. When Making Operation Panel for Flush-Mount Installation

Put the RS-442 in the YC-302 2-Gang Electrical Box mounted in the wall.

Then, connect the cables from RS-442 to the switches mounted on the operation panel separately prepared.

Note: When using the PA paging function, keep the operation panel as far away from the PA paging speaker

as possible to avoid acoustic feedback.

4. SPECIFICATIONS

Call Button Wiring 6 cables (for 3 momentary switches)

Rated Input 1 W

Control Output Open collector, Maximum controlled voltage: 30 V DC

Control current: 30 mA

Microphone Electret condenser microphone

Wiring Twisted pair cables (2 pairs)

Transmission Range 1 km/ø0.5 mm (AWG24)

1.5 km/ø0.65 mm (AWG22)

2 km/ø0.9 mm (AWG19)

Operating Temperature 0 to 40 ºC

Weight 140 g

Note: The design and specications are subject to change without notice for improvement.

URL: http://www.toa.jp/

133-21-00014-00

Traceability Information for Europe

Manufacturer:

TOA Corporation

7-2-1, Minatojima-Nakamachi, Chuo-ku, Kobe, Hyogo, Japan

Authorized representative:

TOA Electronics Europe GmbH

Suederstrasse 282, 20537 Hamburg, Germany

Wall surface

RS-442

Operation panel (separately prepared)

YC-302

2-Gang Electrical Box

(option)

Tip

YC-822 Indoor Wall-Mount Box

can also be used.
