Sida 1/10

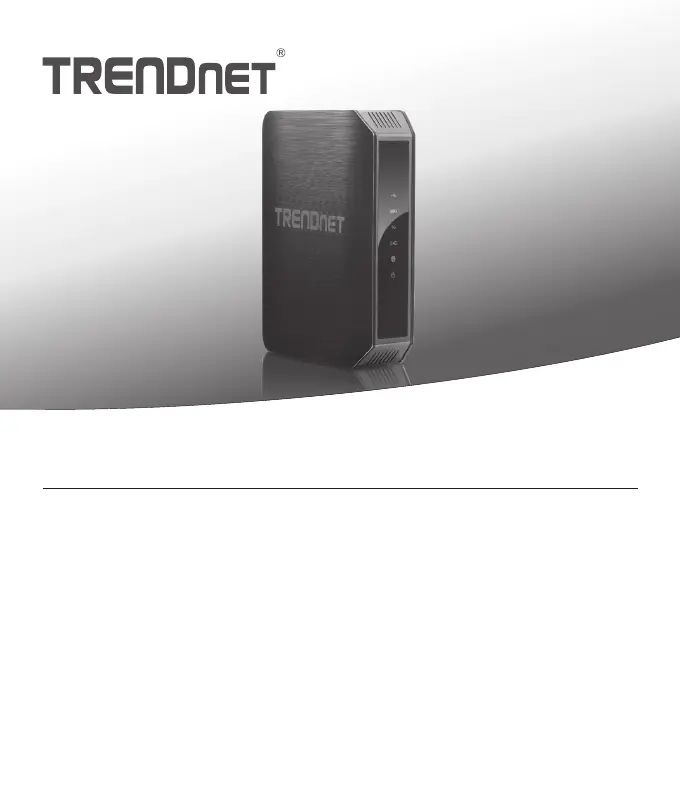

TEW-813DRU

Ÿ Quick Installation Guide (1)

AC1200 Dual Band Wireless Router

TEW-813DRU(V1) /05.09.2014

Installation Requirements

Package Contents

1. Before You Start

Ÿ TEW-813DRU

Ÿ Multi-Language Quick Installation Guide

Ÿ CD-ROM (Utility and User's Guide)

Ÿ Network cable (1.5 m / 5 ft.)

Ÿ Power adapter (12 V DC, 2 A)

Ÿ A computer with a wired or wireless network adapter and Web browser

Ÿ Broadband internet

Ÿ Installed modem

2. Installation

1. Verify that you have an Internet connection.

2. Power off your modem.

3. Disconnect the network cable from your modem and your computer.

4. Connect your modem to the TEW-813DRU's Internet port (yellow).

5. Connect your computer to one of the wireless router's LAN ports.

TEW-813DRU

Internet

8. Verify that the status LED indicators on the front of the router to confirm that the device is fully

functional: Power (Green), Internet (Green/Blinking), Wireless N (Green), Wireless AC (Green).

Internet

Power

Wireless AC

Note: It is recommended that you configure the Wireless Router from a wired computer.

6. Connect the power adapter to the router and then to a power outlet. Toggle the power switch to the

“On” position.

7. Power on your modem. Wait until the LEDs indicate that modem is fully functional. For more

information on your modem's LEDs, please refer with your modem's user's guide.

USB Ports

Wireless N

9. Open your web browser; the wizard will automatically appear. Select the desired language and then

click Next. If the wizard does not appear, type http://tew-813dru into the address bar of your web

browser, and press enter. Enter your Username and Password, click Login, click Advanced, click

Setup and then click Wizard. You can find the default user name and password on the labels on the

side and bottom of the router.

Note: You can also access the device using the default IP address (http://192.168.10.1).

Preset

Wireless Settings

Wi-Fi Name/SSID

(AC/N)

TRENDnetXXX_5GHz_XXXX

(N/B/G)

TRENDnetXXX_2.4GHz_XXXX

Management Login

http://tew-813dru

username: admin

password: XXXXX

Wi-Fi Key

XXXXXXXXXXXXX

Produktspecifikationer

Varumärke:	Trendnet
Kategori:	Router
Modell:	AC1200
Vikt:	260 g
Bredd:	45 mm
Djup:	164 mm
Höjd:	120 mm
LED-indikatorer:	Ja
Wi-Fi-standarder:	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Frekvensband:	2.4 & 5 GHz
Certifiering:	FCC, CE
USB-version:	2.0
Bandbredd (första):	2.4 GHz
MAC-adressfiltrering:	Ja
Filtrering:	Ja
Ethernet WAN:	Ja
URL-filtrering:	Ja
Bandbredd (andra):	5 GHz
Antal USB-portar:	1
Datahastighet för Ethernet-LAN:	10,100,1000 Mbit/s
Antal LAN (RJ-45) anslutningar:	5
Strömförbrukning (vanlig):	16.5 W
Temperatur vid drift:	0 - 40 ° C
Intervall för relativ operativ luftfuktighet:	0 - 95 %
AC-inspänning:	100 - 240 V
Kryptering/säkerhet:	WPA2, WPS
Nätverksansluten (Ethernet):	Ja
Likströmsingång:	Ja
Växelström Frekvens:	50 - 60 hz
Antenn ökningsnivå (max):	6 dBi
Kommunikationsstandarder:	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
Typ av Ethernet LAN-gränssnitt:	Gigabit Ethernet
Ingående ström:	0.6 A
Wi-Fi-standard:	Wi-Fi 5 (802.11ac)
Wi-Fi-band:	Dual-band (2,4 GHz / 5 GHz)
WPS tryckknapp:	Ja
Filtreringsbeskrivning:	IP
