TRENDnet User’s Guide

Cover Page

TRENDnet User’s Guide

Table of Contents

Contents

Product Overview ........................................................................... 1

Package Contents .......................................................................................................... 1

Features ......................................................................................................................... 1

Product Hardware Features........................................................................................... 2

Application Diagram ...................................................................................................... 4

Installing your Powerline Adapters .................................................. 5

Before you Install ........................................................................................................... 5

Connect a Powerline adapter to your router ................................................................ 5

Add adapters to your network ...................................................................................... 6

Securing your Powerline Network ................................................... 7

Using the Sync button .................................................................................................... 7

Change your default encryption key using the Sync button ..................................... 7

Add adapters using the Sync button ......................................................................... 9

Using the Powerline Utility ............................................................ 11

Powerline Utility System Requirements ...................................................................... 11

Using the Utility ........................................................................................................... 14

Powerline Utility Overview ..................................................................................... 15

Add adapters in the utility and create a customized encryption key ..................... 19

Upgrade Firmware .................................................................................................. 21

Technical Specifications................................................................. 23

Troubleshooting ............................................................................ 24

Appendix ...................................................................................... 25

TRENDnet User’s Guide

TPL-308E / TPL-308E2K

Product Overview

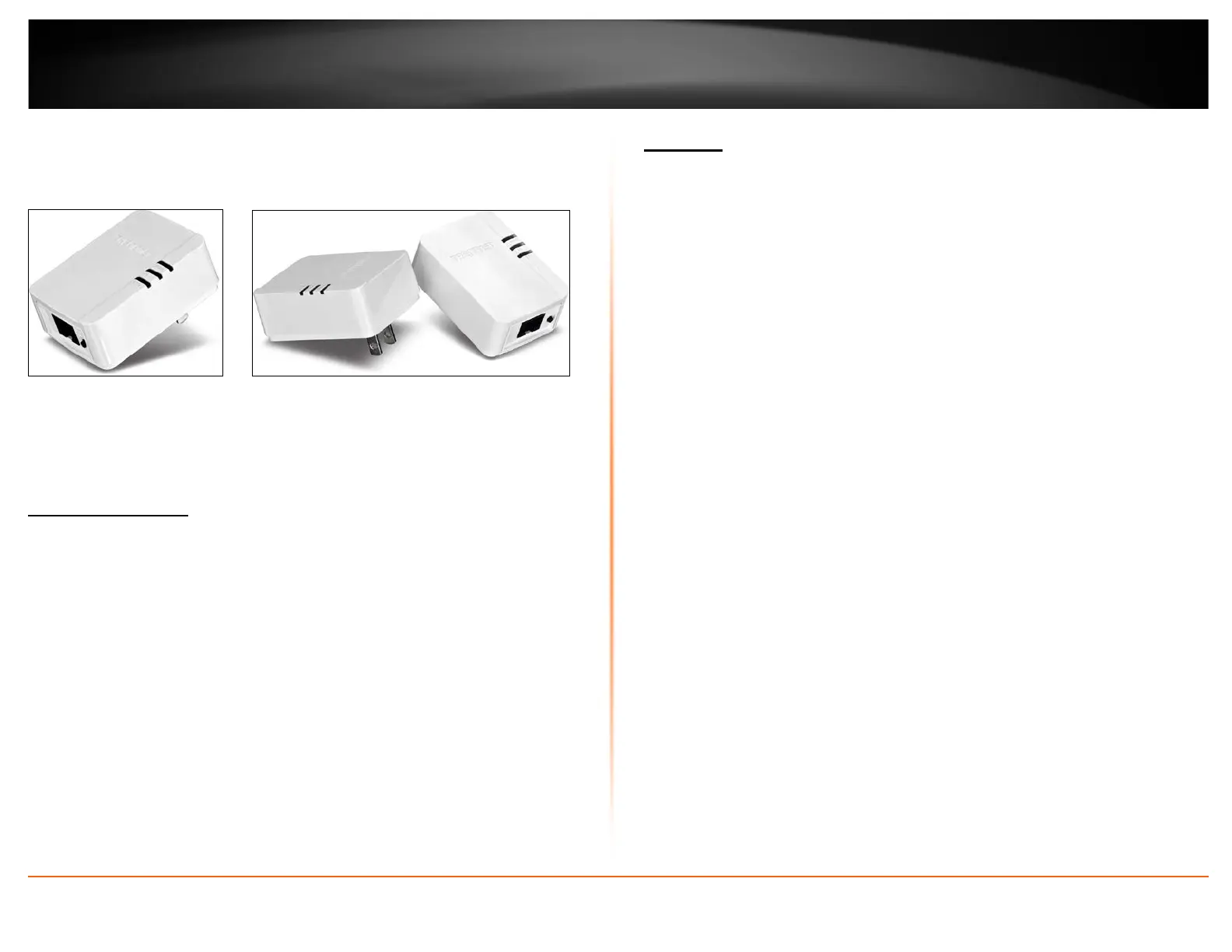

TPL-308E TPL-308E2K

Package Contents

TPL-308E package includes:

• 1 x TPL-308E: Powerline 200 AV Nano Adapter

• Quick Installation Guide

• CD-ROM (Utility & User’s Guide)

• Network cable (1.5 m / 5 ft.)

TPL-308E2K package includes:

• 2 x TPL-308E: Powerline 200 AV Nano Adapters

• Quick Installation Guide

• CD-ROM (Utility & User’s Guide)

• 2 x Network cables (1.5 m / 5 ft.)

Features

The Powerline 200 AV Nano Adapter, model TPL-308E, uses an electrical outlet to create

a secure high speed network. Two adapters are needed to start a network. Connect one

adapter to your router and plug another adapter into an outlet on your electrical system

for instant high speed network access.

The compact form factor saves space around crowded electrical outlets. This adapter

automatically connects to other TRENDnet Powerline AV adapters with no installation

required —TRENDnet recommends pressing the ‘Sync’ button to automatically change

default encryption keys.

Use up to 4 adapters to network devices in different rooms without running new

cabling. Power Save mode reduces power consumption by up to 70%. Quality of Service

technology prioritizes video, audio, and online gaming. LED displays convey device

status for easy troubleshooting. Advanced 128-bit AES encryption secures your network.

This adapter is ideal for use in buildings that interfere with wireless networking signals.

• 200 Mbps networking over an existing electrical system

• Compliant with IEEE 1901 and HomePlug® AV standards

• 1 x 10/100 Mbps Auto-MDIX Ethernet port

• Compact form factor saves space

• Adapters automatically connect using an encrypted Powerline signal

• One-touch Sync button changes encryption keys

• Three LED indicators:

o Power (on/off)

o Powerline Connection: green (best), amber (better), red (good), off

(no connection)

o Ethernet Connection: solid (connection), blinking (transfer activity), off

(no connection)

• Connect one 200 Mbps** Powerline AV Adapter to the internet and then plug

in up to 3* additional 200 Mbps** Powerline AV adapters for instant

connectivity

• Share data intensive files, play games, download music, and more at fast data

transfer rates

• Advanced 128-bit AES encryption to ensure total network security

• Supports IPv6 pass through

• Supports up to 4** IGMP based IPTV streams

• Power Save mode reduces electrical consumption by up to 70%

• Neighbor network support for up to 4 overlapping networks

Produktspecifikationer

Varumärke:	Trendnet
Kategori:	Powerline adapter
Modell:	TPL-308E2K-A
Vikt:	62.4 g
Bredd:	50 mm
Djup:	43 mm
Höjd:	70 mm
LED-indikatorer:	Ja
Wi-Fi:	Nej
Certifiering:	CE, FCC
Maximal räckvidd:	300 m
Snabbinstallationsguide:	Ja
Maximal dataöverföringshastighet:	200 Mbit/s
Produktens färg:	Vit
Antal per förpackning:	2 styck
Windows-operativsystem som stöds:	Ja
Datahastighet för Ethernet-LAN:	10, 100 Mbit/s
Antal LAN (RJ-45) anslutningar:	1
Strömförbrukning (vanlig):	1.75 W
Temperatur vid drift:	0 - 40 ° C
Temperaturintervall (förvaring):	-10 - 55 ° C
Intervall för relativ operativ luftfuktighet:	0 - 95 %
AC-inspänning:	100-240 V
Kryptering/säkerhet:	128-bit AES
Kabel inkluderad:	LAN (RJ-45)
Nätverksansluten (Ethernet):	Ja
Växelström Frekvens:	50 - 60 hz
Modulator:	OFDM
Strömförbrukning i vänteläge:	0.56 W
Kommunikationsstandarder:	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Inbyggd eluttag:	Nej
Typ av Ethernet LAN-gränssnitt:	Snabb Ethernet
Uttag:	Typ B
PowerLine-standard:	HomePlug AV
