Sida 1/28

Compact 802.11ac Wave 2

Enterprise Access Point

Model: UAP-nanoHD

Introduction

Thank you for purchasing the Ubiquiti Networks® UniFi®

802.11ac Wave 2 Enterprise Access Point. This Quick Start

Guide is designed to guide you through installation and

includes warranty terms.

IMPORTANT:

The UAP-nanoHD requires the UniFi

Controller

v5.7 or higher, available at:

www.ubnt.com/download/unifi

Package Contents

UniFi nanoHD AP Mounting Bracket Ceiling Backing

Plate

Screws

(Qty. 4)

Flat Head Screws

(Qty. 4)

Keps Nuts

(Qty. 4)

Screw Anchors

(Qty. 4)

Compact 802.11ac Wave 2

Enterprise Access Point

Model: UAP-nan oHD

Gigabit PoE* (48V, 0.5A)

with Mount Bracket

Power Cord* Quick Start Guide

* Included only in the single-pack of the UAP-nanoHD

installer’s responsibility to follow local country regulations, including operation within legal

frequency channels, output power, indoor cabling requirements, and Dynamic Frequency

Selection (DFS) requirements.

Installation Requirements

• CAT5 cable

• Phillips screwdriver

• Drill and drill bit (6 mm for wall-mounting or 3 mm for

ceiling-mounting)

• Optional: Drywall or keyhole saw (to cut 18 mm hole for

Ethernet cable feed)

System Requirements

• Microsoft Windows 7/8/10, MacOSX, or Linux

• Java Runtime Environment 1.8 (or above)

• Web Browser: Google Chrome (Other browsers may have

limited functionality.)

• UniFi Controller software v5.7 or higher (available at:

www.ubnt.com/download/unifi)

Network Topology Requirements

• A DHCP-enabled network (for the AP to obtain an IP address

as well as for the wireless clients after deployment)

• A UniFi Cloud Key or management station running the UniFi

Controller software, located either on-site and connected to

the same Layer-2 network, or off-site in the cloud or a NOC

US-16-150W

USG-PRO-4

(DHCP Server)

Internet

UAP-nanoHD

UAP-AC-M-PRO

UAP-AC-HD

LAN

WAN

UniFi Cloud Key

(UniFi Controller)

Remote Access to

UniFi Controller

DOWNLOAD THROUGHPUT & LATENCY DEVICES ON 2.4 GHZ CHANNEL

DEVICES ON 5 GHZ CHANNEL

UPLOAD THROUGHPUT & LATENCY

LATENCY THROUGHPUT

SPEED TEST

msec Mbps

7 10.94

2.33

25 22

597

0.9 116

200+0 700+0

0.01 413

2290.2

2 118

547

ACTIVE DEVICE

WAN

Inacve 0Pending

0Inacve 0Pending

ACTIVE DEVICES

Inacve 0Pending

118

ACTIVE DEVICES

LAN WLAN

DEEP PACKET INSPECTIONCLIENTSDEVICES

250

200

150

100

24 HRS 12 HRS NOW

Avg/Max Throughput Latency

Latency [ m sec ]

Throughput [M bps]

100

24 HRS 12 HRS NOW

Latency [ m sec ]

Throughput [M bps]

Network Protocols

Streaming Media

Web / Web 2.0File Transfer

Social Network

Other

Motorola

Lenovo

SamsungEDell

Acer

Other

WLAN

LAN

WAN

118

582 GB

23.3 GB

22.7 GB8.47 GB

3.6 GB

5.46 GB

258

241

220213

130

110

126

DEVI CES

645 GB

TRAFFIC

1172

CLIEN TS

1 2 3 4 5 6 7 8 9 10 11

36 40 44 48 52 56 60 64

100 104 108 112 116 120 124 128

132 136 140 144 149 153 157 161 165

CURRENT SI TE

Default

USERNAM E

admin

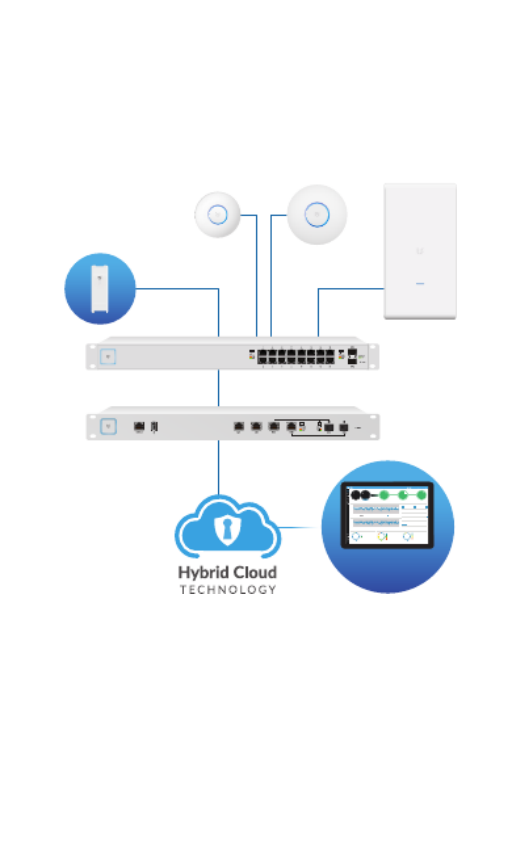

Sample Network Diagram

All UniFi devices support off-site management controllers. For

setup details, see the User Guide on the website:

www.ubnt.com/download/unifi

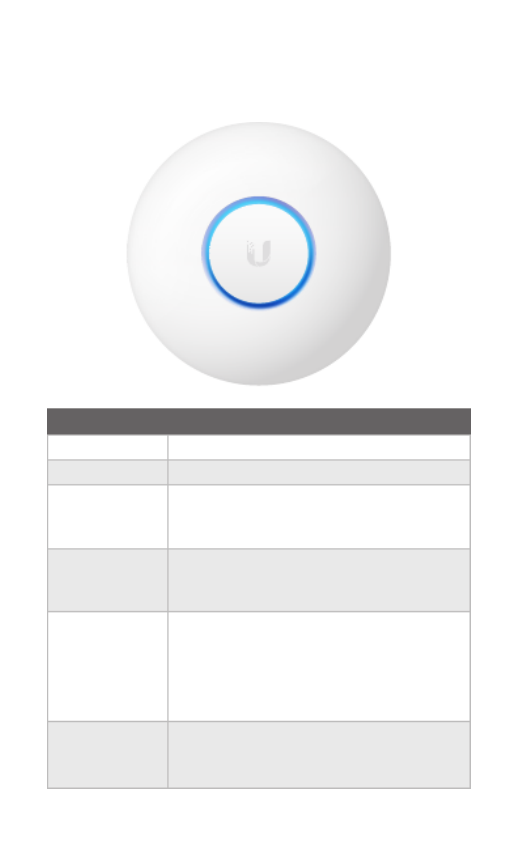

Hardware Overview

LED

LED Color Status

White Factory default, waiting to be integrated.

Flashing White Initializing.

Alternating

White/Blue

Device is busy; do not touch or unplug it.

This usually indicates that a process such

as a firmware upgrade is taking place.

Blue

Indicates the device has been successfully

integrated into a network and is working

properly.

Quickly

Flashing Blue

This is used to locate an AP.

When you click in the UniFi Locate

Controller software, the LED on the AP will

flash. It will also display the location of the

AP on the map.

Steady Blue

with Occasional

Flashing

Indicates the device is in an isolated state

(all WLANs are brought down until an

uplink is found).
