1 947026
ISSUE 5

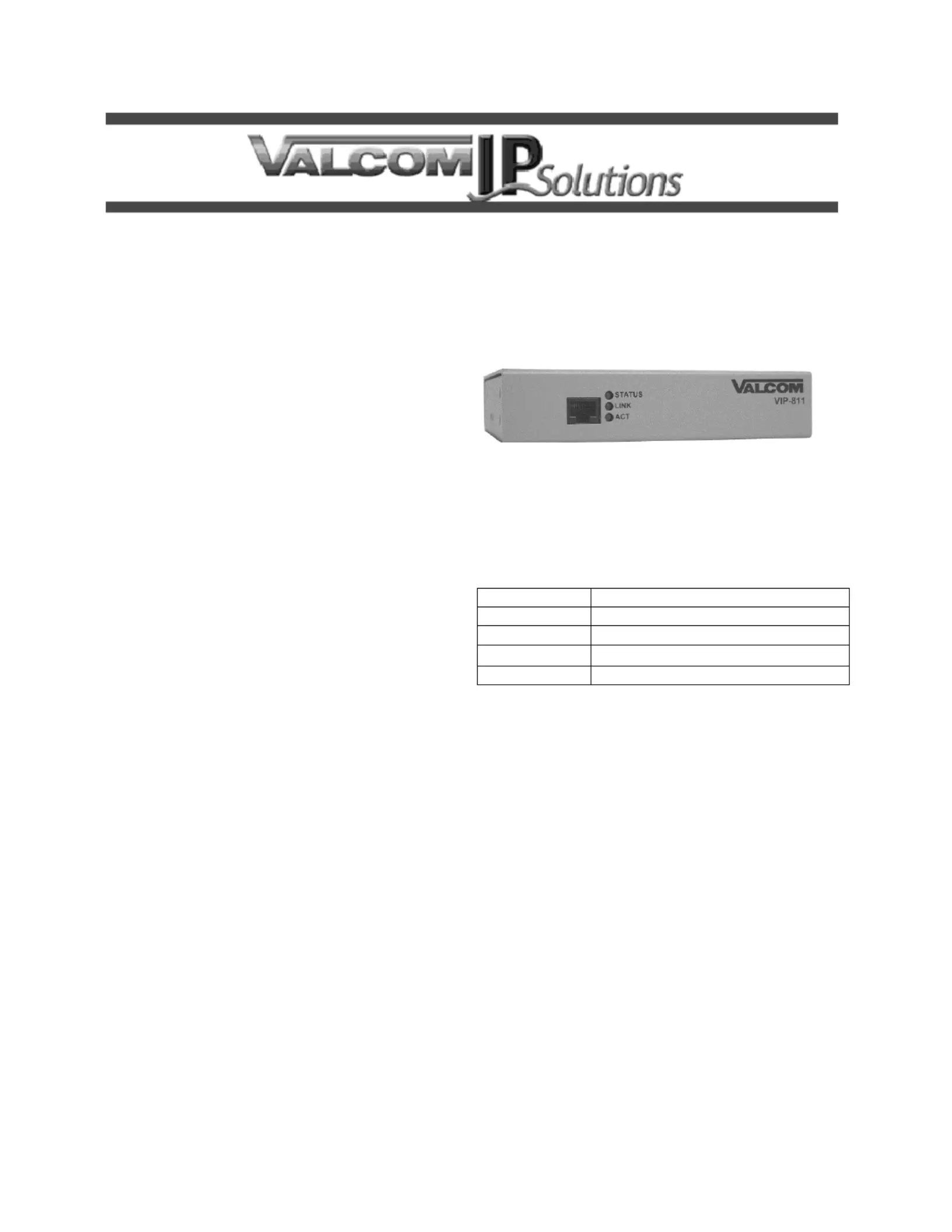

VIP-811
NETWORKED STATION PORT
INTRODUCTION
The VIP-811 Networked Station Port allows most
loop start terminal devices to be connected to a
managed IP-based LAN/WAN.
SPECIFICATIONS
Access Methods
PBX, FXO Port
POTS telephone set
Features
RJ-45 for network connection
1 RJ-11 telephone connections
2 Relays with Form C contacts

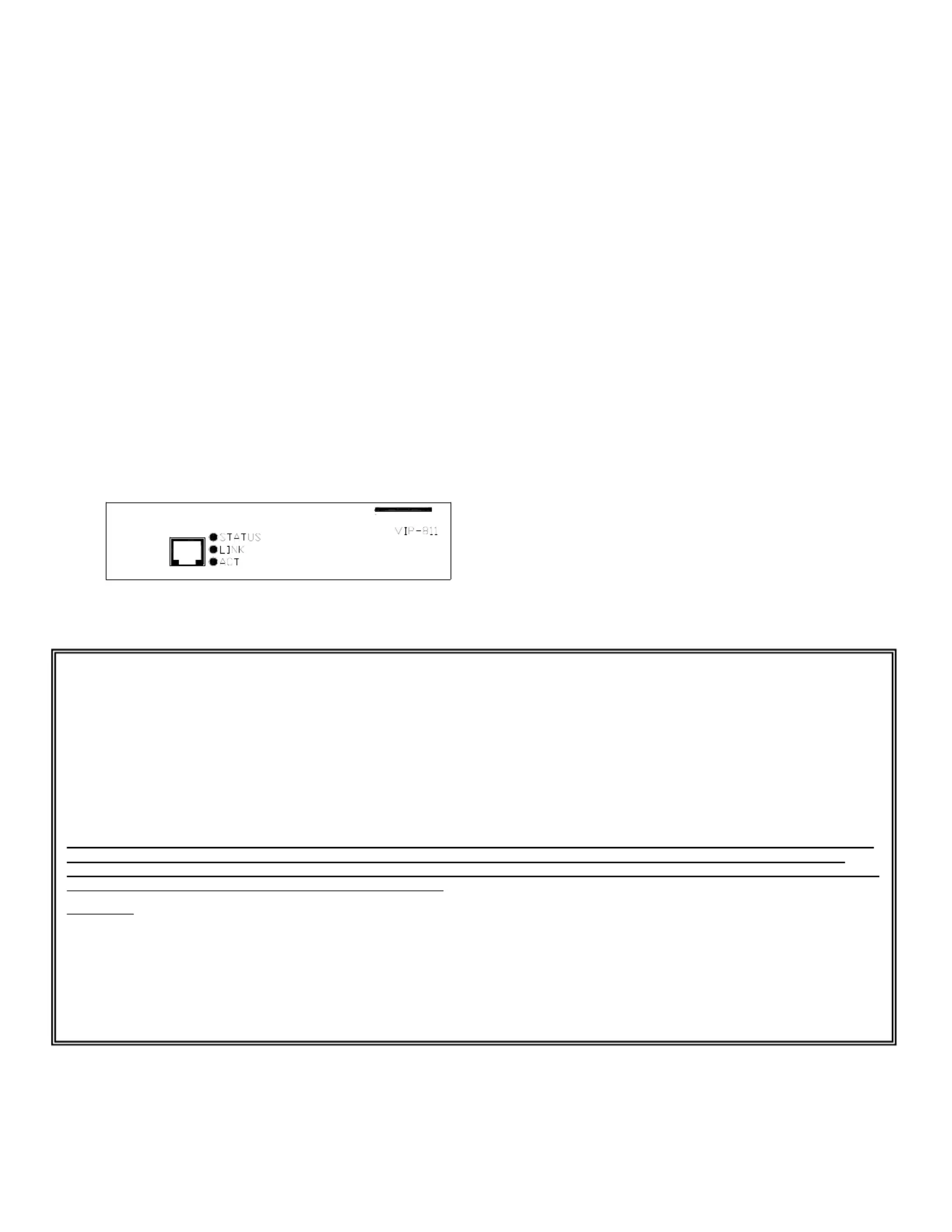

Front panel activity LED
Network activity LEDs
1 REN
2.5mm jack for external power
Power over Ethernet (PoE) 802.3af compatible
Dimensions/Weight
1.38” H x 6.13" W x 5.25" D
(3.50cm H x 15.6cm W x 13.33cm D)
Weight: 1.25 lbs. (0.57 kg)
Nominal Specifications
Input Impedance: 600 Ohms
Input Level: -10dBm
Output Impedance: 600 Ohms
Output Level: - 10dBm nominal
Relay Current: 1 AMP @ 24VDC
Nominal Power Requirements
Via rear panel barrel connector:
Voltage: 24VDC
Current: 325mA
Via 802.3af PoE Ethernet Switch:
802.3af: Class 3
Environment
Temperature: 0 to +40° C
Humidity: 0 to 85% non-precipitating
Packing List
Qty Item
1 VIP-811
1 VSP Document
2
Mounting Brackets W/ Hardware
4 Rubber Pads

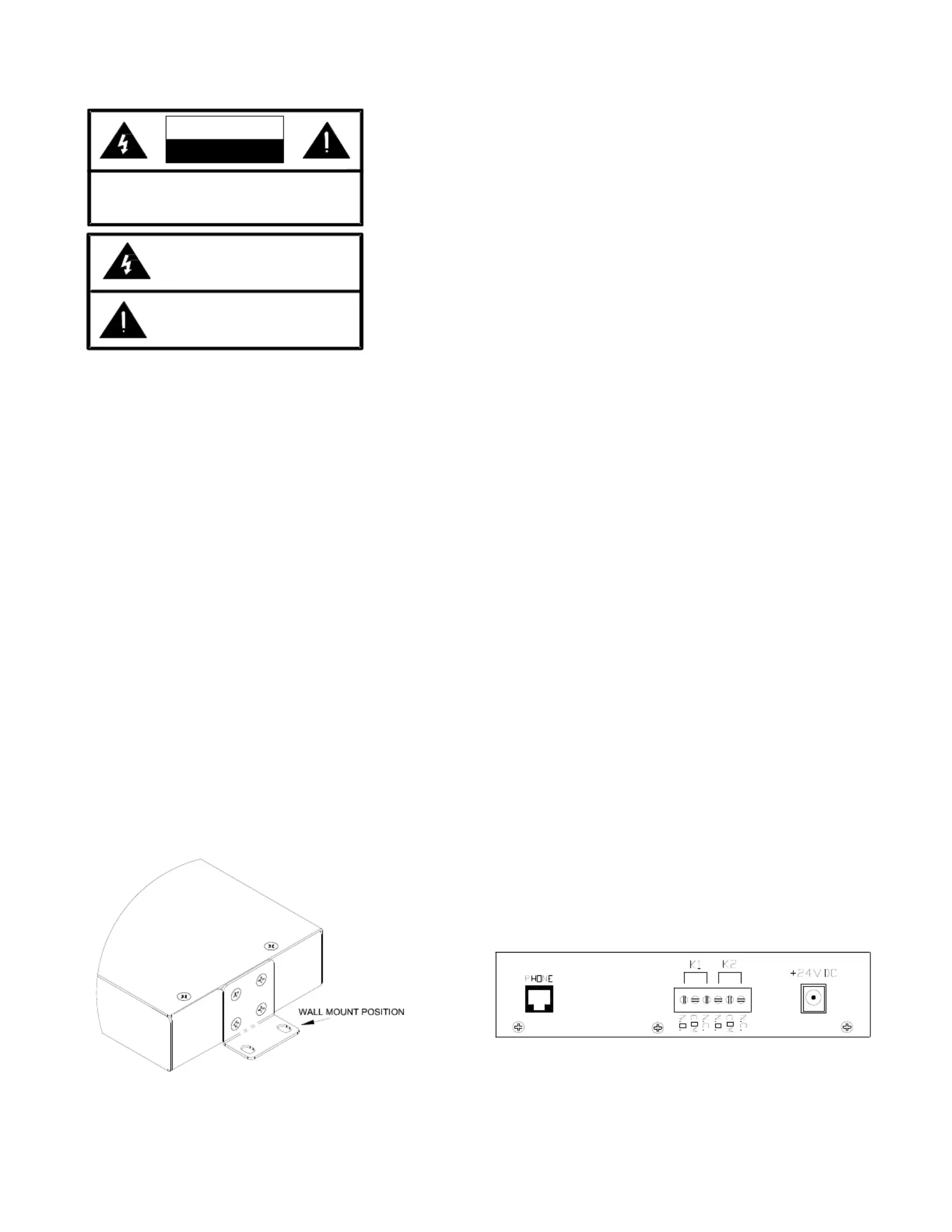

INSTALLATION
NOTE: The telephone system referred to in this
manual is the customer premise equipment
such as an electronic key system, a PBX or a
dedicated single line telephone sets. The VIP-
811 is not intended for direct or indirect
connection to the public telephone network.
When used with a customer premise telephone
system such as a key system or PBX system,
these units are interfaced to the system via a
fully protected trunk port or system central
office port, which is a fully protected interface
device. Also, the host system must be
configured to disallow central office trunk
conferencing in order to prevent indirect
connection to the public network.
Produktspecifikationer
| Varumärke: | Valcom |
| Kategori: | Nätverkskort/adapter |
| Modell: | Station Port VIP-811 |
| Vikt: | 790 g |
| Bredd: | 171.5 mm |
| Djup: | 241 mm |
| Höjd: | 44.5 mm |
| LED-indikatorer: | Ja |
| Wi-Fi: | Nej |
| Gränssnitt: | Ethernet |
| Värdgränssnitt: | RJ-45 |
| Maximal dataöverföringshastighet: | 100 Mbit/s |
| Produktens färg: | Grå |
| Antal LAN (RJ-45) anslutningar: | 1 |
| Temperatur vid drift: | 0 - 40 ° C |
| Intervall för relativ operativ luftfuktighet: | 0 - 85 % |
| Anslutningsteknologi: | Kabel |
| Nätverksansluten (Ethernet): | Ja |
| Stöd för nätverksprotokoll: | DHCP, IGMP v3, UDP, TCP, HTTP, Telnet, FTP |
| Kommunikationsstandarder: | IEEE 802.3af |
| Intern: | Nej |
| Ingående ström: | 0.325 A |
| Nätaggregatstyp: | 24 VDC |
| Länk-/aktivitets-LED: | Ja |
| Anslutning: | RJ-11 |
| Nätverksförberedd: | Ja |
