1 947999
ISSUE 3
VIP-824
QUAD NETWORKED TRUNK PORT
INTRODUCTION
The VIP-824 Quad Networked Trunk Port allows
most loop start station ports to be connected to a
managed IP-based LAN/WAN.
SIP connectivity allows the VIP-821 to act as a
gateway device between a SIP telephone system
and the other Valcom paging systems, such as the
MultiPath.
SPECIFICATIONS
Access Methods
PBX, FXS Port
SIP
Features

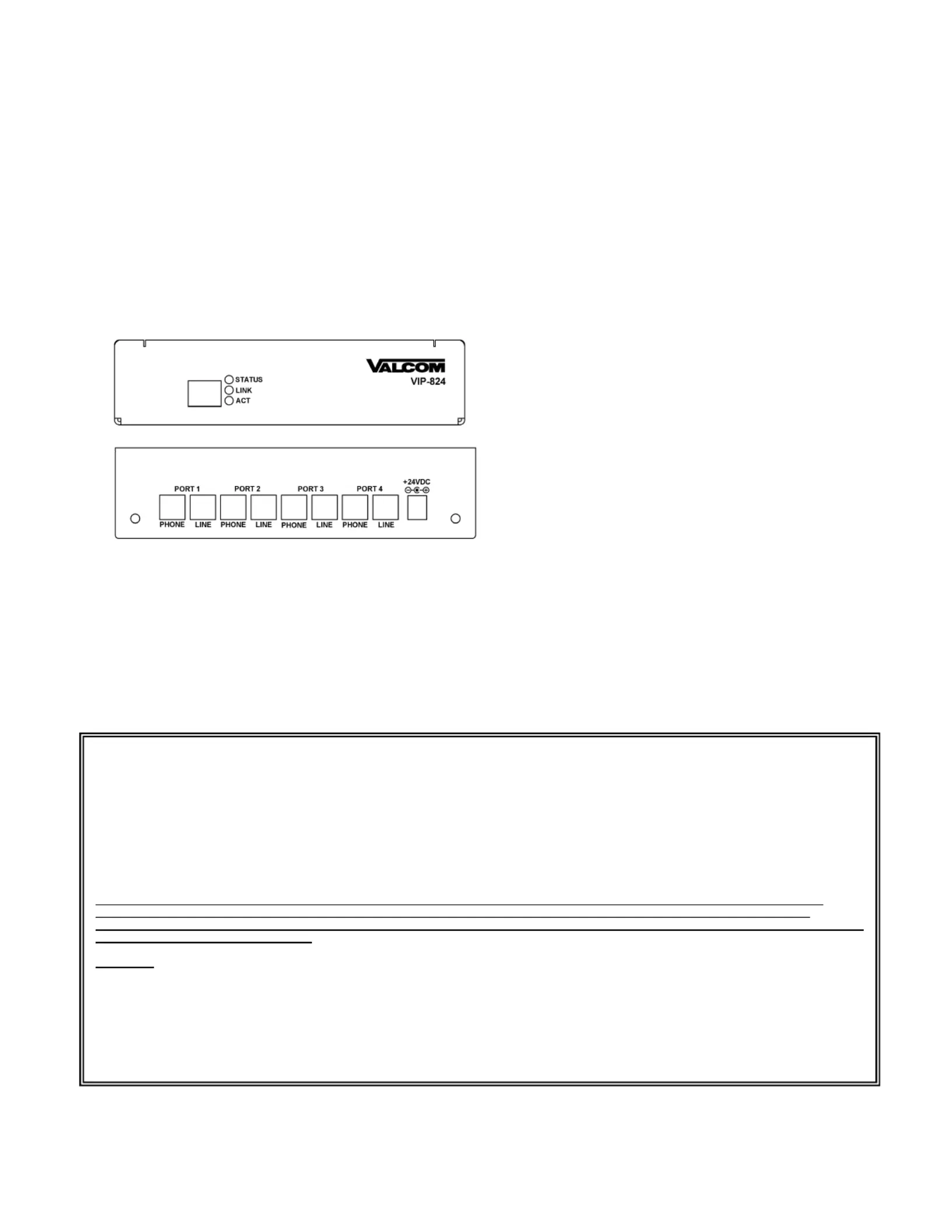

RJ-45 for network connection
4 RJ-11 FXO connections
4 RJ-11 failover telephone connections
Decode Caller ID signals
Front panel activity LED
Network activity LEDs
2.5mm jack for DC power
Power over Ethernet (PoE) 802.3af compatible
Dimensions/Weight
1.75 H x 6.75" W x 9.5" D
(4.45cm H x 17.15cm W x 24.13cm D)
Weight: 1.75 lbs. (0.80 kg)
Nominal Specifications
Input Impedance: 600 Ohms
Input Level: -10dBm
Output Impedance: 600 Ohms
Output Level: - 10dBm nominal
Nominal Power Requirements
Via back panel barrel connector:
Voltage: 24VDC
Current: 325mA
Via 802.3af PoE Ethernet Switch:
802.3af: Class 3
Environment
Temperature: 0 to +40° C
Humidity: 0 to 85% non-precipitating
Packing List
Qty Item
1 VIP-824
1 VSP Document

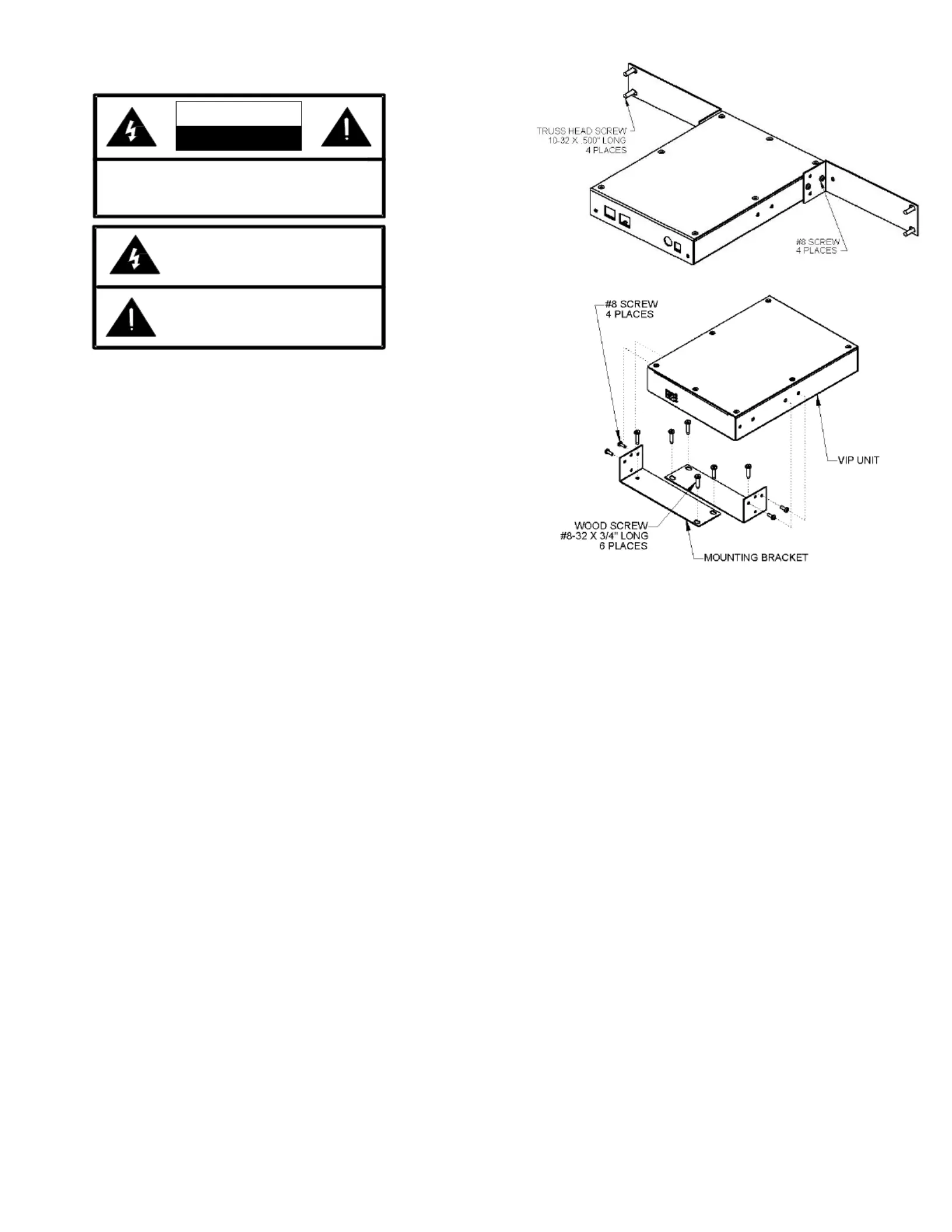

2 Mounting Brackets W/Hardware
4 Rubber Feet
INSTALLATION
NOTE: The telephone system referred to in this
manual is the customer premise equipment
such as an electronic key system, a PBX or a
dedicated single line telephone sets. The
VIP-824 is not intended for direct or indirect
connection to the public telephone network.
When used with a customer premise telephone
system such as a key system or PBX system,
these units are interfaced to the system via a
fully protected page port or system central
office port, which is a fully protected interface
device. Also, the host system must be
configured to disallow central office trunk
conferencing in order to prevent indirect
connection to the public network.
Produktspecifikationer
| Varumärke: | Valcom |
| Kategori: | Nätverkskort/adapter |
| Modell: | Trunk Port VIP-824 |
| Vikt: | 790 g |
| Bredd: | 171.5 mm |
| Djup: | 241 mm |
| Höjd: | 44.5 mm |
| LED-indikatorer: | Ja |
| Certifiering: | FCC |
| Gränssnitt: | Ethernet |
| Värdgränssnitt: | RJ-45 |
| Maximal dataöverföringshastighet: | 100 Mbit/s |
| Produktens färg: | Grå |
| Antal LAN (RJ-45) anslutningar: | 1 |
| Temperatur vid drift: | 0 - 40 ° C |
| Intervall för relativ operativ luftfuktighet: | 0 - 85 % |
| USB-ström: | Nej |
| Anslutningsteknologi: | Kabel |
| Stöd för nätverksprotokoll: | DHCP, IGMP v3, UDP, TCP, HTTP, Telnet, FTP |
| Kommunikationsstandarder: | IEEE 802.3af |
| Intern: | Nej |
| Ingående ström: | 0.325 A |
| Antal anslutningar: | 4 |
| Nätaggregatstyp: | 24 VDC |
| Länk-/aktivitets-LED: | Ja |
| Anslutning: | 8 x RJ-11 |
| Nätverksförberedd: | Ja |
