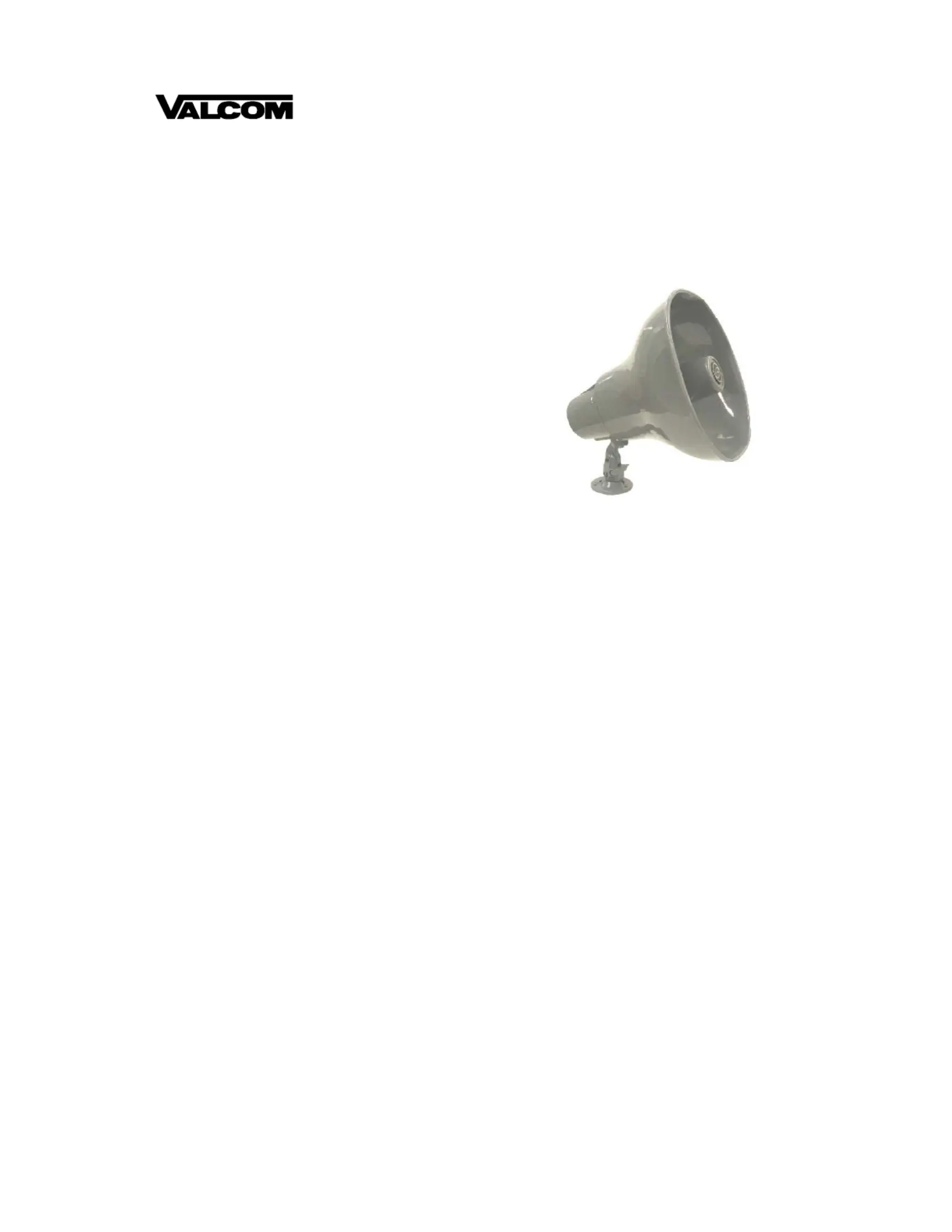

15 WATT HORN (70V) - V-5331200

30 WATT HORN (70V) - V-5331205

INTRODUCTION

The 15 Watt and 30 Watt 70 Volt Horns are

suitable for large and/or noisy areas such as

warehouse and manufacturing facilities.

Minimum effective mounting height for a horn is

15 feet, 20 feet is preferable. However, in a

system with talk-back (hands-free answer back)

the speaker may have to be mounted as low as

8 to 12 feet and set at a lower power setting.

Speakers must be mounted in locations that

provide a clear sound path to the area paged. In

areas with high shelving, more horns may be

needed for adequate coverage. To avoid

feedback, do not place telephones or

microphones near horns. Various power outputs

can be easily selected on the speakers using

the rotary power switch.

SPECIFICATIONS

FEATURES

• Has variable wattage settings

(see Tables 1 and 2)

• Works with 25V or 70V systems

Nominal Specifications

• Frequency Response:

15W (275Hz - 14kHz)

30W (225Hz - 14kHz)

• Dispersion:

15W (110°) / 30W (100°)

• dB SPL @ 1W, 1 Meter:

15W (111dB) / 30W (112dB)

Power Requirements

• 15W: 25V system: .225W to 1.87W adjustable

70V system: .25W to 15W adjustable

• 30W: 25V system: 1.9W to 15W adjustable

70V system: 2W to 30W adjustable

Weight/Dimensions

• 15 Watt Horn (4 lbs./1.8 kg)

8"W x 8"H x 9"D (20.3 x 20.3 x 22.9 cm)

• 30 Watt Horn (6 lbs./2.7 kg)

10"W x 9.5"H x 10.5"D

(25.4 x 24.1 x 26.7cm)

Environment

• Temperature: 0 to 40°C (32 to 104°F)

• Humidity: 0 to 85%

INSTALLATION

Wire Connections

A clear plastic cover protects the horn screw

terminals and provides strain relief for the wires.

1. Remove the two screws from the plastic cover.

2. Connect the audio wires to the horn.

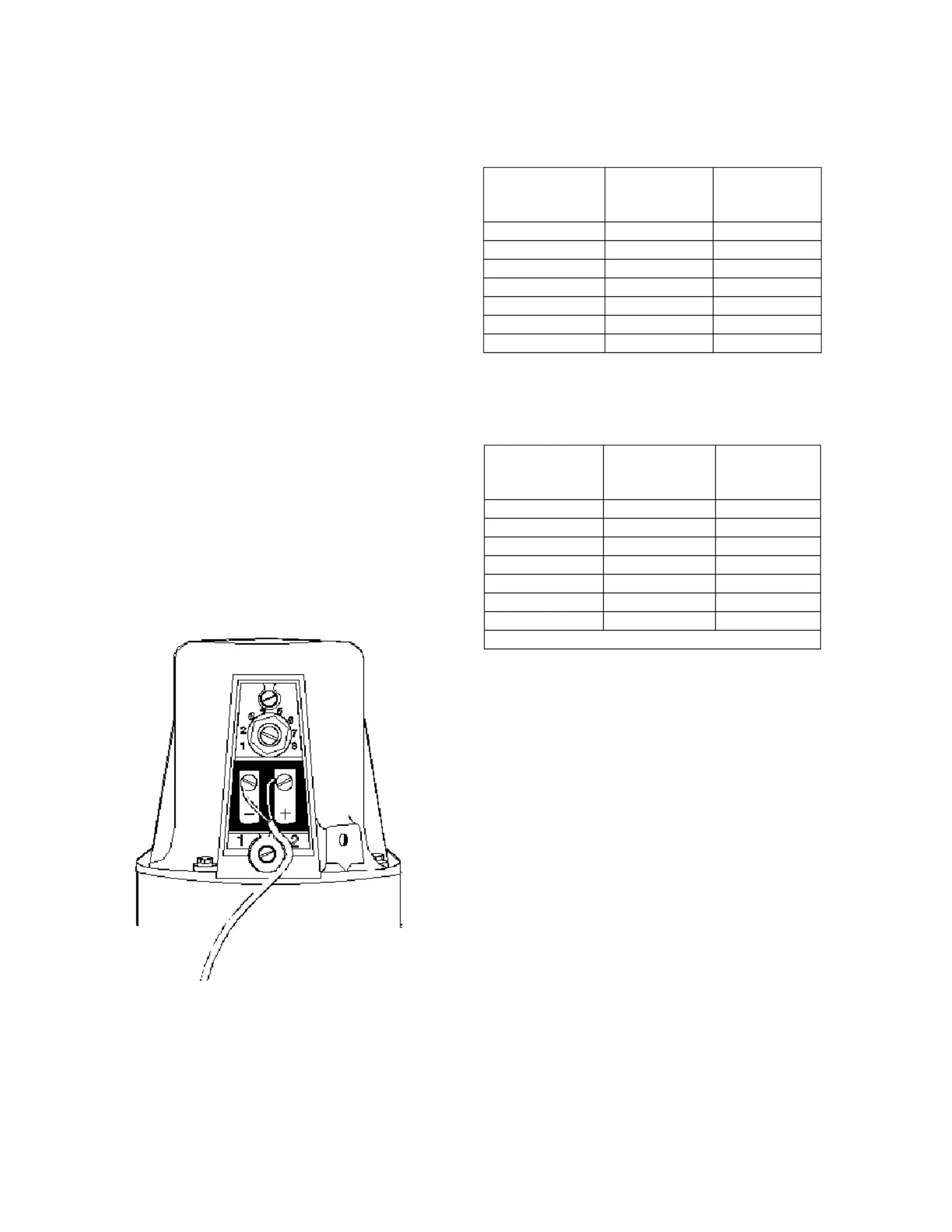

3. Connect the (+) 70V speaker wire to

terminal 2 (see Figure 1).

4. Connect the (-) common side speaker wire to

terminal 1 (see Figure 1).

5. Do not replace the plastic cover until final power

adjustments have been made.

Produktspecifikationer

Varumärke:	Valcom
Kategori:	högtalare
Modell:	V-5331200
Vikt:	1800 g
Höjd:	229.6 mm
Diameter:	202.3 mm
Rekommenderad användning:	Andra
Ljudutgångskanaler:	1.0 kanaler
Högtalarplacering:	Ceiling-mountable, Wall-mountable
Antal förare:	1
Uteffekt (RMS):	15 W
Material, hölje:	Metall
Frekvensområde:	- hz
Anslutningsteknologi:	Kabel
