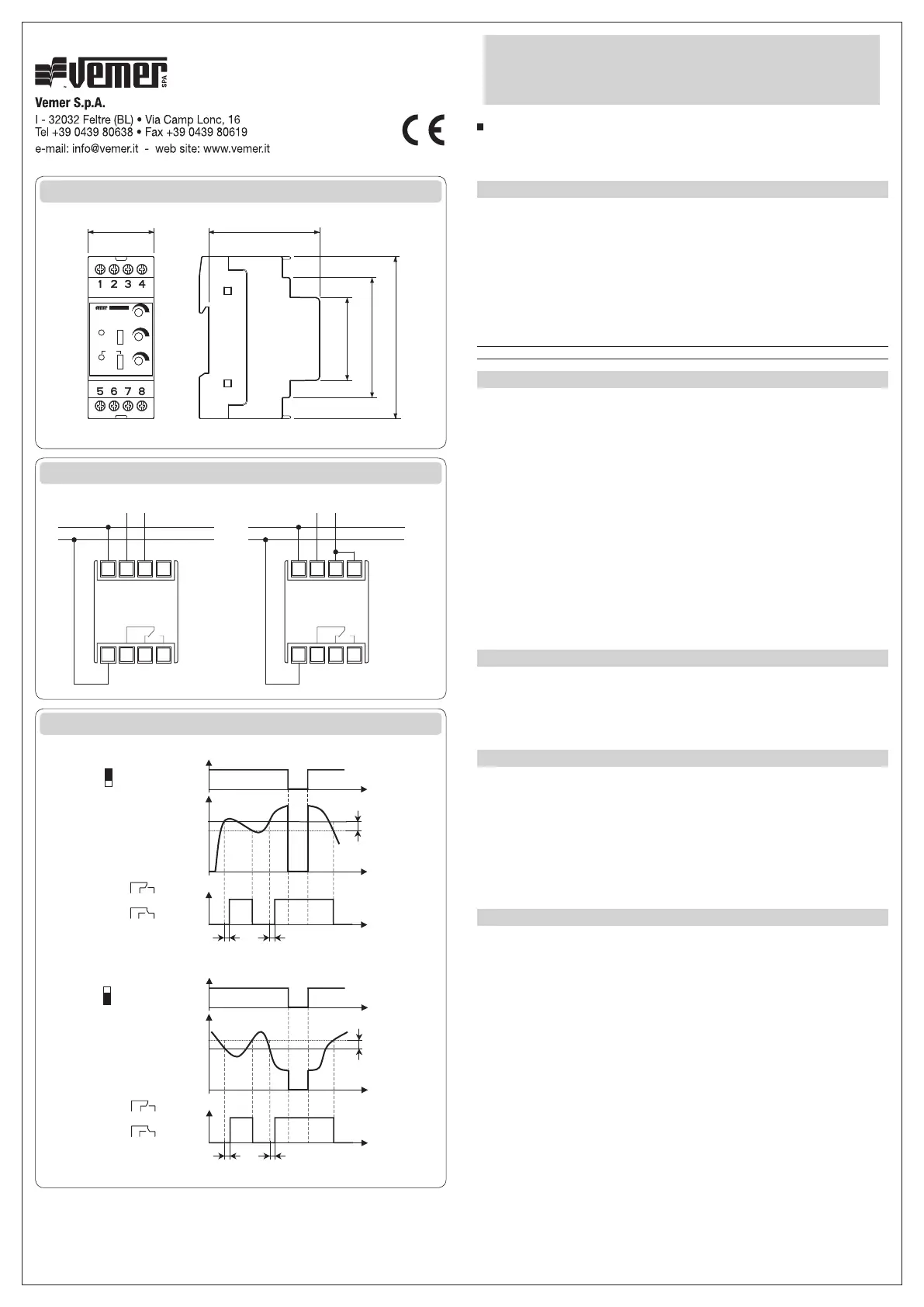

V3IS00430-011
Mod. CCR
User Manual
CURRENT CONTROL RELAY
Read all the instructions carefully
Current control relay CCR is an electronic control device to be mounted on a panel in a
standard 2-DIN size enclosure. It operates an external circuit following the set tripping
value (direct or alternate current): threshold values, hysteresis and change-over delay can be
adjusted.
SAFETY INSTRUCTIONS
During the installation and operation of the device observe the following instructions:
1) The device must be installed by a qualified person, strictly following the wiring
diagrams.
2) The device must be installed in an electrical panel which, after installation, leaves
terminals inaccessible.
3) Do not power or connect the device if any part of it is damaged.
4) The electrical system in the building where the device is installed must feature a
circuit breaker and an overcurrent protection device.
5) The device is aimed for use in places with over-voltage category III and pollution
degree, 2 as per standards EN 61010-1.
Code Model Description
VE143400 CCR
Current-control relay
TECHNICAL SPECIFICATIONS
• Powersupply:230VCA(-15%÷+10%),50/60Hz
• Consumption:≤4VA
• Termination:6mm
2
metal blocks
• Output:changeovercontactrelay8A/250VAC(resistiveload)
• Inputsignal
–0,15A÷1,5A
–1,0A÷10A
• Fullscaleselectionbywiring(cfr.
Connection diagram
)
• Threshold:tobeadjustedbetween10%and100%ofthefullscalebytrimmer
• Hysteresis:tobeadjustedbetween5%and50%ofthethresholdvaluebytrimmer
• Relayswitchingdelay:tobetrimmer-adjustedfrom0,1to10seconds
• Signallingby2LEDs
– green = power on
– red = relay off (alarm)
• Operatingtemperature:–5°C÷+50°C
• Storagetemperature:–10°C÷+70°C
• Enclosure:2DINsize
• Settingofmaximumorminimumrelaybyselector
• Settingofalarmstatusmemorybywayofselector
• Degreeofprotection:IP20/IP40whencorrectlyinstalledinanelectricalpanel
WIRING
• Powerthedeviceupbyconnectingterminal1tolineandterminal5toneutral.
• Connectthesignaltothemeasuringterminalsaccordingtorange(forusewithDCalso
observe polarity):
–0,15A÷1,5Abetweenterminals2and3
–1A÷10Abetweenterminals2and3,afterterminals3and4havebeenshort-circuited
OPERATION
• Selectmaximumorminimumrelaymodeusingtheselectoronthefrontofthedevice
(>Ir g maximum relay, <Ir g minimum relay)
• Selectthresholdcurrentusingtrimmer
Sens
• Selecthysteresisvalueusingtrimmer
Hyst
• SelecttheDelayvalueusingthe
Delay
trimmer.Thisisthetimeinterveningbetweenthe
moment Ir is exceeded and the moment the relay switches over
• Selector
memo
enablesthememorystoringfunction.Afteralarmandtheconsequent
relay switch over, the memory function keeps the acquired output status even when the
measured value is back in the useful range; memory is zeroed using the selector, so that
the device does not need to be switched off
RIFERENCE STANDARDS
ConformitytotheEUdirectives:
2006/95/EC(LowVoltage)
89/336/EECmodiedby92/31/EECand93/68/EEC(EMC)
is declared with reference to the following harmonised standards:
Safety:
EN61010-1
Electromagnetic compatibility:
EN61000-6-2,EN61000-6-4
Dimension
Connection diagram
Operating diagram
36
60
45
65
88
Hyst. (%)
Delay (s)
Sens. (%)
on
off
memo
>
Ir
<
CCR
ON
OFF
Relay
L1
N
1
2
3
4
5
6
7
8
8A / 250 V ca
0,15÷1,5A
L1
N
1
2
3
4
5
6
7
8
8A / 250 V ca
1÷10A
++
>
230V
230V
0V
Sens
Sens
Delay
0
6 7 8
6 7 8
0
0V
<
Ir
Maximum relay mode
>
<
Ir
Minimum relay mode
Relay OFF
Relay ON
Delay Delay Delay
6 7 8
6 7 8
Relay OFF
Relay ON
Hyst Hyst
>
230V
230V
0V
Sens
Sens
Delay
0
6 7 8
6 7 8
0
0V
<
Ir
Maximum relay mode
>
<
Ir
Minimum relay mode
Relay OFF
Relay ON
Delay Delay Delay
6 7 8
6 7 8
Relay OFF
Relay ON
Hyst Hyst
