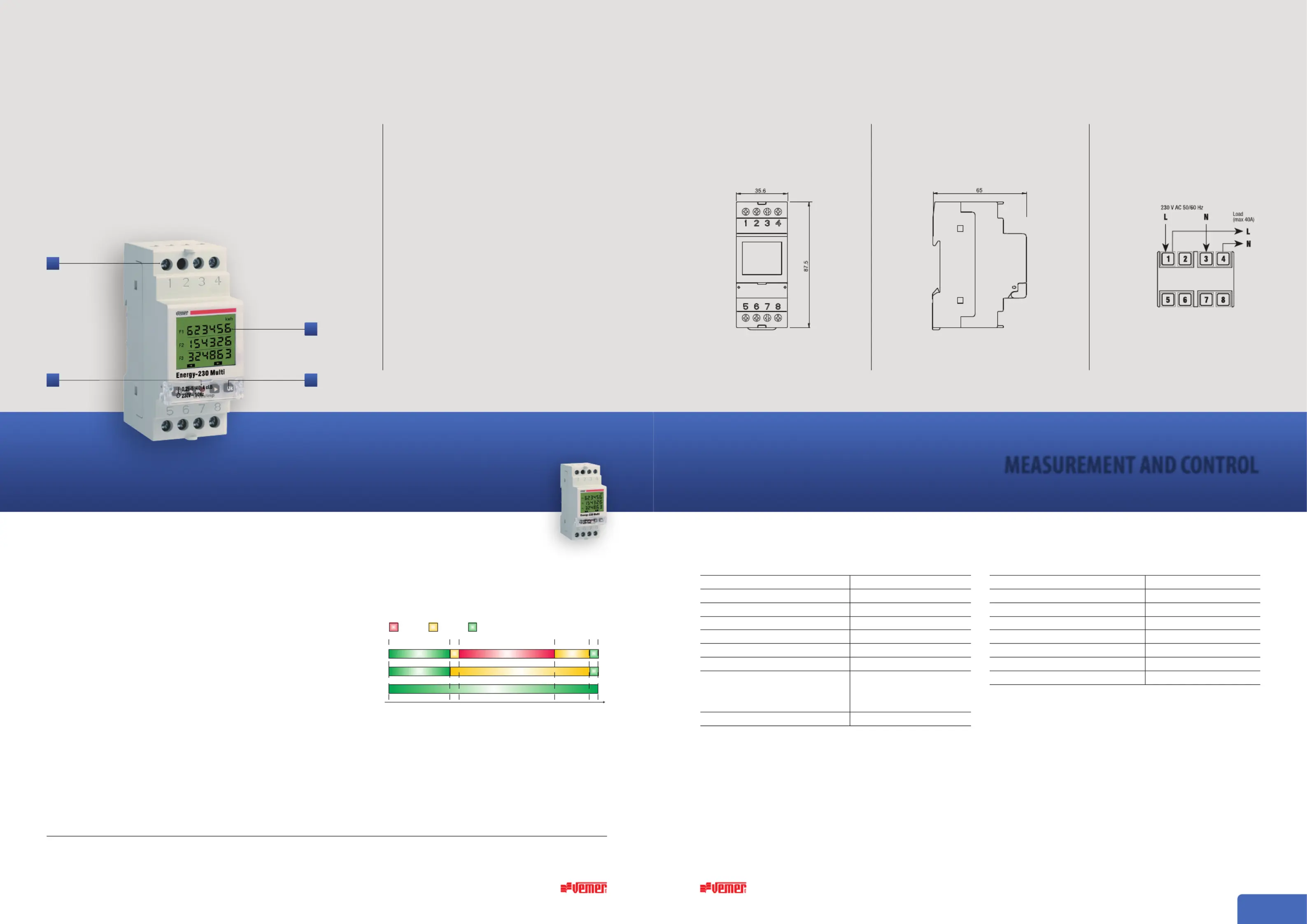

MESSUREMENT

AND CONTROL

MEASUREMENT AND CONTROL

GENERAL CHARACTERISTICS

TECHNICAL INFORMATION

DIMENSIONS (mm)CONNECTION DIAGRAM

CodeModelDescriptionDimensions

VE429700Energy-230 MultiActive single-phase energy meter to multi-times pricing2 DIN modules

DIRECT CONNECTION

SINGLE-PHASE METER

•Power supply 230 V AC (-15% ÷ +10%) 50 Hz

• Display for the view of the total consumed energy, of partials for each time band, date and

time and cost, for each time band, of consumed energy (if the unit value has been inserted)

•Total not resettable counter (full scale 99999.99)

• Total partial counter (resettable) more 3 partial counters for 3 time bands

• Direct connection max 40 A

• 2 DIN modules format

• Password protected lock keypad

• Precision: class B

• Sealable cover

• Sealable block cover (cover included in the package)

ENERGY-230 MULTI

1Wide display for displaying of measured consumptions,

divided into time bands

2Keyboard for parameters setting and to scroll

the various menu pages

3Energy metering indication led (1 ash = 10 Wh)

or incorrect connection signalling

4Terminal blocks for the connection of power supply and of load

Active energy meter for single-phase 230 Vac systems designed for displaying consumption divided into

time bands as required by the authority for electricity.

Energy meters

REFERENCE STANDARDS

Compliance with Community Directives: 2006/95/EC (Low voltage) and 2004/108/EC (E.M.C.)

is declared with reference to the following standards: • Safety: EN 61010-1 • E.M. Compatibility: EN 61000-6-2 / EN 61000-6-4 • Metrological requirements EN 50470-1 / EN 50470-3

Current circuit power consumptionVA<4

Total energy resolutionkWh0.1

Partial energy resolutionkWh0.1

Operating temperature°C-10 ÷ +45

Storage temperature°C-25 ÷ +70

Humidity10 ÷ 90% non condensing

Container2 DIN modules

Protection degreeIP20 / 51 Frontal

Power supply230 (-15 ÷ +10%)V AC

Frequency50Hz

AbsorptionVA5

Starting current I

st

mA20

Minimum current I

min

A0.25

Nominal current I

ref

A5

Maximum current I

max

A40

Signalling ledGreen = powered

Red = flashing

with frequency 10 Wh

PrecisionClass B

Front viewSide viewDiagram

Division of time bands as established by the authority for electricity

0:007:008:0019:0023:0024:00

Mon-Fri

Saturday

Sunday

and holidays

Time band 1Time band 2Time band 3

Energy-230 Multi_201602

1

4

32
