Sida 1/1

1514

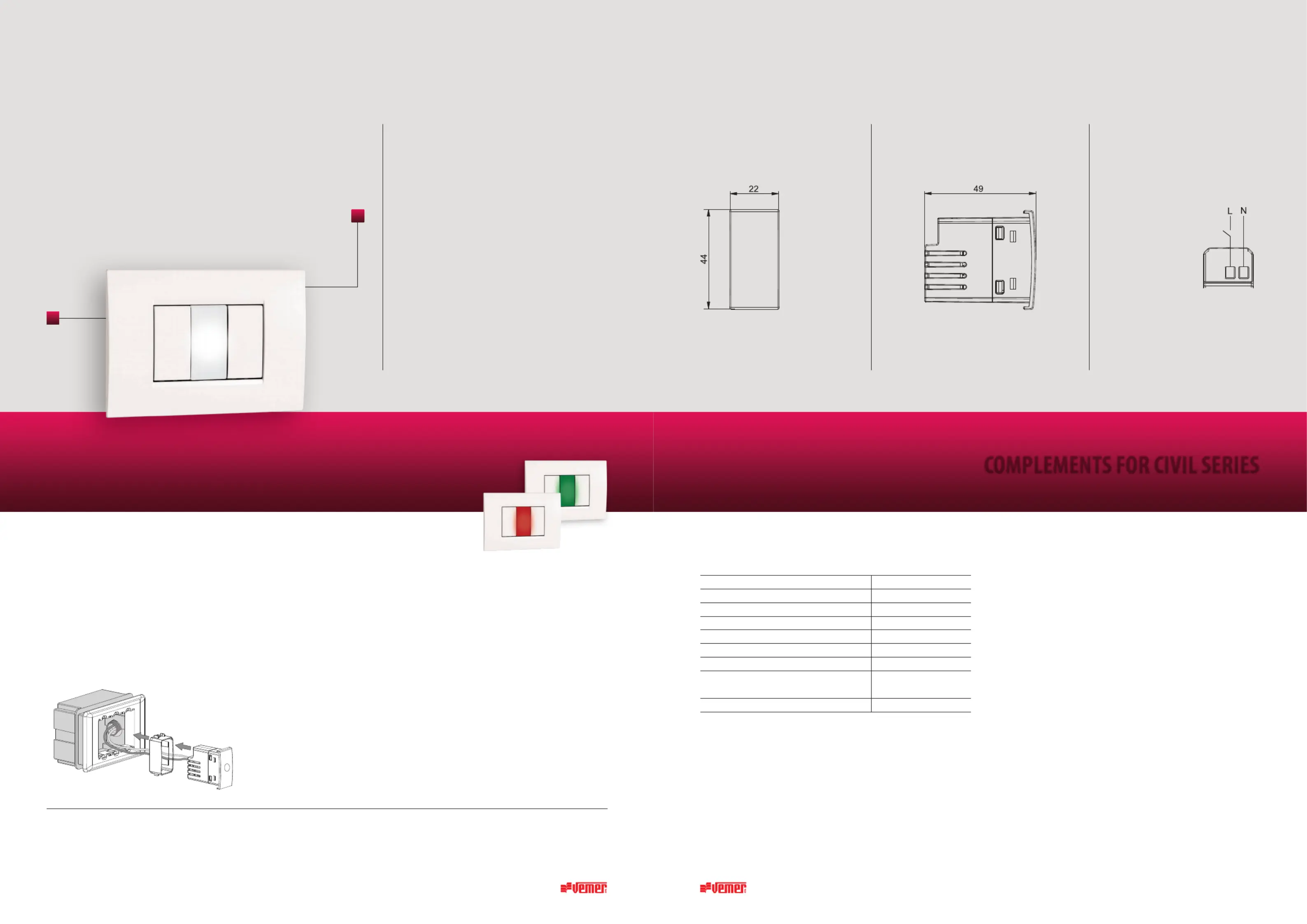

COMPLEMENTS FOR CIVIL SERIES

TECHNICAL INFORMATION

MIRALight indicators

1 Installation on ush-mounting boxes with a height of 45 mm

2 Terminals on the back of the device for power supply connection

Not extractable step marker lamp that turns on and stays on only when the power is on.

Muvy is small and compact to be installed with discretion in the flush-mounting boxes of any room

and is supplied with adapters that allow installation with the plates of the main civil series.

LIGHT INDICATORS

• 3 models available, which dier in the colour of the light emitted:

green, white, red

• The light turns on when the device is powered

• Compact size: only 1 module occupied in the ush-mounting box

• Adapters that allow adaptability with the main civil series

(see “Adaptable plates”) included in the package

Code Model Description Colour Power supply

VE771000 Mira Verde 230 V~Signaling lamp compact size Green

VE771100 Mira Bianca Signaling lamp compact size Opal white 230 V~

VE770900 Mira Rossa Signaling lamp compact size Red 230 V~

Adaptable plates

ABB Mylos series

Ave S44 series

Bticino Axolute series

Bticino Axolute Air series

Bticino Light series

Bticino Living International series

Bticino LivingLight series (LL)

Bticino LivingLight Air series

Bticino Matix series

Gewiss Chorus series

Vimar Arké series

Vimar Eikon series

Vimar Eikon Evo series

Vimar Plana series

For information on the possibility of using dierent plates

contact the technical assistance service

CONNECTION DIAGRAM

DIMENSIONS

(mm)

Front view Side view Diagram

REFERENCE STANDARDS

Compliance with the Community Directives: 2014/35/EU (LVD) and 2014/30/EU (EMCD)

is declared in reference to the following harmonized standards: EN 60598-1 • EN 60598-2-2 • EN 61000-6-1 • EN 61000-6-3

Power supply V AC 230 (-15% ÷ +10%)

Absorption VA (W) 7 (0.5)

Frequency 50/60Hz

Mounting ush

Maximum cables section mm21.5

Operating temperature 0 ÷ 50°C

Storage temperature -10 ÷ +65°C

Operating humidity 20% ÷ 90% RH

non condensing

Protection degree IP40

GENERAL CHARACTERISTICS

External switch: lamp on/o

MIRA-ENG-072019
