Vemer S.p.A.

I - 32032 Feltre (BL) • Via Camp Lonc, 16

Tel +39 0439 80638 • Fax +39 0439 80619

e-mail: info@vemer.it - web site: www.vemer.it

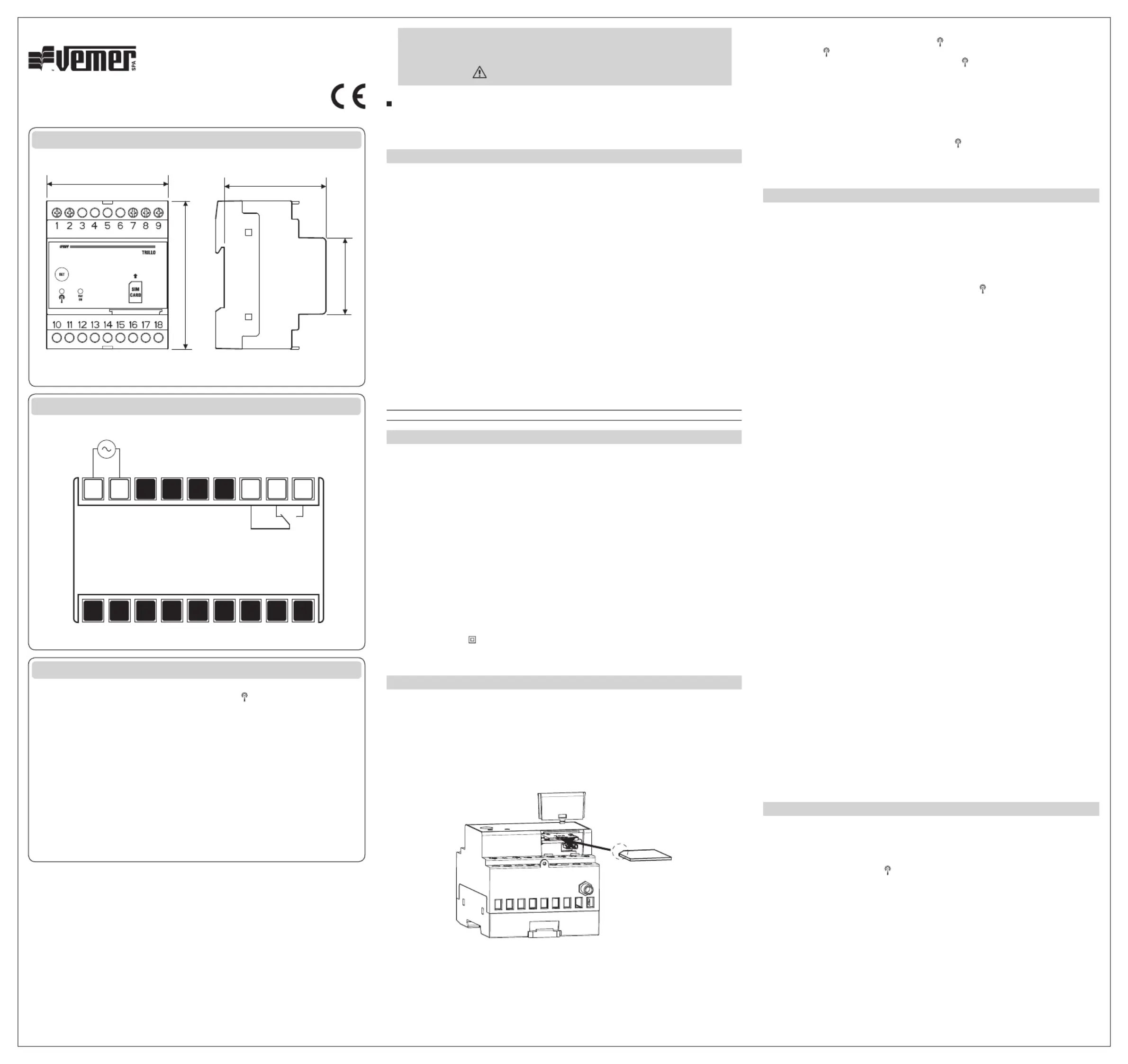

DIMENSIONS

WIRING DIAGRAMS

DEVICE STATUS

Mod. TRILLO

V3IS00556-101-042016

• The status of the device is segnalated by the bicolor led :

OFF  system not fed

BLINKING RED sim not inserted or pin code in activity

FIXED RED GSM field insufficient

FIXED GREEN starting system/network research

BLINKING GREEN connected to GSM network

QUICKLY BLINKING GREEN arriving in command (ring or sms)

GREEN/RED BLINKING programming mode active

QUICKLY BLINKING RED modem error or failure (if still flashing)

BLINKING YELLOW connected to GSM field but low level battery

Note: blinking = 1 lamp / second

quickly blinking = 5 lamps / second

User manual

GSM COMMUNICATION INTERFACE

Read all instructions carefully

Trillo is a device gsm technology based that executes 1B type actions.

It permits the remote management of an electric service by sending sms or ring from your

telephone.

The backup battery permits to the device to operate for an hour in the case of power fail.

SAFETY WARNINGS

During the installation and operation of the device observe the following instructions:

1) The device must be installed by a qualified person

2) The device must be installed and activated in compliance with current electric systems

standards

3) After installation, inaccessibility to the terminals and to the terminal screws that secure

the wires (power supply and relay) without appropriate tools must be granted

4) Do not use the device for purposes other than indicated

5) The device must be installed in a electric closed panel well protected

6) A two-pole disconnect device with a separation of at least 3 mm between contacts shall be

provided as part of the building installation

7) A protection device against over-currents should be installed in the electrical system,

upstream of the device (maximum 16A)

8) Carefully respect the wiring diagrams to install the device

9) Before accessing the connection terminals, verify that the leads are not live

10)

Do not power or connect the device if any part of it is damaged

11)

The use of a GSM device can cause interference with the functioning of electronic devices

non-screened from radiofrequency signals (electromedical devices, pacemakers, hearing

aids etc.)

12)

In case of fault, do not service the device yourself but contact the after-sales service

13)

The device is aimed for use in place with over-voltage category II and pollution degree 2,

as per standards EN 60950-1.

Code Model Description

VE245700 Trillo

GSM communication interface 230V ac

TECHNICAL CHARACTERISTICS

• Power supply: 230V ac (-15% ÷ +10%) 50/60Hz

• Consumption: 4 VA

• Connection:

− cables with max 6 mm

section

• Output:

− a bistable relay with exchange contact

− breaking capacity: 8(5)A / 250V ac

− red led for signal output status

• Signalling device status:

− multicolour green/red/yellow led (see box “DEVICE STATUS”)

• GSM Qual Band module (900-950-1800-1900 MHz)

• SMA-F connector for external aerial (included in the box)

• You can store up to 100 numbers

• Operating temperature: 0 ÷ 50 °C

• Operating humidity: 10 ÷ 90% noncondensing

• Storage temperature: -10 ÷ +45°C

• Protection: IP20/IP40 if correctly installed in an electric closed panel that guarantee IP40

protection level

• Insulation class: II

• Container: 4 DIN modules

• Backup battery capacity: about 1 hour

INSTALLATION

➢

Getting a sim card enabled for phone traffic, with the required pin code and the

answering machine disabled (to disable the pin code, to use a mobile phone and follow the

steps described in the relative user’s guide).

➢

Remove the flip cover of the housing using a screwdriver.

➢

Insert the sim card into the slot (push-push type). The direction of insertion provides that the

bevel of the sim card goes inside in the left.

Attention: ensure the device is switched OFF before inserting/remove the sim card

(see box “TURN ON/OFF DEVICE”).

➢

Fix the cover.

➢

Screw the supplied antenna into its connector on the side of the device.

Note. Ensure that the power cables are disconnected before replace the antenna.

➢

Connect the power and the load as shown in the “wiring diagrams”.

Once the device has been connected, the led

will remain green fix for about 30 seconds;

then the led

begins to blinking once at second, indicating the correct reception of the

gsm network. If the battery is fully charged, the led

will flash yellow.

If this is not the case, see box “Device status”.

➢

STORE ADMIN NUMBER

For the proper functioning of the device it is necessary to set the number admin who has

full control of the device.

hold the “set” button for 5 seconds until the led begins to flash alternately red / green

- make a ring with the number you want to set as many admins.

The caller will receive an sms confirmation of activation.

MANAGEMENT ENABLED NUMBERS

• Managing user numbers

You can create a phone book containing up to 100 phone numbers (user numbers) the

which may act on the state of relay by sending sms or phone rings.

There are two ways to add a user number:

− via phone ring

➢

Hold for 5 seconds the “Set” button until the led begins to flash

alternating red / green.

➢

Make a ring with the number concerned. This number will be inserted

(removed) from the list of user if not present (present) in the phonebook. An sms

confirmation will be sent to caller with an indication of the phrases employed

total available.

− via Sms

➢

The number admin can add or remove at any time the user numbers by sending

the following commands:

USERADD [list of numbers to be added]

USERDEL [list of numbers to be removed]

Numbers add / remove should be separated from each other by a empty space.

• Edit number admin (for admin only)

The admin number can be changed by sending (from the current admin number) the

following command:

ADMIN [new admin number]

The new admin will receive an sms number to confirm your transaction.

Note. If the number admin lose it, you can change only forcing a reset,

losing all the numbers previously enabled. For avoid having to reload

manually, please refer to “Manage sim card”.

• Manage SIM card (for admin only)

The telephone numbers are stored in the enabled device. This implies, in the case

of a reset, the loss of all authorized users. To avoid having manually refresh all the

numbers, you can make a backup copy of the sim card using the following commands:

STORE creates a copy sim card all the numbers saved user

RESTORE restores previously saved with only the numbers STORE

It is therefore recommended that, once empowered all telephone users, perform a

heading backup.

• Display stored user (for admin only)

You can view a list of user numbers stored in blocks of 8 with the command:

USERVIEW [begin] where:

[begin] indicates the first memory location to be displayed.

For example, the command USERVIEW 2 will answer as a list of numbers saved in

memory locations 2 through 9.

OPERATION

TURN ON/OFF DEVICE

• Trillo can be turn off without unlink the power cables simply pressing for at least 10

seconds for the key “Set” while all leds turn off. During the pression of the key, the output

led blinks quickly and the led

blinks green (or yellow) for the first 5 seconds and green/

red for the other 5 seconds.

To turn on the device, press the key “Set”.

COMMANDS

It is possible to work on the output as follows:

− with the key present on the front panel

− with ring from a certified number

− with a sms from a certified number (without password) or not certified number (with

password)

7 8

OUT

8 A/250 V~
