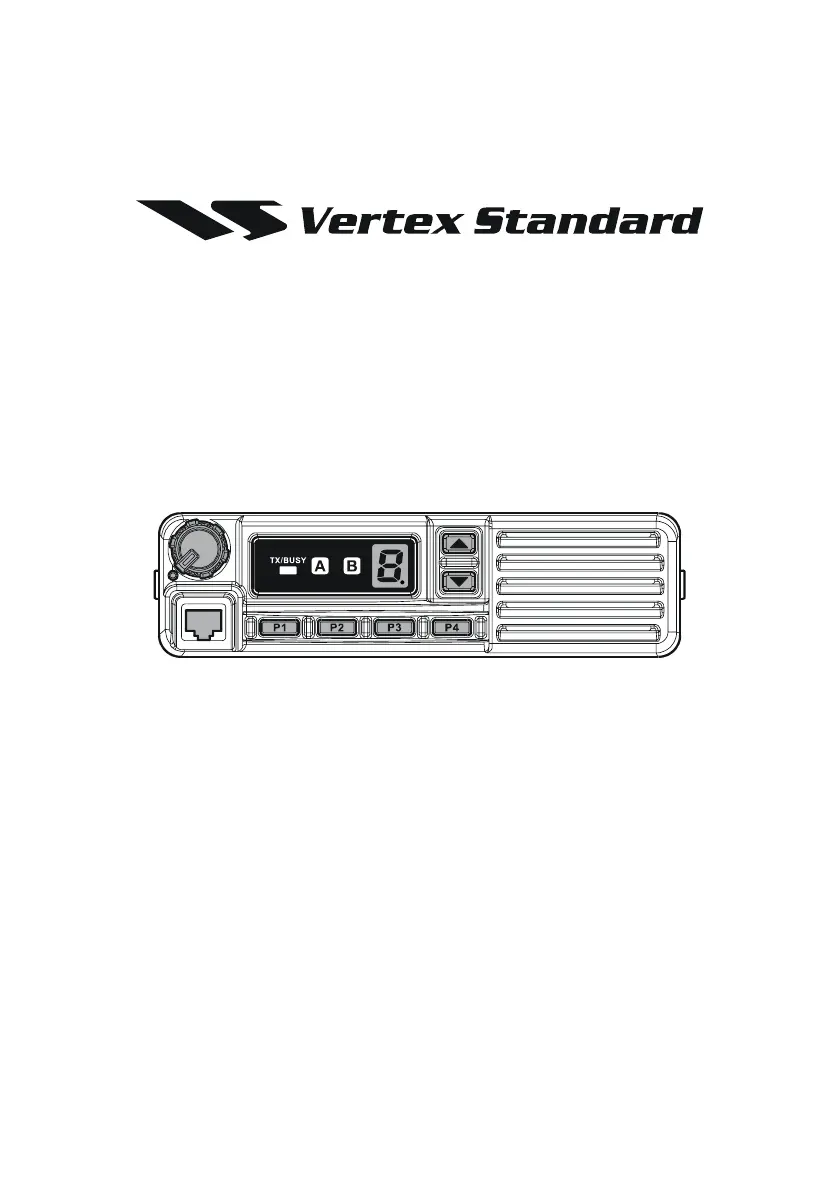

VX-2100
SERIES
OPERATING MANUAL
VERTEX STANDARD CO., LTD.
4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan
VERTEX STANDARD
US Headquarters
10900 Walker Street, Cypress, CA 90630, U.S.A.
YAESU EUROPE B.V.
P.O. Box 75525, 1118 ZN Schiphol, The Netherlands
YAESU UK LTD.
Unit 12, Sun Valley Business Park, Winnall Close
Winchester, Hampshire, SO23 0LB, U.K.
VERTEX STANDARD HK LTD.
Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road,
Kwun Tong, Kowloon, Hong Kong
Unsafe Radiation Distance
Congratulations!
You now have at your fingertips a valuable communications tool: a VERTEX STAN-
DARD two-way radio! Rugged, reliable and easy to use, your VERTEX STANDARD
radio will keep you in constant touch with your colleagues for years to come, with
negligible maintenance downtime.
Please take a few minutes to read this manual carefully. The information presented
here will allow you to derive maximum performance from your radio, in case ques-
tions arise later on.
We’re glad you joined the VERTEX STANDARD team. Call on us anytime, because
communications is our business. Let us help you get your message across.
NOTICE !
There are no owner-serviceable parts inside the transceiver. All service jobs
must be referred to an authorized VERTEX STANDARD Service Represen-
tative. Consult your Authorized VERTEX STANDARD Dealer for installa-
tion of optional accessories.
SAFETY/WARNING INFORMATION
WARNING - DO NOT operate the VX-2100 radio when any person(s) (by-
standers) outside the vehicle are within the distances shown in the chart at the
bottom of this section.
Safety Training information:
Antennas used for this transmitter must not exceed an antenna gain of 0 dBd.
The radio must be used in vehicle-mount configurations with a maximum op-
erating duty factor not exceeding 50 %, in typical Push-to-Talk configurations.
This radio is restricted to occupational use, work related operations only where
the radio operator must have the knowledge to control the exposure condi-
tions of its passengers and bystanders by maintaining the minimum separa-
tion distance shown below.
Failure to observe these restrictions will result in exceeding the FCC RF ex-
posure limits.
Antenna Installation:
For rear deck trunk installation, the antenna must be located at least the fol-
lowing distance away from rear-seat passengers in order to comply with the
FCC RF exposure requirements.
For roof top installations, the antenna must be placed in the center of the roof.
VHF Model
4.6 Feet (1.4 m)
UHF Model
3.9 Feet (1.2 m)
VX-2100 SERIES OPERATING MANUAL 1
INTRODUCTION
The VX-2100 Series are full-featured FM transceiver designed for flexible mobile
and base station business communications in the VHF or UHF Land Mobile bands.
These transceiver are designed for reliable business communications in a wide vari-
ety of applications with a wide range of operating capability provided by their lead-
ing-edge design.
Important channel frequency data is stored in EEPROM and flash memory on the
CPU, and is easily programmable by dealers using a personal computer and the VER-
TEX STANDARD Programming Cable and CE82 Software.
The pages which follow will detail the many advanced features provided on the VX-
2100 Series transceiver. After reading this manual, you may wish to consult with
your Network Administrator regarding precise details of the configuration of this
equipment for use in your application
For North American Users Regarding 406 MHz Guard Band
The U.S. Coast Guard and National Oceanographic and Atmospheric Admin-
istration have requested the cooperation of the U.S. Federal Communications
Commission in preserving the integrity of the protected frequency range 406.0
to 406.1 MHz, which is reserved for use by distress beacons. Do not attempt
to program this apparatus, under any circumstances, for operation in the fre-
quency range 406.0 - 406.1 MHz if the apparatus is to be used in or near
North America.
VX-2100 SERIES OPERATING MANUAL2
CONTROLS & CONNECTORS
Front Panel
Important! - All buttons located on the Front Panel are Programmable Function (PF)
Buttons, configured according to your network requirements and programmed by
your VERTEX STANDARD dealer. The instructions below discribe a typically-con-
figured radio.
VOL/PWR Knob
Turn this control clockwise to turn the radio on and to increase the volume. Turn
it counterclockwise into the click-stop to turn the radio off.
Microphone Jack
Connect the microphone plug to this jack.
[P1] - [P4] Buttons (Programmable Function Buttons)
These buttons can be set up for special applications, such as High/Low power
selection, Monitor, Talk-Around, etc., as determined by your network require-
ments and programmed by your VERTEX STANDARD dealer.
[]/[] Buttons (Programmable Function Buttons)
In the factory default, pressing either button changes the current channel (and
displayed channel number or name). Holding in either button for more than 1.5
second causes the radio to begin stepping (repeatedly) upward or downward
through the channels.
VX-2100 SERIES OPERATING MANUAL 3
Channel Number Indicator
Indicates the operating channel.
Blinks the squelch setting level (0-9, A, b, and C) while adjusting the squelch
threshold level. Appear the decimal point “.” when selecting the Scan enabel
channel.
Transceiver Status Indicator
The “A” and “B” indicators show current transceiver status, which can be cus-
tomized via programming by your VERTEX STANDARD dealer to meet your
communications/network requirements. The possible “A” and “B” displays are
explained below.
TX/BUSY Indicator
Indicates transceiver’s Transmit/Receive Status
Steady Red: Transmitting in progress
Steady Green: Signaling Off
Blinking Green: Busy Channel/Squelch Off
CONTROLS & CONNECTORS
TRANSCEIVER STATUS INDICA T OR
MONI
LOW
TA (Talk Around)
Encryption
(Requires optional Unit)
Emergency
Horn Alert
Public Adress
Key Lock
EXT ACC
RFC
INDICATOR
A B
This indicator is Illuminated constantly when
CTCSS- or DCS-controlled squelch is disabled. The
indicator blinks while the audio is passing normally.
Illuminates the indicator when the radio’s transmit-
ter is set to the “Low Power” mode.
Illuminates the indicator when the “Talk Around”
function is activated.
Illuminates the indicator when the “Voice Scram-
bler” function is enabled.
Illuminates the indicator when the “Emergency” fea-
ture is activated.
Illuminates the indicator when the “Horn Alert” fea-
ture is activated.
Illuminates the indicator when the radio is turned to
a PA amplifier.
Illuminates the indicator when the front panel’s keys
are locked.
Illuminates the indicator when the output port on
the Accessory Connector is turned to “ON.”
Illuminates the indicator when the radio is the “Ready
for Communication” condition while operating with
the 2-Tone or 5-Tone signaling.
STATUS DESCRIPTION
VX-2100 SERIES OPERATING MANUAL4
13.6V DC Cable Pigtail with Connector
CONTROLS & CONNECTORS
The supplied DC power cable must be connected to this 2-pin connector. Use
only the supplied fused cable, extended if necessary, for power connection.
Antenna Socket
The 50-Ohm coaxial feedline to the antenna must be connected here, using a
type-M (PL-259) plug.
D-Sub 15-Pin Accessory Connector
External TX audio line input, PTT (Push To Talk), Squelch, and external RX
audio line output signals may be obtained from this connector for use with acces-
sories such as data transmission/reception modems, and external Channel con-
trol input etc.
External Speaker Jack
An external loudspeaker may be connected to this 2-contact, 3.5-mm mini-phone
jack.
Caution: Do not connect either wire of this line to ground, and be certain that the
speaker has adequate capability to handle the audio output (12 W) from the
radio.
VX-2100 SERIES OPERATING MANUAL6
Automatic Time-Out Timer
If the selected channel has been programmed for automatic time-out, you must limit
the length of each transmission. While transmitting, a beep will sound 10 seconds
before time-out. Another beep will sound just before the deadline; the red “TX”
indicator will disappear and transmission will cease soon thereafter. To resume trans-
mitting, you must release the PTT switch and wait for the “penalty timer” to expire
(if you press the PTT switch before this timer expires, the timer restarts, and you will
have to wait another “penalty” period)
Key Lock
In order to prevent accidental frequency change or inadvertent transmission, various
aspects of the VX-2100’s keys may be locked out.
To activate the Locking feature, press and hold in the
[P1] key while turning the
radio on. To disable the Locking feature, repeat this power-on procedure.
ADVANCED OPERATION
Programmable Function (PF) Buttons
The VX-2100 Series includes six Programmable Function (PF) Buttons. The PF
button functions can be customized, via programming by your VERTEX STAN-
DARD dealer, to meet your communications/network requirements. Some features
may require the purchase and installation of optional internal accessories. The pos-
sible PF button programming features are illustrated below, and these functions are
explained on the pages to follow.
For further details, contact your VERTEX STANDARD dealer. For future reference,
check the box next to the function that has been assigned to each PF button on your
particular radio, and keep it handy.
BASIC OPERATION OF THE TRANSCEIVER
