Rev. 10/2/2017 DSP, MANUAL
Copyright 2017 Vestil Manufacturing Corp. Page 1 of 4

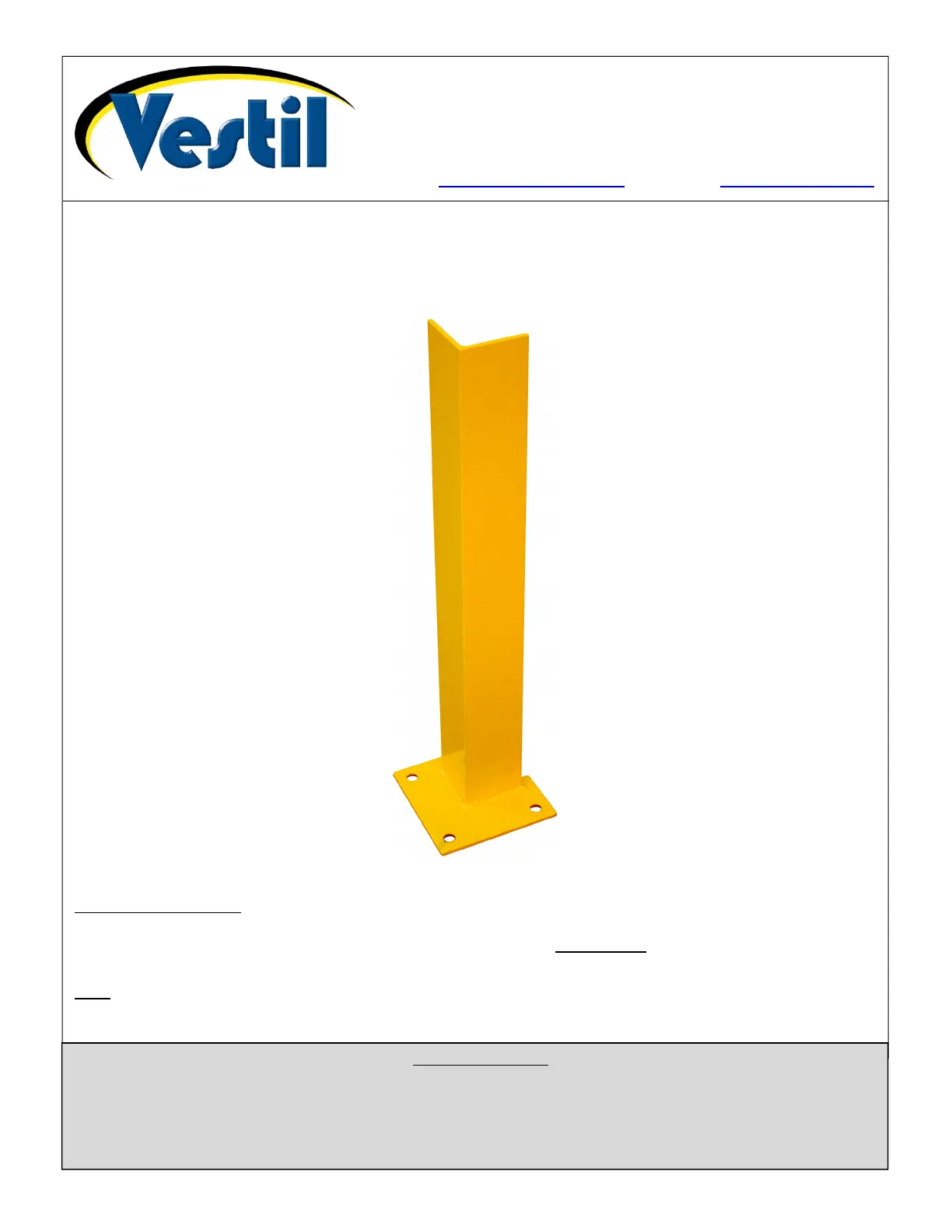

DSP-Series Overhead Door Track Protectors
Installation Manual
Receiving instructions:
After delivery, remove the packaging from the product. Inspect the product closely to determine whether
it sustained damage during transport. If damage is discovered, immediately record a complete description
of the damage on the bill of lading. If the product is undamaged, discard the packaging.
Note:
The end-user is solely responsible for confirming that product design complies with all laws, regulations,
codes, and mandatory standards applied where the product is used.
Vestil Manufacturing Corp.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
Fax: (260) 665-1339
Web: www.vestilmfg.com e-mail: info@vestil.com
Table of Contents
Specifications………………………………………………………………………………………………………… 2
Signal Words………………………………………………………..……………………………………………….. 2
Safety Guidelines………………………………………….………………………………..………………….……. 2
Installation……..…………….………………………………………………..……………………………...……… 3
Limited Warranty…………………………………………………………………………...…………………….….. 4
Rev. 10/2/2017 DSP, MANUAL
Copyright 2017 Vestil Manufacturing Corp. Page 2 of 4

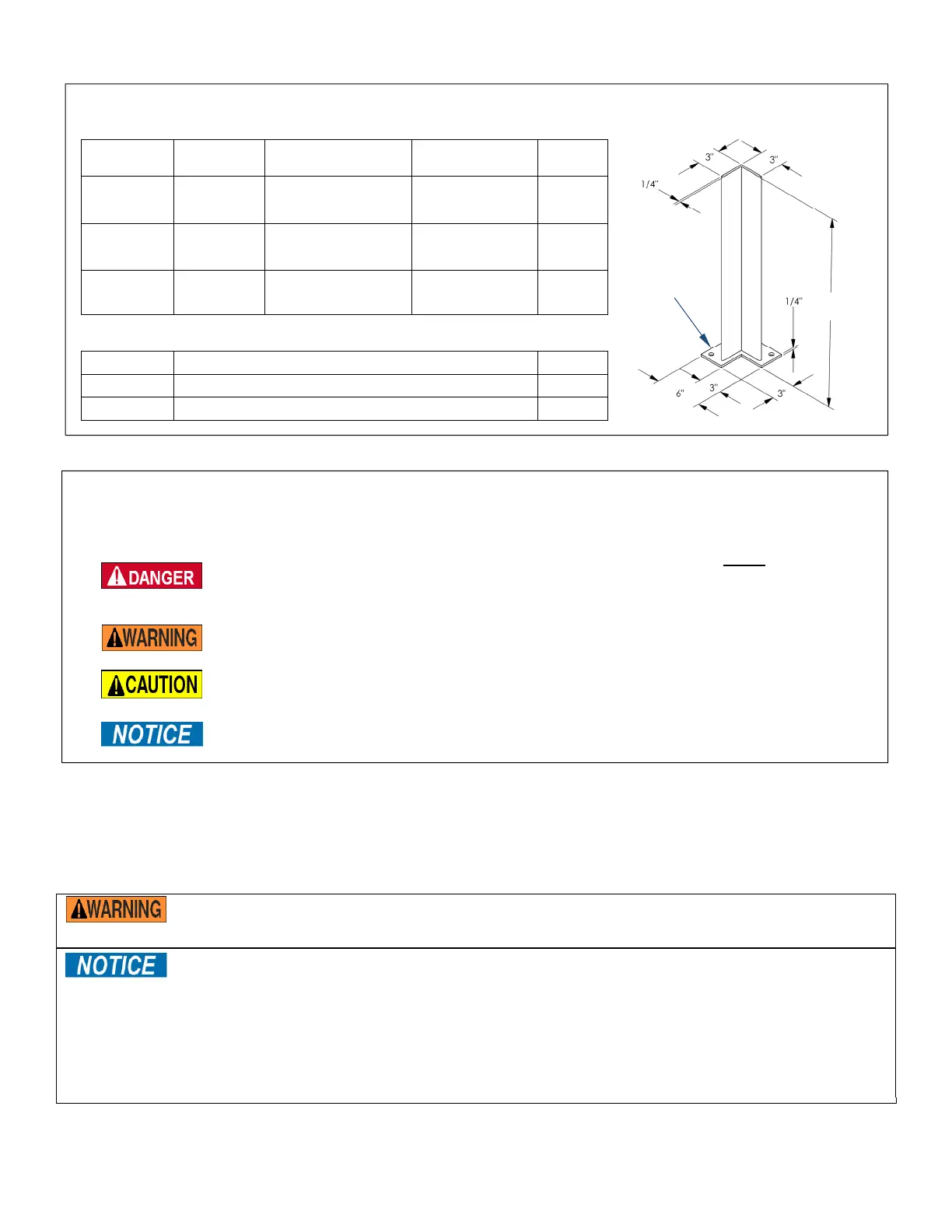

Specifications:
The following table provides dimensions and weights of each guard and anchoring hardware kit.
Signal Words:
This manual uses SIGNAL WORDS to identify hazards associated with the use of this product. Signal
words used in this manual appear below along with their definitions.
Identifies a hazardous situation which, if not avoided, WILL result in
DEATH or SERIOUS INJURY. Use of this signal word is limited to the most
extreme situations.
Identifies a hazardous situation which, if not avoided, COULD result in
DEATH or SERIOUS INJURY.
Indicates a hazardous situation which, if not avoided, COULD result in
MINOR or MODERATE injury.
Identifies practices likely to result in product/property damage, such as operation
that might damage the product.
Safety Guidelines:
Vestil strives to identify the foreseeable hazards of using its products, but no manual can address every
conceivable risk.
DO NOT modify the protector. Modifications automatically void the Limited Warranty (p. 4)
and might make the product unsafe to use.
If this product is installed improperly or carelessly, it will not protect overhead door track as
intended.
Read and understand the entire manual before assembling and using this product.
Each protector must be solidly anchored to the ground with three (3) anchor bolts. Anchor bolts should be
1
/
2
” (diameter) by at least 5” (length).
Install the protectors with the overhead door closed. The protectors must not interfere with normal door
operation.
Model
Overall
height (H)
Mounting plate
dimensions
Anchor bolt
hole diameter
Net
weight
DSP-24 24
1
/
4
”
6” x 6” with 3” x 3”
square notch
9
/
16
” (for
1
/
2
”
anchor bolts)
12 lb.
DSP-36 36
1
/
4
”
6” x 6” with 3”x3”
square notch
9
/
16
” (for
1
/
2
”
anchor bolts)
17 lb.
DSP-48 48
1
/
4
”
6” x 6” with 3”x3”
square notch
9
/
16
” (for
1
/
2
”
anchor bolts)
21 lb.
Model Description Weight
AS-125 Anchor bolt (1) for concrete:
1
/
2
” x 5” 1 lb.
AS-125-4pk
Anchor bolts (4) for concrete:
1
/
2
” x 5” 4 lb.
Mounting
plate
H
