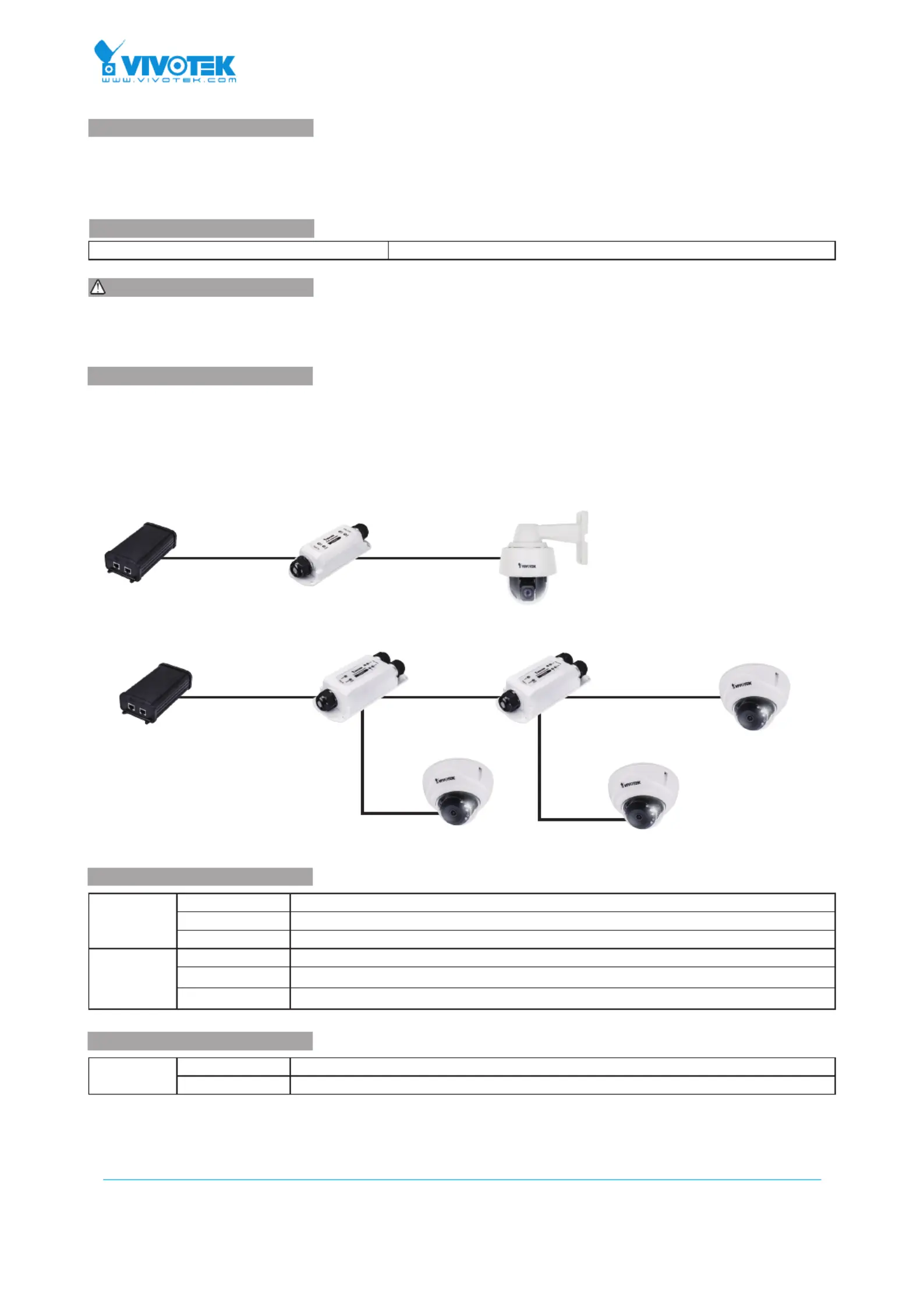

AP-FXC-0160, AP-FXC-0260 Outdoor PoE Extender

Quick Installation Guide

AP-FXC-0160: 1 PoE IN - to - 1 PoE OUT.

AP-FXC-0260: 1 PoE IN - to - 2 PoE OUT.

The AP-FXC-0160/0260 is a PoE extender capable of receiving 95W power from PSE. Multiple extenders can be

cascaded to increase the cabling distance.

IMPORTANT

INTRODUCTION

LED DEFINITIONS

CONNECTION

• •1x PoE extender 1x Quick Installation Guide

PACKAGE CONTENTS

Allspecicationsaresubjecttochangewithoutnoice.

Following are the conditions for making the cabling:

1.Use18~19Ω,24AWGCAT5cables.

2. Typical VIVOTEK cameras stream size feature = 1080p@30fps - 6Mbps; 720p@30fps - 3Mbps.

Make sure the combined bandwidth consumption does not exceed the uplink bandwidth from the PoE switch.

NOTE: There are power losses due to cable resistance.

100m 100m100m

95W PoE Injector

802.3af PoE Camera

PoE CameraPoE Camera 802.3af802.3at

AP-FXC-0260

DIP#

ON Turn on PoE output for the PoE out port.

OFF Turn off PoE output for the PoE out port.

DIP SWITCH DEFINITIONS

Produktspecifikationer

Varumärke:	Vivotek
Kategori:	Inte kategoriserad
Modell:	AP-GXC-0100
Vikt:	190 g
Bredd:	90 mm
Djup:	28.5 mm
Höjd:	69.4 mm
LED-indikatorer:	LAN, PoE, Power
Modell:	Nätverkssändare
Värdgränssnitt:	RJ-45
Produktens färg:	Svart
Datahastighet för Ethernet-LAN:	10,100,1000 Mbit/s
Strömförsörjning via Ethernet (PoE) stöd:	Ja
Antal LAN (RJ-45) anslutningar:	2
Total Power over Ethernet (PoE)-budget:	95 W
Temperatur vid drift:	-40 - 65 ° C
Temperaturintervall (förvaring):	-40 - 85 ° C
Automatisk MDIX IEEE:	Ja
Adresstabellstorlek:	2000 poster
Maximal överföringshastighet avstånd:	300 m
Lagringstemperatur (sändare):	10 - 90 ° C
Autonegotiation:	Ja
Power over Ethernet (PoE)-spänningsomfång:	48 - 55 V
