1. Install the switch in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.
2. Make sure the ventilation openings on the switch are not blocked.
3. Use ber optic cables and transceiver compliant with the following: Multi-mode: 50/125um, 62.5/125um, 850nm;
Single-mode): 9/125um ,1310nm.
4. DC input: (AW-IHT-0600 - 44V~56VDC; AW-IHT-0601 - 12~56VDC). Follow the printed polarity for V+, V-, and Ground.
AW-IHT-0600 Industrial PoE Switch
AW-IHT-0601

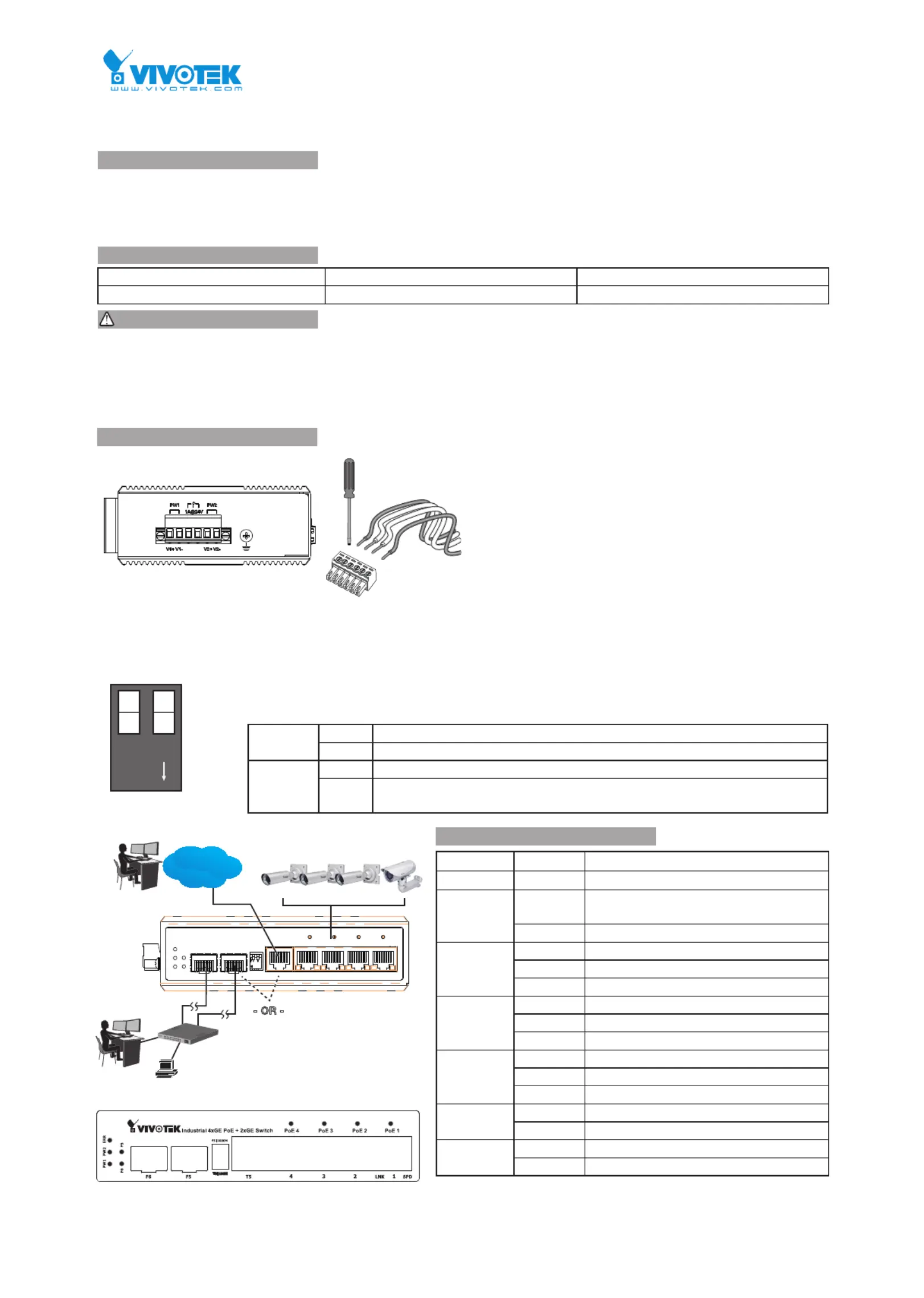

Quick Installation Guide
The AW-IHT-0600 series is a rugged media PoE switch designed for delivering a max. of 30 watts to powered devices.
The optional TX or FX uplink port can be used to extend the connection to a remote site. With its multi-purpose design, it
is t for IP surveillance, trafc monitoring, and security applications in critical environments. The machine features a total
budget of 126 watts and a wide range of operating temperatures ranging from -40°C to 75°C.
IMPORTANT:
INTRODUCTION
CONNECTION
* 1x PoE switch* 1x Quick Installation Guide* 1x 6-pin terminal block
* 2x wall mount brackets* 1x DIN rail bracket
PACKAGE CONTENTS
1. Pull out the 6-pin terminal block.
2. Connect positive wires to V+, negative wires to V-, and
neutral wire to the ground screw.
Connect the 24V DC @1A pins to external devices.
When 2 power pins are connected, the relay is shorted.
When any of them is diconnected, the relay connection
is open.
3. Connect SFP transceivers and ber cables to the ber
ports.
4. Install the 6-pin terminal block.
12
ON
F51000M
T5100M
DIP 1F5Enable the F5 ber port (default)
T5Enable the T5 Ethernet port
DIP 21000MThe F5/T5/F6 port in the Gigabit mode (default)
100MThe F5/F6 ber port in the 100Mbit mode. If T5 (Ethernet) is put to use, the
T5 port can not operate in the 100Mb mode.
WARNING - Always ground the power source to maintain a clean power input.
- OR -
LAN/WAN
T5
F5
PW1 ONWhen power is connected.
PW2ONWhen power is connected.
ERR (relay)OFFWhen both PW1 and PW2 are
connected.
ONOnly PW1 or PW2 is connected.
F5ONPort 5 ber is detected.
OFFPort 5 ber is not detected.
FlashingData is being transmitted or received.
F6ONPort 6 ber is detected.
OFFPort 6 ber is not detected.
FlashingData is being transmitted or received.
LinkONTX link is detected.
OFFLink is not detected.
FlashingPort is active.
SPDON1000M speed is detected.
OFF10/100M speed is detected.
P1,P2,P3,
P4
ONPD is detected on the designated port.
OFFNo PD is detected.
LED DEFINITIONS
IMPORTANT - You can either use the F5 ber or the T5 Ethernet port. These ports can not be
used at the same time. Use the DIP switch to make the selection.
Note that the conguration change only takes effect after a power cycle.
Produktspecifikationer
| Varumärke: | Vivotek |
| Kategori: | Inte kategoriserad |
| Modell: | AW-IHT-0601 |
| Vikt: | 680 g |
| Bredd: | 105 mm |
| Djup: | 142 mm |
| Höjd: | 43 mm |
| LED-indikatorer: | Error, LAN, PoE, Power |
| Certifiering: | CE, C-Tick, FCC, VCCI, LVD |
| Väggmonteringssats: | Ja |
| Buffertstorlek: | 128 KB |
| Kabeltyper som stöds: | Cat3, Cat4, Cat5, Cat5e, Cat6, Cat7 |
| Antal Combo SFP-portar: | 1 |
| Produktens färg: | Svart |
| Monteringsbar på väggen: | Ja |
| Strömförsörjning via Ethernet (PoE) stöd: | Ja |
| Strömförbrukning (vanlig): | 126 W |
| Total Power over Ethernet (PoE)-budget: | 120 W |
| Power over Ethernet (PoE)-effekt per port: | 30 W |
| Effekt skyddsfunktioner: | Over current, Short circuit |
| Temperatur vid drift: | -40 - 75 ° C |
| Temperaturintervall (förvaring): | -40 - 85 ° C |
| Intervall för relativ operativ luftfuktighet: | 5 - 95 % |
| Fuktighet (förvaring): | 5 - 95 % |
| Internationellt skydd (IP) kod: | IP30 |
| Material, hölje: | Metall |
| Kommunikationsstandarder: | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Adresstabellstorlek: | 1000 poster |
| Jumboramar: | 9000 |
| Jumbo Frames stöd: | Ja |
| Switch kapacitet: | 12 Gbit/s |
| Antal grundläggande RJ-45 Ethernet-portar: | 4 |
| Typ av grundläggande RJ-45 Ethernet-portar: | Gigabit Ethernet (10/100/1000) |
| Lagra-och-vidarebefordra: | Ja |
| Power over Ethernet (PoE)-portar kvantitet: | 4 |
| Auto MDI / MDI-X: | Ja |
| Koppar Ethernet-kablar teknik: | 10BASE-T, 100BASE-TX, 1000BASE-T |
| DIN-skena: | Ja |
| Likströmsdriftspänning: | 48 - 56 V |
| Antal installerade SFP-moduler: | 1 |
| Paketförmedlingshastighet (1 Gbps): | 1488000 pps |
| Power over Ethernet (PoE)-spänningsomfång: | 24 - 56 V |
| Paketförmedlingshastighet (10 Mbps): | 14880 pps |
| Paketförmedlingshastighet (100 Mbps): | 148000 pps |
| DIN-skena inkluderat: | Ja |
