VIVO.TEK INC

6F, No.192, L., Ch, Ney, 235, T, R.O.Cien-Cheng Rdung-How Taipei Citaiwan.

|T: +6-882-82455282|F:+2886-2-8245553|E: salevitek.coms@vo

VITA.VOEK US, INC

2050 ingwood venRAuao1e, Sn Jse, CA 9513

|T: 408-773-8686|F: 408-773-8298|E: ssusivom alea@votek.c

VIVOTpeEK Euro

RaadAlmerhtrlasndst 22-133, 1316BW e, Te Nehend

T: +(0) 3136-5298-434E:stek.comsaleeurope@vivo

100-240VAC

Power socket

Grounding screw

POWEROrange ONPower is on and normal.

Orange OffPower is off.

Link/ActGreen ONEthernet port is connected.

Green OffNo connection

Green BlinkingData is being transmitted or received.

GbEGreen ONLink speed at 1000Mbps.

Green OffLink speed at 10/100Mbps.

PoEOrange ONPort is linked to a powered device.

Orange OffNo device is connected.

Orange BlinkingAbnormal power supply is detected.

1. Install the PoE switch in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.

2. Make sure the ventilation openings on the switch are not blocked.

3. Use CAT5 or 6 UTP/STP cables.

4. AC input (100~240V/AC, 50~60Hz), for a max. consumption of 250W.

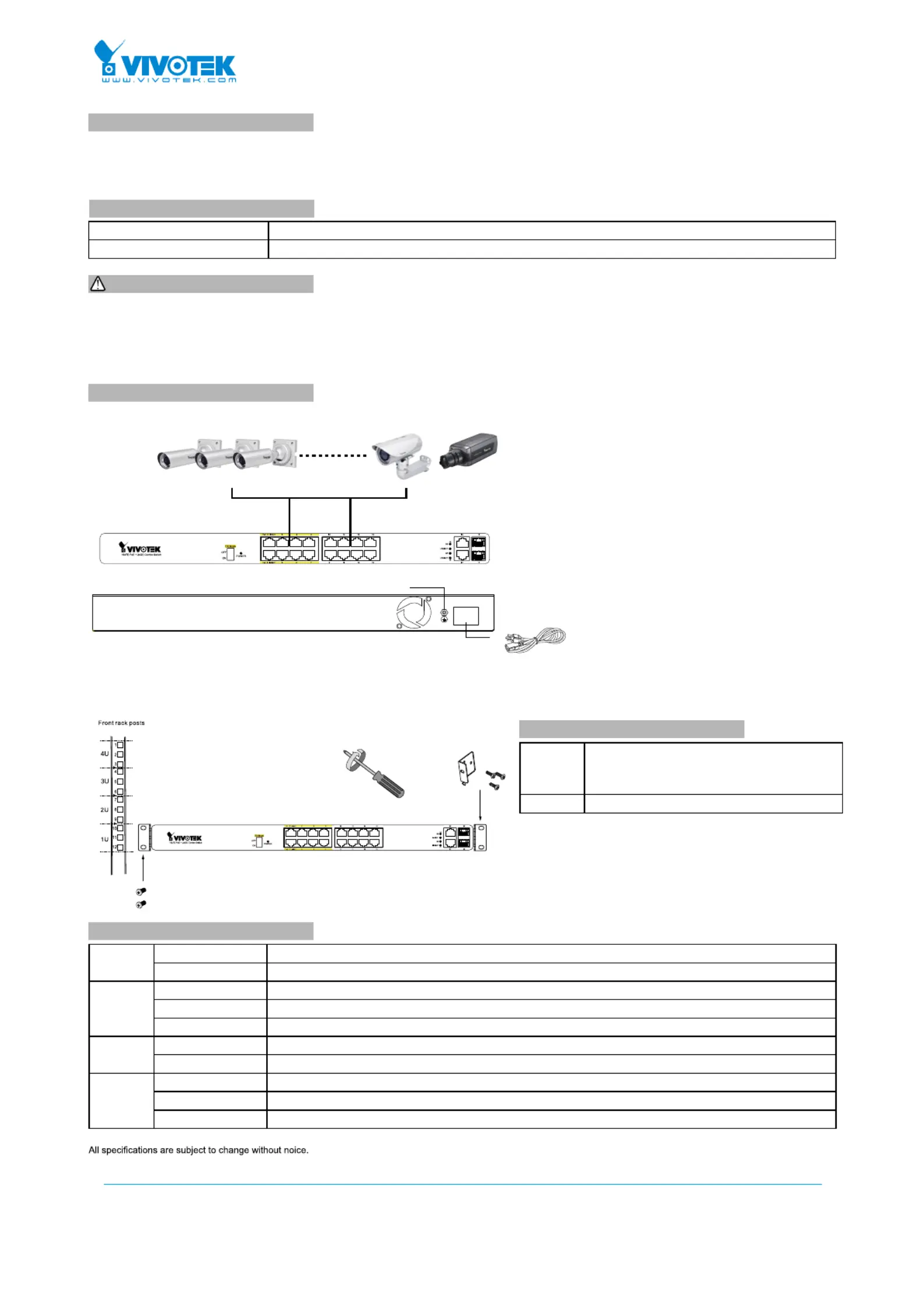

AW-FGT-180C-250 PoE Switch

Quick Installation Guide

The AW-FGT-180C is a 16 port 10/100BaseT unmanaged PoE switch capable of feeding 15.4/30W (54V max. per port)

power to Power over Ethernet (PoE) devices. It comes with an addition of 2 GbE combo ports. The switch is capable of a

total of 240 Watts power budget.

IMPORTANT:

INTRODUCTION

LED DEFINITIONS

CONNECTION

* 1x PoE switch* 1x Quick Installation Guide

* 2x rack mount ears* 1x power cord (type by the shipped-to area)

PACKAGE CONTENTS

Front Panel

Rear Panel

Copyright © 2017 VIVOTEK INC. All rights reserved.

EX ONPorts 1 ~ 8 up to 200m PoE distance.

When enabled, each port is isolated, but

is linked to the uplink ports.

EX OFFNormal communication for ports 1 ~ 18

• .at.4W): a EXmodein8023af/(15W/30camer

connection up to 200m@10Mbps via EXPoE ports

Restart the switch after changing the Extensive

mode.

EX mode DIP switch

The switch already comes with lightning protection mechanism. You should always ground the

switch through the PE (Protecting Earth) cable of AC cord or with ground cable, not grouding the power may cause

the power input to damage the unit.
