10/100/1000 RJ45

data ports

100/1000 SFP ports

DC input

LEDs

VAC 100~240 power input

10/100/1000 RJ45

PoE ports

1. Install the PoE switch in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.

2. Make sure the ventilation openings on the switch are not blocked.

3. Use CAT5 or 5e UTP/STP cables.

4. AC input (100~240V/AC, 50~60Hz), for a max. consumption of 150W.

IMPORTANT:

INTRODUCTION

LED DEFINITIONS

CONNECTION

* 1x PoE switch* 1x Quick Installation Guide

* 1x T30 L-wrench, 4x wall anchors

PACKAGE CONTENTS

Power1Green ONPower is on and normal.

Green OffThe switch is not receiving power.

Power2Green ONPower is on and normal.

Green OffThe switch is not receiving power.

RJ45 ports

LED1

Green ONPort is enabled and link established with a device at the 1000Mbps speed.

Grren BlinkingPort is transmitting and receiving data at the 1000Mbps speed.

Amber ONPort is enabled and link established with a device at the10/100Mbps speed.

Amber BlinkingPort is transmitting and receiving data at the 100Mbps speed.

OffNo active network connection. The port may have been disabled through user interface.

RJ45 ports

LED2

Green ONThe port is enabled and supplying power to connected device.

Amber ONAn abnormal state, such as overload status has occurred.

OffThe port has no active network cable connected, or it is not connected a PoE PD device. Otherwise, the port may have

been disabled through the switch user interface.

SFP portsGreen ONPort is enabled and link established with a device at the 1000Mbps speed.

Grren BlinkingPort is transmitting and receiving data at the 1000Mbps speed.

OffNo active network connection. The port may have been disabled through user interface.

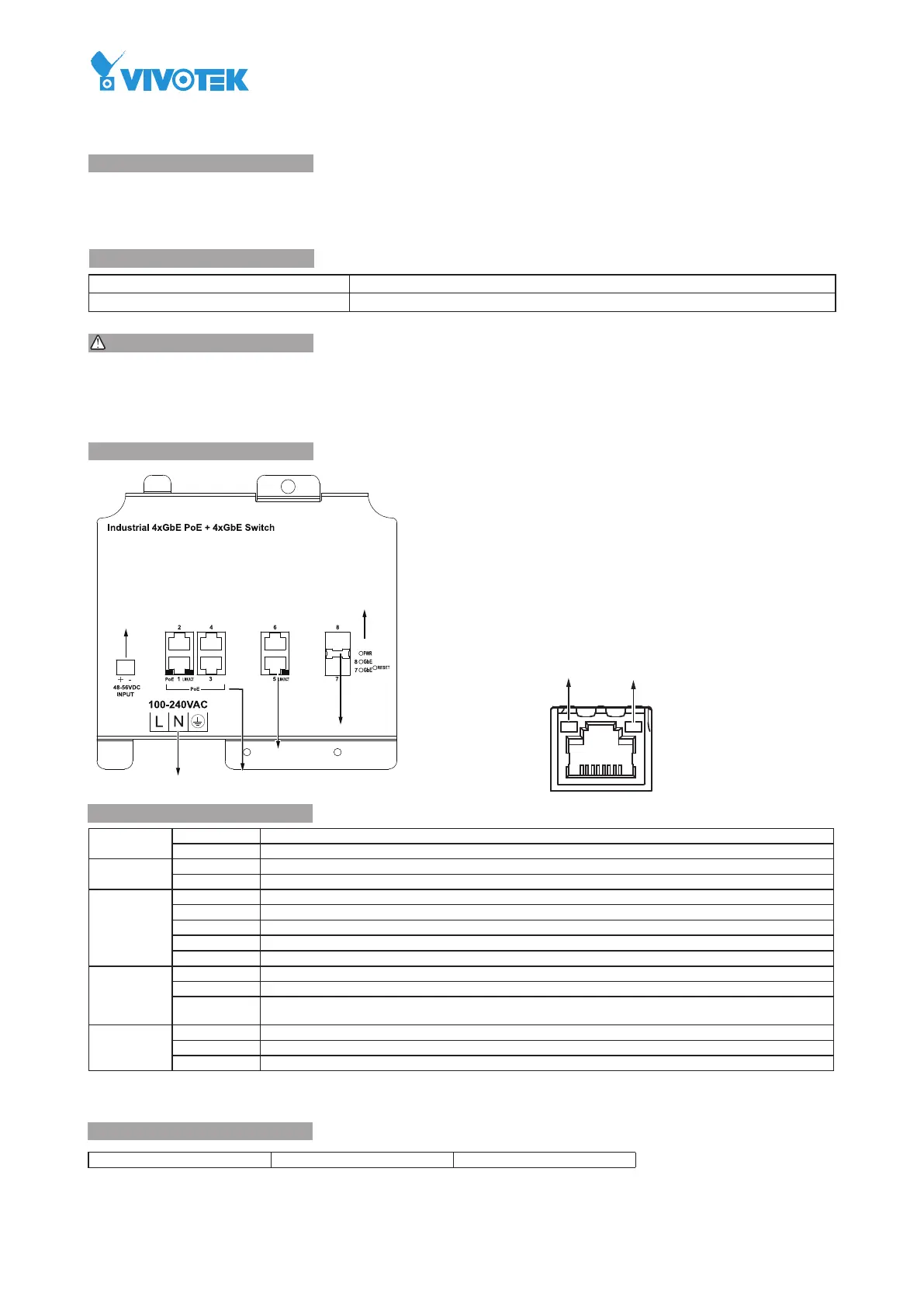

AW-GET-083A-120

Quick Installation Guide

The AW-GET-083A-120 is a 4 port 10/100/1000BaseT PoE switch capable of feeding 15.4/30W (54V max. per port)

power to Power over Ethernet (PoE) devices. It comes with another 2x GbE Ethernet and 2x GbE SFP port. The switch is

capable of a total of 120 Watts PoE power budget.

Outdoor PoE Switch

Port LED1Port LED2

RESET

Reset the switchHold Reset Button 2 secondsAll LEDs On/Off
