VIVO.TEK INC

6F, No.192, L., C, Neipei Ci, 235, n, R.O.Cien-Cheng Rdhung-How TatyTaiwa.

|T: +6-882-82455282|F:+2886-2-8245553|E: salevivok.coms@te

VITA.VOEK US, INC

2050 ingwood venRAuao1e, Sn Jse, CA 9513

|T: 408-773-8686|F: 408-773-8298|E: ssusivom alea@votek.c

VIVOTpeEK Euro

RaadAlmerhtrlasndst 22-133, 1316BW e, Te Nehend

T: +(0) 3136-5298-434E:stek.comsaleeurope@vivo

- OR -- OR -

ConsoleNVRRouter / switch

100-240VAC

Power socket

Grounding screw

1. Install the PoE switch in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.

2. Make sure the ventilation openings on the switch are not blocked.

3. Use CAT5 or 6 UTP/STP cables.

4. AC input (100~240V/AC, 50~60Hz), for a max. consumption of 380W.

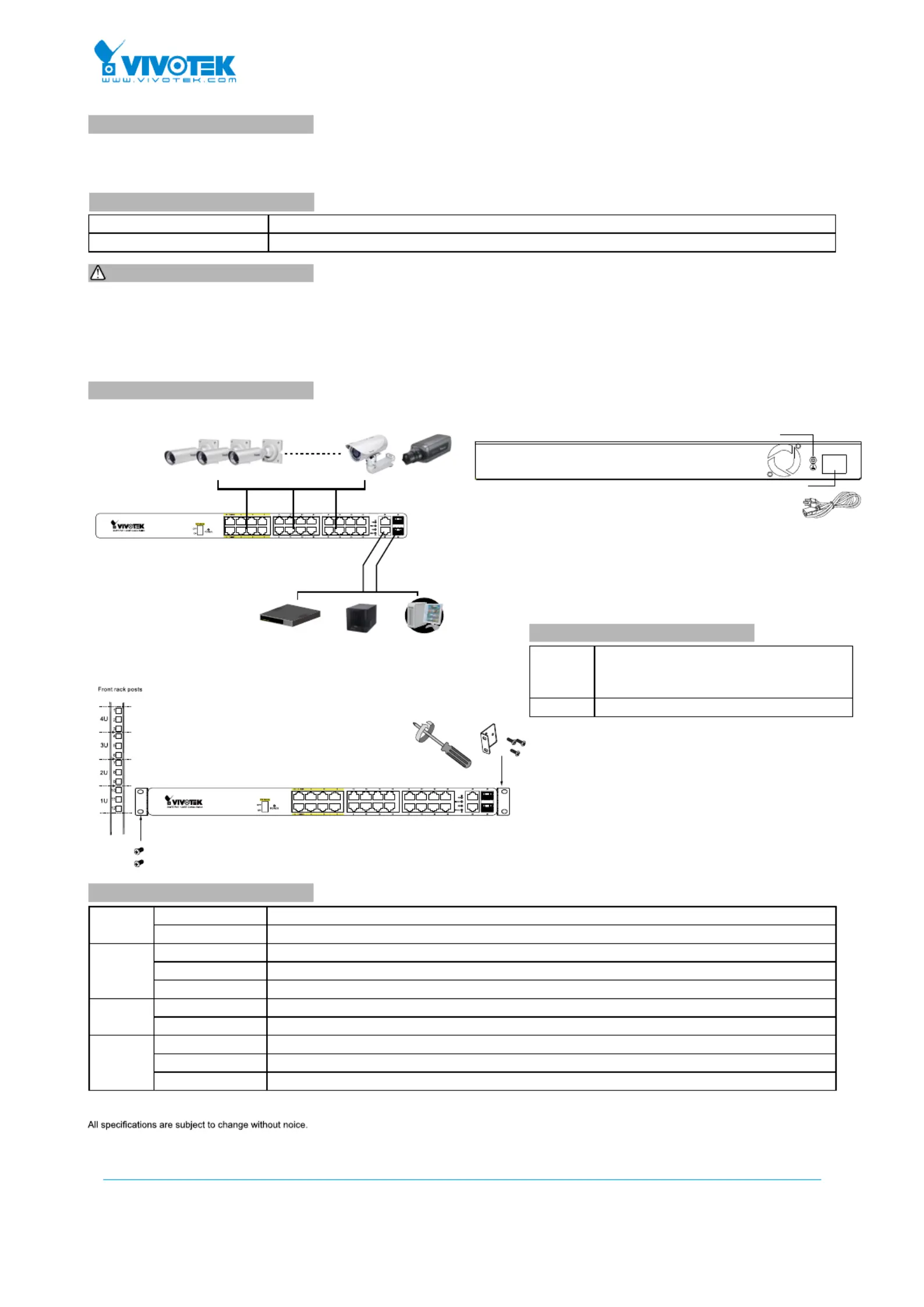

AW-FGT-260C-380 PoE Switch

Quick Installation Guide

The AW-FGT-260C is a 24 port 10/100BaseT unmanaged PoE switch capable of feeding 15.4/30W (54V max. per port)

power to Power over Ethernet (PoE) devices. It comes with another 2 GbE combo ports. The switch is capable of a total

of 370 Watts power budget.

IMPORTANT:

INTRODUCTION

LED DEFINITIONS

CONNECTION

* 1x PoE switch* 1x Quick Installation Guide

* 2x rack mount ears* 1x power cord (type by the shipped-to area)

PACKAGE CONTENTS

Front PanelRear Panel

Copyright © 2017 VIVOTEK INC. All rights reserved.

POWEROrange ONPower is on and normal.

Orange OffPower is off.

Link/ActGreen ONEthernet port is connected.

Green OffNo connection

Green BlinkingData is being transmitted or received.

GbEGreen ONLink speed at 1000Mbps.

Green OffLink speed at 10/100Mbps.

PoEOrange ONPort is linked to a powered device.

Orange OffNo device is connected.

Orange BlinkingAbnormal power supply is detected.

EX ONPorts 1 ~ 8 up to 200m PoE distance.

When enabled, each port is isolated, but

is linked to the uplink ports.

EX OFFNormal communication for ports 1 ~ 24

•EX m a(): camera odein802.3f/at15.4W/30W

connection up to 200m@10Mbps via EXPoE ports

Restart the switch after changing the Extensive

mode.

EX mode DIP switch

The switch already comes with lightning protection mechanism.

You should always ground the switch through the PE (Protecting

Earth) cable of AC cord or with ground cable, not grounding the power

may cause the power input to damage the unit.
