59
36
LC - or -SC
POWERGreen ONPower is on and normal.
Fiber
Link/Act
Green ONFiber is attached.
Green FlashingData is being transmitted / received.
LAN port
Green
Green ONTX link is detected.
Green FlashingData is being transmitted or received.
LAN port
Amber
Amber ON100M speed is detected.
Amber OFF10M speed is detected.
1. Install the converter in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.
2. Make sure the ventilation openings on the converter are not blocked.
3. Use ber optic cables and transceiver compliant with the following: Multi-mode: 50/125um, 62.5/125um, 850nm;
Single-mode): 9/125um ,1310nm.
4. AC input (18~36V/AC, 50~60Hz), DC input (12V~60VDC). Follow the printed polarity for V+, V-, and Ground.
AW-IHS-0200 Industrial Media Converter
AW-IHS-0201
AW-IHS-0202

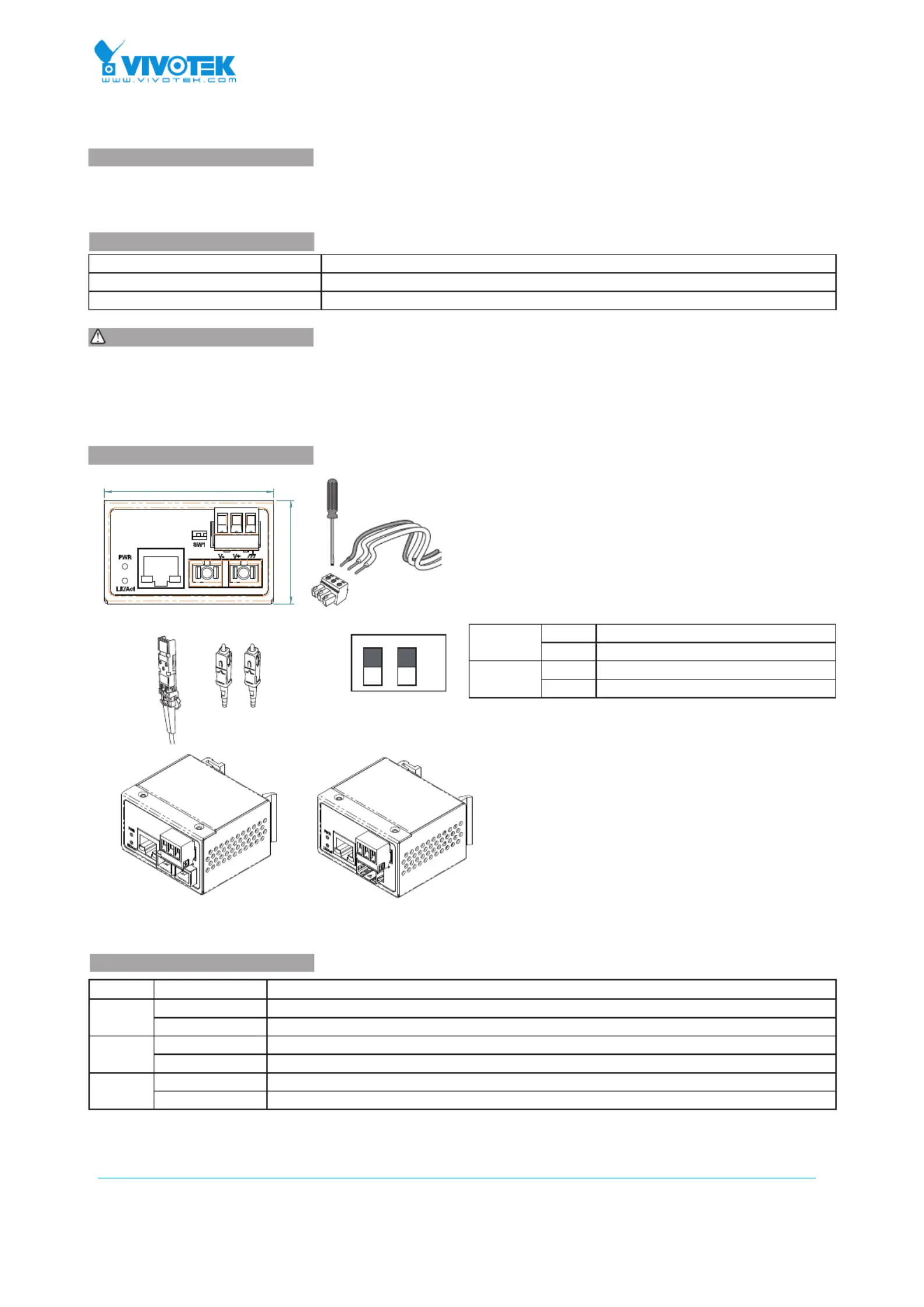

Quick Installation Guide
The AW-IHS-0200 series is a rugged media converter designed for critical and space-limited outdoor applications.
Designed for IP surveillance, trafc monitoring, and security applications in critical environments, the converter features a
wide range of VAC and VDC input range, and an operating temperature ranging from -40°C to 75°C.
IMPORTANT:
INTRODUCTION
LED DEFINITIONS
CONNECTION
* 1x media converter* 1x Quick Installation Guide
* 2x wall mount brackets* 1x DIN rail bracket
* 1x 3-pin terminal block
PACKAGE CONTENTS
1. Pull out the 3-pin terminal block.
2. Connect wires to V+, V-, and Ground.
3. Connect SFP transceiver or SC ber to the ber port.
4. install the 3-pin terminal block.
WARNING - Do not force SFP transceiver into the SFP
socket without removing the terminal block.
12
ON
OFF
DIP 1ONConverter mode
OFFSwitch mode (default)
DIP 2ONLFP enabled
OFFLFP disabled (default)
Converter w/ SC type connectors
for Multi-mode 2KM and single-mode 30KM
Converter w/ LC type socket
for Multi-mode 2KM and single-mode 30KM
VIVOTEK INC.
6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C.
|||T:+886-2-82455282F:+886-2-82455532E:sales@vivotek.com
VIVOTEK USA, INC.
2050 Ringwood Avenue, San Jose, CA 95131
|||T: 408-773-8686F: 408-773-8298E: salesusa@vivotek.com
VIVOTEK Netherlands B.V.
Busplein 36, 1315KV, Almere, The Netherlands
|||T:+31 (0)36 5389 149F: +31 (0)36 5389 111E:saleseurope@vivotek.com
All specications are subject to change without noice.
Copyright © 2014 VIVOTEK INC. All rights reserved.
Produktspecifikationer
| Varumärke: | Vivotek |
| Kategori: | Inte kategoriserad |
| Modell: | AW-IHS-0202 |
| Vikt: | 80 g |
| Bredd: | 49 mm |
| Djup: | 59 mm |
| Höjd: | 36 mm |
| LED-indikatorer: | LAN, Power, Speed |
| Certifiering: | CE, C-Tick, FCC, VCCI, LVD |
| Väggmonteringssats: | Ja |
| Buffertstorlek: | 128 KB |
| Kabeltyper som stöds: | Cat3, Cat4, Cat5, Cat5e |
| Produktens färg: | Svart |
| Monteringsbar på väggen: | Ja |
| Strömförsörjning via Ethernet (PoE) stöd: | Nej |
| Strömförbrukning (vanlig): | 2 W |
| Temperatur vid drift: | -40 - 75 ° C |
| Temperaturintervall (förvaring): | -40 - 85 ° C |
| Intervall för relativ operativ luftfuktighet: | 5 - 95 % |
| Fuktighet (förvaring): | 5 - 95 % |
| Internationellt skydd (IP) kod: | IP40 |
| Material, hölje: | Gjuten aluminium |
| Kommunikationsstandarder: | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Adresstabellstorlek: | 1000 poster |
| Antal grundläggande RJ-45 Ethernet-portar: | 1 |
| Typ av grundläggande RJ-45 Ethernet-portar: | Fast Ethernet (10/100) |
| Lagra-och-vidarebefordra: | Ja |
| Fiberoptiska kontakten: | SFP |
| Fiberportar kvantitet: | 1 |
| Auto MDI / MDI-X: | Ja |
| Koppar Ethernet-kablar teknik: | 10BASE-T, 100BASE-TX |
| DIN-skena: | Ja |
| Likströmsdriftspänning: | 18 - 36 V |
| Kopplingsplint ingår: | Ja |
| Paketförmedlingshastighet (10 Mbps): | 14880 pps |
| Paketförmedlingshastighet (100 Mbps): | 148000 pps |
| DIN-skena inkluderat: | Ja |
