Vivotek AP-FXC-0160 Bruksanvisning

Vivotek Inte kategoriserad AP-FXC-0160

Läs gratis den bruksanvisning för Vivotek AP-FXC-0160 (1 sidor) i kategorin Inte kategoriserad. Guiden har ansetts hjälpsam av 18 personer och har ett genomsnittsbetyg på 4.8 stjärnor baserat på 9.5 recensioner. Har du en fråga om Vivotek AP-FXC-0160 eller vill du ställa frågor till andra användare av produkten? Ställ en fråga

Ladda ner PDF

Sida 1/1

VIVOTEK INC.

6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C.

| | |T: +886-2-82455282 F: +886-2-82455532 E: sales@vivotek.com

VIVOTEK USA, INC.

2050 Ringwood Avenue, San Jose, CA 95131

| | |T: 408-773-8686 F: 408-773-8298 E: salesusa@vivotek.com

VIVOTEK Europe

Randstad 22-133, 1316BW Almere, The Netherlands

T E: +31(0)36-5298-434 : saleseurope@vivotek.com

100m 100m

48W consumpon

Speed Dome

95W PoE Injector

AP-FXC-0160

PoE IN

Green ON LAN: Data is being transmitted or received.

Yellow ON PWR: PoE IN port is connected to PSE.

OFF No connection.

Power OUT#

Green ON LAN: Data is being transmitted or received.

Yellow ON PWR: PoE OUT port is connected to PD.

OFF No connection.

1. Install the device in a ventilated and dry place, that is free of electromagnetic source, vibration, moisture, and dust.

2. Make sure the ventilation openings on the extender are not blocked.

3. Use CAT5 or 6 UTP/STP cables. Avoid using low-quality cables, which will seriously limit the cabling distance.

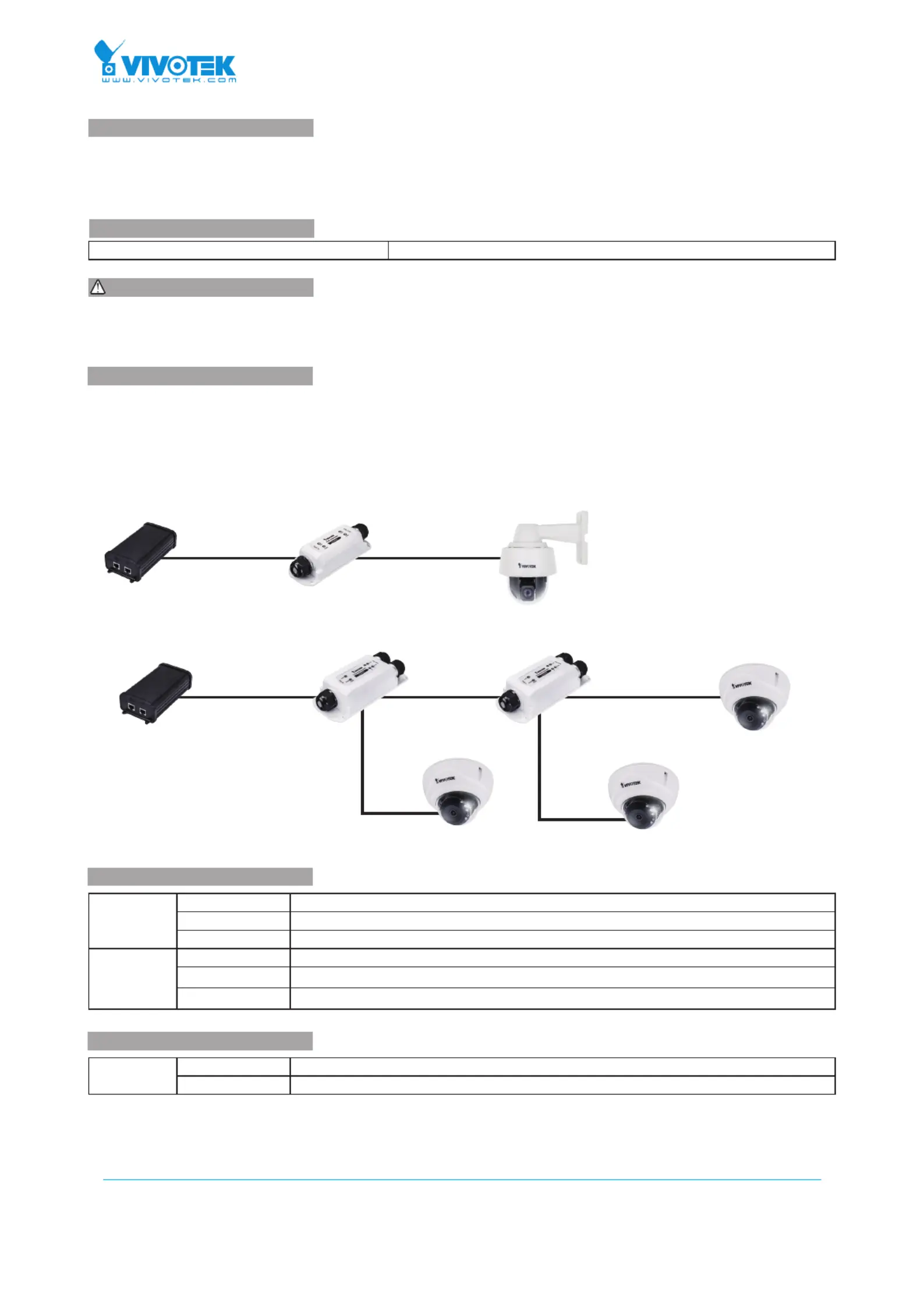

AP-FXC-0160, AP-FXC-0260 Outdoor PoE Extender

Quick Installation Guide

AP-FXC-0160: 1 PoE IN - to - 1 PoE OUT.

AP-FXC-0260: 1 PoE IN - to - 2 PoE OUT.

The AP-FXC-0160/0260 is a PoE extender capable of receiving 95W power from PSE. Multiple extenders can be

cascaded to increase the cabling distance.

IMPORTANT

INTRODUCTION

LED DEFINITIONS

CONNECTION

• •1x PoE extender 1x Quick Installation Guide

PACKAGE CONTENTS

Allspecicationsaresubjecttochangewithoutnoice.

Following are the conditions for making the cabling:

1.Use18~19Ω,24AWGCAT5cables.

2. Typical VIVOTEK cameras stream size feature = 1080p@30fps - 6Mbps; 720p@30fps - 3Mbps.

Make sure the combined bandwidth consumption does not exceed the uplink bandwidth from the PoE switch.

NOTE: There are power losses due to cable resistance.

100m 100m100m

95W PoE Injector

802.3af PoE Camera

PoE CameraPoE Camera 802.3af802.3at

AP-FXC-0260

DIP#

ON Turn on PoE output for the PoE out port.

OFF Turn off PoE output for the PoE out port.

DIP SWITCH DEFINITIONS

Produktspecifikationer

Varumärke:	Vivotek
Kategori:	Inte kategoriserad
Modell:	AP-FXC-0160
Vikt:	300 g
Bredd:	55.8 mm
Djup:	157 mm
Höjd:	39.75 mm
Certifiering:	CE, FCC, VCCI, C-Tick
Produktens färg:	Vit
Strömförsörjning via Ethernet (PoE) stöd:	Ja
Total Power over Ethernet (PoE)-budget:	70 W
Temperatur vid drift:	-40 - 75 ° C
Temperaturintervall (förvaring):	-40 - 85 ° C
Intervall för relativ operativ luftfuktighet:	10 - 90 %
Internationellt skydd (IP) kod:	IP67
På / av-knapp:	Ja
Adresstabellstorlek:	2000 poster
Switch kapacitet:	1 Gbit/s
Antal grundläggande RJ-45 Ethernet-portar:	2
Typ av grundläggande RJ-45 Ethernet-portar:	Fast Ethernet (10/100)
Power over Ethernet (PoE)-portar kvantitet:	2
Likströmsdriftspänning:	48 - 55 V
