GbE PoE

RJ45 ports

Ground screw

Power input 1

Power input 2

PoE link LED

Data link LED

GbE RJ45 ports

GbE SFP ports

Power status LED

SFP link LED

Reset button

Power input 1

Power input 2

DIN rail

1. Install the converter in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.

2. Make sure the ventilation openings on the converter are not blocked.

3. Use ber optic cables and transceiver compliant with the following: Multi-mode: 50/125um, 62.5/125um, 850nm;

Single-mode): 9/125um ,1310nm.

4. DC input (48~56VDC). Follow the printed polarity for V+, V-, and Ground.

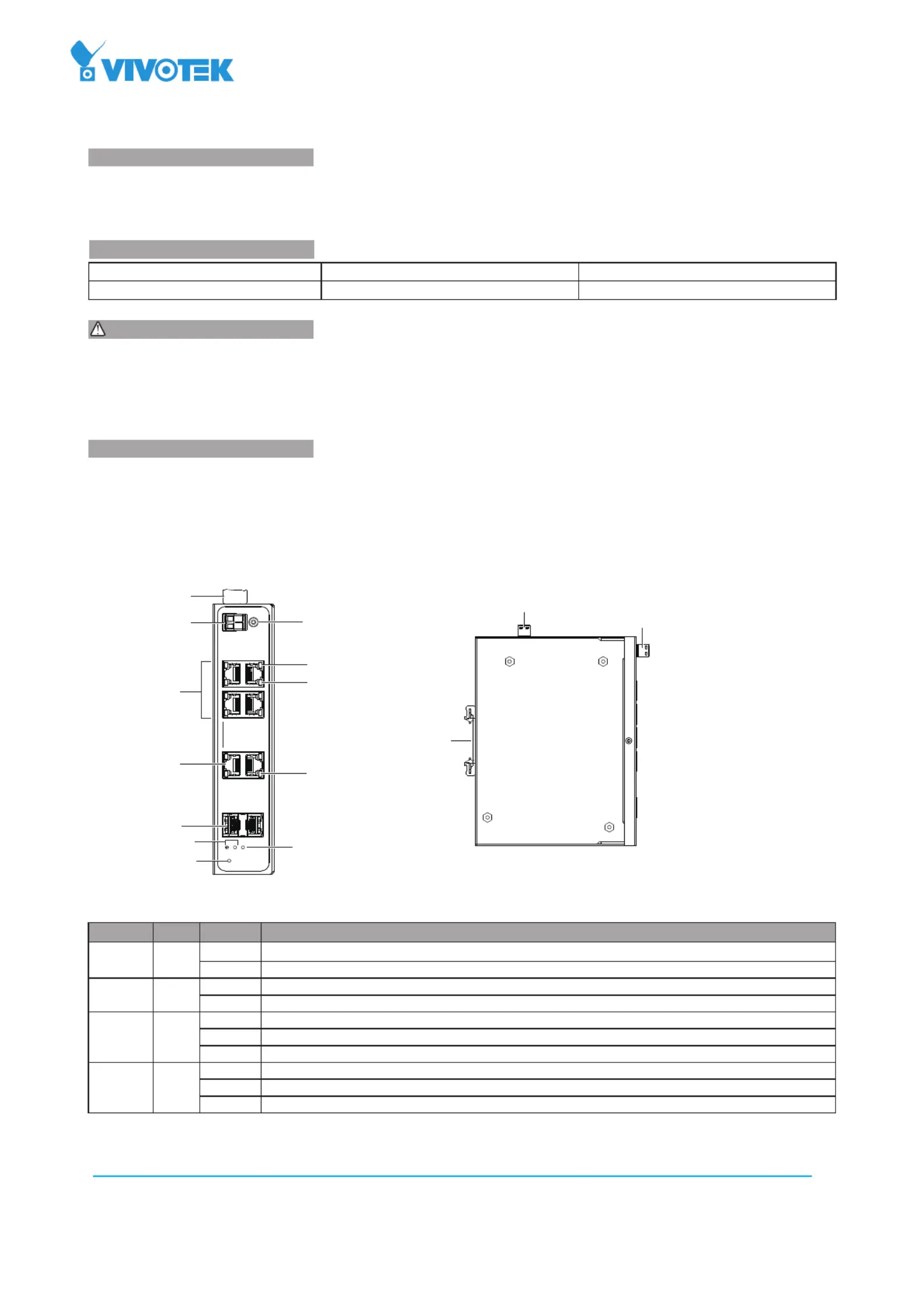

AW-IHT-0800 Industrial Unmanaged GbE PoE Switch

Quick Installation Guide

The AW-IHT-0800 unmanaged switch supports 4x GbE PoE, 2x GbE UTP, and 2x GbE SFP ports. It is IEEE 802.3at/

af compliant and delivers the real full-load output of 120W on 4 PoE ports (30W per port). This industrial switch also

features a wide operating temperature range from -40ºC to 75ºC for harsh environment.

IMPORTANT

INTRODUCTION

CONNECTION

* 1x PoE switch * 1x Quick Installation Guide * 2x 2pin terminal block

* 1x DIN rail bracket

PACKAGE CONTENTS

1. Pull out the 2-pin terminal block.

2. Connect power wires to V+, and V- (48V~56VDC). Use a atblade screwdriver to secure the wire-clamp screws.

3. Connect SFP transceivers to the ber port.

4. install the 2-pin terminal block, and check power LED.

5. The switch must be grounded properly by using a ground wire to connect switch ground screw to earth ground,

otherwise, the surge protection level will be greatly reduced.

Power LEDs

LED Color State Description

Power The switch is powered on correctly.Amber On

Off Not receiving power from power 1 or power 2.

PoE Link PD is detected on the designated port.Amber On

Off No PD is detected.

Data Link Green Tx link is detected.On

Off Link is not detected.

Flashing Data is being transmitted or received.

SFP Link Green Fiber link is detected.On

Off Fiber link is not detected.

Flashing Data is being transmitted or received.

VIVOTEK INC.

6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C.

| | |T: +886-2-82455282 F: +886-2-82455532 E: sales@vivotek.com

VIVOTEK USA, INC.

2050 Ringwood Avenue, San Jose, CA 95131

| | |T: 408-773-8686 F: 408-773-8298 E: salesusa@vivotek.com

VIVOTEK Europe

Randstad 22-133, 1316BW Almere, The Netherlands

T E: +31(0)36-5298-434 : saleseurope@vivotek.com

All specications are subject to change without noice.

Produktspecifikationer

Varumärke:	Vivotek
Kategori:	Inte kategoriserad
Modell:	AW-IHT-0800
Vikt:	700 g
Bredd:	39 mm
Djup:	132 mm
Höjd:	172 mm
LED-indikatorer:	Ja
Rackmontering:	Nej
Säkerhet:	LVD, EN60950
Full duplex:	Ja
Buffertstorlek:	128 KB
Överspänningsskydd:	Ja
Produktens färg:	Svart
Strömförsörjning via Ethernet (PoE) stöd:	Ja
Total Power over Ethernet (PoE)-budget:	120 W
Power over Ethernet (PoE)-effekt per port:	30 W
Temperatur vid drift:	-40 - 75 ° C
Temperaturintervall (förvaring):	-40 - 85 ° C
Intervall för relativ operativ luftfuktighet:	5 - 95 %
Kommunikationsstandarder:	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Adresstabellstorlek:	4096 poster
Jumboramar:	9000
Jumbo Frames stöd:	Ja
Switch kapacitet:	16 Gbit/s
10G stöd:	Nej
Flödeskontroll:	Ja
Antal grundläggande RJ-45 Ethernet-portar:	6
Typ av grundläggande RJ-45 Ethernet-portar:	Gigabit Ethernet (10/100/1000)
Antal Power over Ethernet plus (PoE +)-portar:	4
Switch typ:	Ohanterad
Switch-lager:	L2
Lagra-och-vidarebefordra:	Ja
Antal Gigabit Ethernet (koppar)-portar:	6
Autonegotiation:	Ja
Auto MDI / MDI-X:	Ja
Koppar Ethernet-kablar teknik:	10BASE-T, 100BASE-TX, 1000BASE-T
Likströmsdriftspänning:	48 - 56 V
Antal installerade SFP-moduler:	2
