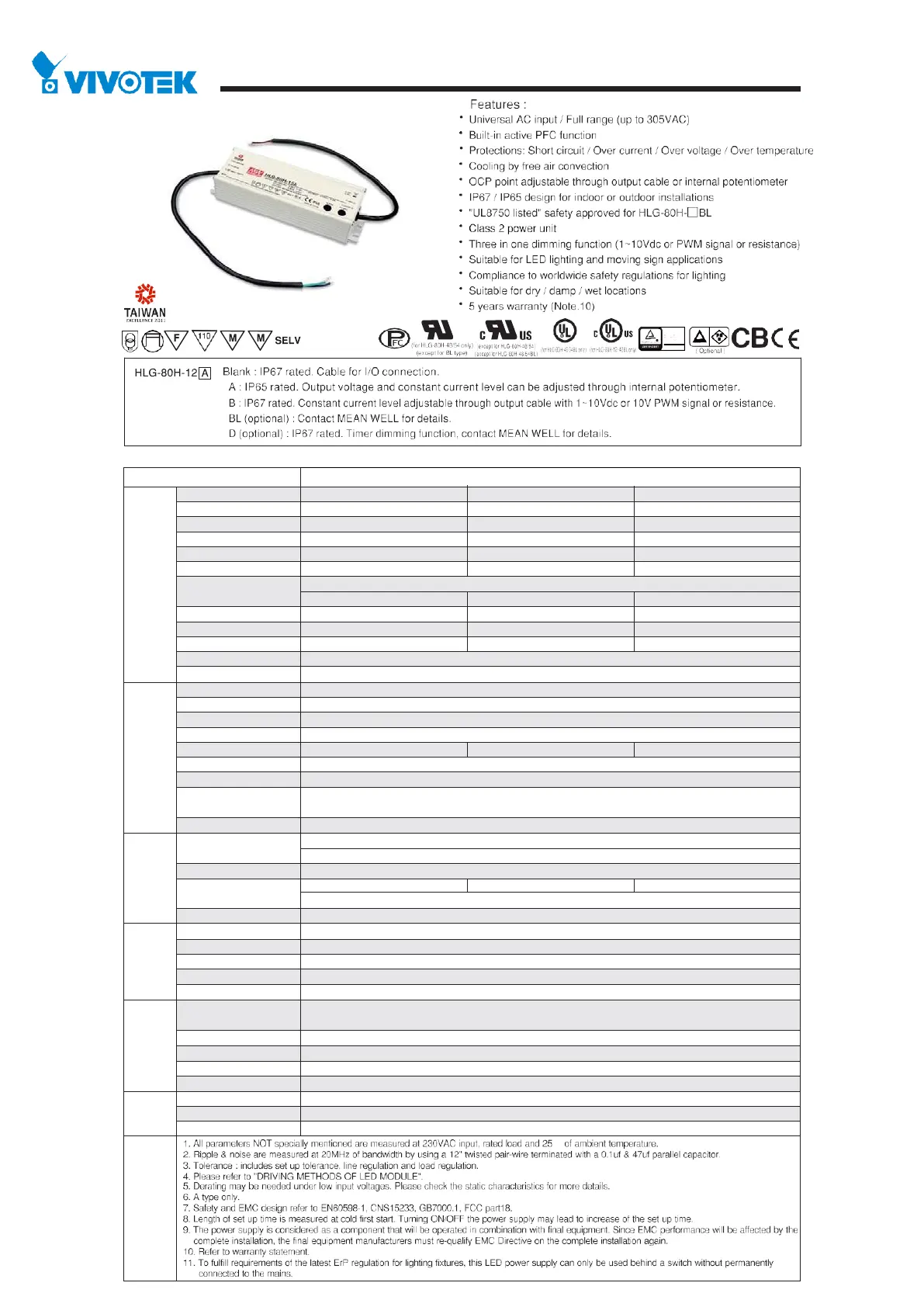

Sida 1/6
IP65 IP67
Baua rt gepr uft
Sic herhe it
egelm a ge
od o s
be wac g
www. tuv.c om
ID 2000 0000 00
SPECIFICATION
80W Single Output Switching Power Supply
HLG- 80 H series
MODEL
HLG-80H-24
HLG-80H-48
HLG-80H-54
OUTPUT
DC VOLTAGE
24V
48V
54V
CONSTANT CURRENT REGION
Note.4
14.4 ~ 24V
28.8 ~ 48V
32.4 ~ 54V
RATED CURRENT
3.4A
1.7A
1.5A
RATED POWER
81.6W
81.6W
81W
RIPPLE & NOISE (max.) Note.2
150mVp-p
200mVp-p
200mVp-p
VOLTAGE ADJ. RANGE Note.6
22 ~ 27V
43 ~ 53V
49 ~ 58V
CURRENT ADJ. RANGE
Can be adjusted by internal potentiometer A type only
2.04 ~ 3.4A
1.02 ~ 1.7A
0.9 ~ 1.5A
VOLTAGE TOLERANCE Note.3
±1.0%
±1.0%
±1.0%
LINE REGULATION
±0.5%
±0.5%
±0.5%
LOAD REGULATION
±0.5%
±0.5%
±0.5%
SETUP, RISE TIME Note.8
1200ms,80ms/115VAC 500ms,80ms/230VAC at full load; B type 1200ms,200ms/115VAC 500ms,200ms/230VAC at 95% load
HOLD UP TIME (Typ.)
16ms at full load 230VAC /115VAC
INPUT
VOLTAGE RANGE Note.5
90 ~ 305VAC 127 ~ 431VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.96/115VAC, PF>0.96/230VAC, PF>0.94/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION
THD< 20% when output loading≧60% at 115VAC/230VAC input and output loading≧75% at 277VAC input
EFFICIENCY (Typ.)
90.5%
91%
91%
AC CURRENT (Typ.)
0.85A / 115VAC 0.425A / 230VAC 0.4A / 277VAC
INRUSH CURRENT (Typ.)
COLD
START
70A(t
width
=485
μ
s
measured
at
50%
I
peak
)
at
230VAC
MAX. No. of PSUs on 16A
CIRCUIT BREAKER
3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC
PROTECTION
OVER CURRENT Note.4
95 ~ 108%
Protection type: Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
28 ~ 35V
54 ~ 63V
59 ~ 68V
Protection type: Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover
ENVIRONMENT
WORKING TEMP.
-40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY &
EMC
SAFETY STANDARDS Note.7
UL8750, CSA C22.2 No. 250.0-08(except for HLG-80H-48/54V & HLG-80H-48/54BL), UL8750 listed for HLG-80H-□BL, EN61347-1,
EN61347-2-13 independent, optional models for J61347-1, J61347-2-13, IP65 or IP67 approved; Design refer to UL60950-1, TUV EN60950-1
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to EN55015, EN61000-3-2 Class C (≧60% load) ; EN61000-3-3
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge 4KV), criteria A
OTHERS
MTBF
357.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
195.6*61.5*38.8mm (L*W*H)
PACKING
0.84Kg; 16pcs/14.4Kg/0.54CUFT
NOTE
℃
File Name:HLG-80H-SPEC 2017-11
■
HLG-80H-24
HLG-80H-48
HLG-80H-54
