VIVOTEK INC.

6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C.

|||T:+886-2-82455282F:+886-2-82455532E:sales@vivotek.com

VIVOTEK USA, INC.

2050 Ringwood Avenue, San Jose, CA 95131

|||T: 408-773-8686F: 408-773-8298E: salesusa@vivotek.com

VIVOTEK Europe

Randstad 22-133, 1316BW Almere, The Netherlands

TE:+31(0)36-5298-434 :saleseurope@vivotek.com

Uplink

POWEROrange ONPower is on and normal.

Orange OFFPower is off.

LINK/ACTGreen ONEthernet port is connected.

BlinkingData is being transmitted or received.

Green OFFNo connection.

PoEOrange ONPort is linked to a powered device.

BlinkingAbnormal power supply is detected

Orange OFFNo device is connected.

1. Install the PoE switch in a ventilated and dry place, that is free from electromagnetic source, vibration, moisture, and

dust.

2. Make sure the ventilation openings on the switch are not blocked.

3. Use CAT5 or 6 UTP/STP cables.

4. AC input (100~240V/AC, 50~60Hz), for a max. consumption of 65W.

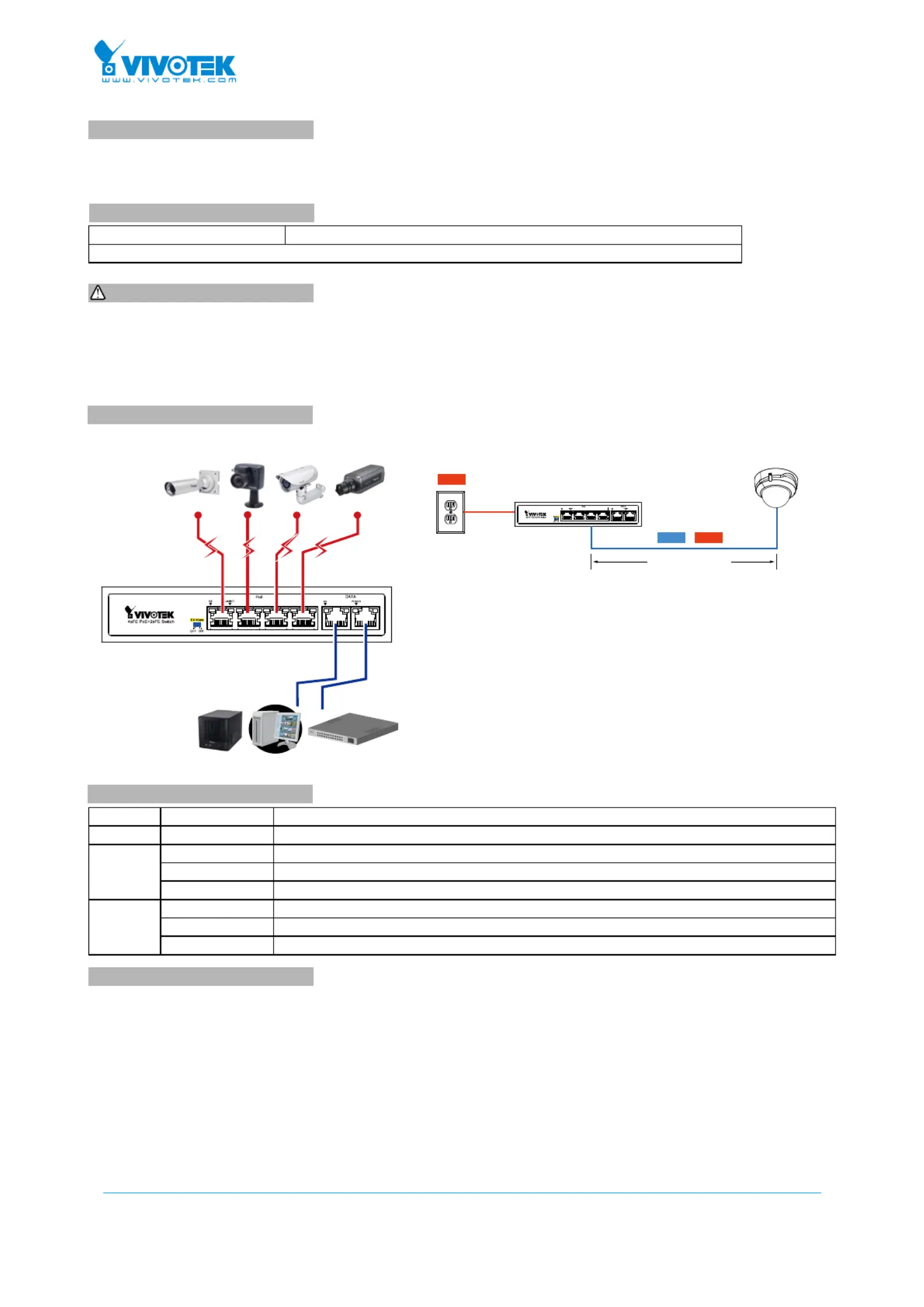

AW-FET-060C-065 PoE Switch

Quick Installation Guide

The AW-FET-060C-065 is a 4xFE PoE + 2xFE unmanaged PoE switch capable of feeding 15.4/30W (54V max. per port)

power to Power over Ethernet (PoE) devices. The switch is capable of a total of 60 Watts power budget.

IMPORTANT:

INTRODUCTION

LED DEFINITIONS

CONNECTION

* 1x PoE switch* 1x Quick Installation Guide

* 1x power cord (type by the shipped-to area)

PACKAGE CONTENTS

Front Panel

All specications are subject to change without noice.

Power

200 meters (656 feet)

PowerData&

EXtensive Mode

802.3af/at PoE Camera

Extensive Mode

EXTENSIVE MODE DIP SWITCH

EX Mode OFF: normal communication between port 1~6.

EX Mode ON : 1-4 port can be isolated each other but 1-4 port can connect to 5~ 6 port after enable EX Mode to stop

broadcast storm to increase forwarding rate of frame. The EX mode(Port 1 & 2), Up to 200m PoE distance allows you to

expand you network via Ethernet cable to where there is no power line or outlet but where you want to x device such as

IP Camera.

• EX mode reaches 802.3af/at(15.4W/30W) camera up to 200m@10Mbps via EXPoE ports

Restart the switch after changing the Extensive mode.
