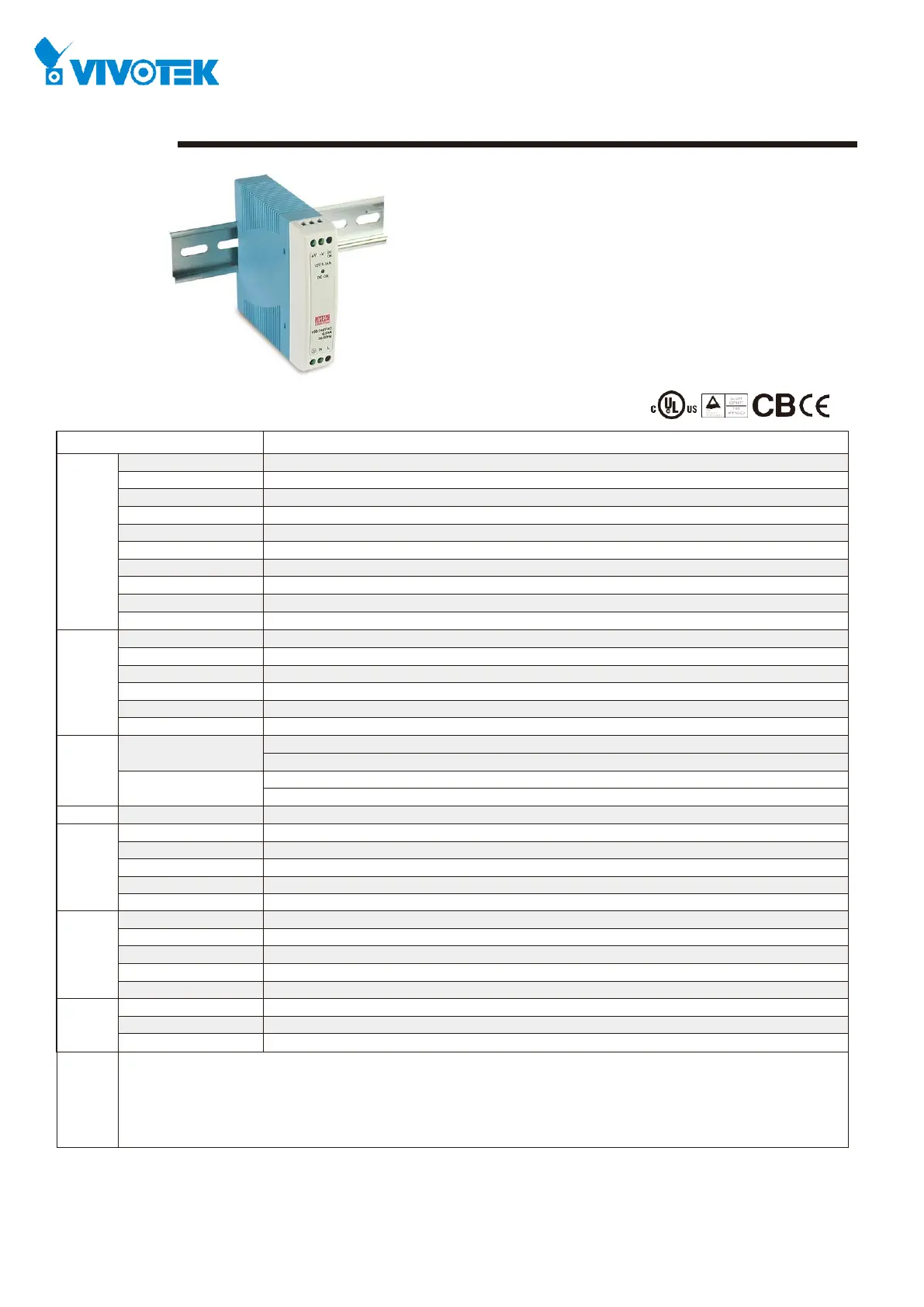

MDR- 10 series

10W Single Output Industrial DIN Rail Power Supply

File Name:MDR- -SPEC 2017-1110

SPECIFICATION

 Features:

• Universal AC input / Full range

• Protections: Short Circuit / Overload / Over voltage

• Cooling by free air convection

• Can be installed on DIN rail TS-35/7.5 or 15

• Built in DC OK active signal

• LED indicator for power on

• No load power consumption<0.75W

• 100% full load burn-in test

MODEL

MDR- -10 12

OUTPUT

DC VOLTAGE

12V

RATED CURRENT

0.84A

CURRENT RANGE

0 ~ 0.84A

RATED POWER

10W

RIPPLE & NOISE (max.) Note.2

120mVp-p

VOLTAGE TOLERANCE Note.3

±3.0%

LINE REGULATION

±1.0%

LOAD REGULATION

±3.0%

SETUP, RISE TIME Note.5

500ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load

HOLD UP TIME (Typ.)

120ms/230VAC 25ms/115VAC at full load

INPUT

VOLTAGE RANGE

85 ~ 264VAC 120 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

81%

AC CURRENT (Typ.)

0.33A/115VAC 0.21A/230VAC

INRUSH CURRENT (Typ.)

COLD START 35A/115VAC 70A/230VAC

LEAKAGE CURRENT

<1mA / 240VAC

PROTECTION

OVERLOAD

Above 105% rated output power

Protection type : Hiccup mode, recovers automatically after fault condition is removed

OVER VOLTAGE

13.8 ~ 16.2V

Protection type : Shut down o/p voltage, re-power on to recover

FUNCTION

DC OK ACTIVE SIGNAL (max.)

9 ~ 13.5V / 40mA

ENVIRONMENT

WORKING TEMP.

-20 ~ +70 (Refer to "Derating Curve")℃

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +85 , 10 ~ 95% RH℃

TEMP. COEFFICIENT

±0.03%/ (0 ~ 50℃ ℃)

VIBRATION

Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6

SAFETY &

EMC

(Note 4)

SAFETY STANDARDS

UL508, TUV EN60950-1 approved

WITHSTAND VOLTAGE

I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH℃

EMC EMISSION

Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3- -32,

EMC IMMUNITY

Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024,EN61000-6-1,EN61204-3, light industry level, criteria A

OTHERS

MTBF

584K hrs min. MIL-HDBK-217F (25 )℃

DIMENSION

22.5*90*100mm (W*H*D)

PACKING

0.17Kg; 72pcs/13.2Kg/0.91CUFT

NOTE

1. All parameters NOT Specially mentioned are measured at 230VAC input, rated load and 25 °C of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor

3. Tolerance: includes set up tolerance, line regulation and load regulation.

4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets

EMC directives. For guidance on how to perform these EMC tests, please refer to EMI testing of component power supplies. “ ” ”

5. Length of set up time is measured at cold first start. Turning ON/OFF power supply may lead to increase to the set up time.
