Internal Desktop

WD Caviar®SE

EIDE Hard Drive

Quick Install Guide

-1-

This document was designed to aid in the quick installation of your new WD EIDE hard drive.

For further information regarding the installation and use of your drive, visit our website at

support.wdc.com.

Compatibility

Windows® XP (SP 1 or higher needed for drives >137 GB)

Windows 2000 (SP 3 or higher needed for drives >137 GB)

Windows Me and Windows 98SE (may require an

Ultra ATA controller card)

Mac® OS X v10.2 or later requires a Mac-compatible ATA

controller card (for drives larger than 137 GB)

Note: Compatibility may vary depending on user’s

hardware configuration and operating system.

Unpacking & Drive Handling Information

WD hard drives are precision instruments and should be

handled with care during unpacking and installation. Hard

drives can be damaged by rough handling, shock and

vibration, or electrostatic discharge (ESD). Be aware of the

following precautions:

• This product contains no user-serviceable parts; refer

servicing to WD authorized personnel only.

• Do not unpack your hard drive until you are ready to

install it. Your hard drive is packaged in an anti-static

bag.

• To avoid ESD problems, ground yourself by touching the

metal chassis of the computer before handling the hard

drive. Articles of clothing generate static electricity. Do

not allow clothing to come in direct contact with the hard

drive or circuit board components.

• Handle the hard drive by its sides only. Avoid touching

the circuit board components on the bottom of the hard

drive.

• Do not drop, shake, or knock down the hard drive.

• Do not stack hard drives or stand your WD hard drive on

its edge.

1. Before Getting Started

1. Gather these materials and tools: WD hard drive kit;

standard 40-pin, 80-conductor cable; computer system

manual; operating system manual and installation

diskette/CD; Phillips and flat-blade screwdrivers.

2. Before performing any hardware installation, back up

your existing data.

3. Before handling the hard drive or any other components,

discharge static electricity by touching the metal chassis

of your computer or by using an anti-static wrist strap.

4. Record your WD hard drive serial number, model

number, and date code.

5. Power off the computer and unplug the power cord.

6. Remove the system cover (refer to your system manual

for instructions).

Operating System Information

Installing Your New WD Hard Drive as an Upgrade

From a Previously Installed Hard Drive

To ensure the optimal settings for your drive configuration,

we recommend you run the Installation Tutorial in the

Windows version of Data Lifeguard Tools

™ prior to the

hardware installation. Data Lifeguard Tools for Windows

will generate your custom installation instructions based on

the configuration you choose. For more information on

using Data Lifeguard Tools, visit our website at

support.wdc.com.

Windows XP (Service Pack 1 or higher) and 2000

(Service Pack 3 or higher)

If you are running one of these operating systems, run the

Data Lifeguard Tools Installation Tutorial, carefully following

the on-screen instructions to set up your larger than 137

GB hard drive without a controller card.

Windows 98SE and Windows Me

If your system does not support 48-bit Logical Block

Addressing (LBA), WD recommends installing an Ultra

ATA controller card to access the full capacity of your hard

drive greater than 137 GB. Make sure that your system

BIOS supports the card and that its drivers have been

properly installed prior to connecting the hard drive. You

can purchase an Ultra ATA/100 PCI controller card at the

WD Online store at store.wdc.com (U.S.A. only) or your

local computer retailer. For more information, visit our

website at support.wdc.com.

Alternate Solution

Intel® offers drivers for certain chipsets which provide BIOS

support for the full capacity of drives larger than 137 GB.

Contact your motherboard or system manufacturer for

compatibility and installation instructions.

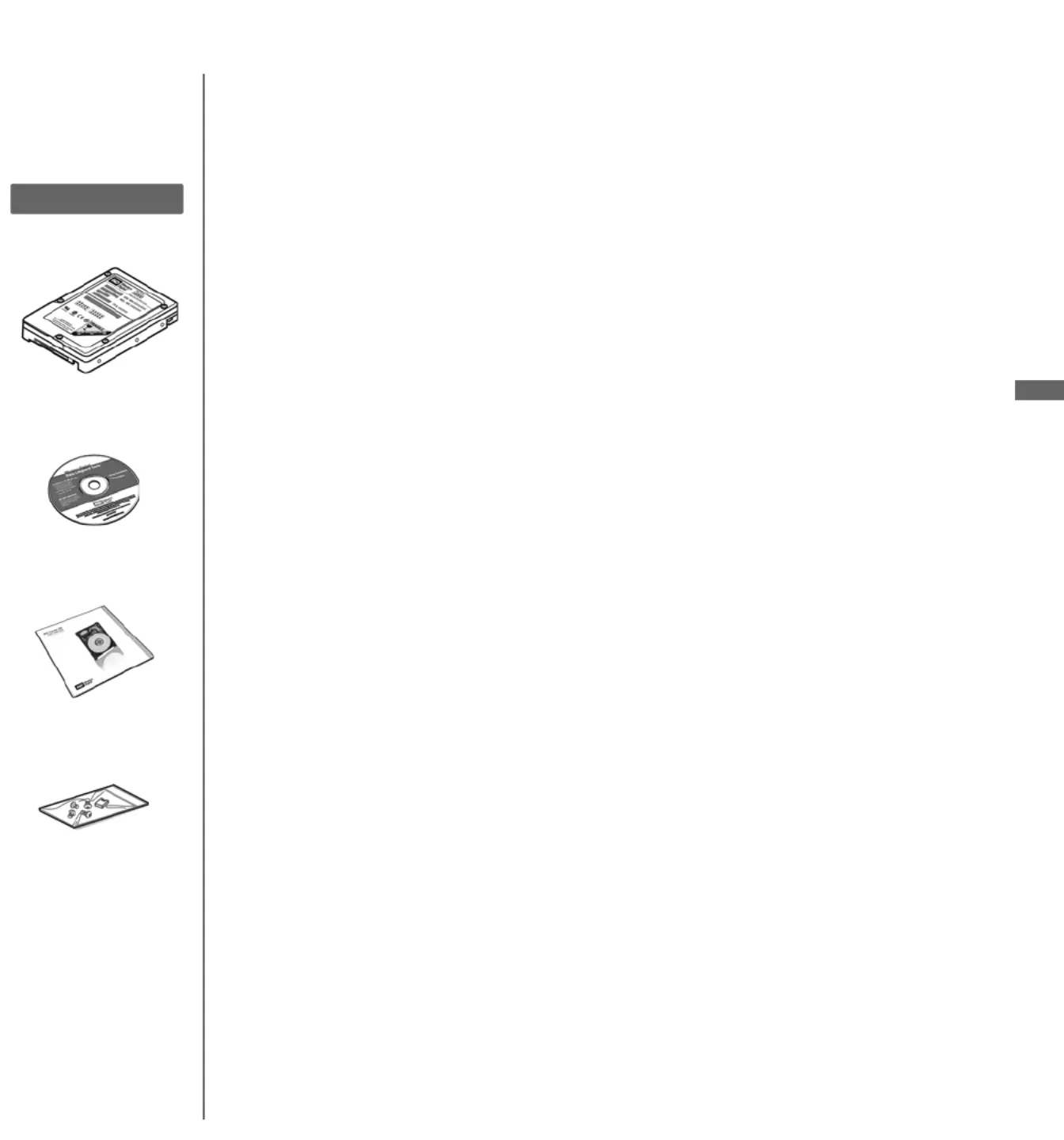

WD Hard Drive

Utilities and software CD

Documentation

Mounting Screws and

Jumper Shunt

Kit Contents

-2-

2. Set the Jumpers

WD EIDE hard drives have a 10-pin jumper block located next to the

40-pin IDE connector on the hard drive. Jumper the drive according to

your desired configuration (i.e., Cable Select, Master/Slave, or Single).

Refer to the illustration on the left (Figure 1) for reference.

A. Cable Select

Cable Select is the default setting for WD EIDE hard drives and

requires a standard 40-pin, 80-conductor cable (not included). If your

system supports Cable Select, there is no need to reposition the

jumper shunt on the drive. If you are installing your new WD hard drive

with an existing IDE drive on the cable, make sure that the other drive

is also jumpered as Cable Select. If your system does not support

Cable Select or if you are uncertain, use the Single or Master/Slave

configuration.

Note: Cable Select mode is not supported by Macintosh’s built-in

IDE/ATA controller. You must use the Master/Slave jumper setting.

B. Standard Jumper Settings (Master/Slave or Single

Configuration)

1. If installing your new WD hard drive as the only device on the cable,

use the Single setting (no jumper shunt required).

2. If installing your new WD hard drive as the Master device on the

cable with two IDE drives, use the Master setting.

3. If installing your new WD hard drive as a secondary device on the

cable, use the Slave setting.

3. Install the Hard Drive

Important: Your new WD hard drive must be installed using a

standard 40-pin, 80-conductor IDE interface cable.

Note: Installation instructions will vary depending on your drive

configuration. Carefully follow the appropriate procedure that

corresponds to your drive configuration.

1. If installing the hard drive as the only device on the cable, connect

the black connector of the IDE interface cable to the drive and the

blue end of the cable to the IDE connector on the motherboard.

Proceed to step 3.

2. If installing two drives on the same IDE cable,

a. Jumper the bootable drive as Master and the other drive as Slave;

then connect the Master drive to the black connector of the IDE

interface cable and the Slave drive to the gray connector.

b. Connect the blue end of the IDE interface cable to the IDE

connector on the motherboard (Figure 2).

3. Attach the power supply cable to the 4-pin power connector on the

drive (Figure 3).

4. Slide the hard drive into an available 3.5-inch drive bay and secure

the drive with the four mounting screws provided (two on each

side). For proper grounding, use screws in the hole positions as

shown (Figure 4).

5. Verify all cable connections. Replace and secure the system cover.

Reconnect the power cord and power on the computer.

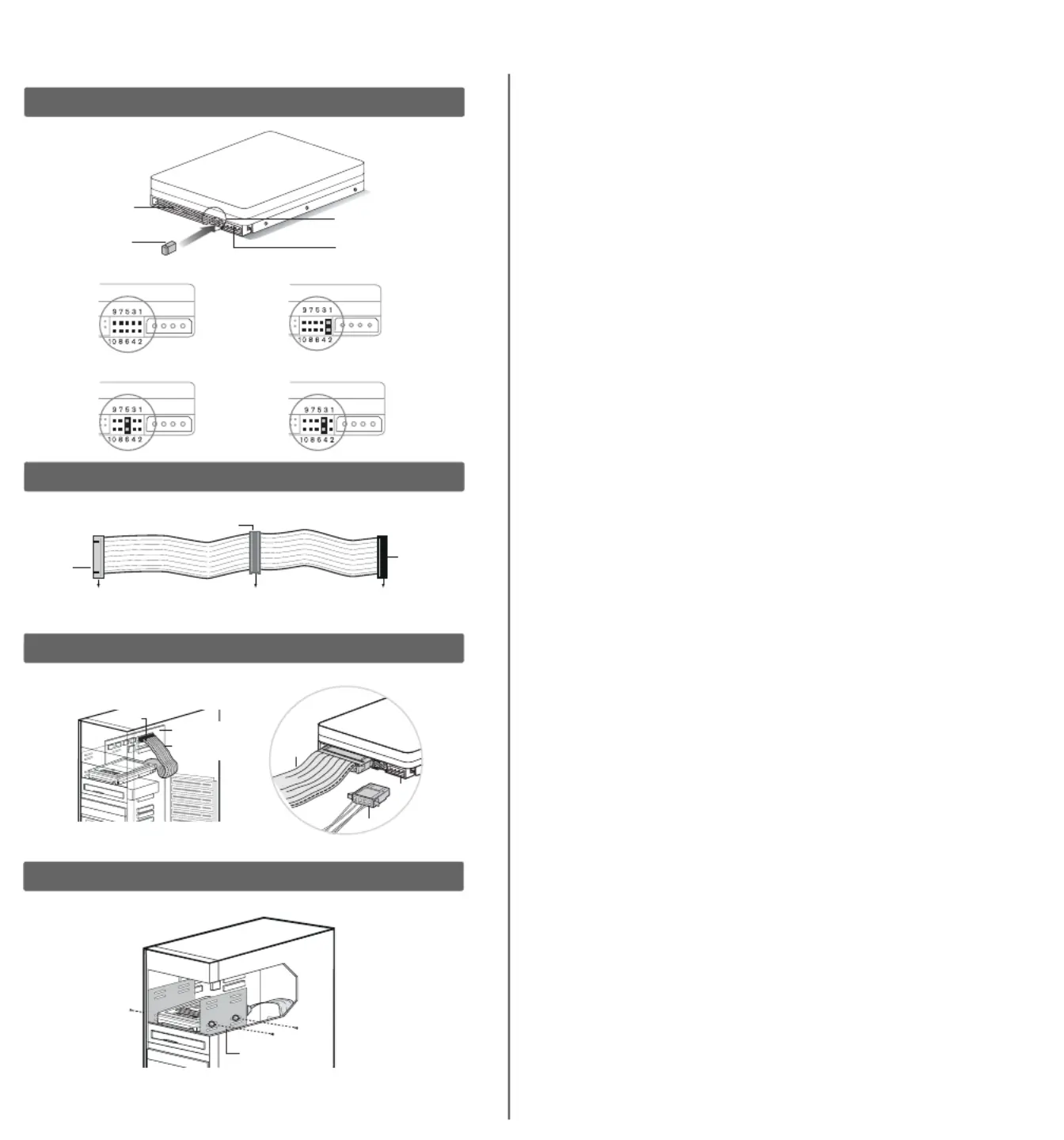

Figure 1

Figure 2

Figure 3

Figure 4

Cable Select (Default Setting)

Single

Dual (Slave)

Dual (Master)

Jumper block

Power supply connector

Jumper shunt

40-pin IDE connector

Mounting frame

Gray 40-pin connector

Blue 40-pin

connector

Black 40-pin

connector

SYSTEM SECONDARY DRIVE

(SLAVE)

Pin 1

Motherboard

Interface cable

from hard drive

IDE

interface

cable

Power supply cable

Power

connector

PRIMARY DRIVE

(MASTER)
