SmartGPU™ Battery Maintenance Charger
Our SmartGPUs feature an easy-to-install option for Battery
Maintenance Charging. Follow these steps to install the model
BMC24 upgrade for the SmartGPU. A helpful video is also available
on our website, or scan the QR code.

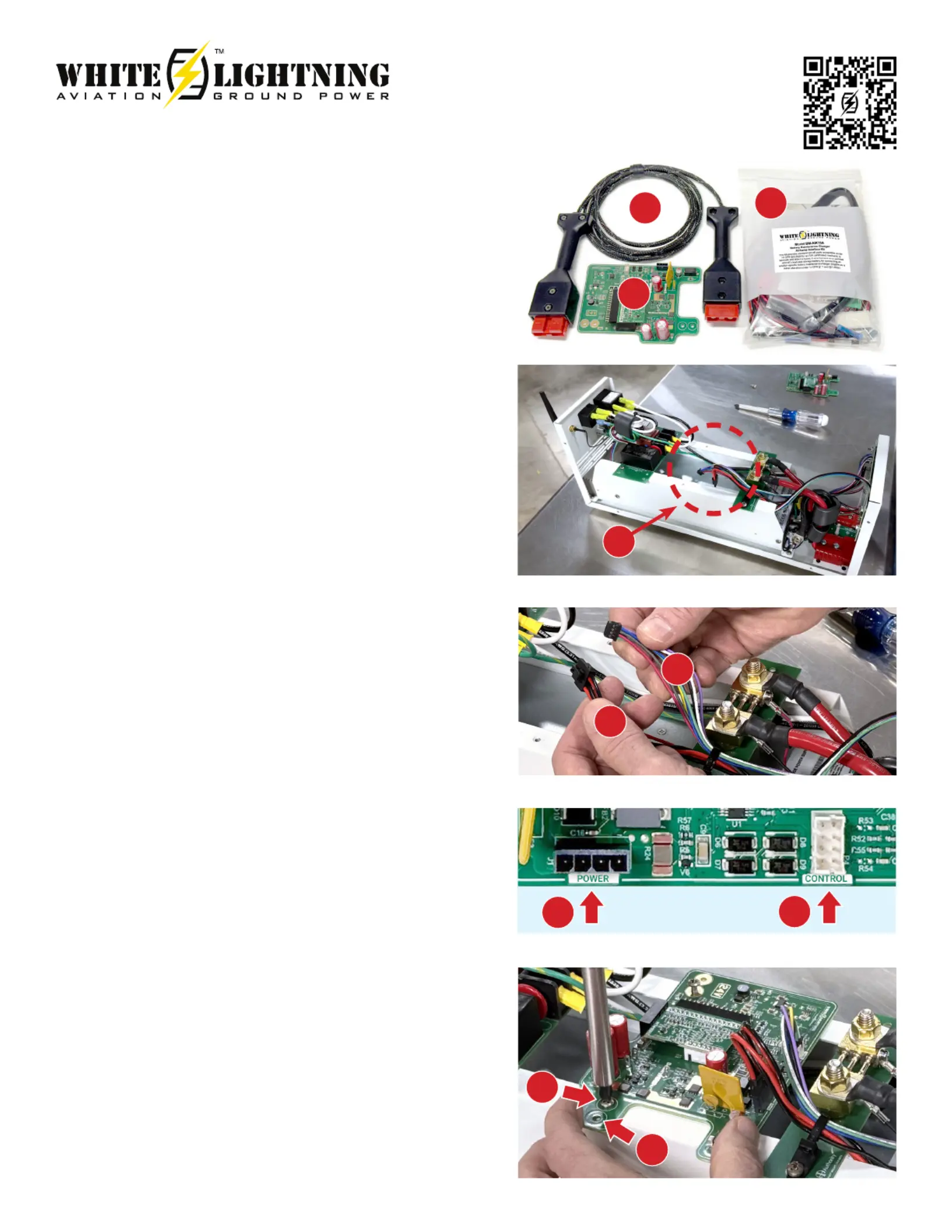

Kit Contents
(A) charging cable
(B) printed circuit board assembly (PCA)
(C) battery wiring kit for your aircraft
Give the harness kit to your mechanic to install on your aircraft. The
kit is eligible to be installed as a minor alteration and approved with
a simple airframe maintenance log entry.
Installation
Tools required: #2 Philips head screwdriver.
Disconnect all input and output cables from the GPU and place it on
a clean surface. Remove the 8 screws, that secure the top cover to
the GPU chassis and set aside.
Be careful not to disturb or touch any components or wires outside
of the installation area (D).
There are 2 wiring harnesses that connect to the PCA – a
4-conductor POWER harness (E) with larger red and black
wires, and an 8-conductor CONTROL harness (F) with smaller,
multicolored wires. Each harness is designed so that it can only be
plugged into one location and in one orientation.
On the PCA, there are 2 corresponding receptacles for these
harness plugs, one marked POWER and the other marked
CONTROL.
Hold the PCA in one hand and plug in the red & black power
harness onto the mating POWER receptacle on the PCA. The
connector will snap and lock into place when fully inserted. A gentle
tug will assure that it cannot come loose.
Plug the multicolor 8-pin harness onto the mating CONTROL
receptacle. It is also keyed so that it can only be inserted one way.
These connections do not require a great deal of force, so if either
does not seem to t easily, stop, look closely, and verify proper
orientation before proceeding.
With the harnesses connected, the PCA is ready to fasten to the
mounting rails with the hardware provided.
Place the PCA on the mounting rails so that the holes align as
shown. Mounting holes for Model S28114 are pictured (G). Note: the
S28054 holes match the outer set of PCA screw holes (H). Use the 2
Philips head screws with integral lock-washers to secure it in place.
Hand tighten snuggly but don’t over torque.
Check the connections before nishing the installation:
• Power harness connected
• Control harness connected
• PCA secured to the mounting rails
Model BMC24
Installation Video
D
E
E
G
F
F
H
A
B
C
Slide the cover into place, being careful to avoid any interference
with the GPU’s internal wiring. Use the 8 black screws previously
removed to reattach. Get all 8 screws started before going back
and hand tightening them snuggly.

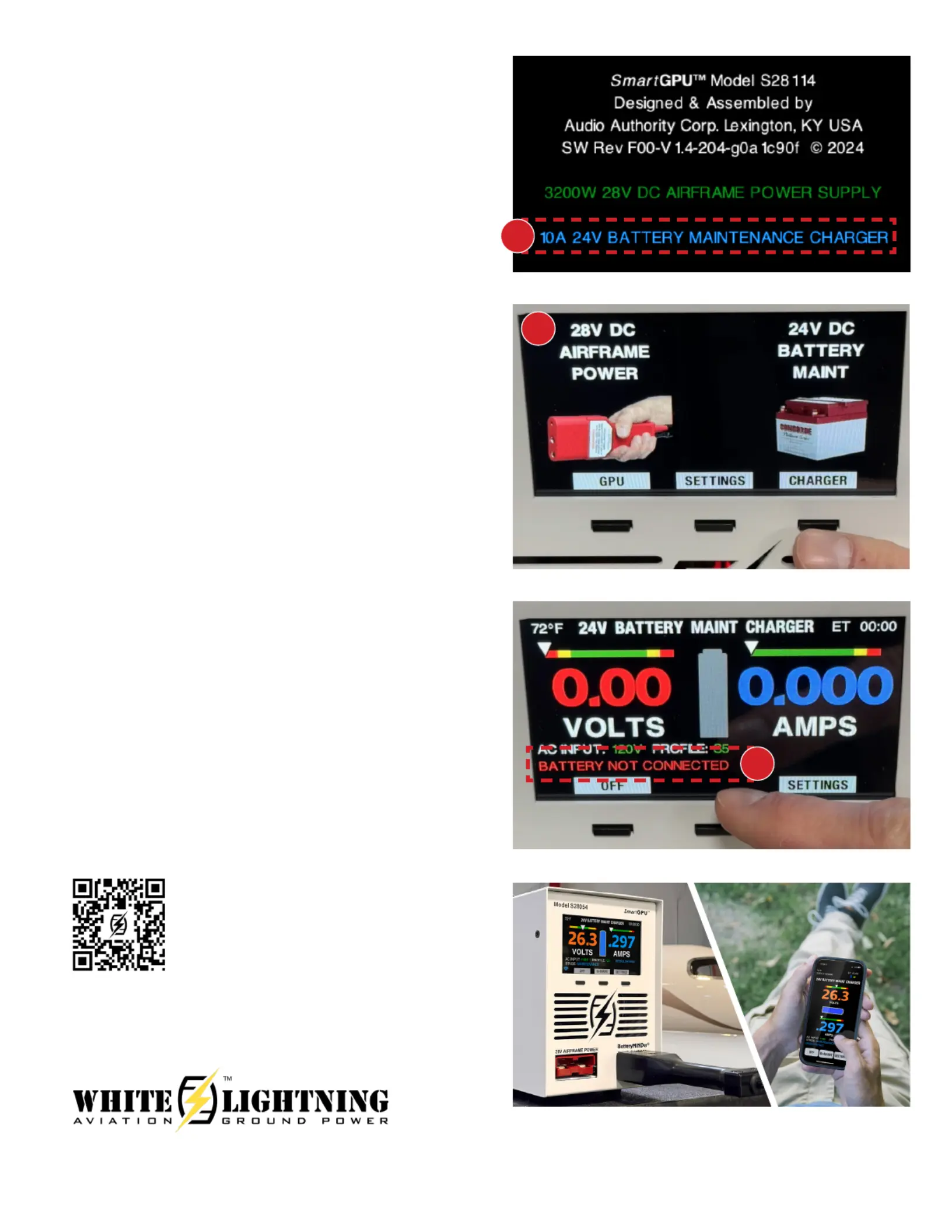

Verify the Installation
Connect the AC line cord to the SmartGPU, and ip the power
switch to the ON position. You will see:
• Boot up initialization
• White Lightning logo screen
• Conguration Screen (I)
The Conguration Screen screen displays for about 5 seconds.
If the PCA is installed correctly, an additional blue line of text ( ) I
appears at the bottom, acknowledging its availability for charging.
The next screen allows the operator to conrm the terms of use.
A new screen will appear (J) which allows the operator to choose
between two operating modes: 28V DC AIRFRAME POWER
and 24V DC BATTERY MAINTENANCE. Select 24V DC Battery
Maintenance.
Since there is no charging cable attached and no battery detected,
you will see an error message BATTERY NOT CONNECTED (K).
This message is positive conrmation that the BMC24 module is
correctly installed and functioning properly.
Your SmartGPU with battery maintenance charger is now ready
to use. Once the wiring harness is installed on your aircraft, you
can connect the maintenance charger and enjoy automatic,
unattended operation.
Conguration
The SmartGPU also allows you to customize its operation with
conguration settings for wireless connectivity, charging proles,
battery information and scheduled charging. If your hangar has
Wi-Fi service, you can use the White Lightning mobile app to
monitor the operation remotely, check hangar temperature, and
adjust charging schedules from anywhere in the world. See the
SmartGPU app tutorial to step you through these advanced
features.
Factory Installation
If you prefer, factory installation of the BMC24 option is available
through our customer tech services department. To arrange this,
contact our factory and obtain a Return Material
Authorization number (or RMA). Call 859-233-
4599, extension 160.
Your feedback is important to us. Let us know
what you think by leaving us a message on our
website.
2048 Mercer Road, Lexington, KY 40511-1071 USA
800-322-8346 • 859-233-4599 • Fax: 859-233-4510
whitelightning@audioauthority.com • WhiteLightningGPU.com
752-802
20250214
Model
BMC24
Installation
Video
K
J
I
