Sida 1/6
GERA
THE LEIBNIZ BINARY SUBSYSTEM
binary
product
commander
Model of 1989
operator’s manual rev. 1989/X5/1.1
SALUT
Thank you for purchasing this Xaoc Devices
product. Gera is a component of the
Leibniz Binary Subsystem. It works by process-
ing data in the Leibniz bus and requires a con-
nection to other Leibniz modules. It features
eight individual gate inputs that affect the cor-
responding individual bits of the Leibniz data.
Eight illuminated tact switches allow for man-
ual inverting of each gate input. The primary
function of Gera is masking individual bits of
the digital data through the AND operation.
For example, when connected to Drezno, which
is processing a waveform or voltage, masking
individual bits yields various forms of quanti-
zation. However, Gera does not need Drezno
to work. The AND operation is also a basic
building block for sequence automation, chaos
and rhythm generation, and various cybernetic
modular patches. Bit processing logic in Gera
is hardware-based; hence there is virtually no
latency, and the binary signals may change at
extreme rates.To better understand the device
and avoid common pitfalls, we strongly advise
the user to read through the entire manual
before use.
INSTALLATION
The module requires 6hp worth of free space
in the Eurorack cabinet. Always turn the pow-
er off before plugging the module into the
bus board using the supplied 10-pin ribbon
cable, paying close attention to the power
cable pinout and orientation. The red stripe
indicates the negative rail and should match
the dot or mark on the bus board as well 12V
as the unit. Gera is internally secured against
pin header may cause serious damage to
other components of your system because it
will short-circuit the +12V and +5V power
lines. Always pay close attention to the proper
orientation of your ribbon cable on both sides!
note: do not plug a power cable into
the leibniz headers as this will damage
your unit and may also jeopardize other
Leibniz modules connected to it!
Besides power, you need to connect Gera to
other components of your Leibniz subsystem.
Gera ships with one 10-pin ribbon data cable.
To complete the connection, use the 10-pin
cables included with your other Leibniz mod-
ules. Using the cable, connect the 10-pin un-
shrouded header labeled out to the headin -
er of your next Leibniz-compatible module
(e.g., Drezno, Jena, Erfurt, Odessa, etc.). Then
connect the incoming data from the module
preceding Gera (e.g., Ostankino, Drezno, or
Erfurt) to the 10-pin unshrouded header la-
beled . Please observe the marks of pin #1 in
(red stripe) on all connected modules. We
advise you to plan ahead as to how you wish
to incorporate Gera into your modular setup.
The module should be fastened by mounting
the supplied screws before powering up.

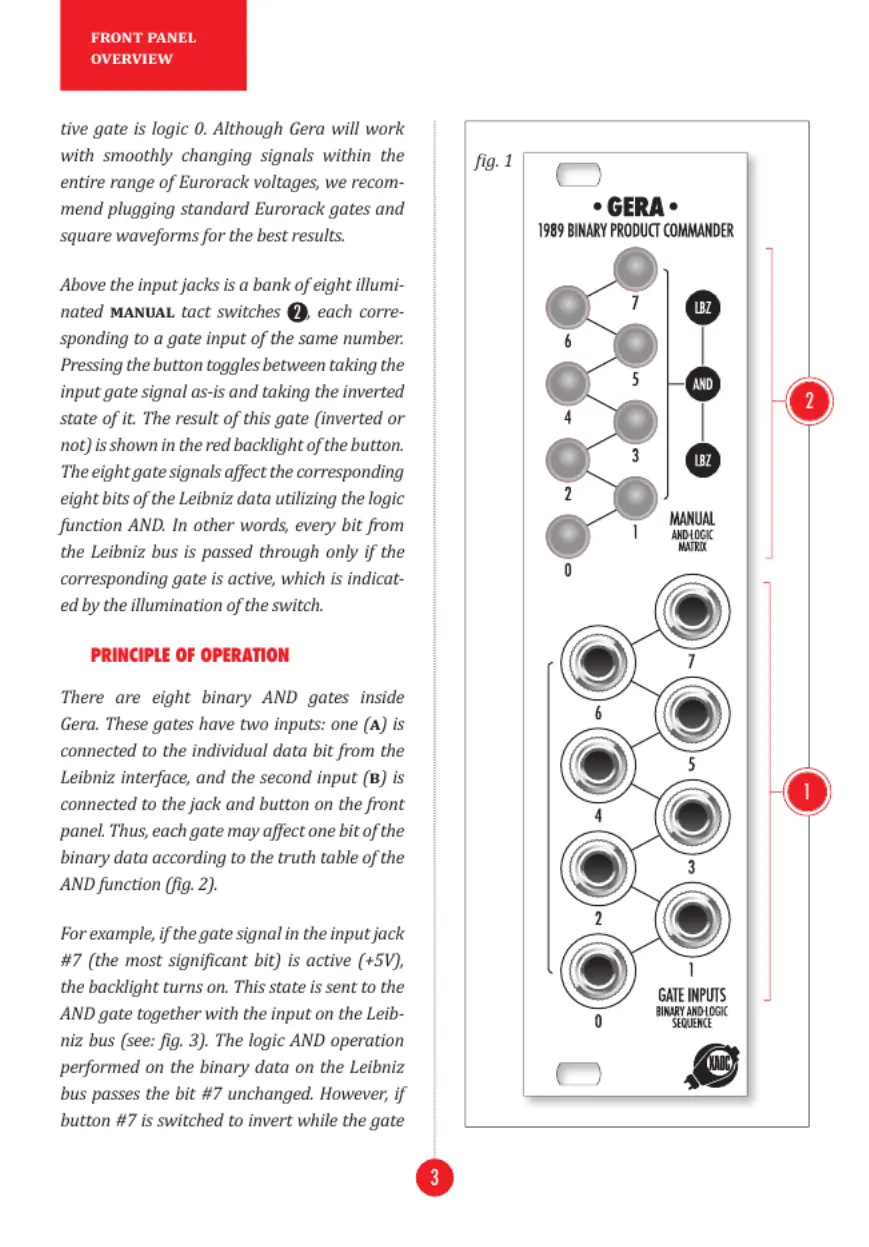

MODULE OVERVIEW
with other modules in the Leibniz series, Gera
features a bank of eight binary gate inputs
1
expecting gate signals, where an active 5V
gate signal represents a logic 1, and an inac-
2
module
explained
