Sida 1/8
stereo vc
frequency
shiftor
Model of 1964
operator’s manual rev. 1964/1.1ę
KOSZALIN
SALUT
Thank you for purchasing this Xaoc Devices
product. Koszalin is a stereo fre-
quasi-exponential and linear frequency mod-
ulation as well as full stereo feedback under
voltage control. Frequency shifting results in
a linear translation of the signal spectrum,
which produces a variety of atonal sounds. It
should not be confused with frequency scal-
ing, also known as pitch shifting. Complex
phase cancellation patterns occurring with
frequency shifting and deep feedback pro-
duce spectacular barber-pole effects.
Koszalin offers direct controls over feedback
amount, feedback routing, and feedback re-
sponse. It also facilitates frequency modula-
tion of any stereo audio signal, thanks to the
linear TZFM input. Koszalin is a digital mod-
INSTALLATION
The module requires 10hp worth of free space
in the Eurorack cabinet. Always turn the
power off before plugging the module into
the bus board using the supplied 16-pin/16-
pin ribbon cable, paying close attention to
power cable pinout and orientation. The red
stripe indicates the negative rail and should
match the –12v mark on the bus board and
the unit. Koszalin is internally secured against
-
ping the 16-pin header may cause serious
damage to other components of your system
because it will short circuit the +12V and +5V
power lines. Always pay particularly close at-
tention to the proper orientation of your rib-
bon cable on both sides!
The module should be fastened by mounting
the supplied screws before powering up. To
better understand the device and avoid com-
mon pitfalls, we strongly advise the user to
read through the entire manual before use.
MODULE OVERVIEW
shift knob
1
used for setting the amount
of frequency shifting applied to the input
bent exponentially in both directions from
In other words, the scale is stretched propor-
tionally around zero, which facilitates great-
er precision in setting a low shift amount.
Three ranges are set with the switch range
2
-
reo input signals should be patched into the
pair of jacks input
3
. The input indica-
tor
4
shows the volume of the input using
light intensity and color, gradually changing
from green to yellow and red when the sum
exceeds 16Vpp.
Two pairs of stereo outputs are available for
independent access to the signal being shifted
up
5
shifted down
6
(towards lower frequencies,
including and beyond 0Hz; more on that be-
2
module
explained
3

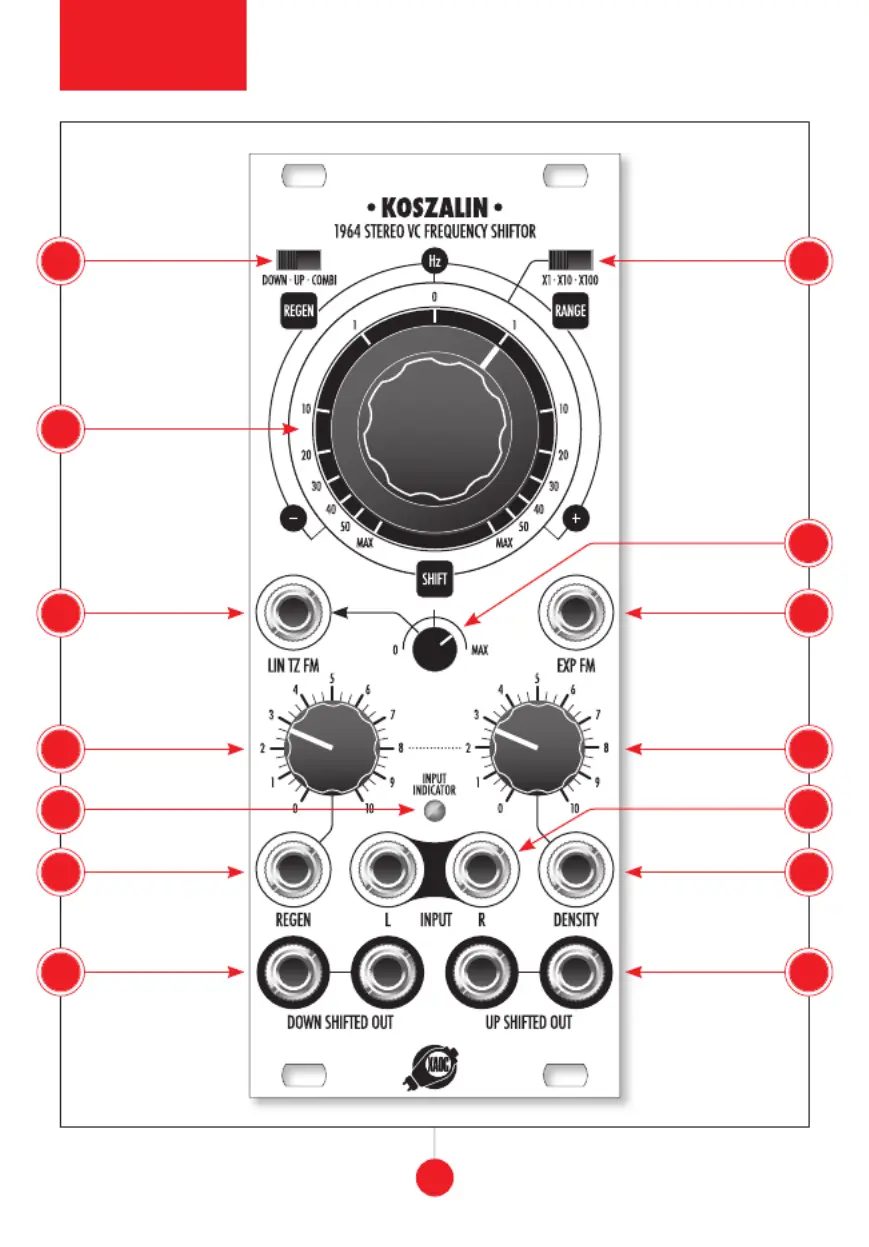

front panel
overview
8
11
4
10
12
6
1
14
7
13
5
2
fig. 1
9
3
