Sida 1/8
HRAD
mixing
console
commander
Model of 1967
operator’s manual rev. 1967/X/1.2
SALUT
Thank you for purchasing this Xaoc Devices
product. Hrad [hrat] is an expander for our
Praga four–channel stereo mixer that adds
new functionality and enhancements. Hrad
features a master section with stereo volume
stereo level indicator, a stereo sum output that
is switchable between eurorack and line level,
a headphone output with volume control that
is independent of the main attenuator, a spe-
cial cue input that can be auditioned with and
without the mix, four control inputs for auto-
mated muting/unmuting of individual chan-
nels, four inputs for voltage control over the aux
send levels, four insert points in the aux sends,
and two stereo attenuators for Praga's two AUX
return pairs. Hrad may be used alongside a sin-
gle Praga unit. If you have more than one Praga
chained, it is best to pair with the last Praga in
the chain. Please bear in mind that all features
related to AUX channels and muting will refer
to the Praga that is connected to Hrad. It is also
possible to connect a separate Hrad to every
Praga in the chain so as to have access to the
extra functionalities in every unit. However,
please take into account the substantial power
requirements of such a complex setup.
INSTALLATION & SETUP
The module requires 10hp worth of free space in
the Eurorack cabinet and it is best located next to
your Praga. Hrad does not have its own separate
power connection as it draws power from Praga
and adds its own 50mA to what Praga consumes.
attention: never connect any power ca-
ble to any pin header on the back of your
hrad—it will destroy the unit!
Hrad connects to Praga using the two 16-pin
ribbon cables
12
note: these cables are deliberately short and
should not be replaced with longer ones for the
sake of safety as well as keeping interference
and noise to a minimum. Prior to making the
connection, you must remove all jumpers from
the lower pin header
13
of your Praga (you will
have to put them back if you ever decide to use
your Praga without Hrad, otherwise the unit
the cable going from the upper and lower head-
ers of Hrad to the upper and lower headers of
Praga paying attention to not mix them up or
rotate them as this would seriously dam-
age both units!
Locate the jumper labeled praga revision
16
according to what is printed on the PCB of your
Praga. Improper setting of this jumper is not
dangerous, however, the AUX channels will not
work as designed. While you are there, you may
also decide to set the output level of your Hrad. If
Praga is the last stage of your Eurorack system,
it may be reasonable to switch the pair of out-
put level jumpers
17
from euro
line position.
Both Praga and Hrad should be fastened by
mounting the supplied screws before powering
up. To better understand the device, we strong-
ly advise the user to read through the entire
manual before using the module.

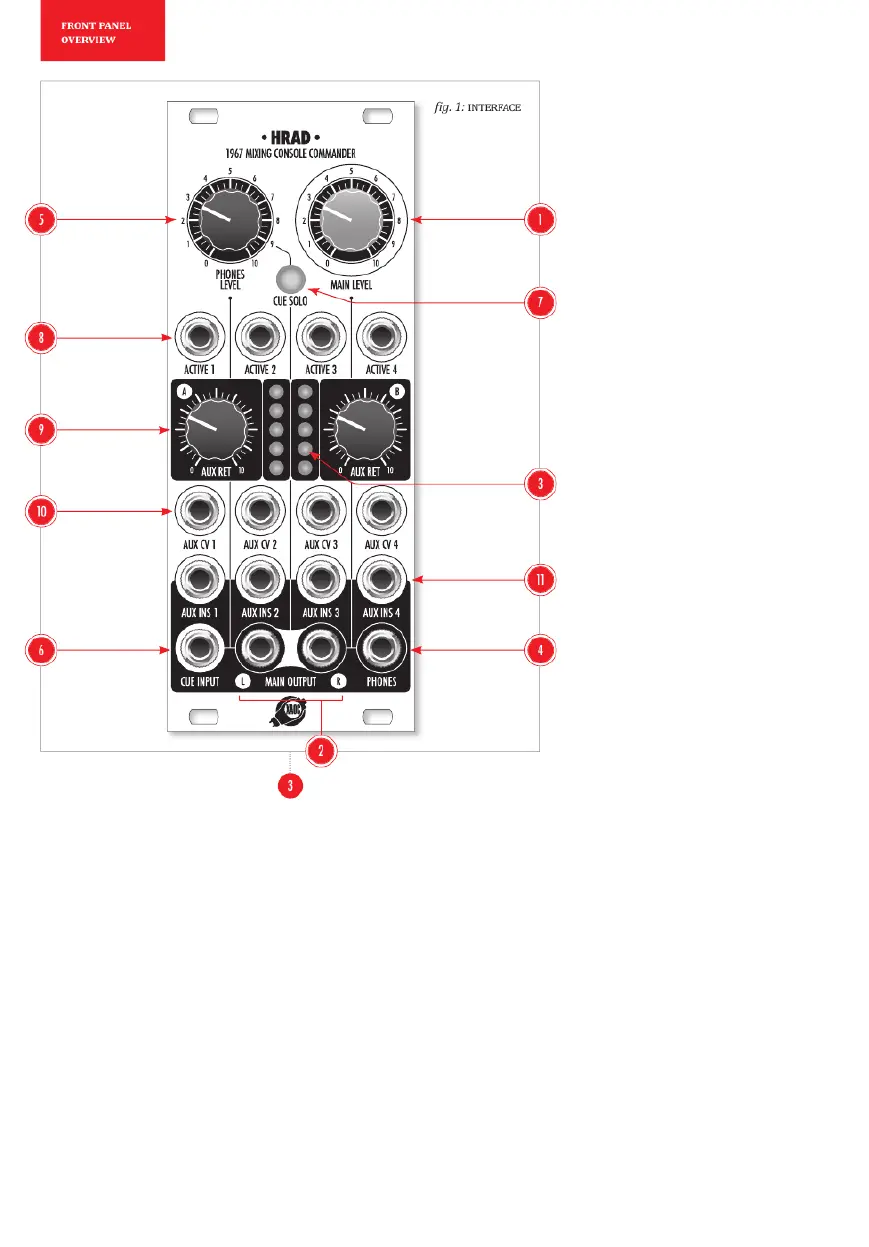

MODULE OVERVIEW
the master section of a small mixer. The main
level knob
1
controls the stereo sum signal
2
module
explained
