POTI
batumi
breakout
expander
module
Model of 1974
operator’s manual rev. 1974/0.2
EASTERN BLOC TECHNOLOGIES MADE IN THE EUROPEAN UNION
WARRANTY TERMS
XAOC DEVICES WARRANTS THIS PRODUCT TO BE FREE OF DEFECTS IN MATERIALS OR WORKMANSHIP,
AND TO CONFORM WITH THE SPECIFICATIONS AT THE TIME OF SHIPMENT FOR A PERIOD OF ONE YEAR
FROM THE DATE OF PURCHASE. DURING THAT PERIOD ANY MALFUNCTIONING OR DAMAGED UNITS
WILL BE REPAIRED, SERVICED, AND CALIBRATED ON A RETURN-TO-FACTORY BASIS. THIS WARRANTY
DOES NOT COVER ANY PROBLEMS RESULTING FROM DAMAGES DURING SHIPPING, INCORRECT INSTAL-
LATION OR POWER SUPPLY, IMPROPER WORKING ENVIRONMENT, ABUSIVE TREATMENT OR ANY OTHER
OBVIOUS USER-INFLICTED FAULT.
LEGACY SUPPORT
IF SOMETHING WENT WRONG WITH A XAOC PRODUCT AFTER THE WARRANTY PERIOD IS OVER, NO
NEED TO WORRY, AS WE’RE STILL HAPPY TO HELP! THIS APPLIES TO ANY DEVICE, WHEREVER AND
WHENEVER ORIGINALLY ACQUIRED. HOWEVER, IN SPECIFIC CASES, WE RESERVE THE RIGHT TO CHARGE
FOR LABOR, PARTS AND TRANSIT EXPENSES WHERE APPLICABLE.
RETURN POLICY
THE DEVICE INTENDED FOR REPAIR OR REPLACEMENT UNDER WARRANTY NEEDS TO BE SHIPPED IN
THE ORIGINAL PACKAGING ONLY, SO PLEASE KEEP IT JUST IN CASE. XAOC DEVICES CAN NOT TAKE
ANY RESPONSIBILITY FOR DAMAGES CAUSED DURING TRANSPORT. PRIOR TO SENDING US ANYTHING,
PLEASE CONTACT US AT NOTE THAT ANY UNSOLICITED PAR-SUPPORT@XAOCDEVICES.COM.
CEL WILL BE REJECTED AND RETURNED!
GENERAL INQUIRIES
FOR USER FEEDBACK SUGGESTIONS, DISTRIBUTION TERMS, JOB POSITIONS FEEL FREE TO CONTACT
XAOC DEVICES AT PLEASE VISIT THE XAOCDEVICES.COM FOR ININFO@XAOCDEVICES.COM. -
FORMATION ABOUT THE CURRENT PRODUCT LINE, USER MANUALS, FIRMWARE UPDATES, TUTORIALS,
AND MERCHANDISE.
ALL RIGHTS RESERVED. CONTENT COPYRIGHT © 2016 XAOC DEVICES. COPYING, DISTRIBUTION OR
ANY COMMERCIAL USE IN ANY WAY IS STRICTLY PROHIBITED AND REQUIRES THE WRITTEN PER-
MISSION BY XAOC DEVICES. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.
MINI USB
CONNECTOR
FOR FIRMWARE
UPDATES
JUMPERS TO
CONNECT
POTI MODULE
CONNECTOR
–
1
REV. 10–2015
BATUMI
1974 QUAD LOW FREQUENCY OSCILLATOR
WAVEFORM SELECTION
SAW UP
SAW DOWN
TRIANGLE
TRAPEZOID
UPDATE
SALUT
Thank you for purchasing this Xaoc Devices product. Poti is a simple but very
useful breakout expander for the Batumi quadruple LFO module by Xaoc
Devices.
Its panel provides an immediate access to the Batumi functions originally
selected by the cluster of jumpers on the back of the module:
reset/sync mode option
asgn)

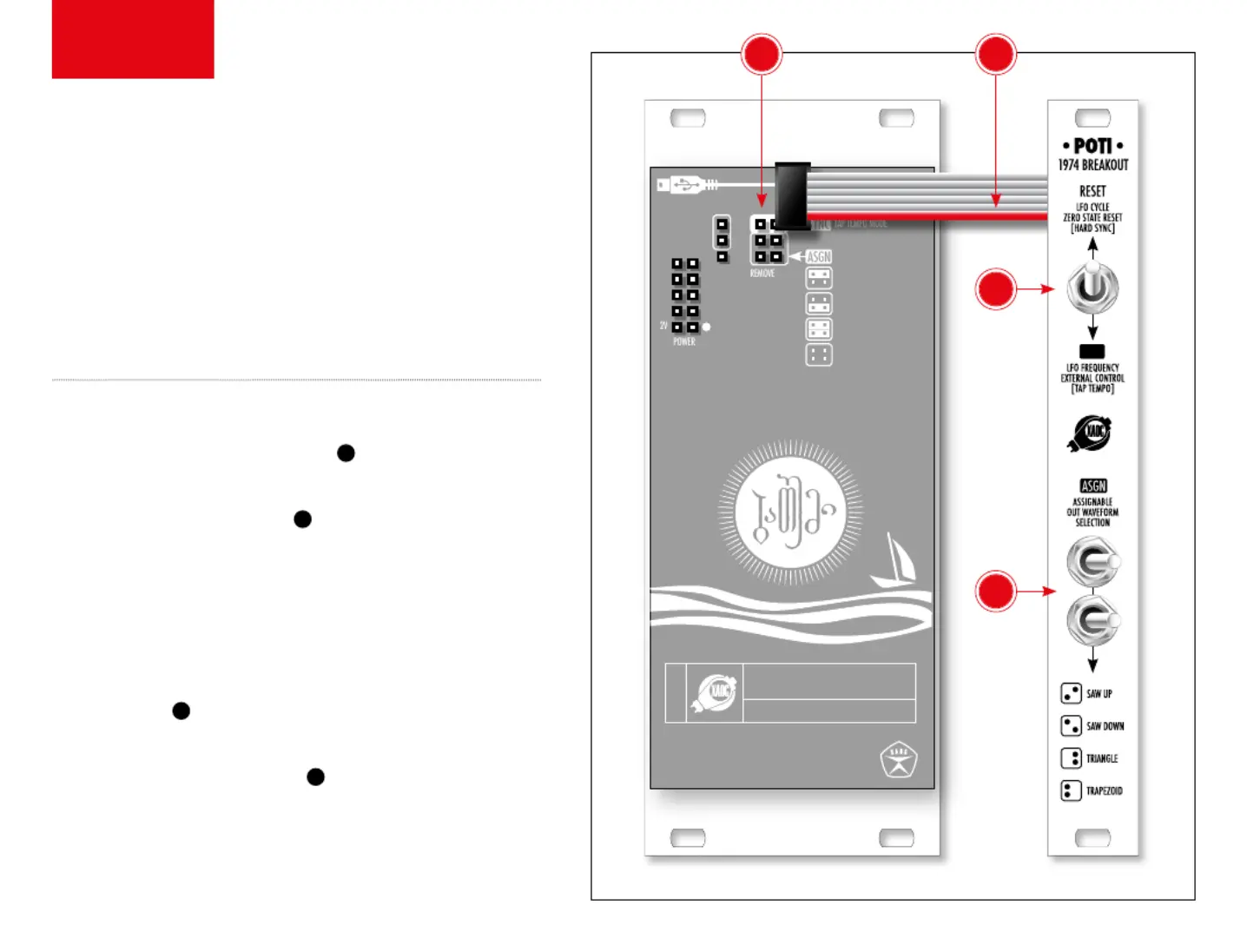

INSTALLATION
1
on the back of Batumi. Re-
move all the jumpers.
2. Plug the Poti ribbon connector
2
OPERATION
3
the inputs on the panel.reset/sync
4
-
livered to the saw/asgn
the Poti panel.
For more information on the and reset/sync saw/asgn
refer to the Batumi manual available on .
module
explained
SYNC
3
1 2
4
