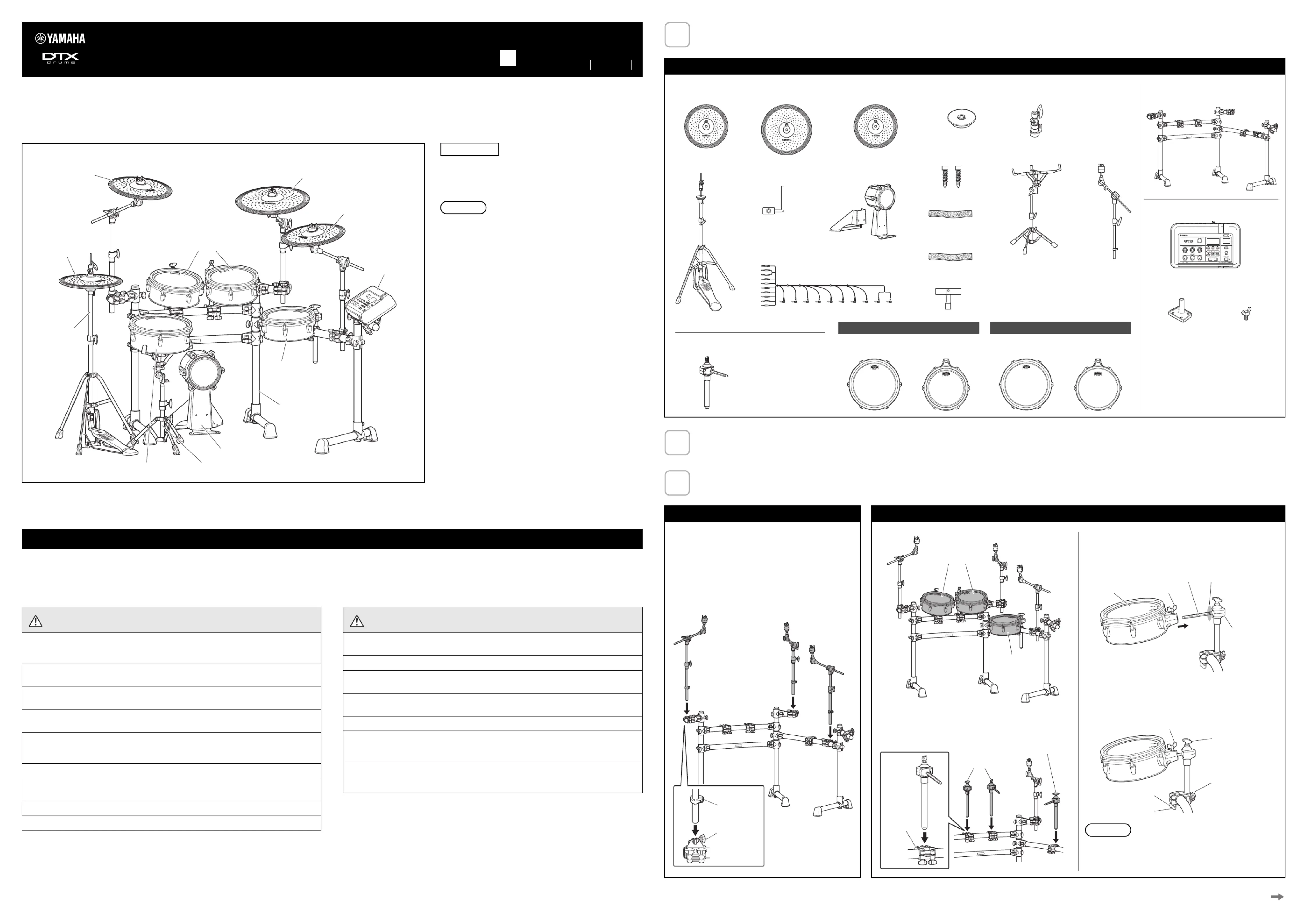

Thank you for purchasing the Yamaha ELECTRONIC DRUM KIT DTX8K-X or DTX8K-M. This electronic drum kit can be used in your home or a studio, or onstage for live perfor-
mances. For proper assembly and safe use, read this assembly manual carefully before using it. After you have read the manual, keep it in a safe and handy place for future reference.
This manual describes the standard assembly procedure for the DTX8K-X/DTX8K-M electronic drum kits. It covers assembly, wiring and setting up the drum trigger module of the kit.
The illustrations show the DTX8K-X electronic drum kit, but the information applies to the DTX8K-M (except where indicated).
ELECTRONIC DRUM KIT
DTX8K-X DTX8K-M Assembly Manual
EN
This manual describes the process of assembling a pad set and drum
trigger module to an already assembled RS8 Electronic Drum Rack.
Before starting the steps below, therefore, be sure to assemble your RS8
as described in the Owner’s Manual that came with it.
Lay a drum mat (sold separately) on the floor underneath the hi-hat
stand and the kick pad. Alternatively, you can place cardboard from the
drum kit packaging or the like on the floor to prevent it from being
scratched.
IMPORTANT
NOTICE
Example of standard assembly
Cymbal pad
Tom pads
Kick pad
Snare pad
Hi-hat stand
DTX-PRO
Drum trigger
module
Real hi-hat pad
Cymbal pad
Tom pad
Cymbal pad
Electronic drum rack
Snare stand
The purpose of the precautions detailed below is to ensure that this electronic drum kit can be used safely without fear of injury or property damage. Precautions are extremely important in terms of ensuring
safety, and therefore, they should be fully observed.
* After reading this Assembly Manual, ensure that it is kept in a safe, convenient location for future reference.
* Be sure to also read the Assembly Manuals and/or Owner’s Manuals that came with your pads and rack.
* The illustrations as shown in this manual are for instructional purposes only, and may appear somewhat dif-
ferent from those on your product.
* The company names and product names in this manual are the trademarks or registered trademarks of their
respective companies.
* The contents of this manual apply to the latest specifications as of the publishing date. To obtain the latest
manual, access the Yamaha website then download the manual file. Since specifications, equipment or sep-
arately sold accessories may not be the same in every locale, please check with your Yamaha dealer.
NOTICE: Usage Precautions
• When connecting and disconnecting cables, be sure to hold the plug and not the cable itself. In addition,
avoid placing heavy items on top of cables and do not allow them to touch sharp edges. Failure to avoid
these precautions can lead to cable breakage and disconnection.
• Do not climb onto the electronic drum kit and avoid placing heavy objects on it. Failure to observe this pre-
caution can result in malfunction.
• Do not use or keep the product in places with extremely high temperature (places in direct sunlight, close to
a heater, in a closed car, etc.) or high humidity (bathroom, outside on a rainy day, etc.). Doing so can result
in deformation, discoloration, damage or deterioration.
• When cleaning the product, use a soft and dry/slightly damp cloth. Do not use paint thinners, solvents, alco-
hol, cleaning fluids, or chemical-impregnated wiping cloths.
PRECAUTIONS Please read carefully before proceeding
Failure to observe the precautions described below can result in
injury and/or property damage.
• Assemble this product in the proper sequence by following the assembly instructions in this man-
ual. Also, make sure to tighten the bolts regularly. Failure to do so might result in damage to the
product or even injury.
• Do not let small children assemble or set up this product by themselves, or they can be injured.
Always assemble this product with adult supervision.
• Be careful with the edges of the cymbal holders and the tom holders. The sharp holder ends can
result in injury.
• The anti-slip stoppers on kick pads and on foot pedals have sharp tips. In order to avoid injury,
therefore, you should take special care whenever handling these components.
• Be sure to securely tighten bolts and other fasteners when setting up this product. In addition, be
sure to proceed slowly when loosening bolts. If this precaution is not observed, pads can fall off or
the rack can collapse or fall over, possibly causing injury.
• Do not place the product in an unstable position where it might accidentally fall over.
• Whenever setting up this electronic drum kit, ensure that cables and the like are arranged safely. If
someone were to trip on a cable, the kit could topple over and cause injury.
• Do not alter the product. Doing so can result in injury or damage/deterioration to the product.
• Do not sit or step on the rack. The rack can overturn or be damaged, resulting in injury.
CAUTION
Failure to observe the precautions described below can result in
injury and/or property damage.
• Be careful with your fingers and hands when adjusting clamps, to prevent them from becoming
pinched and injured.
• Be careful around pipe ends and inside. Metal shavings, etc. can injure your fingers and hands.
• Do not place hands or feet under a hi-hat stand, kick pad or foot pedal. Doing so could result in
injury.
• Do not attach acoustic drums to the electronic drum rack. Clamps can be damaged and drums can
drop, causing injury.
• Keep small parts out of the reach of infants. Your children may accidentally swallow them.
• Do not go near the product during an earthquake. Strong shaking during an earthquake could
cause the product to move or tip over, resulting in damage to the product or its parts, and possibly
causing injury.
• When transporting or moving the product, always use two or more people. Attempting to lift the
product by yourself may damage your back, result in other injury, or cause damage to the product
itself.
CAUTION
Manual Development Group
© 2020 Yamaha Corporation
Published 08/2020
POMA*.*- **A0
VDR6980
Open the boxes to reveal their contents.
After opening up the packages containing your electronic drum kit, verify that all of the following components are present.
Assemble the RS8 Electronic Drum Rack.
For instructions on how to assemble the RS8 Electronic Drum Rack, refer to the Owner’s Manual that came with it.
Assemble the pads and the drum trigger module to the electronic drum rack.
1
Components of both DTX8K-X and DTX8K-M
PCY135 Cymbal Pad
(×2)
PCY155 Cymbal Pad
(×1)
RHH135 Real
Hi-hat Pad (×1)
Stand base for
RHH135 (×1)
RS8 Electronic Drum Rack (×1)
RS8 Owner’s Manual (×1)
HS650A Hi-hat
Stand (×1)
KP90 Kick Pad (×1)
Ten-channel snake cable (×1)
Stopper for Cymbal Pad
(×3)
Cable band (×9)
Cable band for RHH135
(×1)
DTX8K-X DTX8K-M Assembly Manual
(this leaflet; ×1)
PCY100 PCY135 PCY155 PCY175
Owner’s Manual (×1)
RHH135 Owner’s Manual (×1)
KP90 Owner’s Manual (×1)
DTX-PRO Drum Trigger Module (×1)
AC adaptor (×1)
* May not be included depending on your
particular area. Check with your Yamaha dealer.
DTX-PRO Owner’s Manual (×1)
Cubase AI Download information (×1)
Module holder (×1) Module holder
screw (×4)
XP125SD-X
Snare Pad (×1)
Hi-hat clutch for
RHH135 (×1)
Drum key (×1)
Anti-slip stopper for
KP90 (incl. spring) (×2)
DTX8K-X only DTX8K-M only
XP125SD-M
Snare Pad (×1)
XP105T-M
Tom Pad (×3)
SS662 Snare Stand
(×1)
CH755 Cymbal
Holder (×3)
Tom Holder (×3) XP105T-X
Tom Pad (×3)
XP105T-X XP105T-M
XP125T-X XP125T-M
XP125SD-X XP125SD-M
Owner’s Manual (×1)
2
3
1. Assemble the cymbal holders (CH755 × 3) on the electronic
drum rack as shown below, and then tighten the clamp bolt
to secure the holder in place.
NOTE
You can change the position of a position clamp to mark the
settings for future setups and to prevent unintentional changes
during musical performances. Make sure to secure the position
clamp using the drum key after moving the clamp.
CH755 CH755
CH755
Clamp bolt
Position clamp
Assembling the cymbal holders
1. Assemble the tom holders (×3) on the electronic drum rack as
shown above, and then tighten the clamp bolt to secure the
holder in place.
2. Push the tom pads onto the tom holder’s rods. Leave a gap
of about a half inch between the base of the tom holder and
the tom pad, and then tighten the wing bolt to secure the pad
in place.
3. Loosen wing bolts A to B and clamp bolts C to E as shown
below to adjust the height and angle of any of the pads. When
correctly positioned, be sure to securely retighten the bolts
before proceeding to the next step.
Before every playing, tighten the drum key bolts so that there is no
rattling and loosening of the head, in order to prevent malfunction.
Refer to the “Head tension adjustment” in the XP105T-X XP105T-
M XP125T-X XP125T-M XP125SD-X XP125SD-M Owner’s Manual.
XP105T
XP105T
Tom holders
Tom holder
Clamp bolt
Tom holder
Wing boltTom pad
Insert
Rod section Leave a gap
Clamp bolt C
Wing bolt A
Wing bolt B
Clamp bolt D
Clamp bolt E
NOTICE
Assembling the tom pads
Continued on other side
2

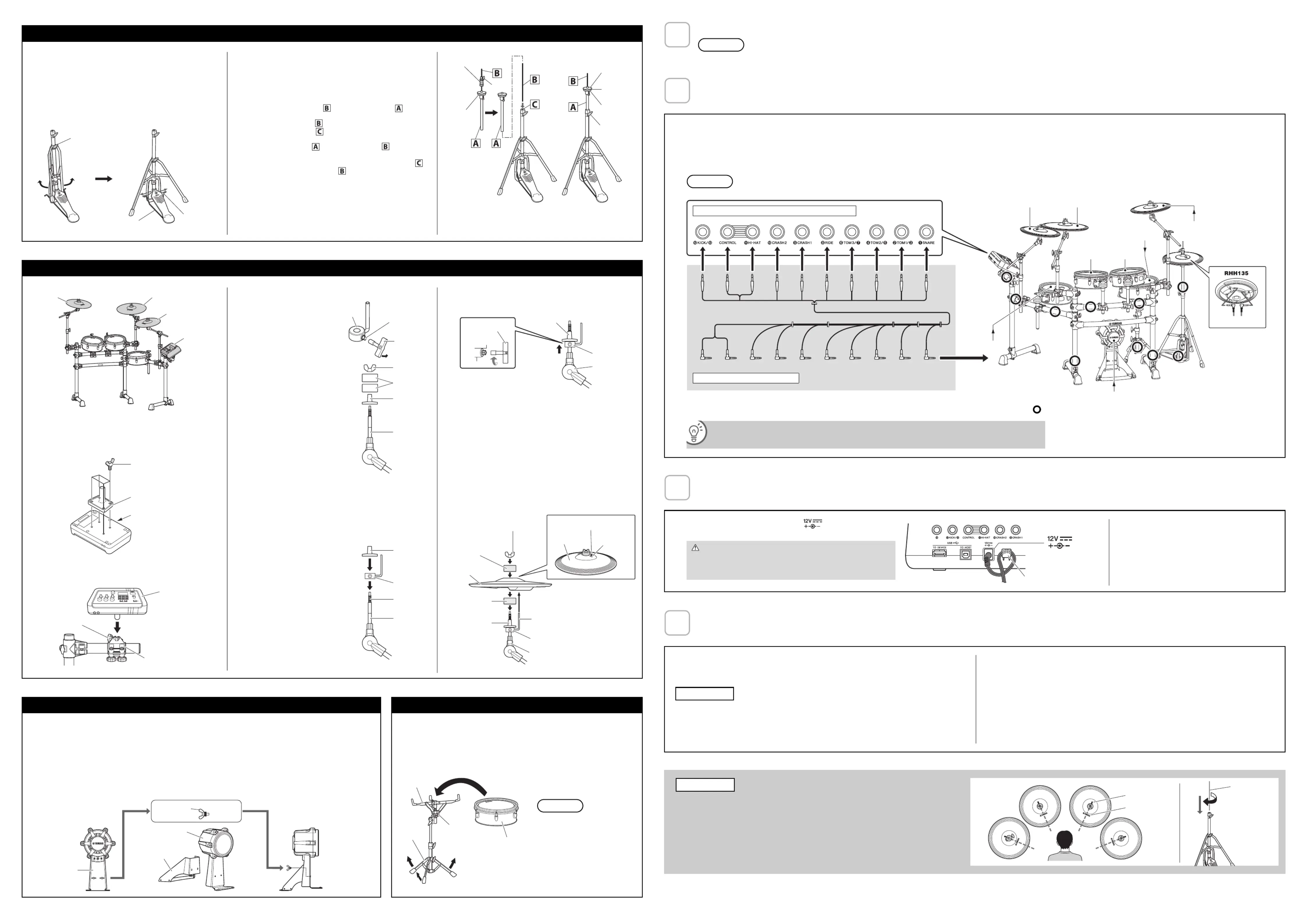

1. If a drum mat (sold separately) is not available, lay a sheet of
cardboard on the floor to prevent it from being scratched.
2. Loosen the hi-hat stand’s wing bolt a.
3. Open up the three legs as shown below and then retighten
the wing bolt a to lock them in place.
4. Insert the footboard stabilizer rods into the frame holes as
shown below.
5. Loosen the hi-hat clutch’s wing bolt b and remove the hi-hat
clutch.
* The hi-hat clutch is not required when assembling the elec-
tronic drum kit in the standard fashion described in this
manual. Instead, the hi-hat clutch that came with the
RHH135 Real Hi-hat Pad will be used.
6. Remove the hi-hat shaft from the upper tube .
7. Insert the hi-hat shaft removed in Step 6 as far as it will
go into the lower tube and screw in the tip.
8. Insert the upper tube over the hi-hat shaft and tighten
the wing bolt c to secure it in place with the cymbal support
approximately half way between the top of the lower tube
and the top of the hi-hat shaft .
9. Remove the felt washer attached above the cymbal support.
* Do not remove the Metal washer.
* The felt washer is not used when assembling the electronic
drum kit in the standard fashion described in this manual.
If you leave it on, you will not be able to get the proper play-
ing feeling, so be sure to remove it.
10. Assemble the RHH135 Real Hi-hat Pad.
* For detailed instructions, refer to the “Setting Up” in the
RHH135 Owner’s Manual.
Footboard
stabilizer rod
Wing bolt a
Footboard
stabilizer rod
Felt washer
Hi-hat clutch
Cymbal
support
Cymbal
support
c
b
Metal washer
Assembling the hi-hat stand
Drum trigger module
1. Secure the module holder to the bottom of the drum trigger
module using the module holder screws.
2. Push the module holder into the holder clamp and tighten the
clamp bolt to secure it in place.
Cymbal pads
1. Using the drum key, loosen
the stopper’s key bolt.
2. Remove the wing nut, the two felt
pads, and the bolt cover from the
cymbal holder.
3. Place the stopper on the cymbal holder.
* If the key bolt was not sufficiently loosened in Step 1
above, the cymbal holder may not pass through the hole of
the stopper. In such a case, loosen the key bolt as much
as possible without removing it.
4. Replace the bolt cover.
* Turn the bolt cover to tighten it
onto the threaded section and
firmly secure it in place.
5. With the stopper making full contact with the bottom surface
of the bolt cover as shown below, tighten the stopper’s key
bolt using the drum key.
6. Place one of the felt pads removed in Step 2 on the cymbal
holder.
7. Mount the pad on the cymbal stand. Lower the pad into place
with the cymbal holder’s shaft passing through the central
hole. When mounted, the stopper’s pin should rest inside the
pad’s smaller hole.
* Playing your pad unit without the stopper’s pin positioned
fully inside the smaller hole could cause slip out of the
hole. It is very important, therefore, to ensure that the stop-
per is secured as shown in Step 5 above.
8. Assemble the other felt pad removed in Step 2 to the cymbal
holder.
9. Tighten the wing nut to secure the pad to the cymbal holder.
PCY135 cymbal pad
Drum trigger
module
PCY155 cymbal pad
PCY135 cymbal pad
Module holder screw (×4)
Module holder
Drum trigger module
(rear side)
Clamp bolt
Drum trigger module
+
module holder
Insert
Holder clamp
Key bolt
Drum key
Stopper
Cymbal
holder
Felt pads
Bolt cover
Wing nut
Cymbal
holder
Stopper
Bolt cover
Threaded
section
Cymbal holder
Stopper
Bolt cover
Full contact
Drum key
Cymbal pad
Felt pad removed
in Step 2
Cymbal holder
Felt pad
removed in
Step 2
Bolt cover
Cymbal pad
Stopper
Pin
Wing nut
Stopper’s pin
Smaller hole
Assembling the drum trigger module and cymbal pads
1. If a drum mat (sold separately) is not available, lay a sheet of cardboard on the floor to prevent it from being
scratched.
2. Remove the two wing bolts from the kick pad frame, and then place them nearby.
3. Join the base to the frame as shown on the below, and then secure it in place by the wing bolts removed in the pre-
vious step from the base side.
NOTE
For details on assembling the foot pedal (sold separately), refer to the “Assembling the KP90” in the KP90 Owner’s Manual.
Frame
Frame
Wing bolt
Base
Assembling the kick pad
1. Open up the snare stand’s legs and stand it up on the floor.
2. Open up the snare stand’s basket section, lay the Snare Pad on it, adjust the
basket, and then tighten the adjusting knob to secure the pad and prevent it
from moving.
Basket
Adjusting
knob
XP125SD
Legs
Before every playing, tighten the
drum key bolts so that there is no
rattling and loosening of the
head, in order to prevent mal-
function. Refer to the “Head ten-
sion adjustment” in the XP105T-
X XP105T-M XP125T-X XP125T-M
XP125SD-X XP125SD-M Owner’s
Manual.
NOTICE
Assembling the Snare Stand and Snare Pad
Arrange the hi-hat stand, the kick pad, and the snare stand as shown in Example of standard assembly on the other side of this sheet.
• Lay a drum mat (sold separately) on the floor underneath the hi-hat stand and the kick pad. Alternatively, you can place cardboard from the drum kit packaging or the like
on the floor to prevent it from being scratched.
• Ensure that you do not lower the electronic drum rack’s center strut too much as doing so may cause it to come into contact with the kick pad.
Connect the pads to the drum trigger module.
As described below, connect the output of each pad to the corresponding trigger input jack on the drum trigger module.
Connect the drum trigger module to a power supply.
Setting up the drum trigger module.
4
NOTICE
5
KICK HH CON HI HAT CRASH2 CRASH RIDE TOM3 TOM2 TOM1 SNARE
SNARE
TOM2
TOM1
CRASH
TOM3
RIDECRASH2
KICK
HI HAT HH CON
RIDE TOM3 CRASH2TOM2TOM1 KICKSNARE CRASHHH CON HI HAT
4. Using the cable bands, secure the cables to the electronic drum rack at the positions circled in the figure on the right. ( )
If you secure the cable band from the side closer to the drum trigger module, you can make connections more
easily.
Trigger input jacks on the drum module
Ten-channel snake cable
1. Plug the straight ends of the ten-channel snake cable into the trigger input jacks on the back of the drum trigger module.
• When using the standard setup, the stickers on each of the snake cable’s plugs will indicate the name of the corresponding pad.
2. Plug the L-shaped ends of the ten-channel snake cable into the corresponding pads.
3. Wrap the cables for the snare pad, the tom pads, the cymbal pads and the hi-hat pad around the cable clips to prevent them from being pulled out.
Excessive bending can damage pad cables. Ensure, therefore, that these cables are not bent at an extreme angle when wrapped around the clips.
NOTICE
6
1. Plug the AC adaptor’s DC cord into the connector. Hook the AC
adaptor’s DC cord around the cord clip to secure it in place.
CAUTION
Excessive bending can damage AC adaptor’s DC cord. Ensure, there-
fore, that the cord is not bent at an extreme angle when wrapped
around the clips. Doing so can cause fire or electrical shock.
Cord clip
connector
2. Plug the adaptor’s AC cord into a domestic wall
socket.
7
According to your particular electronic drum kit, select the “DTX8K-X” or the “DTX8K-M” trigger set-
up on your drum trigger module. (For details on the trigger setup procedure, refer to the “Initial Set-
tings (Trigger Setup Wizard)” in the DTX-PRO Owner’s Manual.)
The letters at the end of the model name (“X” or “M”) indicates the pad type. “X” represents
TCS products and “M” represents mesh products. Selecting the wrong trigger setup will ad-
versely affect your ability to perform comfortably, since sensing when the drum is hit differs
depending on the pad type. Use the correct trigger setup that corresponds to your particular
electronic drum kit for optimum performance.
• Kick pad output (LEVEL) adjustment:
Adjust the trigger output to your desired setting by using the KP90 kick pad’s level adjustment knob.
For details, refer to the “Adjusting the Output Level” in the KP90 Owner’s Manual.
IMPORTANT
• You can play comfortably by striking near the YAMAHA logo. Adjust the height, angle and ori-
entation of the cymbal pad and hi-hat pad to a position where you can hit around the YAMAHA
logo naturally when performing. The correct setting position is that the YAMAHA logo of the
cymbal pad and hi-hat pad are visible in front of the performer. The direction of the cymbal pad
will be appropriate by adjusting the direction of the stopper as shown on the right. The direction
of the hi-hat pad will also be appropriate by adjusting the direction of the hi-hat clutch.
• The hi-hat shaft will become loose while you continue to use the hi-hat, and the hi-hat pad may
rotate. Since this may adversely affect performance, screw in the hi-hat shaft periodically and
adjust the position of the hi-hat pad.
IMPORTANT
Stopper’s pin
YAMAHA logo
Hi-hat shaft
Screw in
Your electronic drum kit is now ready. * For instructions on turning on the drum trigger module, producing sounds, and other subsequent steps,
refer to the Owner’s Manual that came with the module.
Produktspecifikationer
| Varumärke: | Yamaha |
| Kategori: | ej kategoriserat |
| Modell: | DTX8K-M Black Forest |
Behöver du hjälp?
Om du behöver hjälp med Yamaha DTX8K-M Black Forest ställ en fråga nedan och andra användare kommer att svara dig
ej kategoriserat Yamaha Manualer
18 Juli 2025
4 Juni 2025
4 Juni 2025
3 Juni 2025
ej kategoriserat Manualer
- Jupio
- Rademacher
- Chauvin Arnoux
- Leviton
- Dexibell
- Vaxis
- Gigabyte
- American DJ
- Peerless-AV
- Crestron
- BBB
- Icom
- Panduit
- Intellinet
- Belkin
Nyaste ej kategoriserat Manualer
18 Juli 2025
18 Juli 2025
18 Juli 2025
18 Juli 2025
18 Juli 2025
18 Juli 2025
18 Juli 2025
18 Juli 2025
18 Juli 2025
18 Juli 2025
