ZOTAC ZBOX

Product Specications

q Chipset

v Intel

HM65

q Product Size

v 188mm x 188mm x 44mm

q Microprocessor support

v Intel

Celeron 857

q Operating systems:

v Supports Windows 7 32bit/64bit

q System Memory support

v Two 204-pin SO-DIMMs DDR3-1333

v Up to 16 GB of memory

q USB Ports

v Two USB 3.0 ports on the back panel

v Four USB 2.0 ports (one front panel port, one top panel port and two rear panel

ports)

q Onboard Serial ATA

v SATA 6.0 Gb/s transfer rates

v Supports one 2.5-inch SATA HDD or SSD (support the device with max 9.5mm

height)

q Onboard LAN

v Supports 10/100/1000 Mbps operation

v Supports IEEE 802.3

q WiFi/Bluetooth support

v Compliant with IEEE802.11n Draft 2.0 standard

v High speed wireless connection and enhanced wireless security

v Fully qualied Bluetooth v3.0

q Onboard Audio

v 2-channel High-Denition audio

v Supports Jack-Sensing function

q Green Function

v Supports ACPI (Advanced Conguration and Power Interface)

q Onboard Graphics support

v Intel

HD Graphics Family

v HDMI & DVI-I output (VGA compatible with adapter)

ZOTAC ZBOX

Safety information

Your ZOTAC ZBOX is designed and tested to meet the latest standards of safety for infor-

mation technology equipment. However, to ensure your safety, it is important that you read

the following safety instructions.

Setting up your system

 Read and follow all instructions in the documentation before you operate your system.

 Do not use this product near water or a heat source such as a radiator.

 Set up the system on a stable surface with the provided stand. Never use the system

alone without the stand.

 Openings on the chassis are for ventilation. Do not block or cover these openings.

Make sure you leave plenty of space around the system for ventilation. Never insert

objects of any kind into the ventilation openings.

 Use this product in environments with ambient temperatures between 0℃ and 35℃.



If you use an extension cord, please use the UL listed cord and make sure that

the total ampere rating of the devices plugged into the extension cord does not

exceed its ampere rating.

Care during use

 Do not walk on the power cord or allow anything to rest on it.

 Do not spill water or any other liquids on your system.

 When the system is turned off, a small amount of electrical current still ows. Always

unplug all power, modem, and network cables from the power outlets before cleaning

the system.

 If you encounter the following technical problems with the product, unplug the power

cord and contact a qualied service technician or your retailer.

¾ The power cord or plug is damaged.

¾ Liquid has been spilled into the system.

¾ The system does not function properly even if you follow the operating instructions.

¾ The system was dropped or the cabinet is damaged.

¾ The system performance changes.

ZOTAC ZBOX

Welcome

Congratulations on your purchase of the ZOTAC ZBOX. The following illustration displays

the package contents of your new ZOTAC ZBOX. If any of the below items is damaged or

missed, contact your retailer.

Package contents

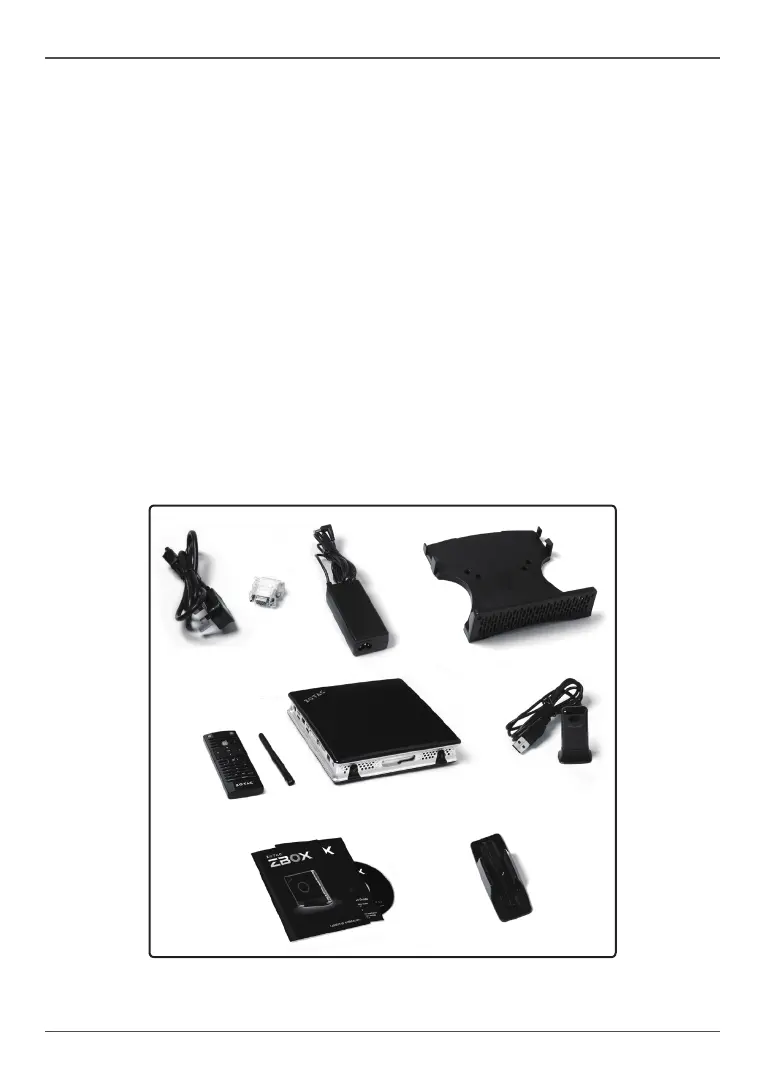

• 1 x ZOTAC ZBOX

• 1 x Stand

• 1 x VESA mount

• 1 x AC Adapter

• 1 x DVI-to-VGA Adapter

• 1 x Power Cord

• 1 x WiFi Antenna

• 1 x Remote Control with 2 x CR2032 batteries

• 1 x USB Extended IR Receiver for Remote Control

• 1 x Support DVD

• 1 x User Manual & Warranty Card

• 1 x Quick Start Guide

ZOTAC ZBOX

Getting to know your ZOTAC ZBOX

Front view

1 2 3 4 5 6 7

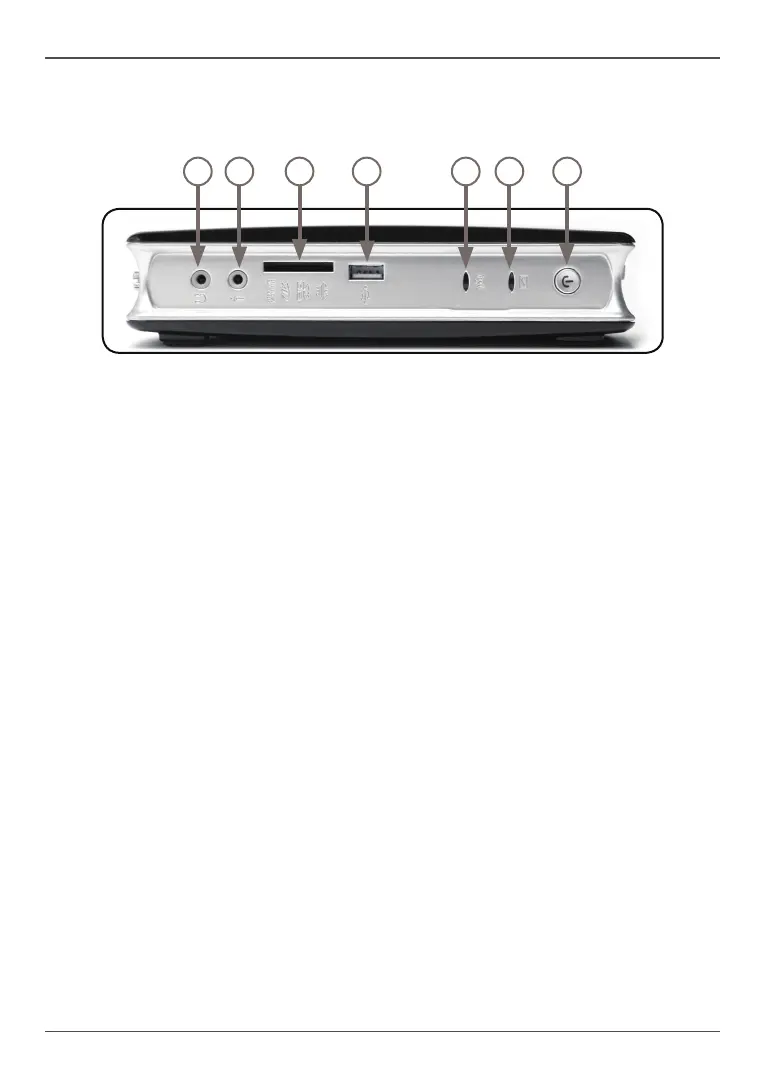

Refer to the diagram below to identify the components on this side of the system

1. Headphone/Audio Out jack

The stereo headphone jack (3.5mm) is used to connect the system’s audio out

signal to amplied speakers or headphones.

2. Microphone jack

The microphone jack is designed to connect the microphone used for video confer-

encing, voice narrations or simple audio recordings.

3. Memory card slot

The built-in memory card reader reads MMC/SD/SDHC/MS/MS Pro/XD cards used

in devices like digital cameras, MP3 players, mobile phones and PDAs.

4. USB 2.0 port

The USB (Universal Serial Bus) port is compatible with USB devices such as key-

boards, mice, cameras and hard disk drives.

5. WiFi LED

The WiFi LED blinks when data is being transfered over WiFi.

6. Hard disk LED

The hard disk LED blinks when data is being written into or read from the hard disk

drive.

7. Power switch

The power switch allows powering ON and OFF the system

ZOTAC ZBOX

Rear view

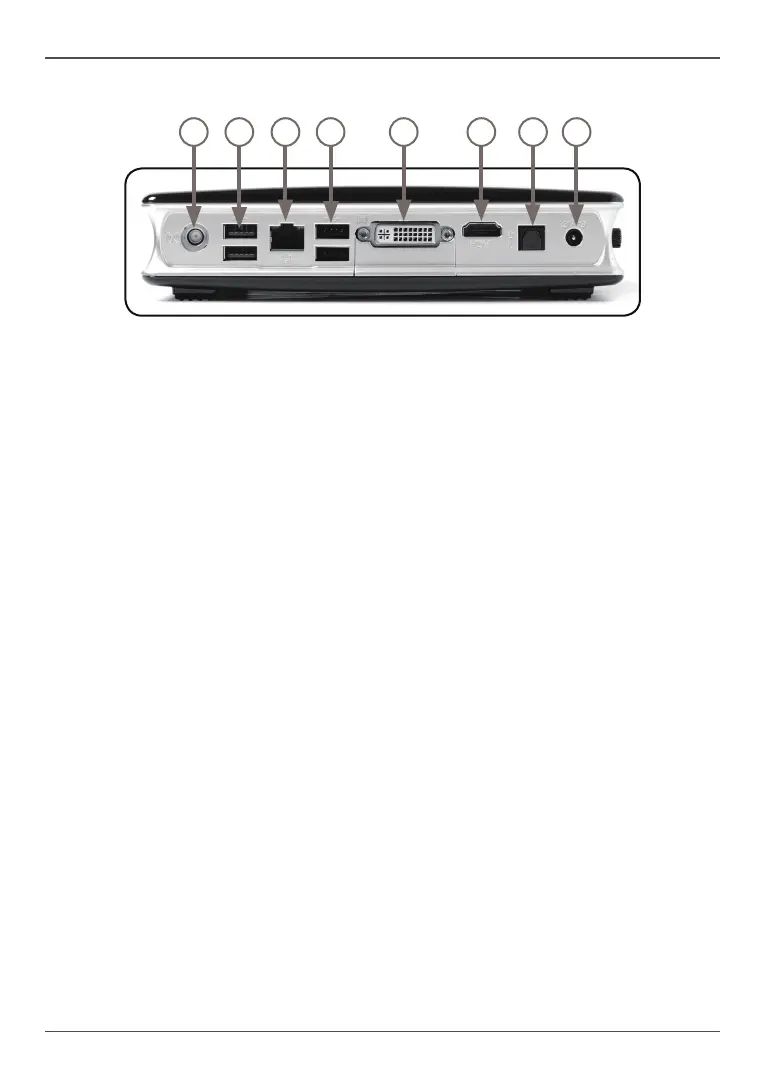

Refer to the diagram below to identify the components on this side of the system.

1. WiFi antenna connector

The WiFi antenna connector supports WiFi antenna module.

2. USB 3.0 ports

The USB 3.0 port supports the SuperSpeed USB 3.0 devices and is backwards

compatible with USB 2.0/1.1 devices. Use this port for USB 3.0 devices for

maximum performance with USB 3.0 compatible devices.

3. LAN port

The eight-pin RJ-45 LAN port supports standard Ethernet cable for connection to

a local network.

4. USB 2.0 ports

The USB (Universal Serial Bus) port is compatible with USB devices such as

keyboards, mice, cameras and hard disk drives. They also support USB IR receiver

(please refer to page 14).

5. DVI port

The DVI port supports connection to analog monitors and displays.

6. HDMI port

The HDMI (High Denition Multimedia Interface) port supports a Full-HD device

such as an LCD TV or monitor to allow viewing on a larger external display.

7. Optical (SPDIF OUT) jack

Plug an optical cable into this jack for digital audio transfer.

8. Power input (DC19V)

The supplied power adapter converts AC power to DC power for use with this jack.

Power supplied through this jack supplies power to the PC. To prevent damage to

the PC, always use the supplied power adapter.



The power adapter may become warm to hot when in use. Do not cover the

adapter and keep it away from your body.

1 2 3 4 5 6 7

ZOTAC ZBOX

Installing Hardware inside ZOTAC ZBOX

Before installing hardware, please follow the instructions below to remove the cover of your

ZOTAC ZBOX.

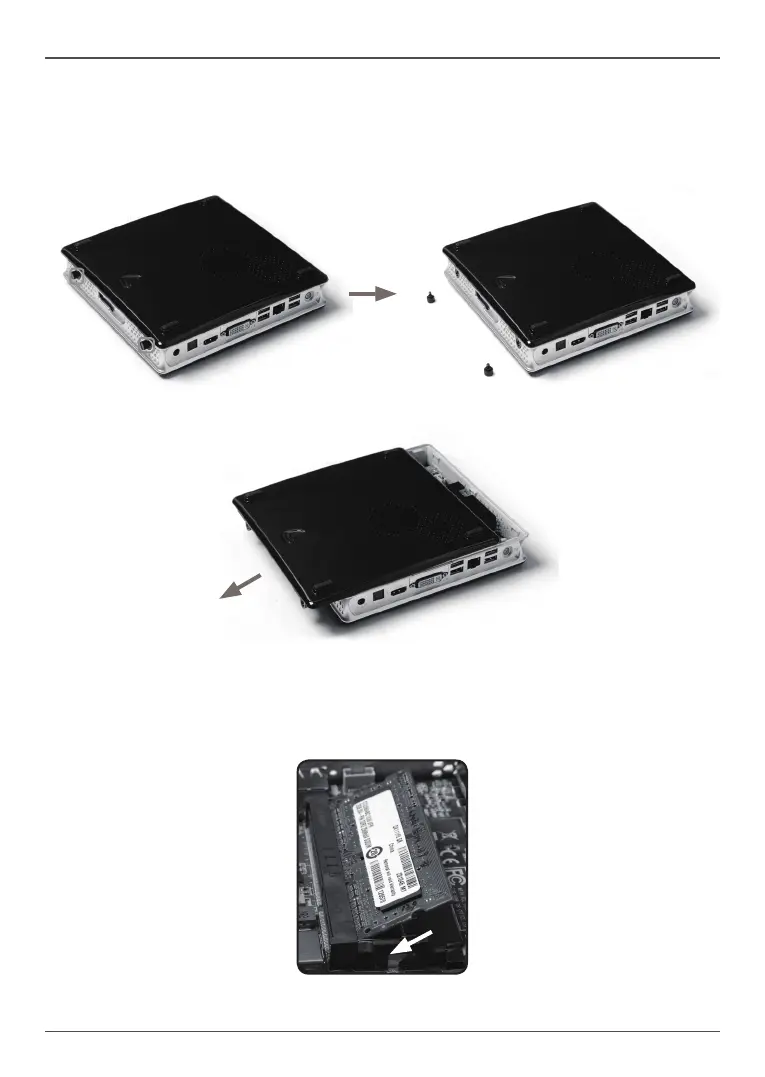

1. Unscrew.

2. Gently remove the cover as the image below.

Installing a memory module

1. Locate the SO-DIMM memory slots and insert a SO-DIMM memory module

into the slot at a 45 degree angle.

Note: When installing two SO-DIMM memory modules, please insert a module into the lower slot rst.

ZOTAC ZBOX

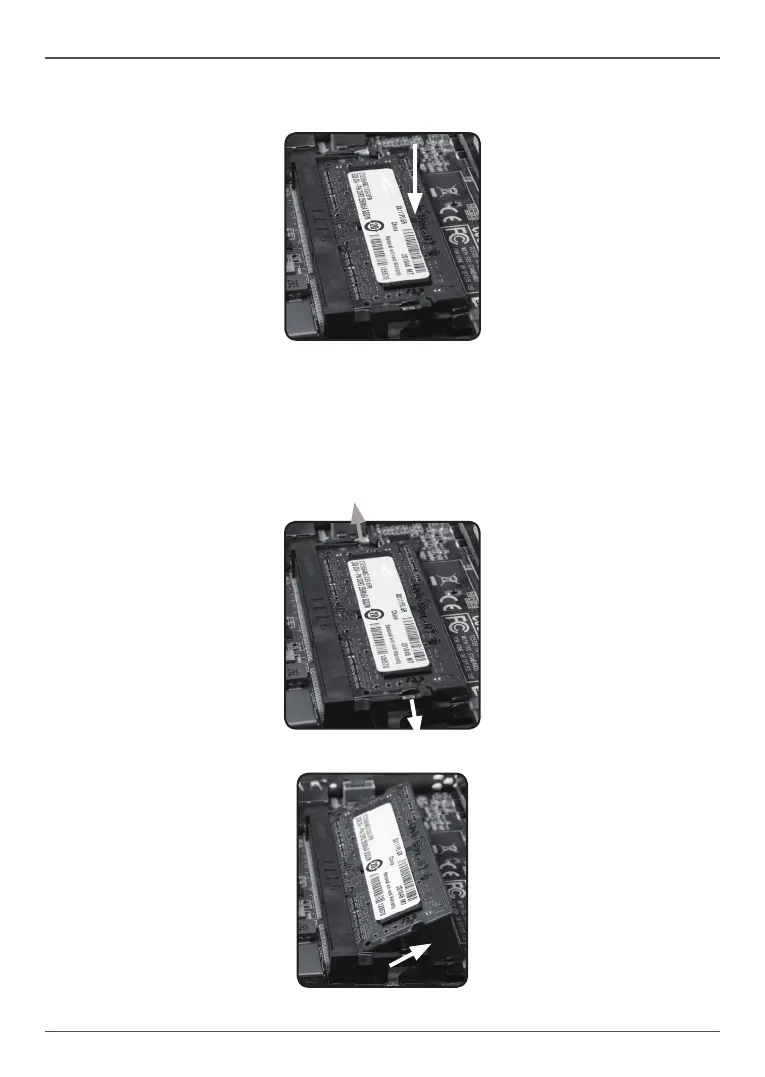

2. Gently press down on the memory module until it locks into place by the arms

of the memory slot.

Removing the memory module

1. Locate the SO-DIMM memory slot and gently press the two arms securing the

memory module outwards, as shown in the image below, to release the

memory module.

2. Remove the memory module from the slot at a 45-degree angle.

Note: This ZOTAC ZBOX accomodates two DDR3 SO-DIMM memory modules. You must install at least

one module in one of the two slots.

ZOTAC ZBOX

Installing a hard disk

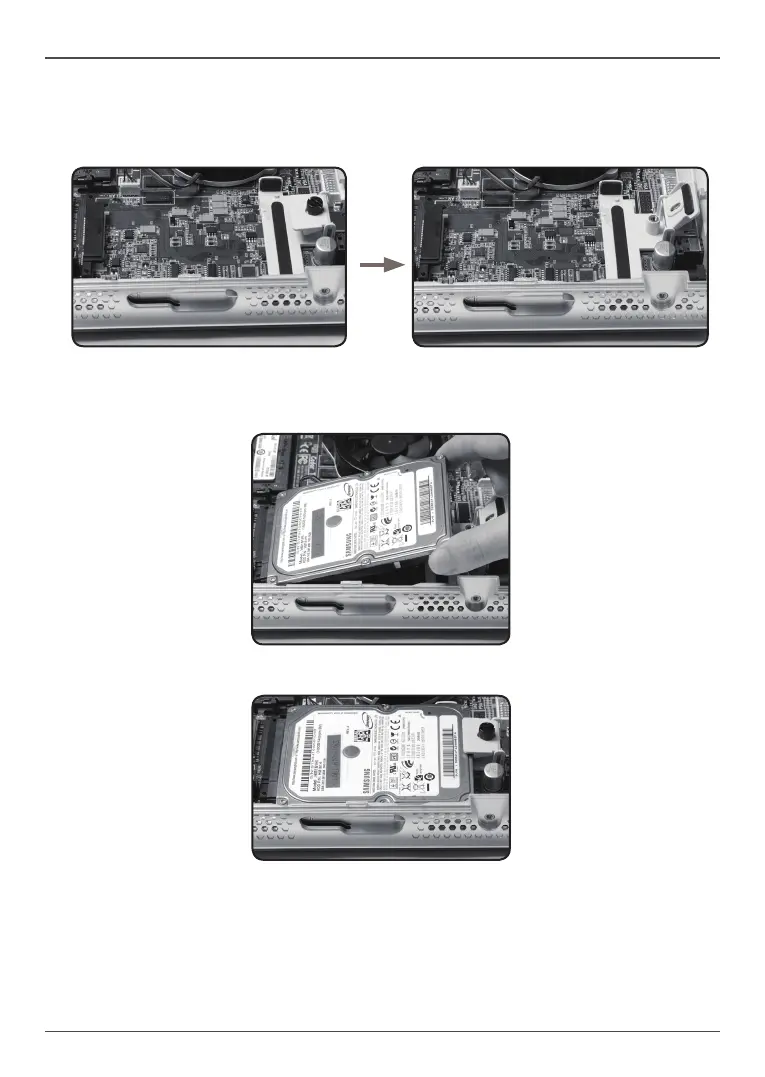

1. Locate the hard disk bracket and remove the thumb screw.

2. Lift up on the plastic ap.

3. Insert a 2.5-inch SATA hard disk into the bracket at a 45 degree angle and gently slide

into the connector.

4. Lower the plastic ap and reinstall thumb screw.
