ZOTAC ZBOX Nano AD12 Plus Bruksanvisning

ZOTAC Skrivbord ZBOX Nano AD12 Plus

Läs gratis den bruksanvisning för ZOTAC ZBOX Nano AD12 Plus (26 sidor) i kategorin Skrivbord. Guiden har ansetts hjälpsam av 14 personer och har ett genomsnittsbetyg på 3.9 stjärnor baserat på 7.5 recensioner. Har du en fråga om ZOTAC ZBOX Nano AD12 Plus eller vill du ställa frågor till andra användare av produkten? Ställ en fråga

Ladda ner PDF

Sida 1/26

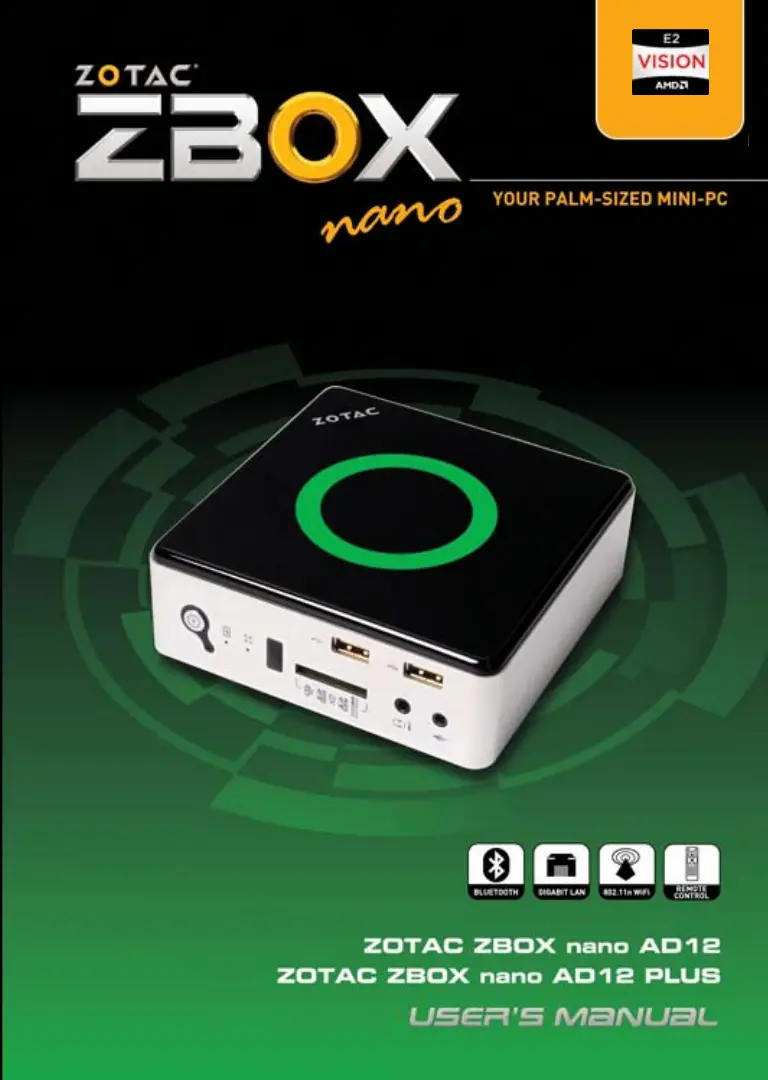

ZOTAC ZBOX nano

User’s Manual

No part of this manual, including the products and software described in it,

may be reproduced, transmitted, transcribed, stored in a retrieval system,

or translated into any language in any form or by any means,except

documentation kept by the purchaser for backup purposes, without the

express written permission of ZOTAC.

Products and corporate names mentioned in this manual may not be reg-

istered trademarks or copyrights of their respective companies, and are

used for identication purposes only. All trademarks are the property of their

respective owners.

Every effort has been made to ensure that the contents of this manual are cor-

rect and up to date. However, the manufacturer makes no guarantee regard-

ing the accuracy of its contents, and reserves the right to make changes

without prior notice.

CAUTION:

Risk of explosion if the battery is replaced with an incorrect type. Batteries

should be recycled where possible. Disposal of used batteries must be in

accordance with local environmental regulations.

ZOTAC ZBOX nano

Table of Contents

Product specications -------------------------------------------------------------------------- 3

Safety information -------------------------------------------------------------------------------- 4

Setting up your system ----------------------------------------------------------------------- 4

Care during use -------------------------------------------------------------------------------- 4

Welcome --------------------------------------------------------------------------------------------- 5

Package contents ------------------------------------------------------------------------------ 5

Getting to know your ZOTAC ZBOX nano ------------------------------------------------ 6

Front view ---------------------------------------------------------------------------------------- 6

Rear view----------------------------------------------------------------------------------------- 7

BIOS settings of specic functions --------------------------------------------------------- 8

How to disable the ring LED indicator ---------------------------------------------------- 8

How to enable USB2.0 charge (for S3/S4 status) ------------------------------------- 10

How to disable CIR controller (for internal IR receiver) ------------------------------- 10

Customizing the ZOTAC ZBOX nano ------------------------------------------------------- 12

Installing a memory module ----------------------------------------------------------------- 13

Installing a hard disk -------------------------------------------------------------------------- 14

Connecting a SPDIF cable ------------------------------------------------------------------ 15

Setting up the ZOTAC ZBOX nano ---------------------------------------------------------- 16

Positioning the ZOTAC ZBOX nano --------------------------------------------------------- 18

Mounting the ZOTAC ZBOX nano to a LCD monitor ---------------------------------- 18

IR receiver --------------------------------------------------------------------------------------- 19

Remote control (optional) -------------------------------------------------------------------- 20

Function keys ------------------------------------------------------------------------------- 20

Lithium cell installation -------------------------------------------------------------------- 21

Installing drivers and software --------------------------------------------------------------- 22

Installing an operating system -------------------------------------------------------------- 22

Installing system drivers ---------------------------------------------------------------------- 22

Using your ZOTAC ZBOX nano --------------------------------------------------------------- 23

Conguring wireless connection ----------------------------------------------------------- 23

Conguring wired connection --------------------------------------------------------------- 23

Using a static IP ---------------------------------------------------------------------------- 23

Using a dynamic IP (PPPoE connection) -------------------------------------------- 24

Conguring audio output via an HDMI device ------------------------------------------ 24

Produktspecifikationer

Varumärke:	ZOTAC
Kategori:	Skrivbord
Modell:	ZBOX Nano AD12 Plus
Produkttyp:	Mini-PC
Vikt:	- g
Bredd:	127 mm
Djup:	45 mm
Höjd:	127 mm
Processorfrekvens:	1.7 GHz
Processorfamilj:	AMD E
Wi-Fi:	Ja
Wi-Fi-standarder:	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth-version:	3.0+HS
Antal HDMI-portar:	1
DVI-port:	Nej
Hörlursutgångar:	1
Internminne:	2 GB
Kabelteknik:	10/100/1000Base-T(X)
Processor:	E2-1800
Intel® Wireless Display (Intel® WiDi):	Nej
Maximalt internminne:	- GB
Total lagringskapacitet:	320 GB
Intel® My WiFi Technology (Intel® MWT):	Nej
Intel® Smart Response Technology:	Nej
Intel® Hyper Threading Technology (Intel® HT Technology):	Nej
Intel® Small Business Advantage (Intel® SBA):	Nej
Intel® Identity Protection Technology (Intel® IPT):	Nej
Intel® Rapid Start-teknik:	Nej
Ljudutgångskanaler:	7.1 kanaler
Minneslayout:	1 x 2 GB
Minnesplatser:	1x SO-DIMM
Antalet installerade hårddiskar:	1
S/PDIF-utgång:	Ja
Typ av minneskort:	Memory Stick (MS), MMC, MS PRO, SD, SDHC, SDXC, xD
Produktens färg:	Svart
Antal displayportar:	1
Inbyggd kortläsare:	Ja
processortillverkare:	AMD
Installerat operativsystem:	Nej
Datahastighet för Ethernet-LAN:	10,100,1000 Mbit/s
Antal LAN (RJ-45) anslutningar:	1
Hårddiskkapacitet:	320 GB
Typ av internminne:	DDR3-SDRAM
Nätverksansluten (Ethernet):	Ja
Likströmsingång:	Ja
Hårddiskens rotationshastighet:	5400 RPM
Antal USB 2.0 anslutningar:	4
Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar:	2
Moderkortets chipset:	AMD A68M
Processorkärnor:	2
Bluetooth:	Ja
Wi-Fi-standard:	Wi-Fi 4 (802.11n)
Minne klockhastighet:	1333 MHz
Lagringsmedia:	HDD
Optisk enhetstyp:	Nej
Ombord grafikkort modell:	AMD Radeon HD 7340
Diskret grafikkortsmodell:	Ej tillgänglig
Ombord grafikkort:	Ja
Familj av inbyggda grafikkort:	AMD Radeon HD 7000
Uttag för mikrofon/linje in:	Ja
Intel® Stöldskydd Teknik (Intel® AT):	Nej
Intel® Turbo Boost Technology:	Nej
Intel® Quick Sync Video Technology:	Nej
Hårddiskens gränssnitt:	SATA III
Mus inkluderad:	Nej
Tangentbord inkluderat:	Nej
Display inkluderad:	Nej
Kylning typ:	Aktiv
Antal eSATA portar:	1
Chassityp:	Nettop
Antal processorer installerade:	1
Intel® Smart Connect Technology:	Nej
