AIMB-708 Startup Manual 1
AIMB-708 LGA1700 Intel
®
Core™ i9/i7/i5/i3 ATX
Motherboard with HDMI/VGA, DDR4, USB 3.2, M.2
Startup Manual
Specications (Cont.) Packing List
For more information on this and other Advantech prod-
ucts, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our sup-
port website for AIMB-708 at:
http://advt.ch/aimb708spt
Register your products on our website and get 2 months
extra warranty for free at:
http://www.register.advantech.com
This manual is for the AIMB-708 series Rev. A1, and all
specications are subject to the data-sheet on the ocial
website. The information in this manual is subject to
change without notice.
Part No. 2041070801
Printed in China
2nd Edition
March 2023
• M.2 socket: One M.2 socket supports up to PCIe p1-x2 Gen
3 M-Key 2280 type storage devices (G2 SKU only).
• SATA interface: Four on-board Serial ATA 3.0 connectors
support data transmission rates up to 600 MB/s. All four
SATA 3.0 ports support Advanced Host Controller Inter-
face (AHCI) technology.
• PCIe and PCI slots: 1 PCIe p1-x16 Gen 4 expansion slot, 2
PCIe p1-x4 expansion slots (x2 Gen 3 link), 4 PCI slots 32-
bit/33 MHz PCI 2.2 compliant.
• USB 3.2/2.0:
- G2 SKU: 4 USB 3.2 Gen 1 ports on the rear with up to
5 Gb/s data rate, 6 USB 2.0 ports (2 rear, 2 via header, 2
internal Type-A)
- VG SKU: 2 USB 3.2 Gen 1 ports on the rear with up to
5 Gb/s data rate, 5 USB 2.0 ports (2 rear, 2 via header, 1
internal Type-A)
• Serial port: Up to 6 serial ports: COMD1 and COM4 ~ 6
are RS-232; COM3 is RS-232/422/485 with jumper and
BIOS menu options.
• SPI interface: Advantech-designed SPI connector sup-
ports optional dTPM 2.0 module.
• Watchdog timer: 255 timer level intervals.
Graphics Interface
• Chipset: CPU integrated graphics controller.
• Display memory: 1 GB maximum shared memory with 2
GB and above system memory installed.
• HDMI (G2 SKU only): Resolution up to 3840 x 2160 @
30 Hz refresh rate.
• VGA: Resolution up to 1920 x 1200 @ 60 Hz refresh rate.
Ethernet Interface
• Interface:
- LAN1: 10/100/1000 Mbps
- LAN2: 10/100/1000/2500 Mbps (G2 SKU only)
• Controller:
- LAN1: Intel
®
I219-V
- LAN2: Intel
®
I226-V (G2 SKU only)
Mechanical and Environmental
• Dimensions (L x W): 304.8 x 244 mm (12" x 9.6")
• Power consumption: Intel® Core™ i 65W; DDR4 32 GB x 2
Maximum: +3.3V at 3.06A, +5V at 8.17A, +12V at 0.84A,
+5V
SB
at 0.05A, -12V at 0.03A, -5V at 0.01A
• Operating temperature: 0 ~ 60 °C (depending on CPU load
-
ing and thermal solution)
• Weight of board: 0.7 kg (1.54 lb)
Before you begin installing your card, please make sure that
the following items have been shipped:
• 1 x AIMB-708 motherboard
• 1 x AIMB-708 Startup Manual
• 2 x Serial ATA HDD data cables
• 1 x I/O port bracket
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Standard Functions
• CPU: LGA1700 socket supporting 12th/13th Gen Intel
®
Core™ i9/i7/i5/i3/Pentium
®
/Celeron
®
processors.
• BIOS: AMI 256 Mbit SPI BIOS
• Chipset: Intel
®
H610E PCH
Note: Legacy platforms are not supported.
• System memory: Up to 64 GB in two 288-pin DIMM
sockets, supporting dual-channel DDR4 3200 SDRAM.
AIMB-708 supports non-ECC unbuered DIMMs and
does not support any memory conguration that mixes
non-ECC with ECC unbuered DIMMs.
Specications
2 AIMB-708 Startup Manual
The board has a number of jumpers that allow you to con-
gure your system to suit your application. The table below
lists the function of each jumper and connector.
Connector/Jumper List
Label Function
ATX12V1+ATX12V2
ATX 12 V auxiliary power connec-
tor (for CPU)
AUDIO1+AUDIO2 Audio connector (Line Out, Mic In)
COM4 ~ COM6
Serial port: RS-232 (9-pin header,
G2 SKU only)
COM3
Serial port: RS-232/422/485 (9-
pin header, G2 SKU only)
COMD1
Serial port: RS-232 (DB-9 con-
nector) *2
CPUFAN1 CPU fan connector (4-pin)
DIMMA1 Channel A DIMM1
DIMMB1 Channel B DIMM1
EATXPWR1
ATX 24-pin main power connector
(for system)
FPAUD1 Front panel audio connector
GPIO1 8-bit GPIO from super I/O
HDMI1 HDMI connector (G2 SKU only)
JCASE1 Case open connector
JCMOS1 CMOS clear data
JFP1 Power switch/reset connector
JFP2
External speaker/HDD LED con-
nector/SMBus connector
JFP3
Power LED
Suspend: fast ash (ATX/AT)
System on: on (ATX/AT)
System o: o (ATX/AT)
JFV1 VGA dummy load setting
JME1 Intel® ME update
JPCICLK1 PCI clock selection
JR1+JT1
COM3 RS-422/485 termination
resistor
JSETCOM3
COM3 RS-232/422/485 jumper
setting
JUSB1
External USB power source
switch
JUSB2 Internal USB power source switch
JWDT1+JOBS1
Watchdog timer output and OBS
alarm
LAN1 GbE LAN
LAN2 GbE LAN (G2 SKU only)
LANLED1
Front panel LAN indicator con-
nector
NVME1
M.2 2280 M-Key socket (G2 KU
only)
PCI1 ~ PCI4 PCI slot
PCIE1 PCIe x16 slot (x16 Gen 4 link)
PCIE2 ~ PCIE3 PCIe p2-x4 slot (x2 Gen 3 link)
PSON1 ATX/AT mode selection
SATA4 ~ SATA7 Serial ATA 3.0 port
SMB1 ~ SMB2
PCIe SMBus connection setting
for PCIE2 ~ PCIE3 slot
SMB3 ~ SMB4
PCIe SMBus connection setting
for PCIE1 slot
SMBUS1 SMBus connector from PCH
SPDIF_OUT1 SPDIF audio out pin header
SPI_TPM1
SPI (Serial Peripheral Interface)
connector for Advantech dTPM
2.0 module.
SYSFAN1 ~ SYS-
FAN3
System fan connector (4-pin)
USB2A1 USB 2.0 port (internal Type-A)
USB2A2
USB 2.0 port (internal Type-A, G2
SKU only)
USB2C1 USB 2.0 port *2
USB2H1 2 x USB 2.0 port (10-pin header)
USB3C1
USB 3.2 Gen 1 port *2 (G2 SKU
only)
USB3C2 USB 3.2 Gen 1 port *2
VGA1 VGA connector
VOLT1 Alarm board power connector
Note The PCIE1 slot can only support graphics cards
and storage cards according to the specication
recommended by Intel. Other types of add-on
cards might not work properly. For the compat-
ible device list validated on the PCIe x16 slot,
please refer to the user manual.
JCMOS1: CMOS clear data
JME1: Intel® ME update
Closed Pins Result
1-2 *Keep CMOS data
*Enable ME update
2-3
Clear CMOS data
Disable ME update
* Default
*Keep CMOS data Clear CMOS data
*Enable ME update Disable ME update
123
123
Jumpers and Connectors

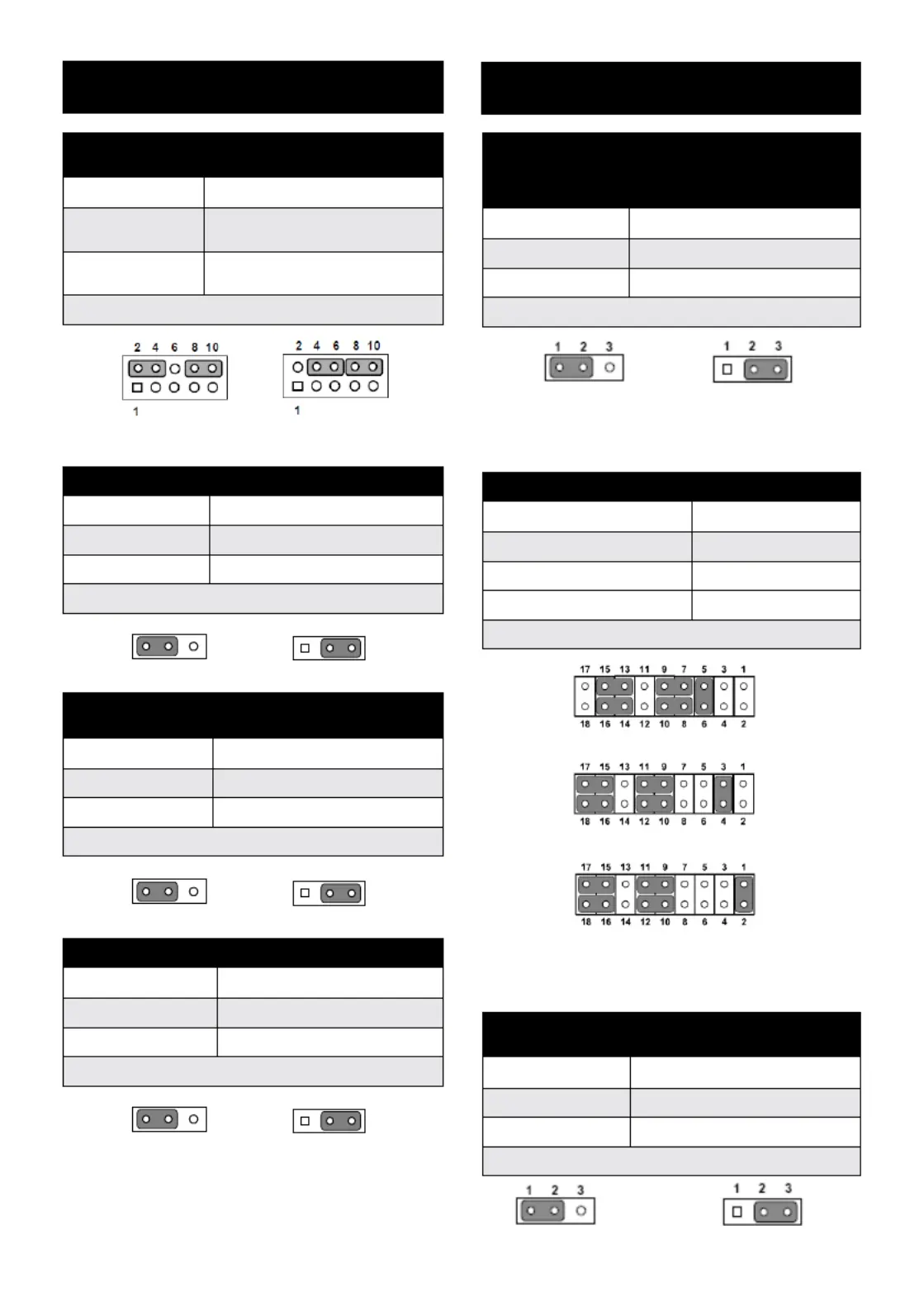

Jumpers and Connectors (Cont.)
AIMB-708 Startup Manual 3
JWDT1+JOBS1: Watchdog timer output and OBS
alarm
Closed Pins
Result
2-4, 8-10
Watchdog timer disable (2-4)
OBS beep (8-10)
4-6, 8-10
*Watchdog timer reset (4-6)
OBS beep (8-10)
* Default
Watchdog timer disable (2-4) *Watchdog timer reset (4-6)
OBS beep (8-10) OBS beep (8-10)
PSON1: ATX/AT mode selection
Closed Pins
Result
1-2 AT mode
2-3 *ATX mode
* Default
AT mode *ATX mode
JUSB_1 (rear USB), JUSB_2 (onboard USB): USB
power source switch between +5V and +5V_DUAL
Closed Pins
Result
1-2 *USB +5V_DUAL power
2-3 USB +5V power
* Default
*USB +5 V_DUAL power USB +5 V power
JPCICLK1: PCI clock selection
Closed Pins
Result
1-2 *33/66 MHz autodetected
2-3 33 MHz
* Default
*33/66 MHz autodetected 33 MHz
123
123
123
123
123
123
SMB1 (clock), SMB2 (data): PCIe SMBus connection
setting for PCIE2 ~ PCIE3 slots
SMB3 (clock), SMB4 (data): PCIe SMBus connection
setting for PCIE1 slot
Closed Pins
Result
1-2 *Enable PCIe SMBus connection
2-3 Disable PCIe SMBus connection
* Default
*Enable PCIe SMBus connection Disable PCIe SMBus connection
Note SMB1+SMB2 or SMB3+SMB4 jumpers should be
switched to the same setting, either 1-2 closed or
2-3 closed.
JSETCOM3: COM3 RS-232/422/485 jumper settings
Closed Pins
Result
5-6, 7-9, 8-10, 13-15, 14-16 *RS-232
3-4, 9-11, 10-12, 15-17, 16-18 RS-422
1-2, 9-11, 10-12, 15-17, 16-18 RS-485
* Default
Note BIOS setting change is necessary if RS-422 or
RS-485 is selected. Please refer to Chapter 3 of
user manual for further setting.
JT1 (TX signal), JR1 (RX signal): COM3 RS-422/485
termination resistor
Closed Pins
Result
1-2 Disable termination
2-3 *Enable termination
* Default
Disable termination *Enable termination
*RS-232
RS-422
RS-485
Jumpers and Connectors (Cont.)
Jumpers and Connectors (Cont.)
