PCIE-1674/72E-BE Startup Manual 1
Before you begin installing your card, please make sure
that switch PoE o if you are not connect to PoE device and
check the following items have been shipped:
1. PCIE-1674/72E-BE ports PCI Express PoE+ GigE Vi-
sion Frame Grabber
2. 170304015K Power cable
3. Startup manual
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
General
•Chipset:
Intel I350 1G Ethernet Controller
Compliant with IEEE 802.3, IEEE 802.3u, IEEE802.3ab,
IEEE802.3x, IEEE802.3af, IEEE802.3at
* Windows 10 & 11 already build in the driver for the
Ethernet controller
•Interface:PCIE Gen 2 x 4
•DataTransferRate:1,000 Mbps
•Protection:
ESD: 8KV(Air), 6KV(Contact)
EFT: 2KV
Surge protection: 1KV
MechanicalandEnvironmental
•Dimensions(LxW):165 x 110 mm (5.8” x 3.9”)
•PowerRequirements:
12 VDC direct from PCIe slot, or with optional 12 V
DC
AT/ATX power jack input
54 VDC PoE+ power output IEEE802.3af support, total
power budge 60W with maximum 25.4W per port and
protect by recoverable eFuse.
* The efuse will recover and card will back to functional
once disconnect the overload defect PoE device
•NetWeight: 256 g
PCIE-1674/72E-BE 4/2 ports PCI Express PoE+ GigE
Vision Frame Grabber
Startup Manual

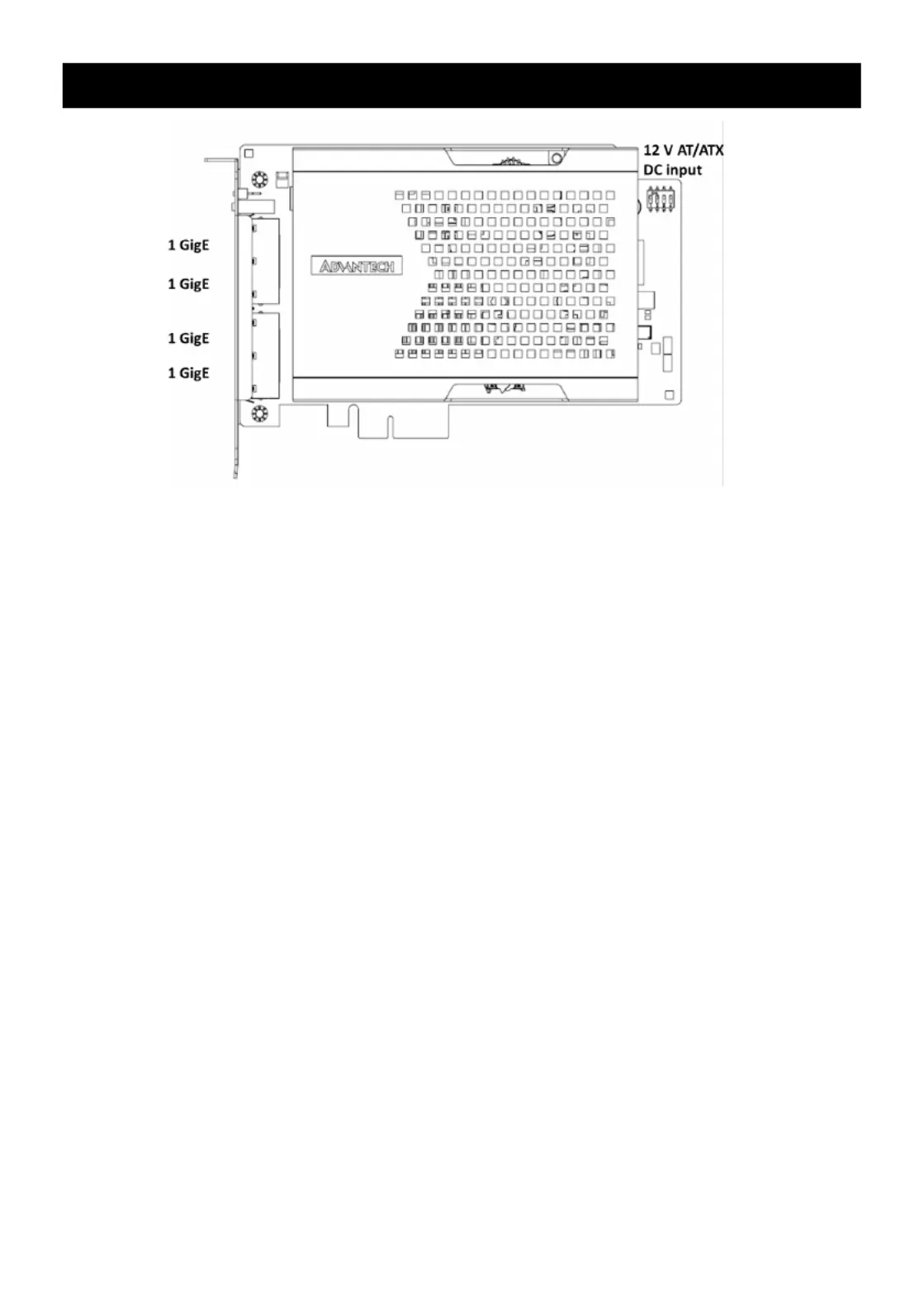

MainBoardConnectors
PortsFunction
RJ Port 1~4 (PICE-1674E-BE)
RJ Port 1~2 (PCIE-1672E-BE)
1 GigE ports 1~4
1 GigE ports 1~2
LEDindicatorsofRJ45(Lan)connector
LEDsDescription
Lan LED (In the left of RJ45
connector)
Green: Ethernet con-
nected
Link LED (In the right of RJ45
connector)
Green: 1G
Yellow: 100 Mbps

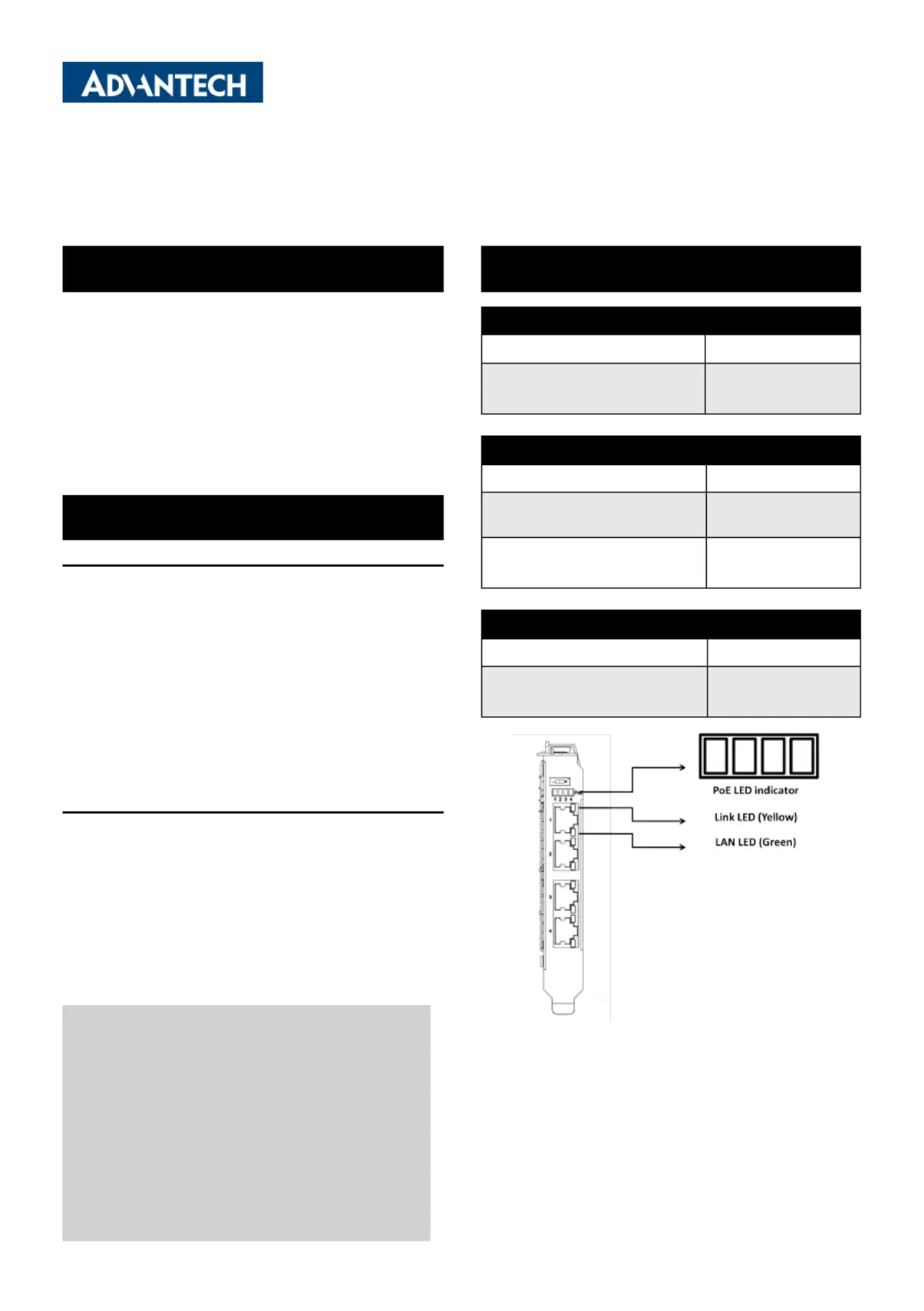

BracketLEDindicators
LEDsDescription
POE 1~4 (PCIE-1674E-BE)
POE 1~2 (PCIE-1674E-BE)
on : PoE power on
o : PoE power o
Figure 1: Bracket LED Indicators

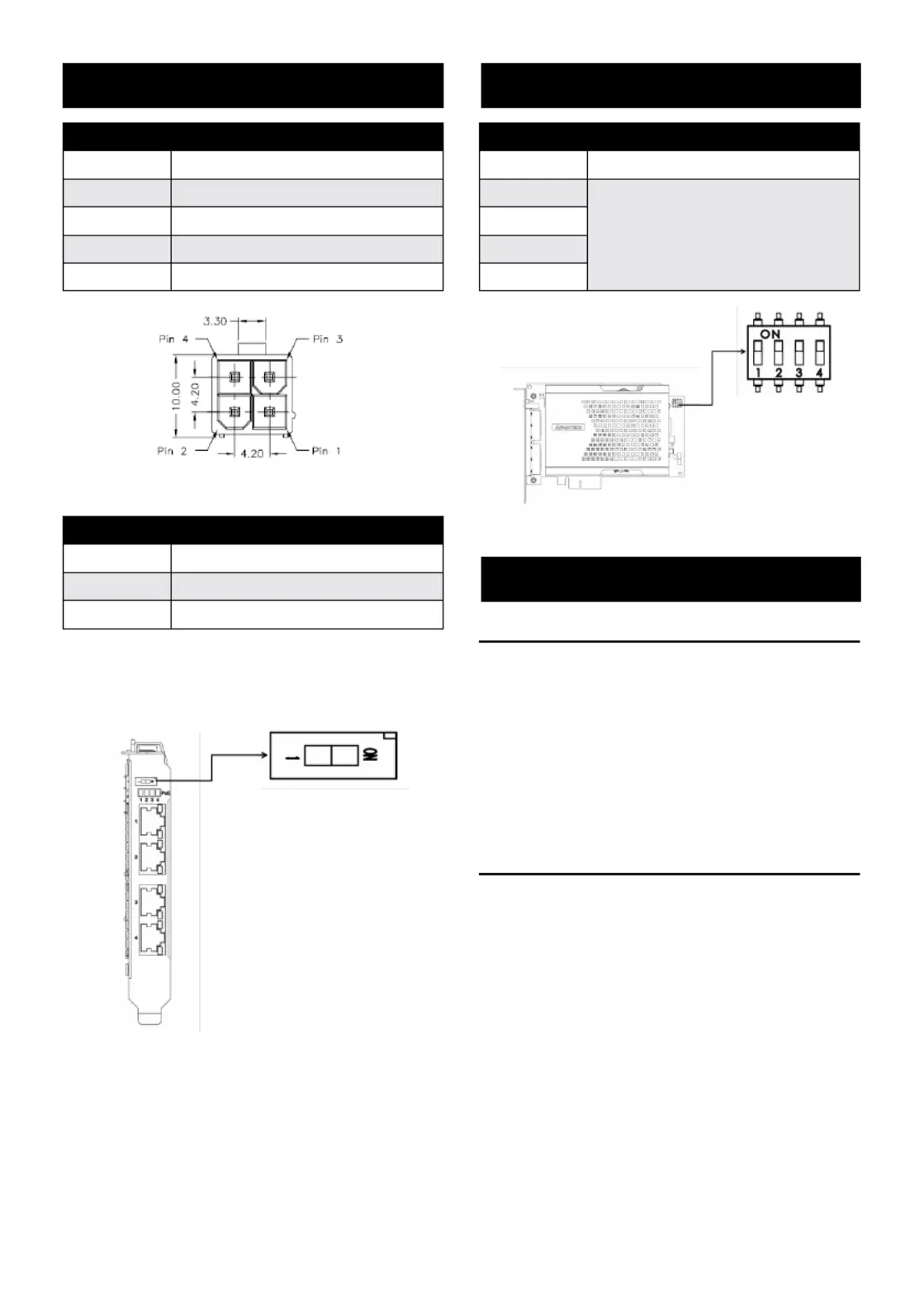

ConnectorsPackingList
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our
support website at:
https://www.advantech.com/en/contact/service-
request-form?subject=technical%2bsupport
This manual is for the PCIE-1674/72E-BE.
Part No. 2042167400
Printed in China
1st Edition
August 2023
