1 PPC-STAND-A1E User Guide 202KSTAN01

PPC Series Stand

PPC-STAND-A1E

User Guide

USER GUIDE

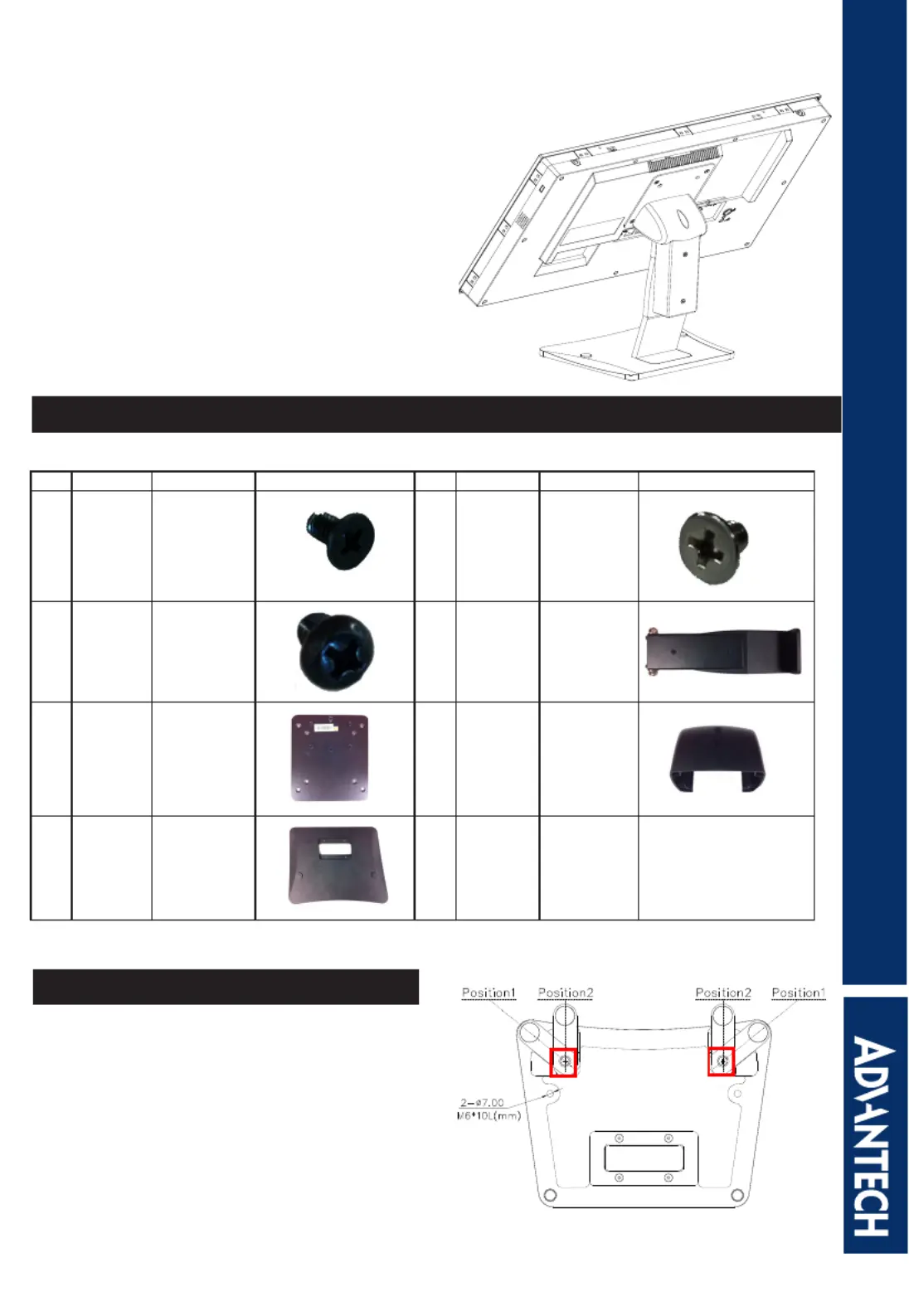

Packing List

Item Name Qty. Pic. Item Name Qty. Pic.

Screw

(M4x8L)

(4 x spare)

Screw

(M4x6L)

(2 x spare)

Screw

(M4x5L)

(1 x spare)

1 Hinge 1

VESA

Bracket

1 3

Hinge

Cover

4 Base Plate 1

IMPORTANT Base Plate Adjustment

Consider the thickness of your PC when adjusting the feet

of the stand.

If your PPC panel PC has a thickness of less than 80 mm,

leave the feet in Position 1 (default).

If your PPC panel PC has a thickness of more than 80 mm,

loosen the two screws highlighted in red in the image to the

right and adjust the position of the feet to Position 2. Once

the feet are in the correct position, tighten the two screws.

Note: If the PPC panel PC’s thickness is more than 125 mm,

this stand CANNOT reliably hold the PC.

User Guide 2

Installation Guide

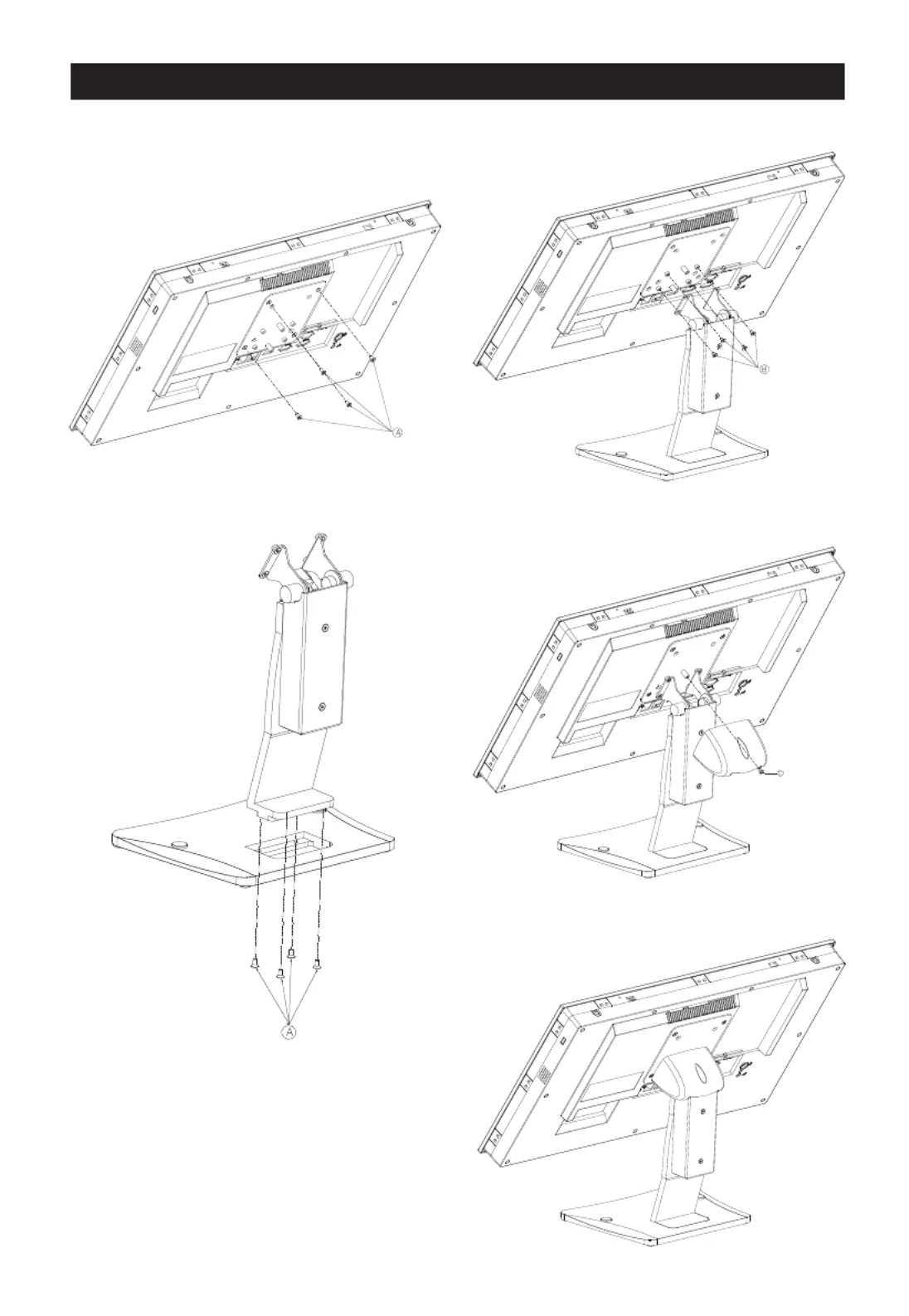

Step 1: Use 4 x screws (Item A) to secure the VESA

bracket (Item 2) to the rear of the panel PC. Users can

choose between a 75x75 mm or 100x100 mm VESA

mount according to their application needs.

Step 2: Use 4 x screws (Item A) to secure the base plate

(Item 4) to the hinge (Item 1).

Step 3: Use 4 x screws (Item B) to secure the hinge (Item

1) to the VESA bracket (Item 2).

Step 4: Use 1 x screw (Item C) to secure the hinge cover

(Item 3) to the VESA bracket (Item 2).

The assembled PPC series stand with PPC panel PC

should appear as shown below.

Produktspecifikationer

Varumärke:	Advantech
Kategori:	ej kategoriserat
Modell:	PPC-STAND-A1E
Vikt:	7500 g
Bredd:	259 mm
Djup:	190 mm
Höjd:	354 mm
Material:	Gjuten aluminium
Maximal skärmstorlek:	21.5 "
Minsta skärmstorlek:	6 "
Lutningsvinkel:	-8 - 30 °
Maxvikt:	10 kg
Produktens färg:	Svart
Höjdjustering:	Ja
Antal displayer som stöds:	1
Monteringsgränssnitt kompatibilitet (min):	75 x 75 mm
Monteringsgränssnitt kompatibilitet (max):	100 x 100 mm
Höjdjusteringsintervall:	283 - 354 mm
