WISE-4250 Startup Manual 1
Thank you for purchasing this WISE-4250 series module.
This is a quick guide to help you deploy the WISE-4250
series module in your application eld. It includes power
and application wiring. If you need more instructions, please
refer to the user manual on the Advantech website.
Furthermore, Advantech IoT Academy has produced a
series of outstanding free courses, where IoT experts guide
you in rapidly acquiring product technical knowledge and
developing IoT projects. It is strongly recommended that
you view the videos prior to product use. You can nd the
courses here: https://academy.advantech.com/en/courses
Input Power Requirements
The WISE-4250 series system is designed for a standard
industrial unregulated 24 V
DC
power supply. For some ap-
plications, it can also accept +10 to +50 V
DC
power input,
200mV peak to peak power ripple. The immediate ripple
voltage should be between +10 and +50 V
DC
.
Packaging List
• 1 x WISE-4250 module with bundled antenna and termi-
nal connector
• 1 x Mounting bracket
• 1 x Startup Manual with China RoHS declaration
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
WISE-4250
Industrial Wireless Wi-Fi 2.4/5 GHz I/O and Sensing
Module
Startup Manual
Switch Description Position
ON
(Default)
OFF
SW1
Operation
Mode
P1
Normal
Mode
Initial
Mode
P2 N/A N/A
Note: After position 1 of SW1 has been changed, users
need to power on the module again to apply the
new operating mode.
Overview
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service:
http://support.advantech.com/
This Startup Manual is for the WISE-4250 Series.
Part No. 2041425011
Printed in Taiwan
Edition 2
March 2025
Switch Settings
2 WISE-4250 Startup Manual
1. Attach a DC power source to the +Vs and -Vs pins of
your module to turn on the power.

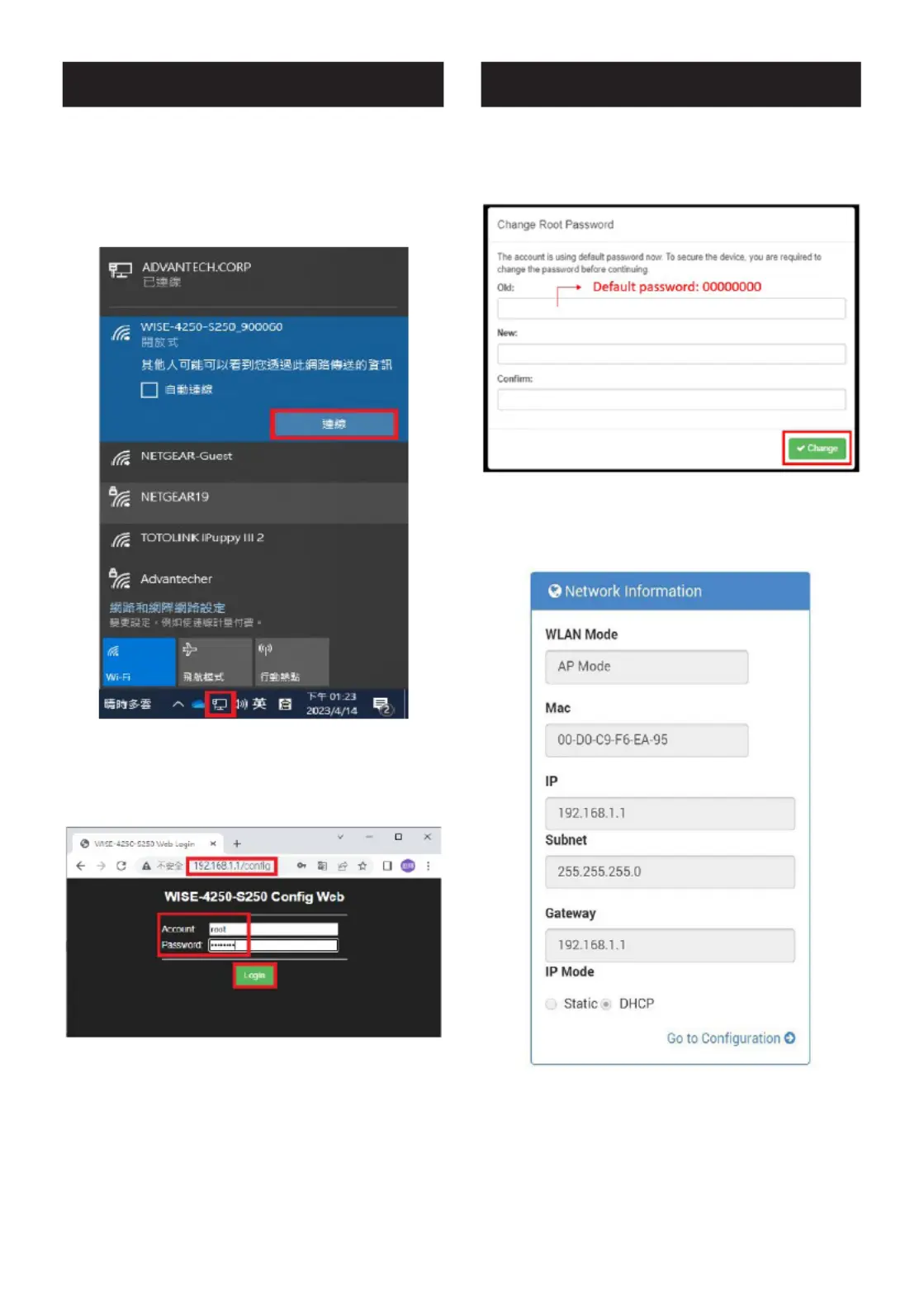

2. The module can be searched for on a mobile device
or wireless adapter or a computer at SSID:WISE-
4250-S250_MAC. Click the SSID to connect the mod-
ule in AP Mode. The WISE module will assign the IP
address automatically for mobile devices or a computer.
3. Open the browser (Microsoft Edge is recommended),
and go to the conguring page URL: http://192.168.1.1/
cong. Then log in with account: root, and password:
00000000.
Quick Start for WISE-4250
4. To enhance system security, please change the pass-
word value before continuing.
* Please remember the new password you set. New pass-
word cannot be the same as default password value
5. Scroll down to what you are going to congure. For
example, move down to “Network” and click “Go to
Conguration”.
Quick Start for WISE-4250 (Cont.)
WISE-4250 Startup Manual 3
LED Indicators
• Status (Green)
Blinking at 2Hz frequency: the module is waiting for con-
nection.
Blinking at 0.5Hz frequency: the module is connected.
Blinking at 30-second intervals indicates the LOCATE
function is enabled.
• Com (Yellow)
Blinks when the module is exchanging data.
• AP/Infra (Green)
On: limited mode
O: station mode
• Signal Strength Indicators (Green)
Link Quality
All OFF – Disconnected
1 ON – Poor
2 ON – Fair
3 ON – Good
4 ON – Very Good
External board status
4 Blinking – RF module Failure
3 Blinking – I/O Failure
Updating the rmware on a WISE-4250 device is a critical
process to ensure optimal operation, including the latest
features, security patches, and performance improvements.
Software and User Manual
Follow this concise guide:
1. Download the Latest Firmware:
* Visit the Advantech Support website from the following
path or QR-Code:
https://www.advantech.com/support
* Locate the WISE-4250 product page.
* Download the rmware le to your computer. You may
also nd the latest datasheet, user’s manual, and software
installation package on this page.
2. Prepare Your Device
3. Access the Device Interface
4. Initiate Firmware Upload
5. Execute the Upgrade
6. Verify the Update
WISE-S214 (4AI/4DI)
Digital Input- Dry Contact
Analog Input
WISE-S250 (6DI/2DO/1RS-485)
Digital Input-Dry Contact

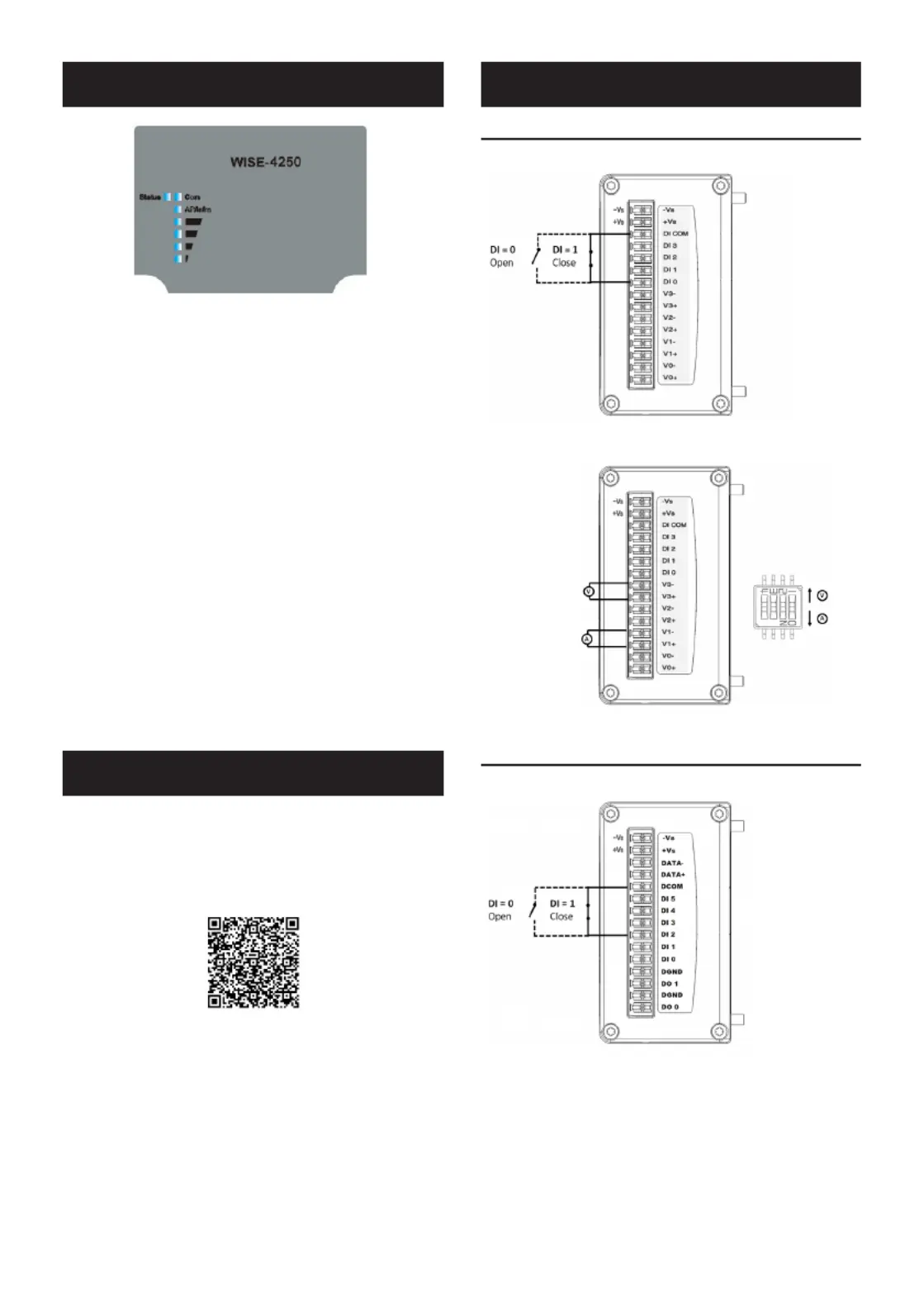

Application Wiring
