DT02 Getting Started Guide
AP12431 _1
DT02
The DT is a portable, PoE enabled, rugged Dante 02
I/O unit. It can be used to complement Allen & Heath
digital mixing systems, or any other system on a
Dante network. It provides 2 balanced line-level
outputs via a pair of XLR connectors. It connects to
the Dante network over a single Cat cable.
The DT can be ordered in either of two versions: 02
- DT02 - standard version with rubber feet
and 12V power supply.
- DT02-M - version for fixed installation
with brackets for surface mounting and
no external power supply.
Software
Visit the Audinate website to learn more about
Dante, and download Dante Controller to route
audio and configure devices on a Dante network:
https://www.audinate.com/
Specification
XLR Outputs
Balanced, relay protected
Output Impedance
<75Ω
Nominal Output
+4dBu = 0dB meter reading
Maximum Output
Level
+22dBu
Dante
48kHz/96kHz
Power and
Temperature
DC Input
+12V DC 1.25A
Power Consumption
10W max
Operating
Temperature Range
0 C to 40 C (32 F to 104 ° ° ° °F)
PoE Requirements
802.3af 15W
Dimensions and
Weight
Width x Depth x Height x Weight
DT02
130 x 131 x 43 mm, 0.5kg
(5.1” x 5. ” x 1.7”, 2 1lbs)

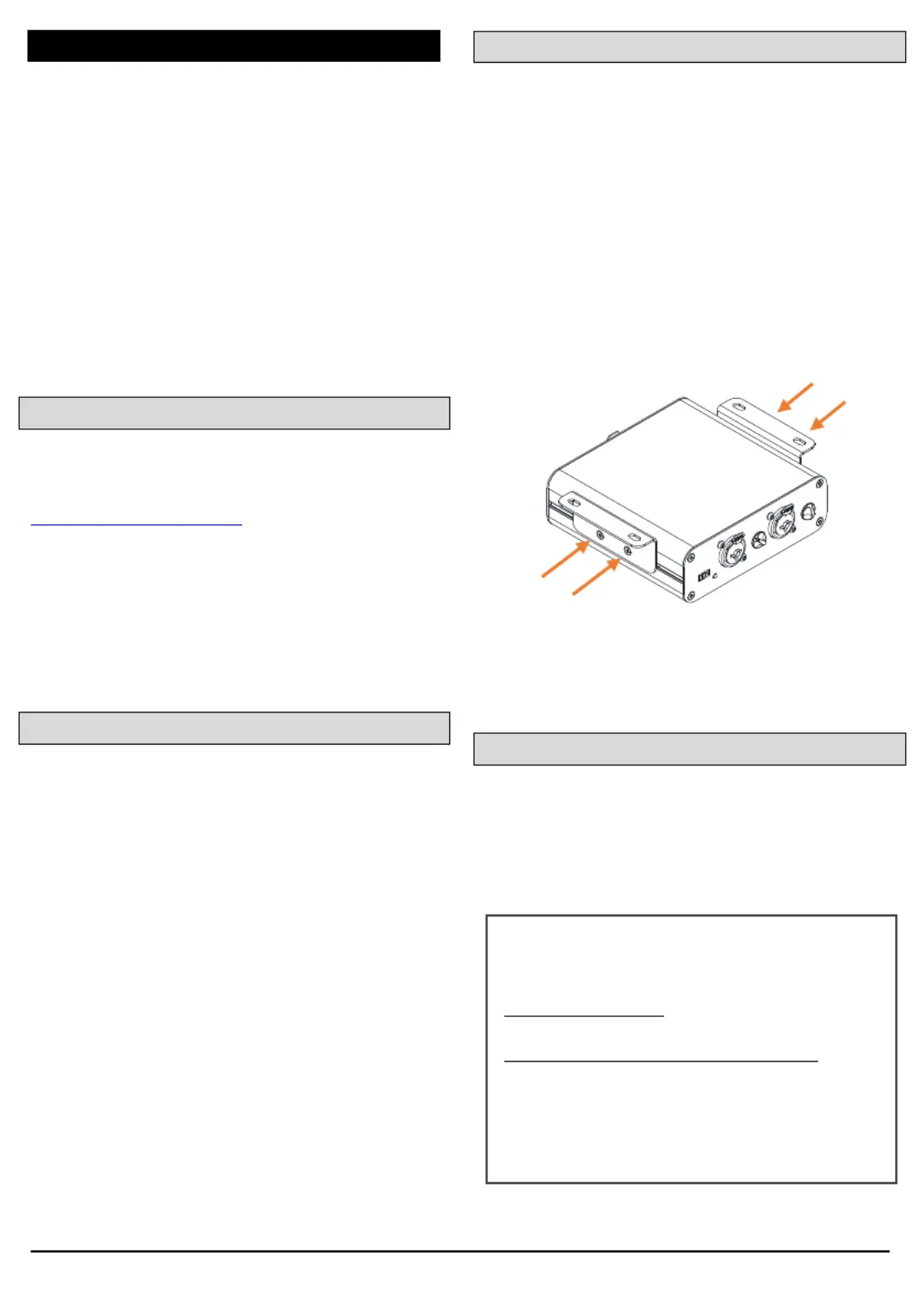

Surface mounting
The surface mounting ears allow the device to be
mounted on top or under a surface, desktop or
podium, or vertically on a wall or partition. They can
be installed to face either the top or bottom of the
unit.
The DT02-M comes with surface mounting ears and
preassembled insert bars. Position the ears centrally
on each side of the unit, aligned with the threaded
holes on the insert bars, facing either up or down as
required, and secure them using the 4x M3x6mm
screws provided in the package.
For surface mounting of a standard DT02, the
optional surface mounting kit is available. DT-SMK
Rack mounting
Up to two units can be rack-mounted in a single 1U
rack space with the optional rack kit . DT-RK19
Read the Safety Instructions Sheet included with the product
and the information printed on the panel before operating.
A limited one year manufacturer’s warranty applies to this
product, the conditions of which can be found at:
www.allen- ath.com/legal he
Register your product with Allen & Heath online at:
http://www.allen-heath.com/support/register-product/
ALLEN HEATH &
Copyright © 2020 Allen & Heath. All rights reserved.
DT02 Getting Started Guide
AP12431 _1

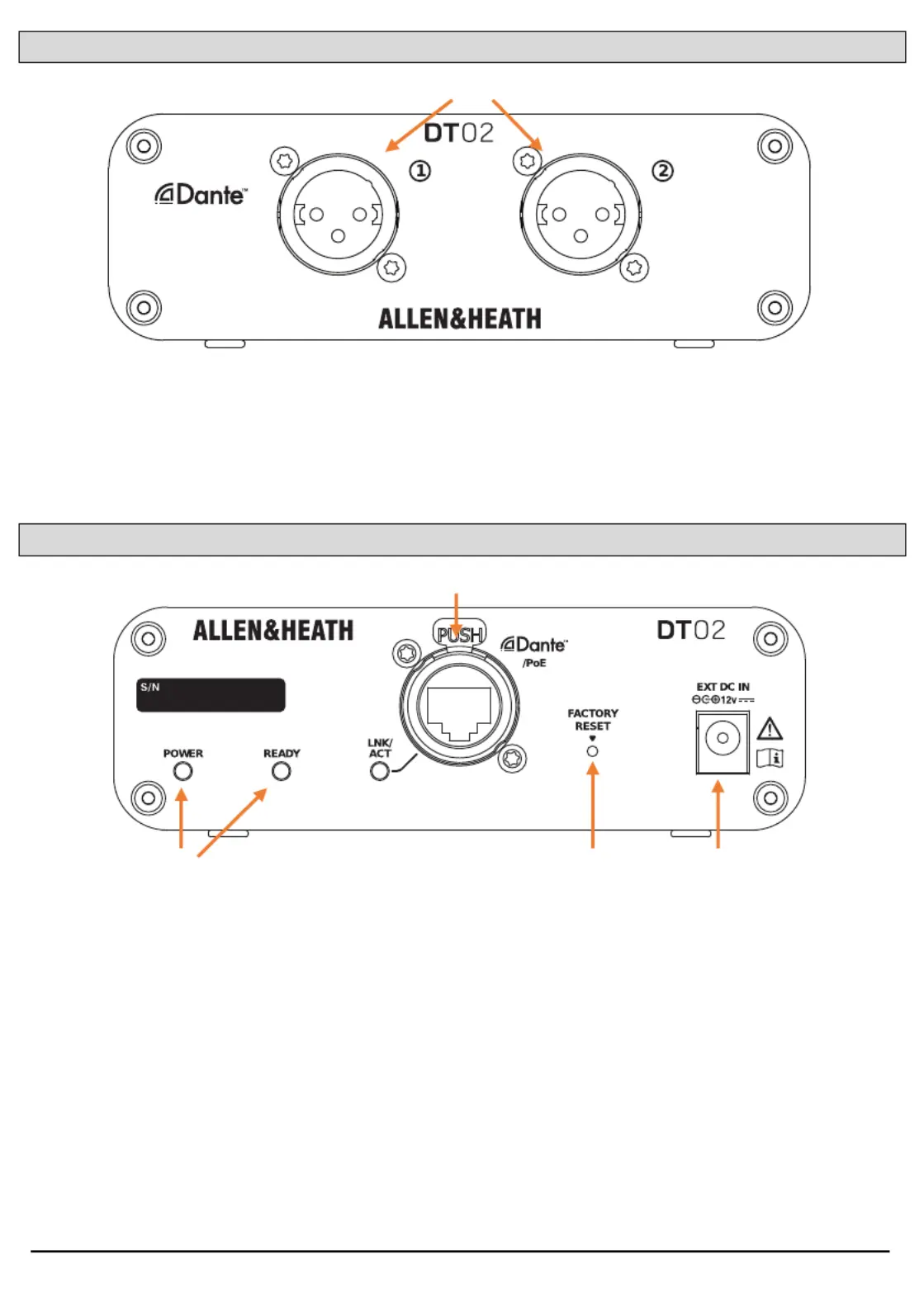

Front panel
Output sockets Balanced line-level XLR outputs.
Rear panel
Dante EtherCon port for connection to the Dante network and Link / Activity LED indicator. Use a PoE
Ethernet switch or PoE injector to power the unit via this port.
Power Ready LED indicator and indicator. lights up when the unit is successfully booted and Ready
ready to pass audio.
Factory Reset Hold down the recessed switch while powering up. After at least 10 seconds, remove
power then power up again normally to reset the network settings and name. This will delete any static IP
address and revert to factory default (DHCP / zero-conf).
DC input DC 12V connector. Only use with the power supply provided with the unit.
