DT20 Getting Started Guide
AP12432 _1

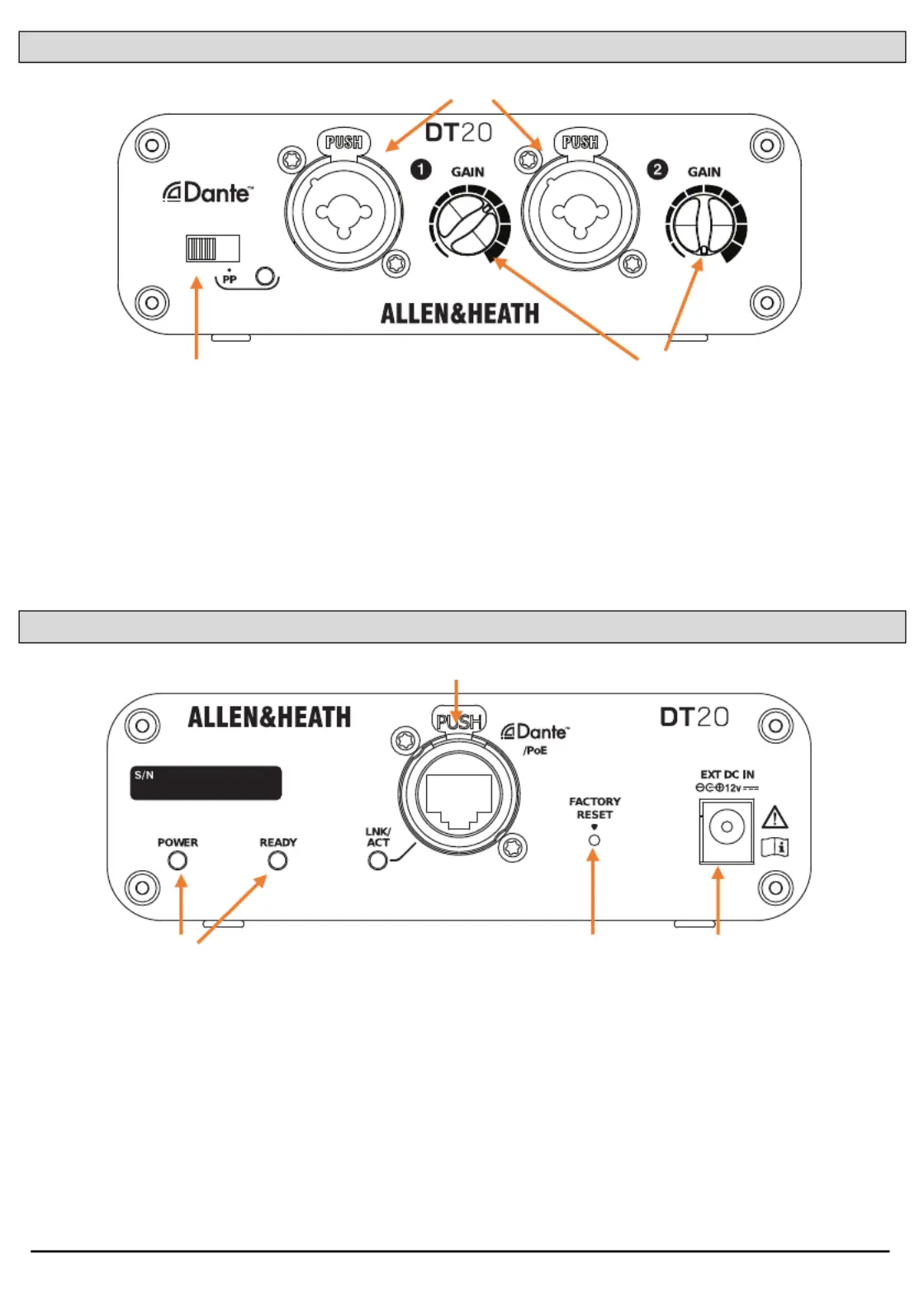

DT20
The DT20 is a portable, PoE enabled, rugged Dante
I/O unit. It can be used to complement Allen & Heath
digital mixing systems, or any other system on a
Dante network. It provides 2 mic/line preamps with
local gain and phantom power control. It connects
to the Dante network over a single Cat cable.
The DT20 can be ordered in either of two versions:
-DT20 - standard version with rubber feet
and 12V power supply.
-DT20-M - version for fixed installation
with brackets for surface mounting and
no external power supply.
Software
Visit the Audinate website to learn more about
Dante, and download Dante Controller to route
audio and configure devices on a Dante network:
https://www.audinate.com/
Specification
Mic/Line Inputs
Mic Inputs
Balanced XLR, +48V phantom
Analogue Gain
0 to + 55dB
Line Inputs
Balanced TRS, -20dB PAD
Maximum Input Level
+30dBu (TRS in)
Input Impedance
>4kΩ (XLR), >10kΩ (TRS)
Dante
48kHz/96kHz
Power and
Temperature
DC Input
+12V DC 1.25A
Power Consumption
10W max
Operating
Temperature Range
0C to 40C (32F to 104 °°°°F)
PoE Requirements
802.3af 15W
Dimensions and
Weight
Width x Depth x Height x Weight
DT20
130 x 136 x 43 mm, 0.5kg
(5.1” x 5.4” x 1.7”, 1lbs)

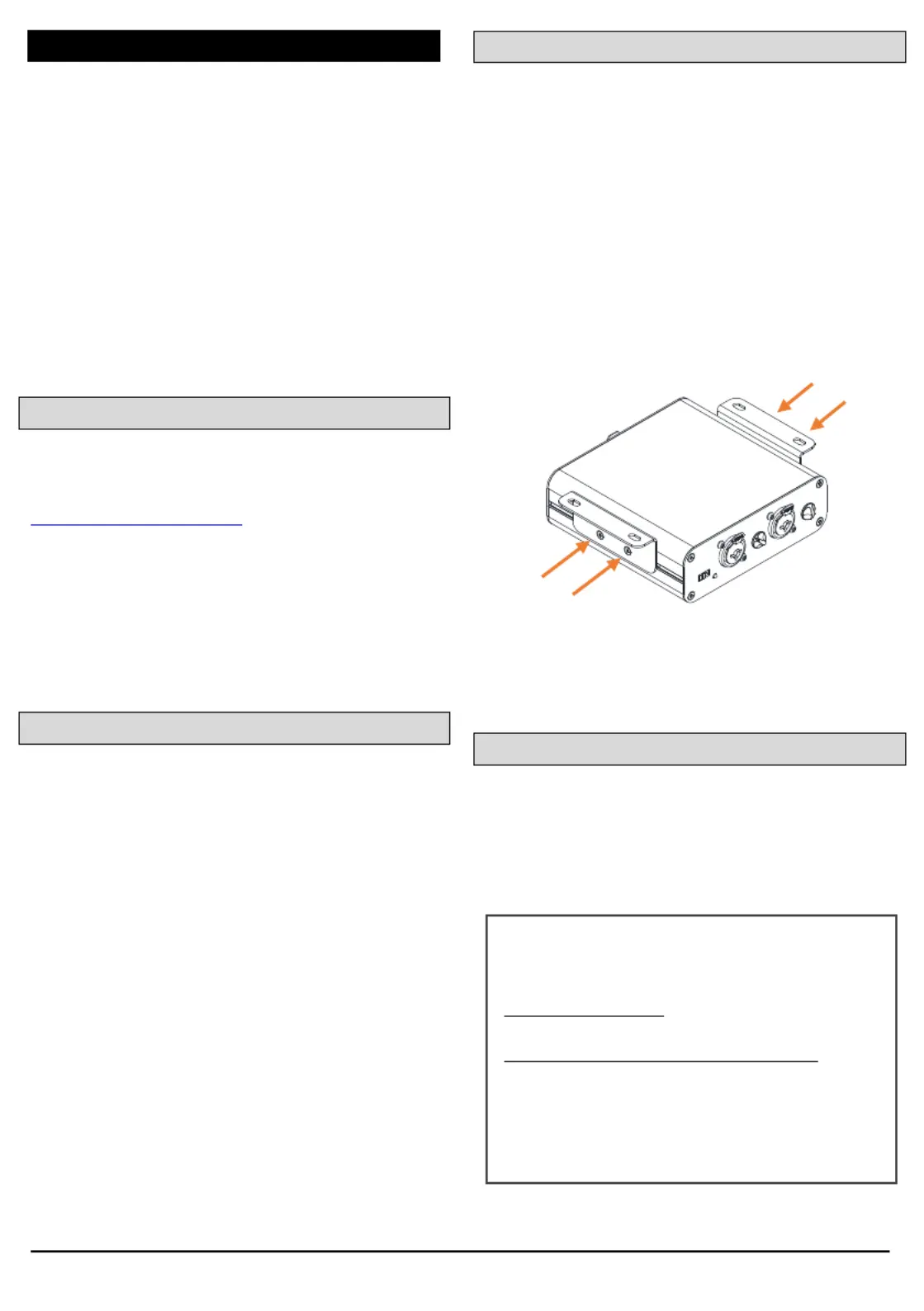

Surface mounting
The surface mounting ears allow the device to be
mounted on top or under a surface, desktop or
podium, or vertically on a wall or partition. They can
be installed to face either the top or bottom of the
unit.
The DT20-M comes with surface mounting ears and
preassembled insert bars. Position the ears centrally
on each side of the unit, aligned with the threaded
holes on the insert bars, facing either up or down as
required, and secure them using the 4x M3x6mm
screws provided in the package.
For surface mounting of a standard DT20, the
optional surface mounting kit is available. DT-SMK
Rack mounting
Up to two units can be rack-mounted in a single 1U
rack space with the optional rack kit . DT-RK19
Read the Safety Instructions Sheet included with the product
and the information printed on the panel before operating.
A limited one year manufacturer’s warranty applies to this
product, the conditions of which can be found at:
www.allen-heath.com/legal
Register your product with Allen & Heath online at:
http://www.allen-heath.com/support/register-product/
ALLENHEATH &
Copyright © 2020 Allen & Heath. All rights reserved.
