Version 1.1 ©Copyright 2018, Ambient LLC. All Rights Reserved. Page 1
Ambient Weather EZ-HD-PTP Heavy Duty Mast to Mast
Mounting Kit for Weather Stations User Manual
Table of Contents
1. Introduction ..................................................................................................................................... 1
2. Parts................................................................................................................................................. 1
3. Warnings ......................................................................................................................................... 1
4. Recommended Tools and Materials ................................................................................................ 2
5. Mounting Installation ...................................................................................................................... 2
6. Optional Mast Extension ................................................................................................................. 3
6. Liability Disclaimer ........................................................................................................................ 4
7. Warranty Information ...................................................................................................................... 4
8. California Prop 65 ........................................................................................................................... 5
1. Introduction
The EZ-HD-PTP is designed to be used along with Ambient's EZ-125-35M, not included.
Mount a EZ-125-35M to an existing mast (such as a radio/tv antenna, flag pole, sturdy
etc.) with a standoff. Standoff will vary depending on diameter of existing mast between 1
and 2” diameter.
2. Parts
Qty
Description
2
8”
x
5/16” Th
r
eaded Rods
4
Pole Mounting Brackets
8
5/16” dia
-
7
/16”
Lock
Nuts

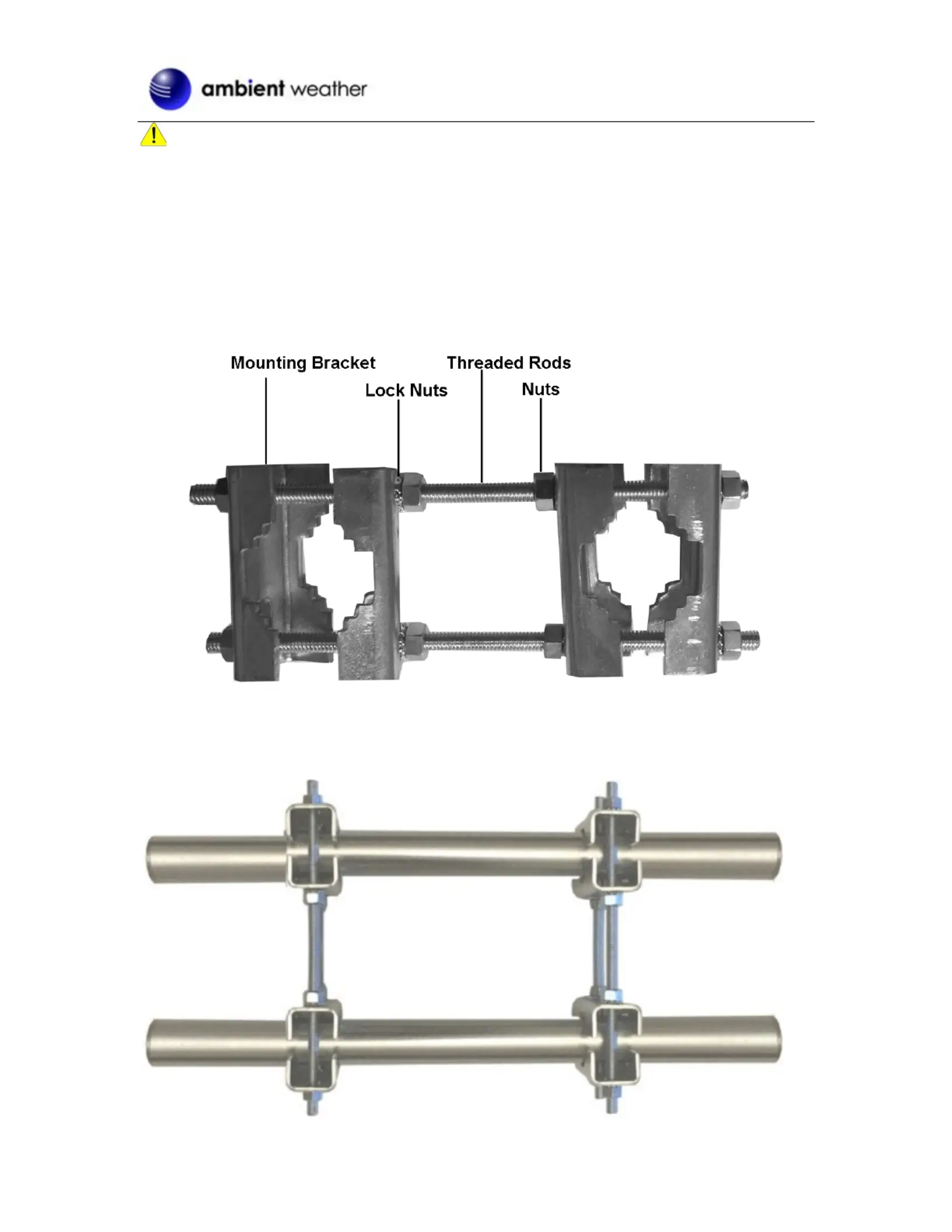

Figure 1
3. Warnings
WARNING: Improper installation of the mounting kit to your home or building may result in
leaks. We recommend a licensed roofing specialist for invasive installations.
WARNING: Any metal object may attract a lightning strike, including your weather station and
mount. Never install your weather station in a thunderstorm.
WARNING: We recommend properly grounding the mount to avoid extensive damage to the
weather station and structure. Consult a licensed electrician or local lightning detection expert prior to
installing a ground wire.
Version 1.1 ©Copyright 2018, Ambient LLC. All Rights Reserved. Page 2
WARNING: Installing your weather station in a high location may result in injury or death.
4. Recommended Tools and Materials
7/16” wrench
Level or Plumb
5. Mounting Installation
1. Reference Figure 1. Assemble both mounting brackets, lock nuts, threaded rods and nuts.
Figure 2
2. Reference Figure 3. Insert the weather station mast and your mounting mast (not included)
and tighten both brackets securely around the poles.
Version 1.1 ©Copyright 2018, Ambient LLC. All Rights Reserved. Page 3

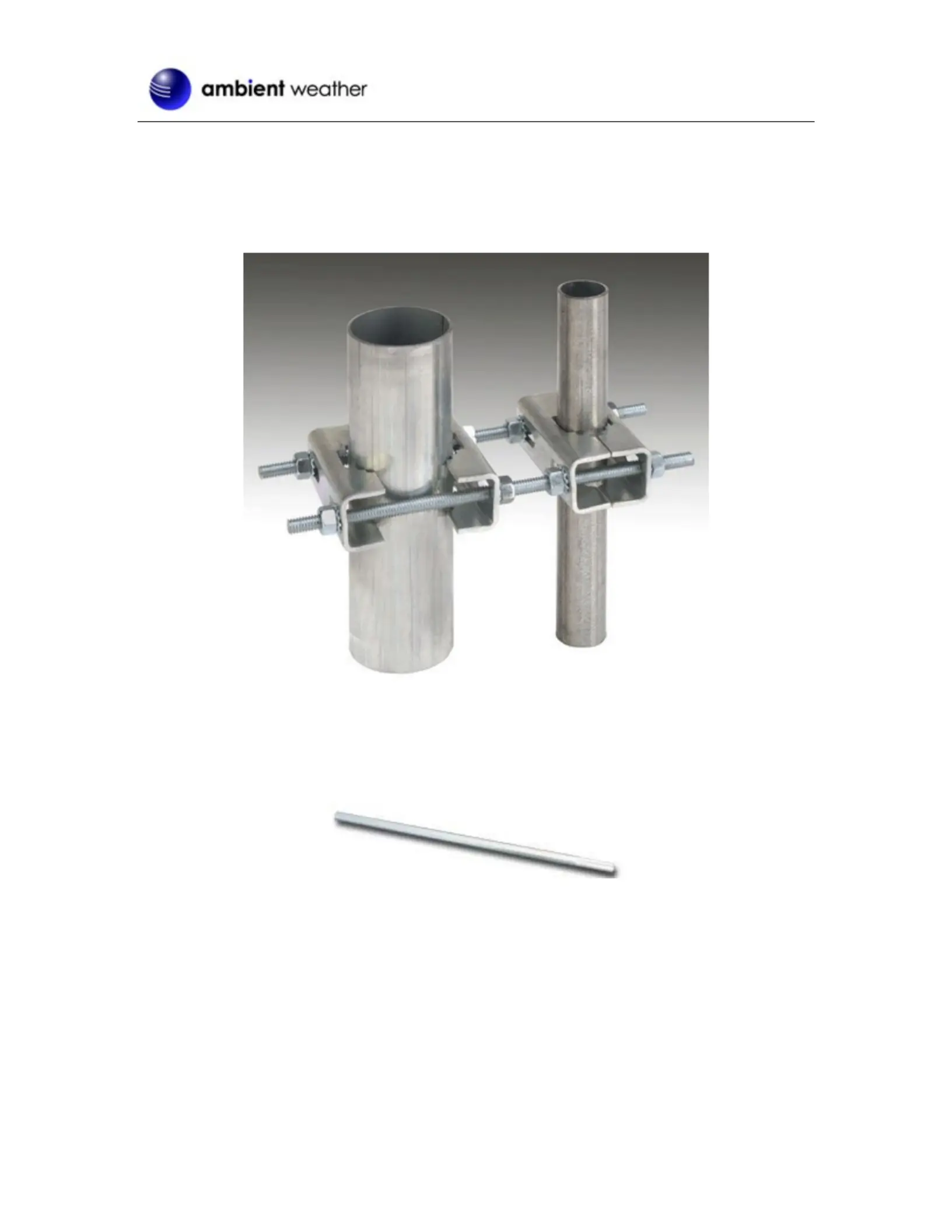

Figure 3
3. Reference Figure 4. Mount the weather station and mast to mast brackets vertically. Make
certain the weather station is plumb and level.
Figure 4
6. Optional Mast Extension
An optional mast extension (Item No. EZ-125-35M) allows you to extend your mounting mast by 31”
when used with most of Ambient’s 1.25” OD mounting kits.
Figure 5
Insert the swaged end of the mast extension into the mounting tripod mast and tighten so the extension
does not rotate, as shown in Figure 6, next page.
Repeat this step for additional mast extensions (maximum two is recommended).
