Antec 193 EU Bruksanvisning

Antec Computerbehuizing 193 EU

Läs gratis den bruksanvisning för Antec 193 EU (14 sidor) i kategorin Computerbehuizing. Guiden har ansetts hjälpsam av 24 personer och har ett genomsnittsbetyg på 4.5 stjärnor baserat på 12.5 recensioner. Har du en fråga om Antec 193 EU eller vill du ställa frågor till andra användare av produkten? Ställ en fråga

Ladda ner PDF

Sida 1/14

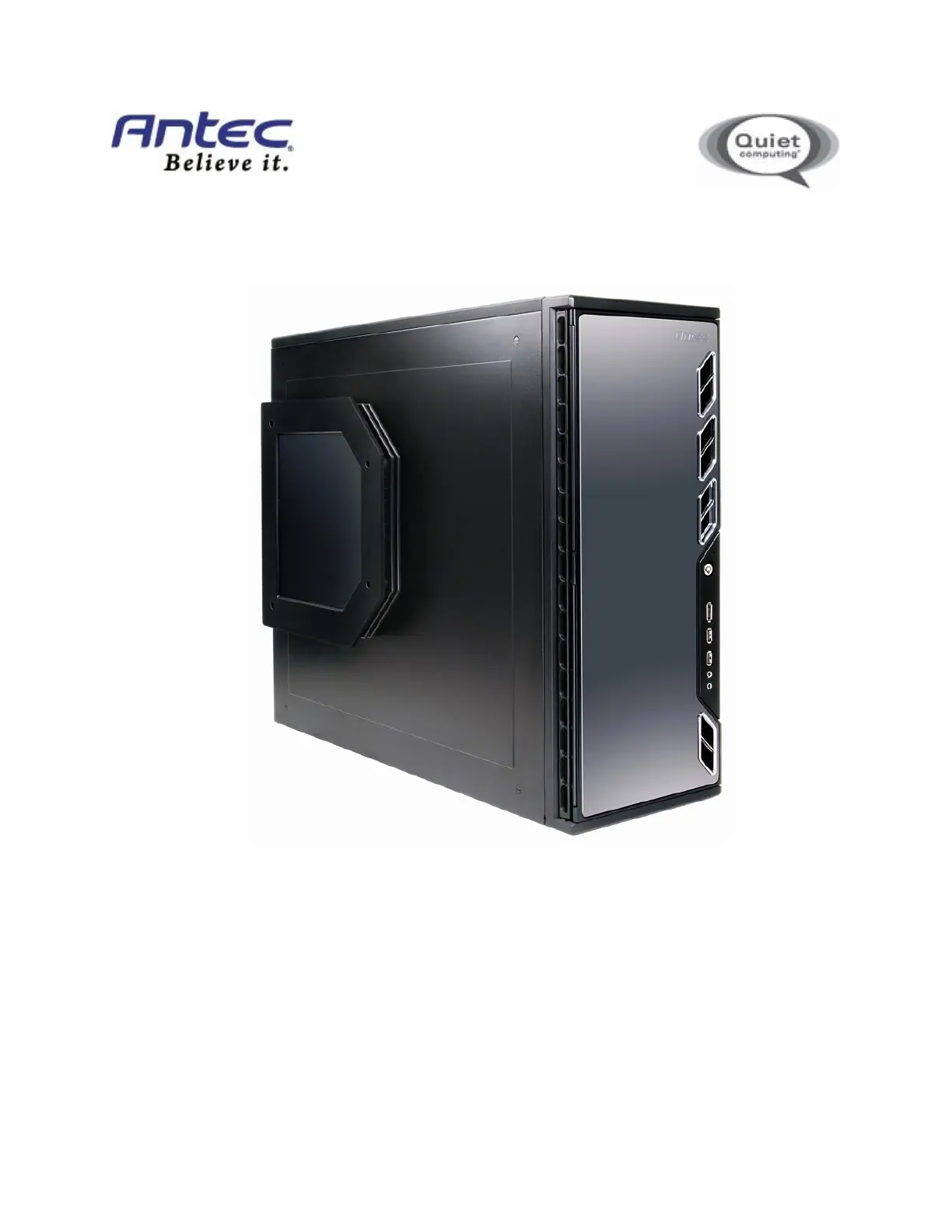

P193

SER

’

ANUAL

ABLE OF

ONTENTS

NTRODUCTION

1.1 Case Specifications.…..………………………………………………………………………………….. 3

1.2 Diagram…………………………………………………………………….…………………………………. 3

ARDWARE

NSTALLATION

UIDE

2.1 Setting Up….…………………………………………………………………………………………………. 4

2.2 Power Supply Installation……………………………………………………………………………… 4

2.3 CP Series Power Supply Mount…………………………………………………………………….. 5

2.4 Cable Management………………………………………………………………………………………. 5

2.5 Motherboard Installation..……………………………………………………………………………. 5

2.6 Internal 3.5” Device Installation……………………………………………………………………. 6

2.7 External 3.5” Device Installation…………………………………………………………………… 7

2.8 External 5.25” Device Installation…………………………………………………………………. 7

ONNECTING THE

RONT

I/O

ORTS

3.1 USB 2.0 Ports………………………………………………….……………………………………………. 8

3.2 eSATA Ports…………………………………….……………………………………………………………. 8

3.3 AC’97 / HD Audio Ports……………………….………………………………………………………… 8

3.4 Switch and LED Connectors…………………………………………………………………………… 9

3.5 Rewiring Motherboard Header Connections………………………………………………… 9

OOLING

YSTEM

4.1 TriCool™ Fans ………………………………………………………………………………………………. 10

4.2 Optional Fans.………………………………………………………………………………………………. 11

4.3 Washable Air Filters………………………………………..……………………………………………. 12

P193

SER

’

ANUAL

At Antec, we continually refine and improve our products to ensure the highest quality. It’s possible

that your new case will differ slightly from the descriptions in this manual. As of the date of

publication, all features, descriptions, and illustrations in this manual are correct.

Dis

laim

This manual is intended only as a guide for Antec’s computer enclosures. For more comprehensive

instructions on installing the motherboard and peripherals, please refer to the user’s manuals that

come with those components.

The P193 does not come with a power supply unit (PSU). Make sure you choose a power supply that is

compatible with your computer components and has a long enough power harness to reach your

motherboard and peripheral devices. We recommend our CP Series, TruePower Series or Signature

Series power supplies for the latest ATX specification compliance, broad compatibility, and energy-

saving capability.

Although care has been taken to prevent sharp edges in your Antec case, we strongly recommend

taking the appropriate time and care when working with it. Avoid hurried or careless motions. Please

use reasonable precaution.

This manual is not designed to cover CPU, RAM, or expansion card installation. Please consult the

motherboard manual for specific mounting instructions and troubleshooting. Before proceeding,

check the manual for your CPU cooler to find out if there are steps you must take before installing the

motherboard. While installing hardware, keep your case on a flat, stable surface.

Produktspecifikationer

Varumärke:	Antec
Kategori:	Computerbehuizing
Modell:	193 EU
Vikt:	19600 g
Bredd:	241 mm
Djup:	590 mm
Höjd:	514 mm
Förpackningens bredd:	337 mm
Strömförsörjning:	850 W
Ljudutgång:	Ja
Modell:	PC
Produktens färg:	Svart
Låddjup:	658 mm
Vikt inkl. förpackning:	24500 g
Formfaktor:	Midi Tower
Antal USB 2.0 anslutningar:	2
Ljudanslutning:	Ja
Antal eSATA portar:	1
Som stöds moderkorts formfaktorer:	ATX, EATX, Micro ATX, Mini-ITX
Externa expansionsfack:	4x 5.25", 1x 3.5"
Interna expansionsfack:	6x 3.5"
Ventilationsfläkt:	1x 120mm, 2x 140mm, 1x 200mm
Valfri fläkt:	2x 120mm
