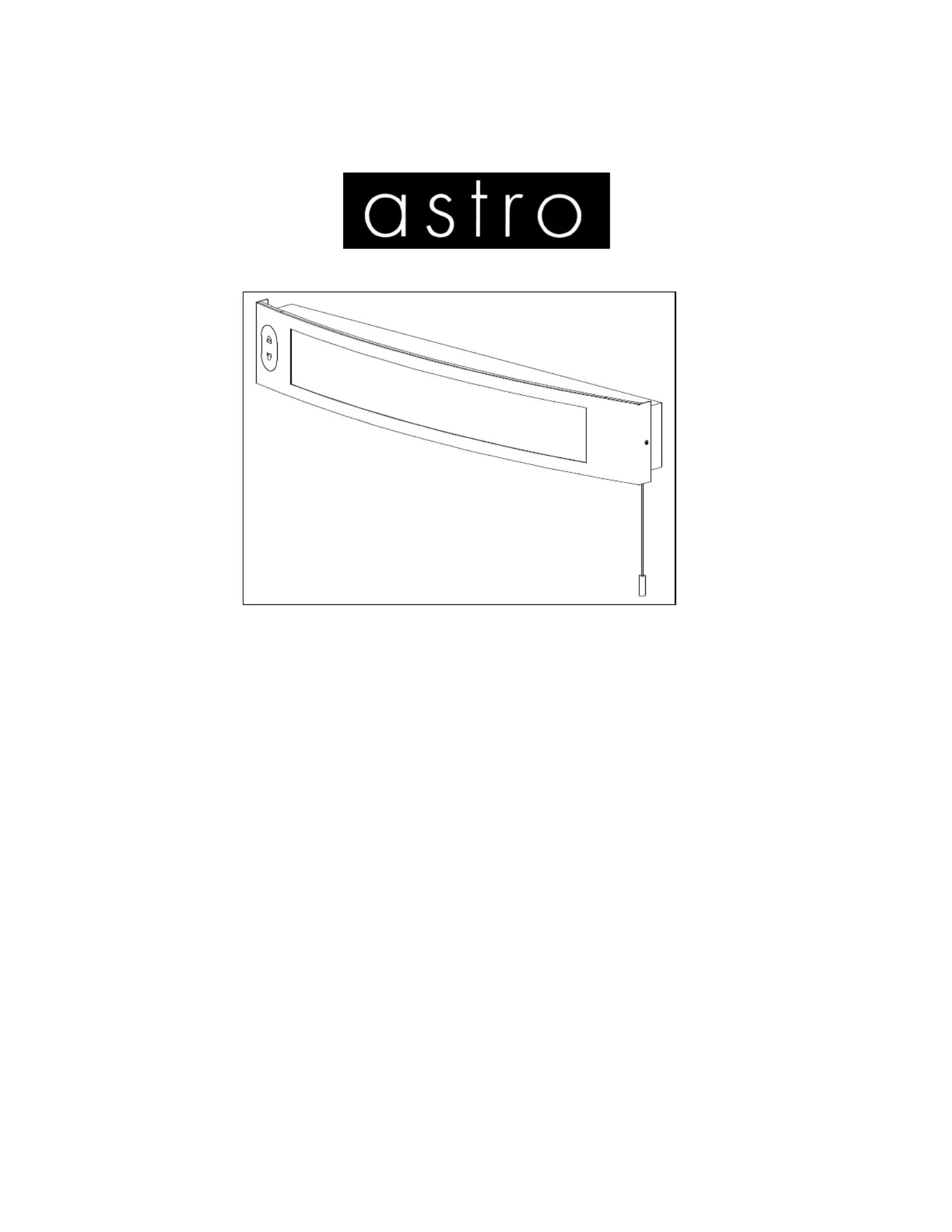

Seville

Shaver Light

INSTALLATION

INSTRUCTIONS

Contents:

• 2 x Screws.

• 2 x Metal Trim fixing screws.

• 1 x White Glass Shade.

• 1 x Polished Metal Trim.

• 1 x Shaver Light Body.

• 1 x Shaver Light Back Cover.

Safety First!

This light fitting should ONLY be fitted to a 5A fused circuit.

It is suitable for INDOOR USE ONLY.

(for products that are double insulated only)

Important

This light fitting is double insulated and must not be earthed. Do not attach any part of it to an earth wire or

terminal.

For use in the Bathroom this light is rated for use in zone 3 only. It must not be placed in zone 1 or 2.

Before Starting

These instructions are provided for your safety. Please read them before commencing work, and keep for

future reference.

Fixing Instructions

The following items are required to install this light fitting:

• Screw driver suitable for a cross- head screw.

• Small electrical drill and insulating tape.

• Pencil.

• 2 x wall plugs (suitable for the type of wall)

Step 1

Warning!

Electricity can be dangerous.

Before commencing installation, isolate the circuit to be used by removing the fuse or circuit

breaker at the consumer distribution unit. Do not just turn off at the wall switch.

We recommend that this fitting is fitted by a qualified electrician.

Installation must be in accordance with I.E.E. regulations.

Do not attempt this work unless you are competent to install electrical wiring.

Step 2

Remove the existing light fitting and ensure there is a joist at the point of fixing to take the weight of the

fitting. Ensure no hidden wires or pipes are in the area the fitting is to be installed.

Step 3

Remove the Metal Trim and the White Glass Shade. Using the Shaver Light Body as a guide, mark the

positions of the fixing holes on the wall adjacent to the supply wiring.

Step 4

Feed the supply cable through the cable entry hole in the Shaver Light Back Cover.

Step 5

Connect the live supply cable (normally red) to the terminal marked L.

Connect the neutral supply cable (normally black) to the terminal marked N.

(for class 2 double insulated product only)

Produktspecifikationer

Varumärke:	Astro
Kategori:	Lampa
Modell:	Seville Shaver
Bredd:	515 mm
Djup:	70 mm
Höjd:	80 mm
Antal lampor:	2 lampor
Lampans livslängd:	- h
Lämplig för inomhusbruk:	Ja
Dimmer:	Nej
Produktens färg:	Black, Silver, White
Antal per förpackning:	1 styck
ljus färg:	Vit
Internationellt skydd (IP) kod:	IP20
Monteringssätt:	Ytmonterad
Lampor:	- W
Fäste/lock:	E14
Lämplig placering:	Badrum
Lampans storlek:	Kronljuslampa
Maximal wattstyrka på ersättningslampa:	40 W
