Sida 1/4
AWMS-RHXB- Page 1 of 4
Technical Specication
AWMS-RHXB-

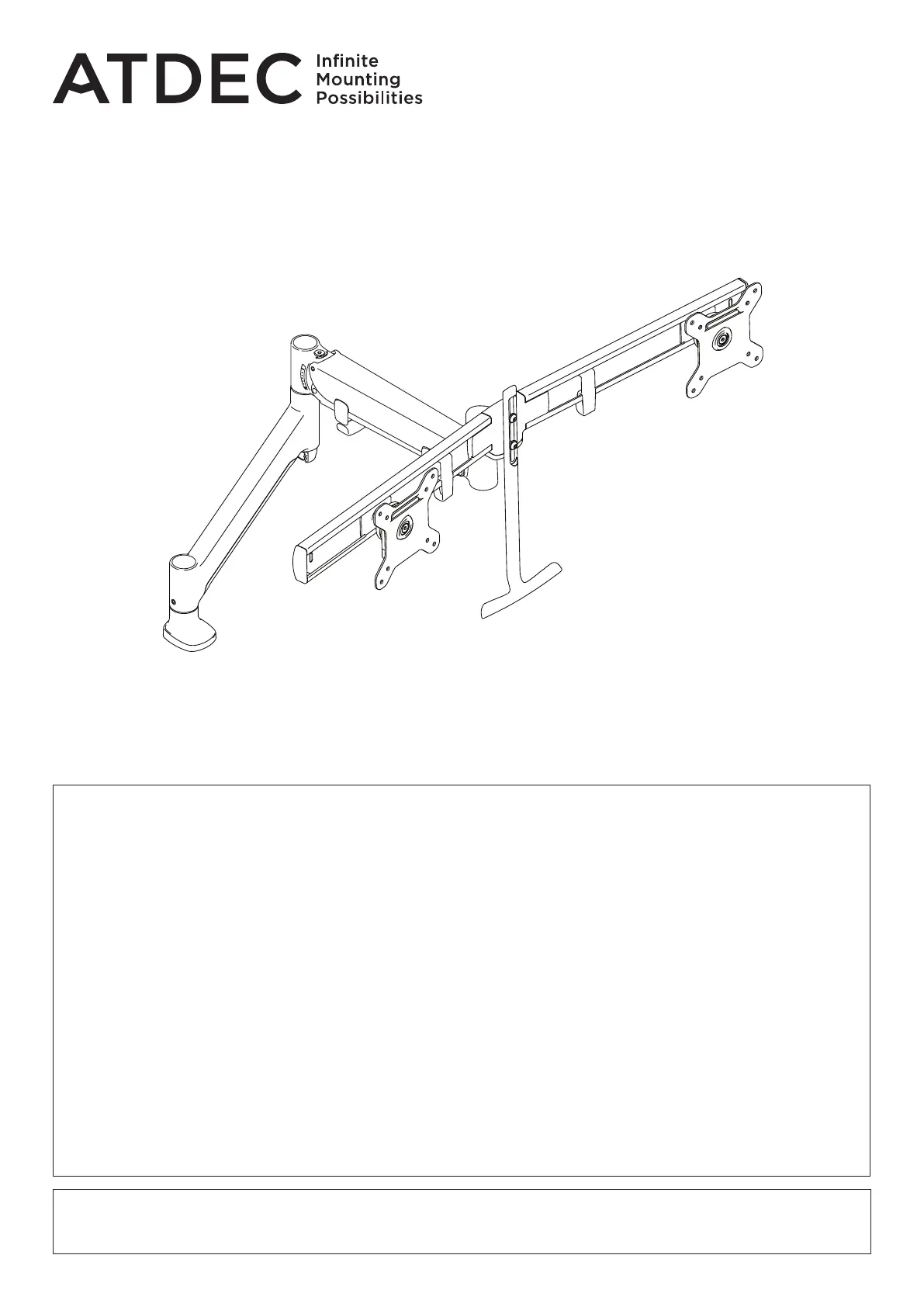

Dual Monitor Mount with Crossbar on HD Dynamic Arm
• Supports two monitors up to 27”.
• Monitor quick release/attachment mechanism.
• Counterbalanced vertical movement.
• Tension gauge makes installation of multiple
arms faster.
• Integrated, optional 180 rotation limiter to °
prevent interference with desk mounted panels
and dividers.
• Cable management with generous capacity,
guides cables discreetly down the arm to the
work surface.
• Optional height adjustable handle for effortless
repositioning (included).
2 - 7kg (4.5 - 15lb)*
Per Monitor
5kg (11lb) max weight difference
444mm (17.48”)
342mm (13.46“)
+/- 20°
360°
+/- 5°
75x75 | 100x100
Monitor weight range
Horizontal adjustment
Vertical adjustment
Tilt angle
Monitor rotation
Levelling adjustment
VESA mounting
FEATURES
*Monitor weight should be within the weight range of all modular
elements that make up the complete monitor mounting solution.
*Curved monitors, deep devices (such as all-in-one PCs) and offset
VESA locations exert additional leverage that can exceed the
capacity of the mount even though the monitor weight may be within
the stated range. Please contact Atdec if you would like further
information.
WARRANTY
10 years limited
AWMS-RHXB- Page 2 of 4
Joint movement
360°/180°
Joint movement
360°
Pan movement
360°
342mm (13.46”)
Dynamic vertical
adjustment
Landscape
to portrait
rotation
90mm (3.54”)
Handle height
adjustment
230mm (9.06”)
Horizontal
alignment
per monitor
+/- 20°
Monitor
tilt
Pan movement
360°
Note: Handle is an optional
accessory that comes with
the product. It does not
need to be fitted.
MOVEMENT - HEAVY DUTY DYNAMIC ARM
MOVEMENT - DUAL CROSSBAR
+/- 5°
crossbar levelling
adjustment
AWMS-RHXB- Page 3 of 4
33mm†
(1.3”)
†Mounted
on AWM-FH
Grommet
Clamp C Clamp
54mm
(2.13”)
54mm
(2.13”)
Heavy Duty
F Clamp
57mm
(2.24”)
Desk Base Mount
Dimension dependent
on chosen fixing
(AWM-FH shown).
564mm
(22.2”)
444mm
(17.48”)
635mm
(25”)
176mm
(6.93”)
518mm
(20.39”)
342mm
(13.46”)
DIMENSIONS
MAX 670mm
(26.38”)
MAX 670mm
(26.38”)
800mm
(31.5”)
670mm
(26.38”)
284mm
(11.18”)
194mm
(7.64”)
120mm
(4.72”)
120mm
(4.72”)
120mm
(4.72”)
53mm
(2.09”)
0-20°
Cockpit Angle
(per monitor)
Holes suit
standard 75x75
and 100x100
VESA mounting
Top View
Front View
DIMENSIONS - DUAL CROSSBAR
